Overview

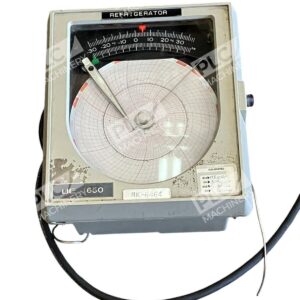

The United Electric 650 chart recorder is a mechanical strip-chart instrument designed for continuous temperature data acquisition and logging. The UE 650, including the MK-6464 T650-M002C-14BS configuration, has been a standard in industrial facilities for decades due to its simplicity, reliability, and ease of installation. This circular-chart recorder captures temperature trends on replaceable paper charts, providing a permanent record of facility conditions without requiring electrical connectivity to a control system or computer network.
Key Features
- Circular 24-hour or continuous chart design for uninterrupted temperature logging
- Direct mechanical operation—no software or calibration settings required
- Thermal pen or ink-jet marking mechanism for clear, permanent data recording
- Wall-mounted compact frame fitting standard electrical enclosure cutouts
- Wide temperature range coverage (typically 50°F to 650°F depending on probe configuration)
- Compatible with standard thermocouple or resistance temperature detector (RTD) inputs
Technical Specifications
Specifications for the UE 650 MK-6464 T650-M002C-14BS are based on standard United Electric 650 recorder configurations:
- Product Family: United Electric 650 Temperature Chart Recorder
- Model Designation: MK-6464
- Full Part Number: T650-M002C-14BS
- Chart Type: Circular 24-hour
- Display Size: 8 inches diameter (typical)
- Temperature Range: 50–650°F (configurable by probe type)
- Input Type: Thermocouple or RTD sensor
- Power Supply: 230 VAC standard (verify per order documents)
- Marking Method: Thermal or ink-jet pen
- Chart Speed: 24-hour continuous rotation
- Installation: Wall-mount with standard bracket hardware
- Enclosure Rating: NEMA 4X (stainless steel available)
- Dimensions: Approximately 8 in. W × 8 in. H × 5 in. D
Typical Applications
The United Electric 650 recorder is widely deployed in regulated and non-regulated industries where continuous temperature documentation is required:
- Pharmaceutical manufacturing and storage facilities
- Food processing and cold-chain logistics
- HVAC system monitoring and validation
- Laboratory and cleanroom environmental control
- Industrial process heating and cooling systems
- Walk-in freezer and refrigeration units
Compatibility & Replacements
Compatible With
- Standard Type J, K, or T thermocouple inputs
- 100 Ohm Platinum (Pt100) RTD sensors
- Existing NEMA 4X stainless steel control panels and enclosures
- Replacement chart rolls and thermal pens (widely available through supply vendors)
- Standard 230 VAC industrial power distribution
Replaces / Drop-In Replacement For
The MK-6464 T650-M002C-14BS is a direct replacement for earlier United Electric 650 recorder variants. Verify mounting bracket and probe connector compatibility with your system integrator before ordering to ensure proper installation.
Works With
- No software or integration required—operates as a standalone mechanical instrument
- Compatible with existing thermocouple and RTD wiring infrastructure
- Works independently or alongside modern digital data loggers and SCADA systems
- Does not require studio software, firmware updates, or controller connectivity
