Overview

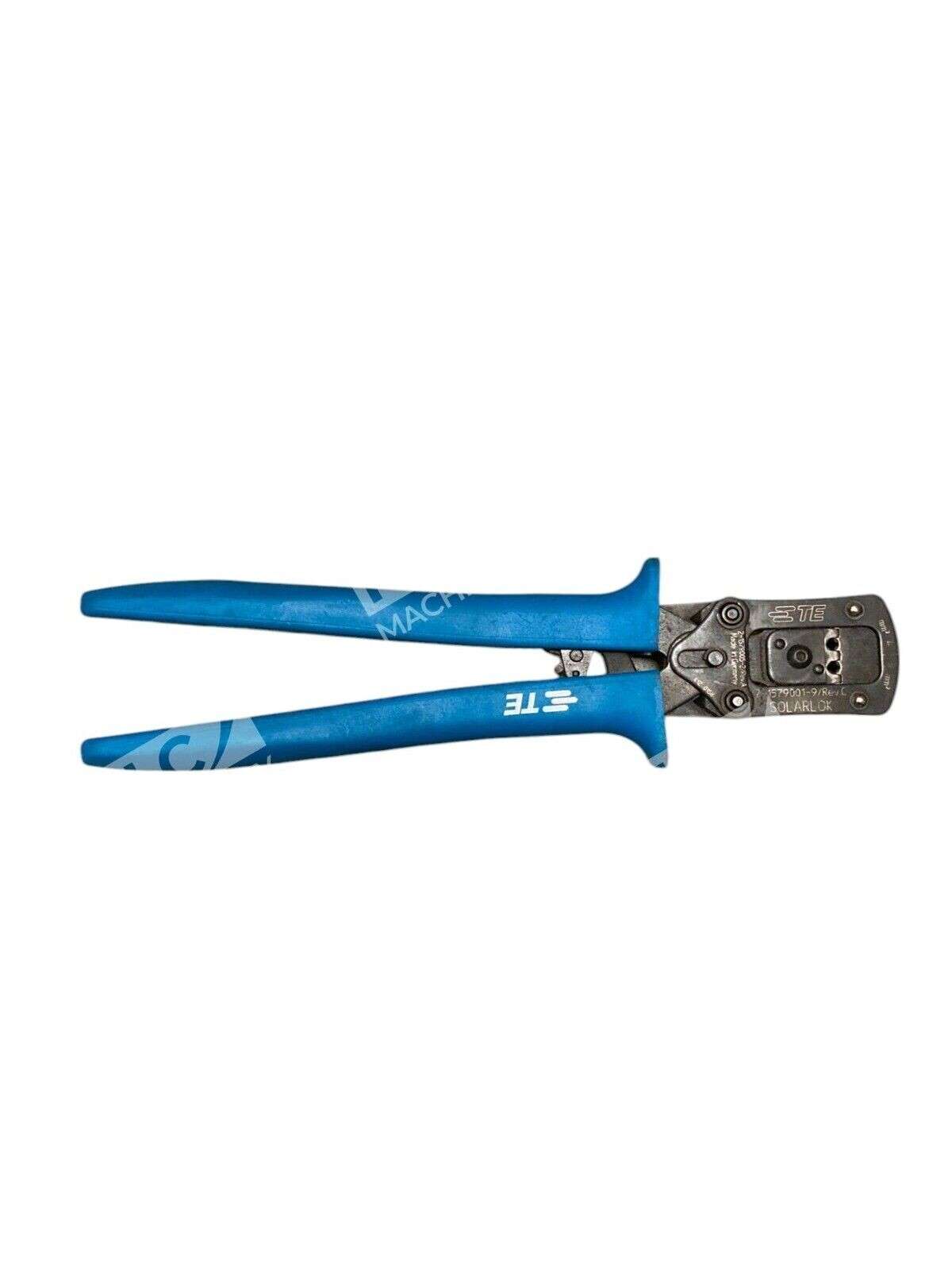

The TE Connectivity 2-1579005-2 Solarlok Crimp Tool (revision 7-1579001-9/Rev.C) is a specialized hand tool designed for crimping Solarlok connectors, which are widely used in solar PV systems and other high-reliability interconnection applications. Only cables released by TE Connectivity are permitted for use with Solarlok components, ensuring system integrity and performance. This tool delivers the precision necessary for professional installations where connector reliability is critical.
Key Features
- High-precision ratchet mechanism for complete crimps with minimal hand effort
- Parallel jaws for even crimps and interchangeable high-precision crimping die set
- Designed for both male and female Solarlok contacts
- Spring-loaded action prevents under-crimping and ensures repeatable results
- Compact, ergonomic hand tool suitable for field and workshop use
Technical Specifications
- Manufacturer: TE Connectivity (formerly Tyco Electronics)
- Part Number: 2-1579005-2
- Revision: 7-1579001-9/Rev.C
- Application: Solarlok PV connectors
- Ratchet Type: Self-locking ratchet mechanism
- Material: Hardened steel with protective handles
Typical Applications
- Photovoltaic (PV) system installations requiring Solarlok connectors
- High-reliability aerospace and industrial interconnect applications
- Marine and outdoor electrical installations
- Renewable energy equipment assembly and maintenance
- Field service and connector repair in commercial solar installations
Compatibility & Replacements
Compatible With
- Wire sizes 4 mm and 6 mm (AWG 12 and AWG 10)
- TE Connectivity Solarlok socket and pin contacts
- Solarlok PV4, CSV10, and related Solarlok series connectors
- TE-approved cable assemblies for Solarlok systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or TE Connectivity technical support before ordering, as specific replacement models depend on your application revision and wire gauge requirements.
Works With
- TE Connectivity Solarlok Interconnection System
- Tyco Electronics solar connector kits
- Rennsteig and other compatible Solarlok crimp tools as backup or spare
- TE application specifications and installation manuals (reference TE-PN 114-94061)
