Overview

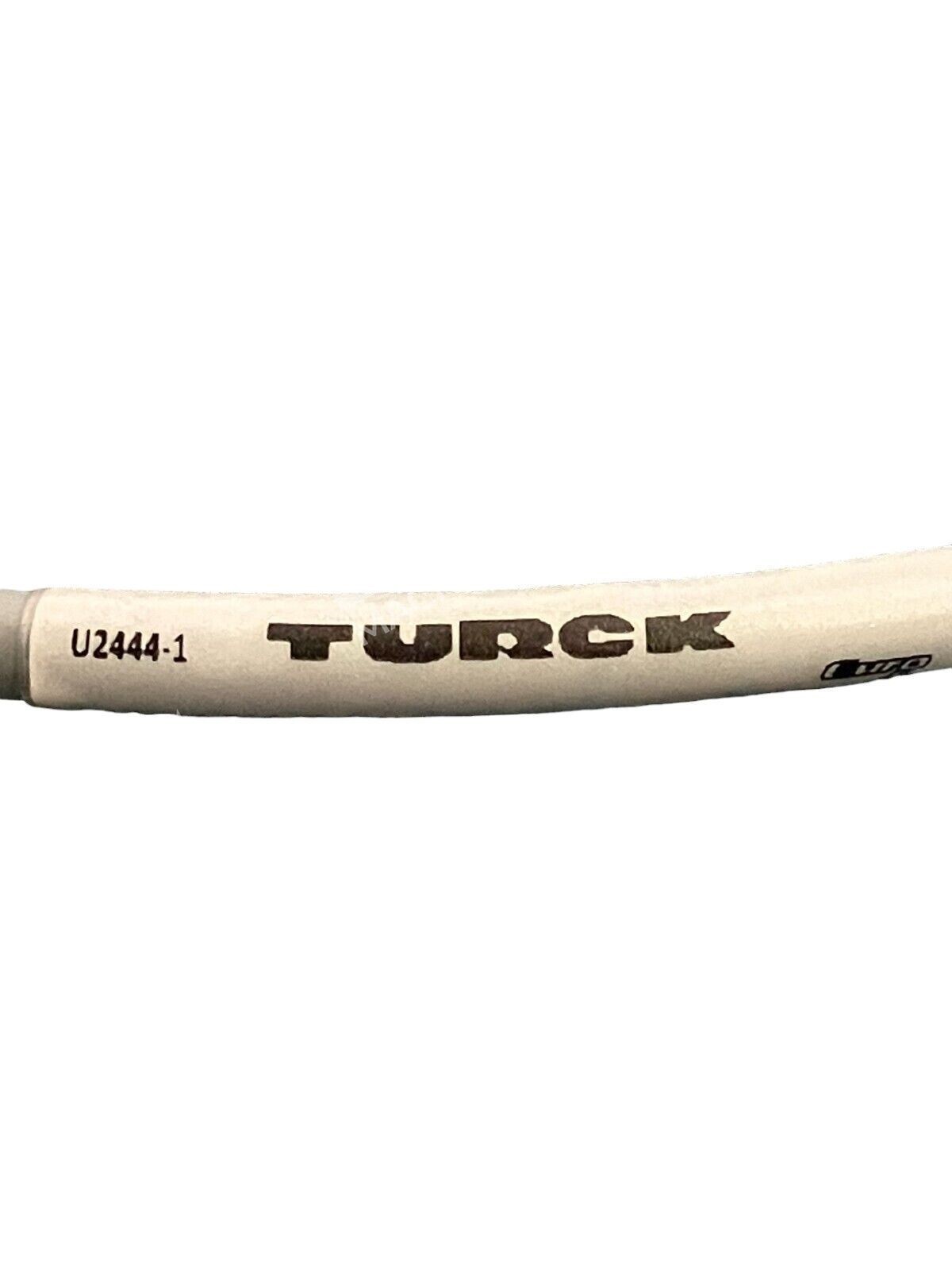

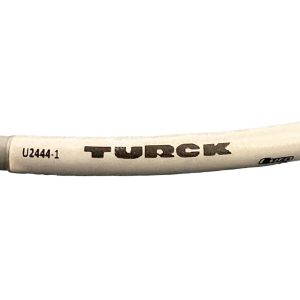

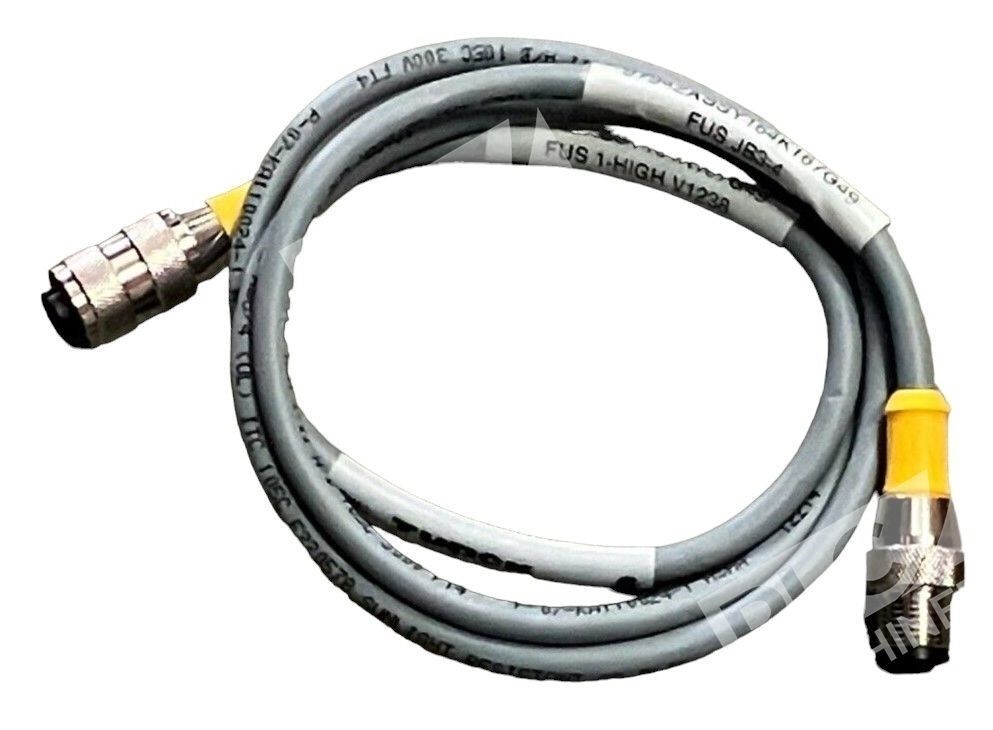

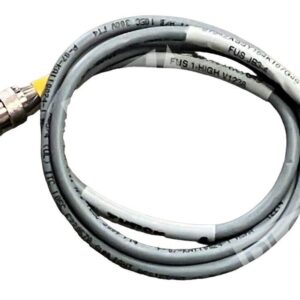

The Turck U2444-1 cable assembly is a double-ended M12 extension cable designed for industrial sensor and actuator applications. This cable features a female M12 × 1 connector on one end and a male M12 × 1 connector on the other, both in A-code configuration with 4 pins each. Built to IEC 61076-2-101 standards, the Turck U2444-1 provides reliable connectivity for legacy and modern automation systems requiring M12 cordsets.
Key Features
- M12 × 1 female and male straight connectors (A-code, 4-pin)
- Gray PVC jacket, 4 × 22 AWG conductors for signal-grade applications
- Sunlight resistant and oil resistant for outdoor or harsh industrial environments
- –40°C cold bend rating for low-temperature flexibility
- UL 1685 FT4, UL 1061, and CSA FT4 flame ratings for safety compliance
- IEC 61076-2-101 compliant connectors and contacts
Technical Specifications
- Model: RK 4.4T-1-RS 4.4T
- Identification Number: U2444-1

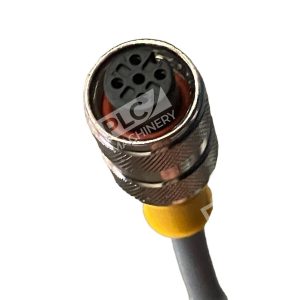

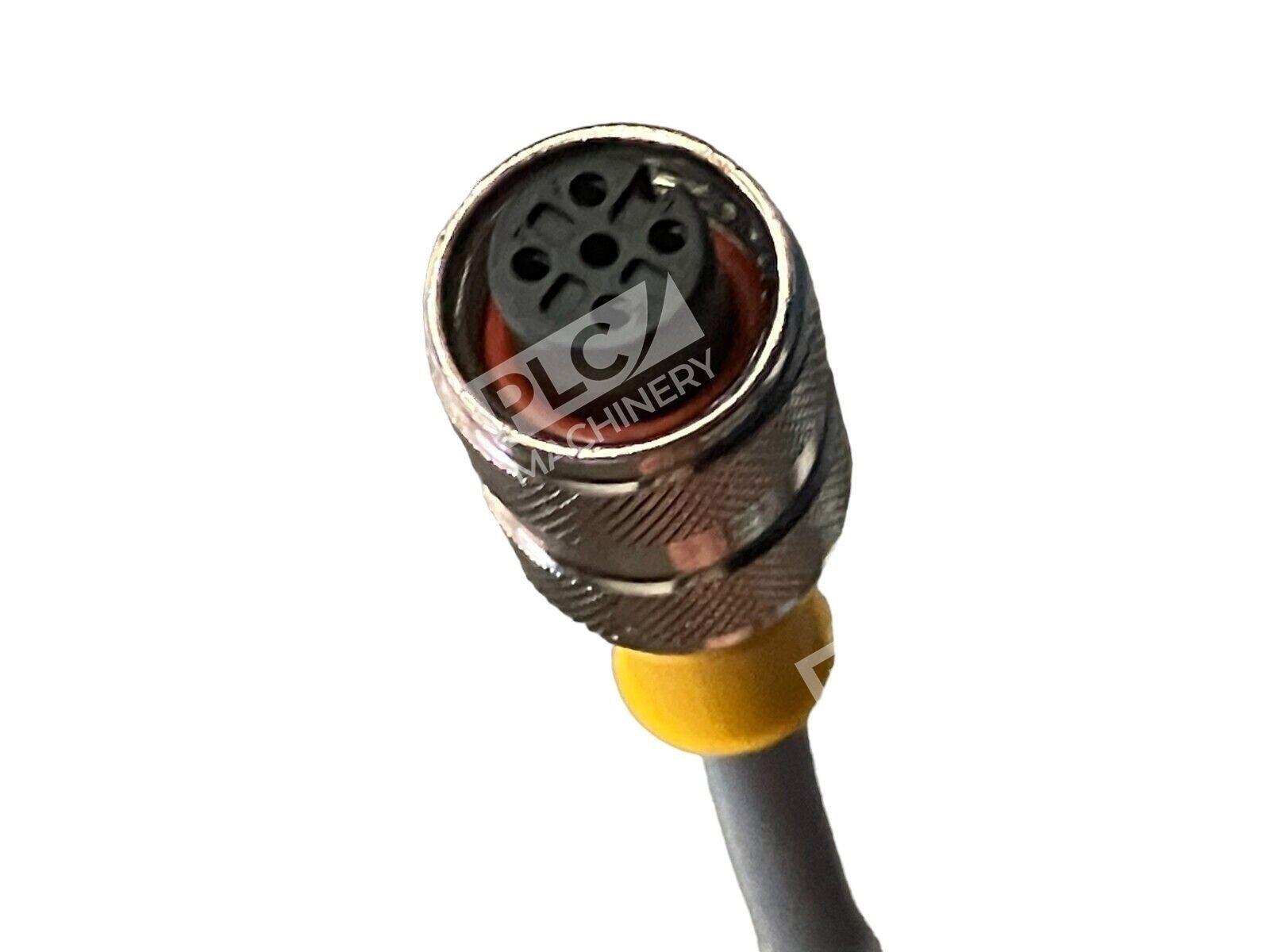

- Connector A: M12 × 1, Female, Straight, A-code, 4-pin

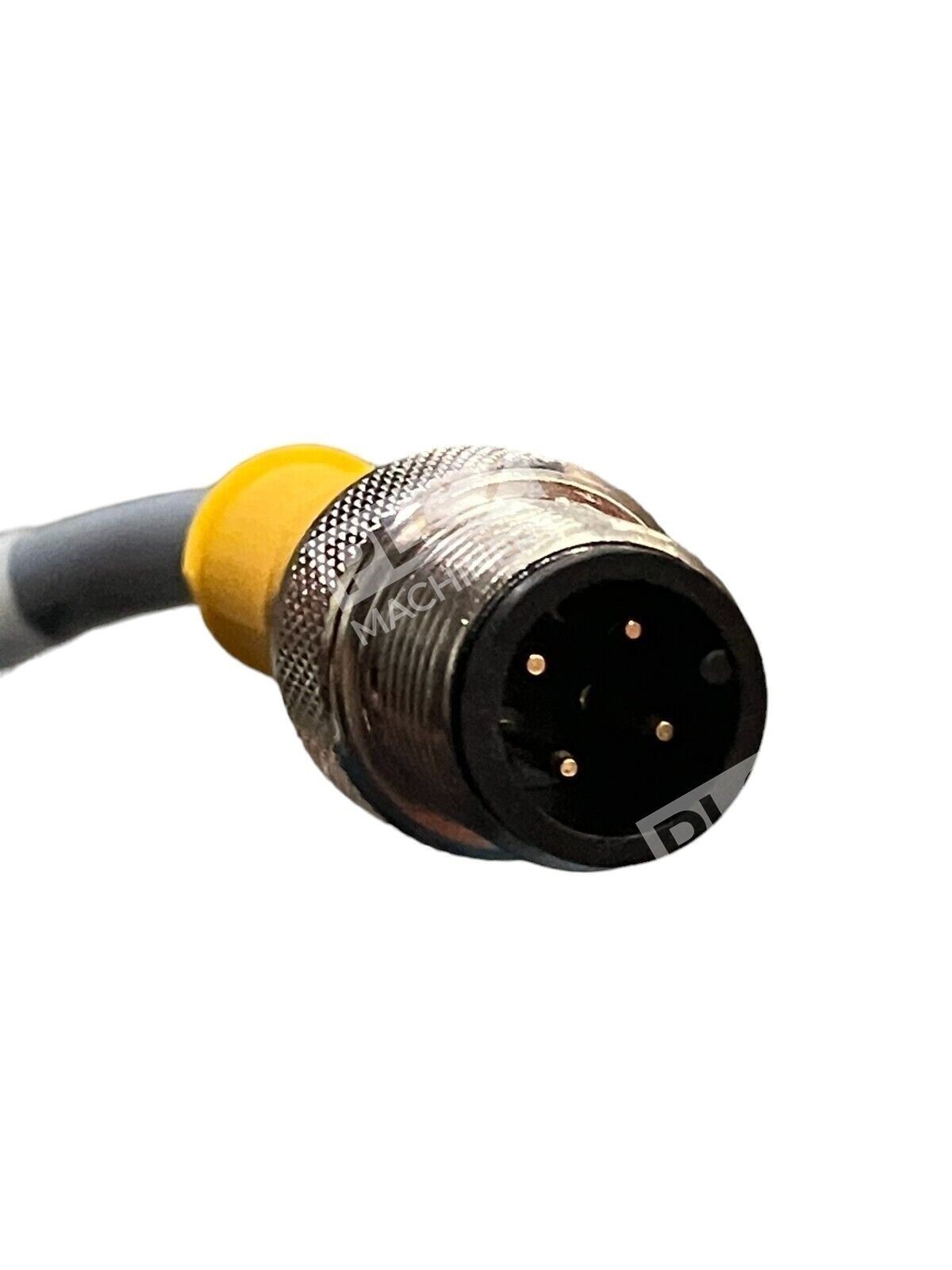

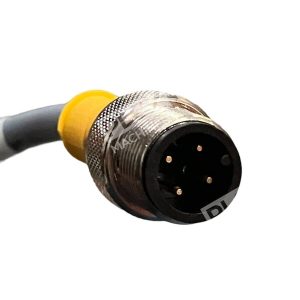

- Connector B: M12 × 1, Male, Straight, A-code, 4-pin
- Conductor Gauge: 22 AWG
- Number of Conductors: 4
- Cable Jacket: Gray PVC
- Contact Material: Brass (CuZn), gold-plated
- Operating Temperature: –40°C to +80°C
- Flame Rating: UL 1685 FT4, UL 1061, CSA FT4
- Standards Compliance: IEC 61076-2-101, UL 2238, CSA C22.2
- Environmental Features: Sunlight resistant, oil resistant
- Cold Bend Rating: –40°C
Typical Applications
The Turck U2444-1 extension cable is commonly used in:
- Sensor and actuator extension connections in manufacturing and process automation
- Industrial robots and collaborative robot (cobot) sensor integration
- Outdoor manufacturing facilities and exposed-environment control systems
- Oil and chemical plant instrumentation where chemical resistance is required
- Food and beverage production lines with washdown requirements
- Machine tool automation and CNC connectivity
Compatibility & Replacements
Compatible With
- Turck M12 A-code actuators and sensors
- Any industrial device with M12 × 1 female connectors (A-coding)
- Turck TLE series proximity sensors
- Turck TBEN industrial Ethernet gateways
- Standard industrial automation control systems using M12 connectors
Replaces / Drop-In Replacement For
The Turck U2444-1 is the OEM replacement cable for the RK 4.4T-1-RS 4.4T model. Verify compatibility with your system integrator before ordering if substituting for cables from other manufacturers.
Works With
- Industrial sensor networks with M12 connectors
- Turck IO-Link and standard 4-20 mA signal applications
- Discrete sensor and solenoid valve circuits
- Any ISO 11593 M12 connector ecosystem
- PLC, PAC, and HMI sensor input modules supporting M12 connectors
