Overview

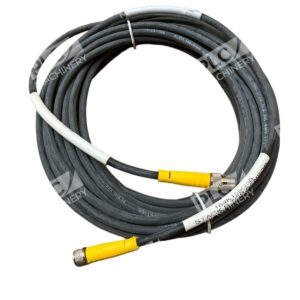

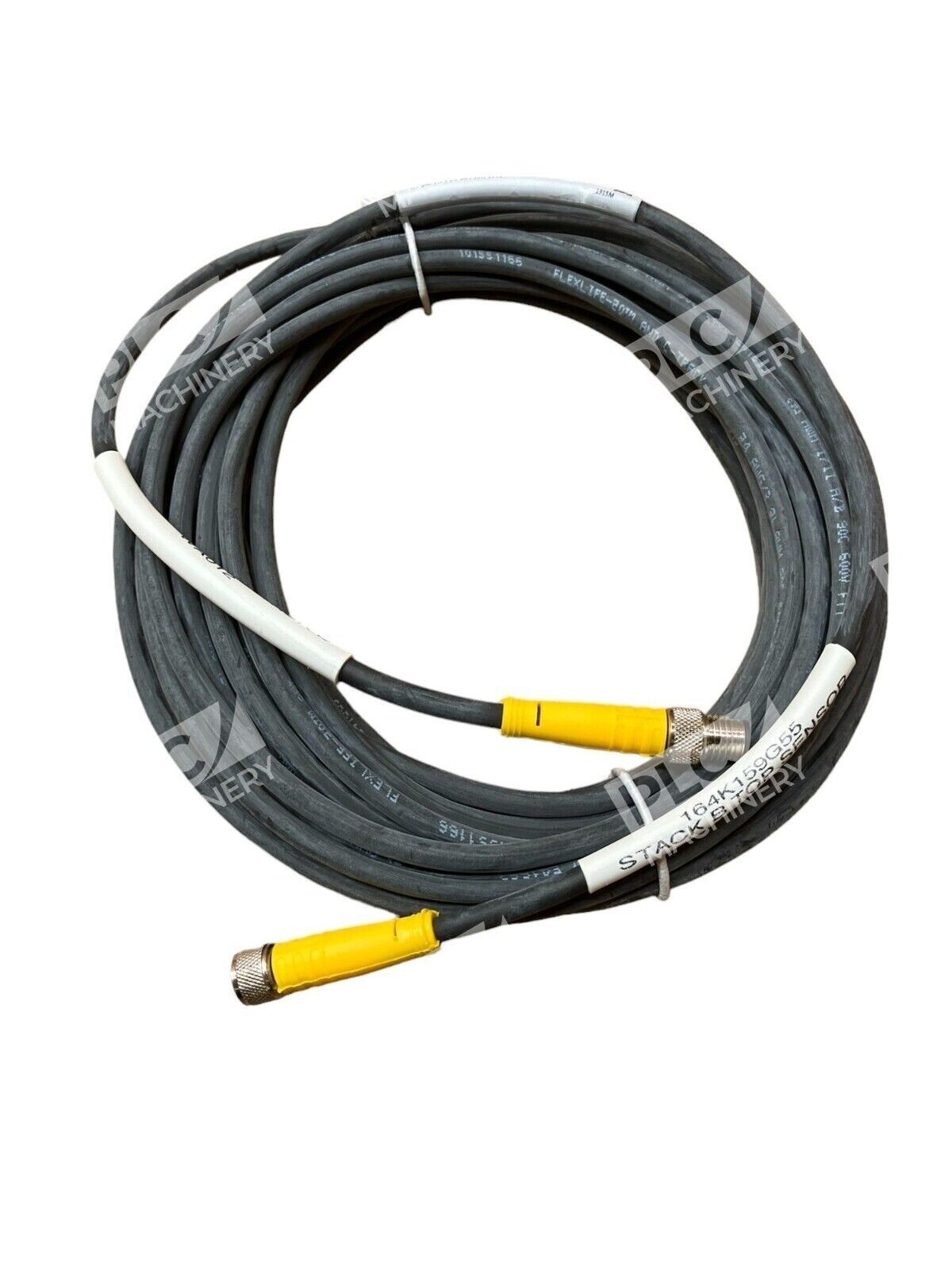

The Turck PKG 3M-7.6-PSG 3M/S90/S101 is a professional-grade double-ended cordset from Turck’s PicoFast series. This 7.6-meter extension cable features 3-pin M8 connectors at each end—female on one side, male on the other—providing a straightforward sensor-to-actuator or device-to-device interconnection for factory automation, machine control, and industrial I/O applications.
Key Features
- Double-ended M8 connectors: 3-pin M8 picofast female and male connectors with M8x1 threaded coupling nuts
- Extended 7.6-meter cable length: Ideal for point-to-point runs in larger machine enclosures or distributed control layouts
- Industrial-grade jacket: TPU jacket with nickel-plated brass coupling nuts for cut and abrasion resistance
- Electrical rating: 3 x 24AWG wires, 125Vac rated voltage, 4A rated current
- Rugged enclosure rating: IP67 / NEMA 1 / NEMA 3 / NEMA 4 / NEMA 6P
Technical Specifications
- Manufacturer: Turck

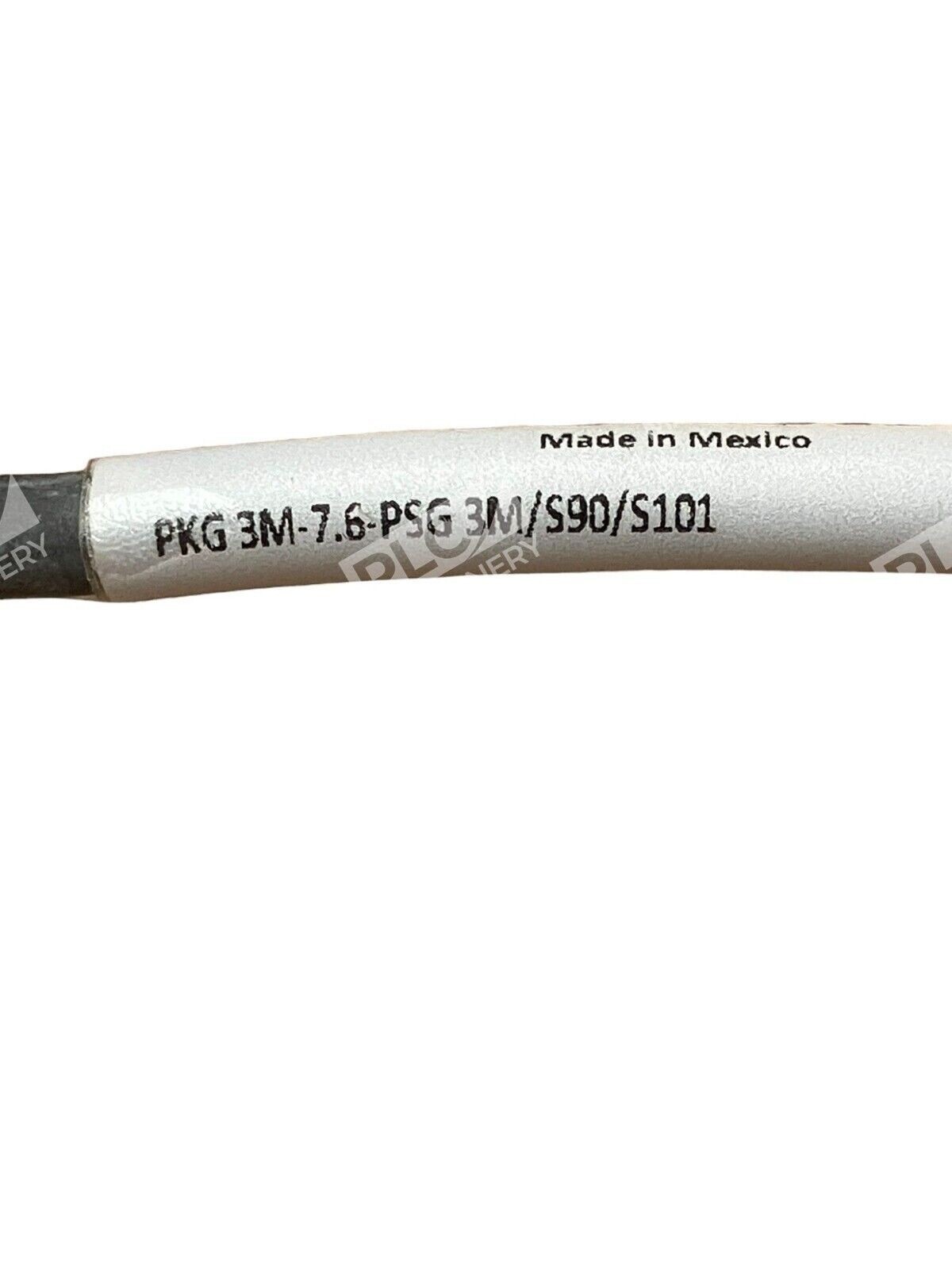

- Part Number: PKG 3M-7.6-PSG 3M/S90/S101
- Cable Length: 7.6 m (24.9 ft)

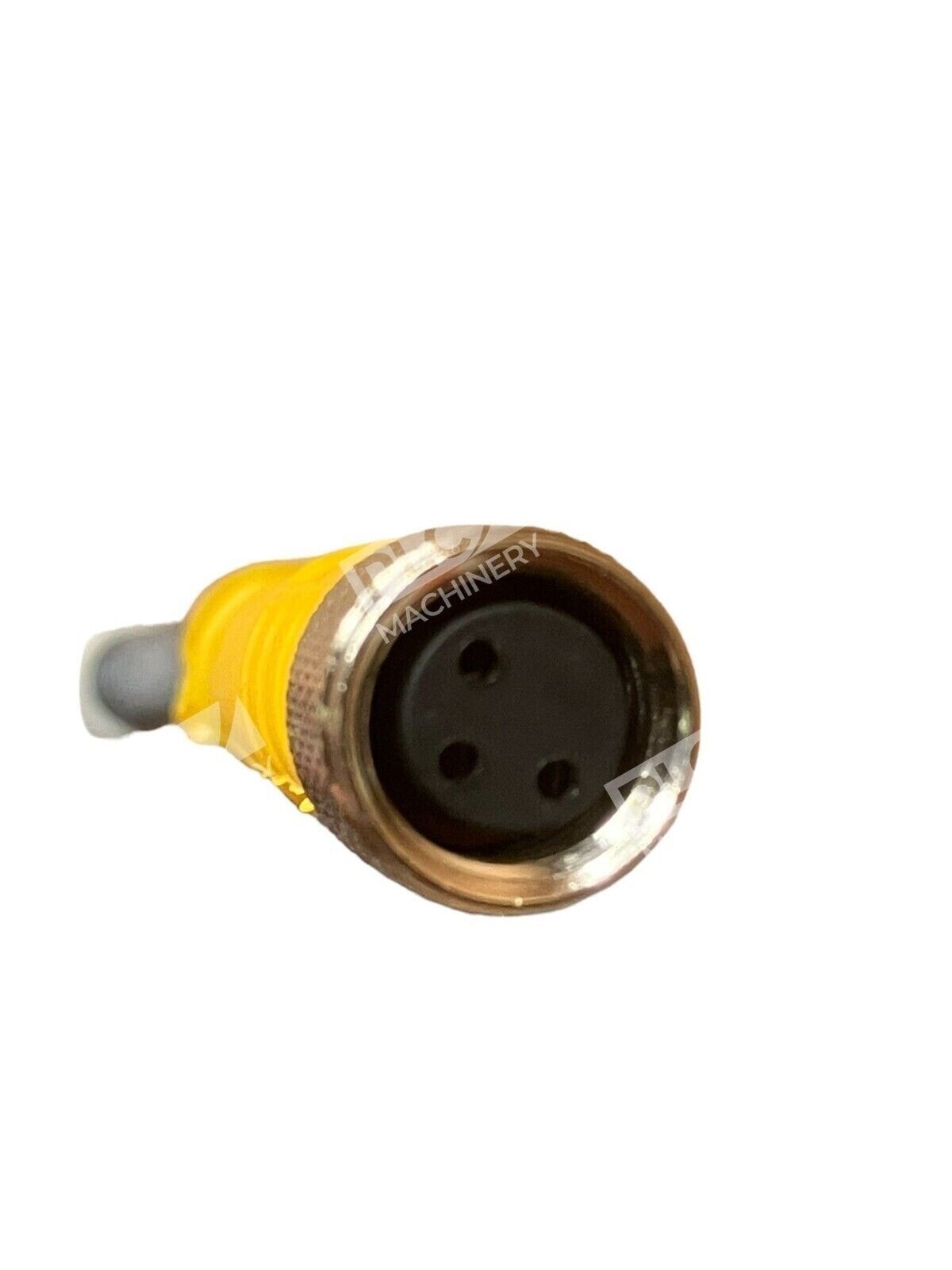

- Connector Type (End 1): 3-pin M8 female PicoFast, straight

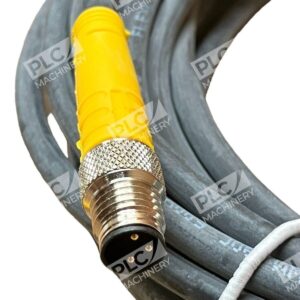

- Connector Type (End 2): 3-pin M8 male PicoFast, straight
- Wire Gauge: 3 × 24 AWG
- Jacket Material: TPU (thermoplastic polyurethane)
- Rated Voltage: 125 Vac
- Rated Current: 4 A
- Coupling: Nickel-plated brass, M8×1 threaded
- Ingress Protection: IP67
- NEMA Rating: NEMA 1, 3, 4, 6P
- Series: PicoFast
Typical Applications
Turck PicoFast cordsets are commonly deployed in:
- Proximity sensor and inductive switch interconnection
- Photoelectric sensor connections
- Limit switch and safety gate switch wiring
- Actuator and solenoid valve signal lines
- Machine tool and factory automation control networks
- Panel-to-field device wiring in distributed I/O systems
Compatibility & Replacements
Compatible With
- Turck M8 PicoFast receptacles and connectors
- Industrial sensor and actuator devices with M8 threaded connectors
- Turck TN series remote I/O terminals and sensor terminals
- Standard M8×1 threaded female and male connector devices
Replaces / Drop-In Replacement For
- PKG 3M-7.6-PSG 3M/S90/S101 (exact manufacturer designation)
- Equivalent cross-references: PKG3M-7.6-PSG3M/S90/S101, PKG-3M-7.6-PSG-3M/S90/S101
Works With
- Turck PicoFast ecosystem and accessories
- M8 threaded connector devices from OEM equipment suppliers
- Industrial control systems requiring IP67-rated sensor I/O connectivity
- Turk mounting clips and cable management hardware
