<h2>Overview</h2>

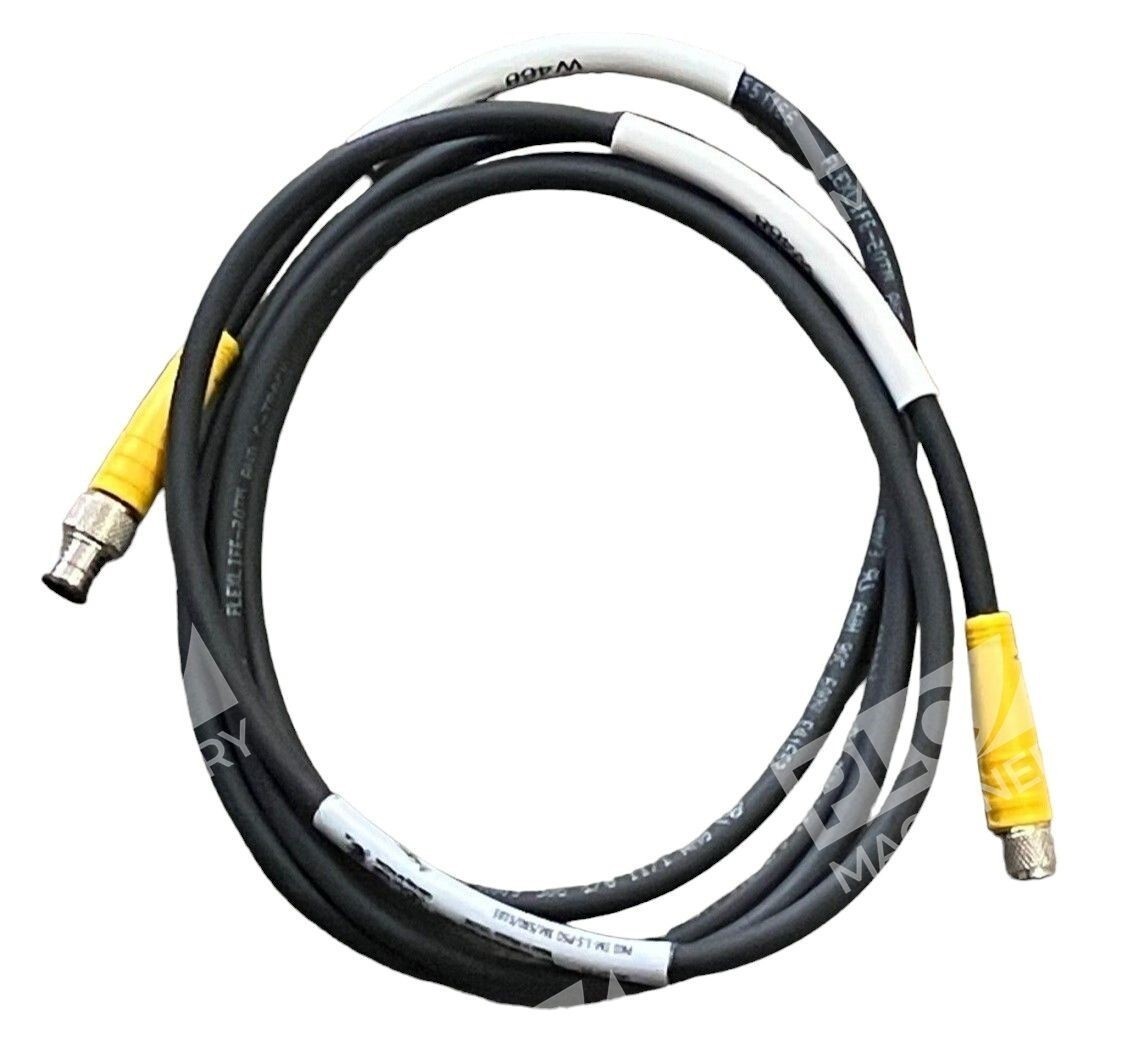

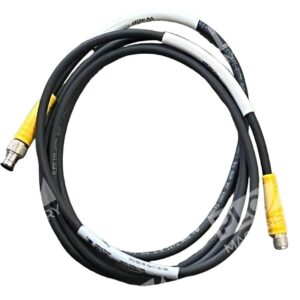

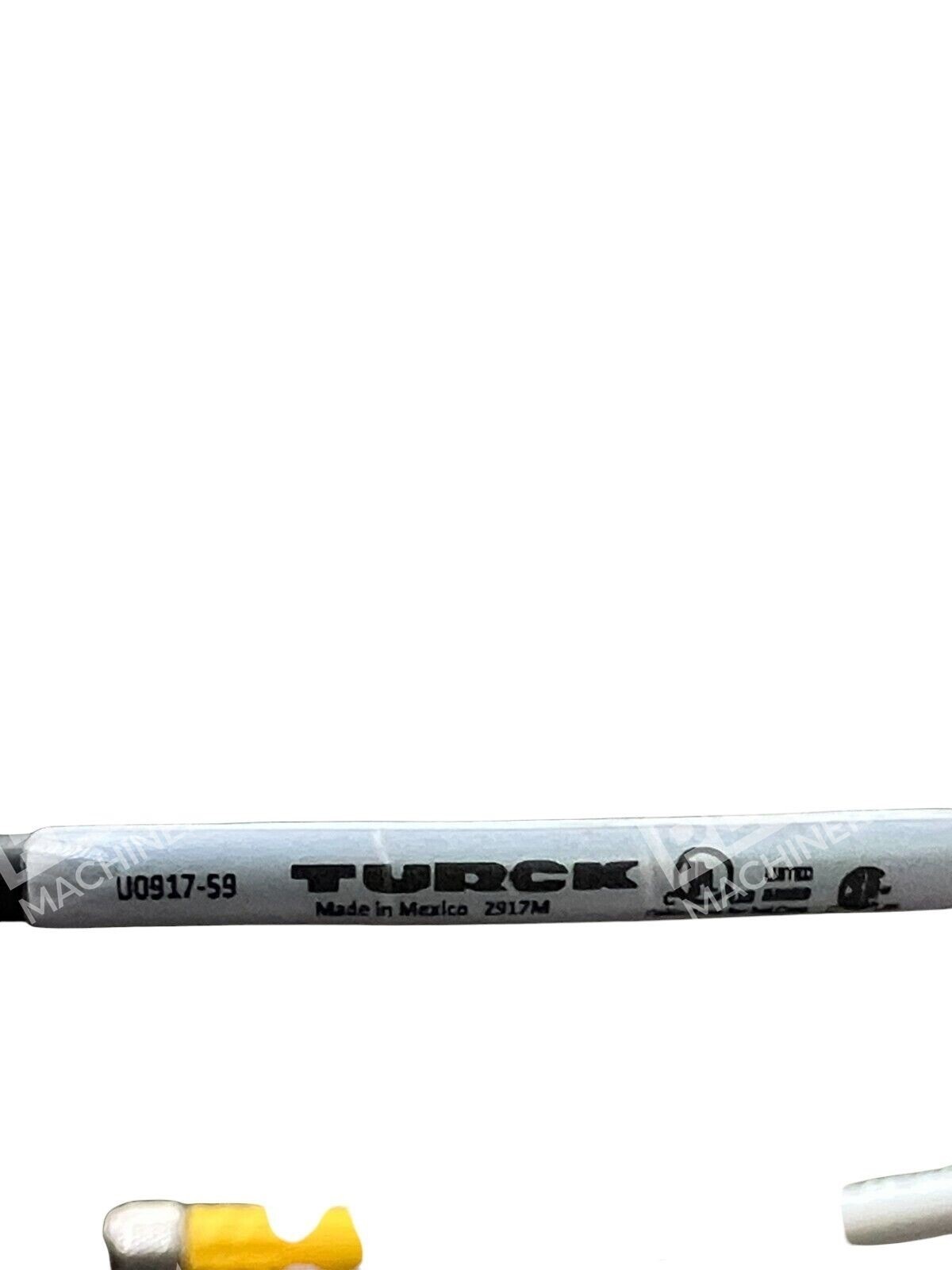

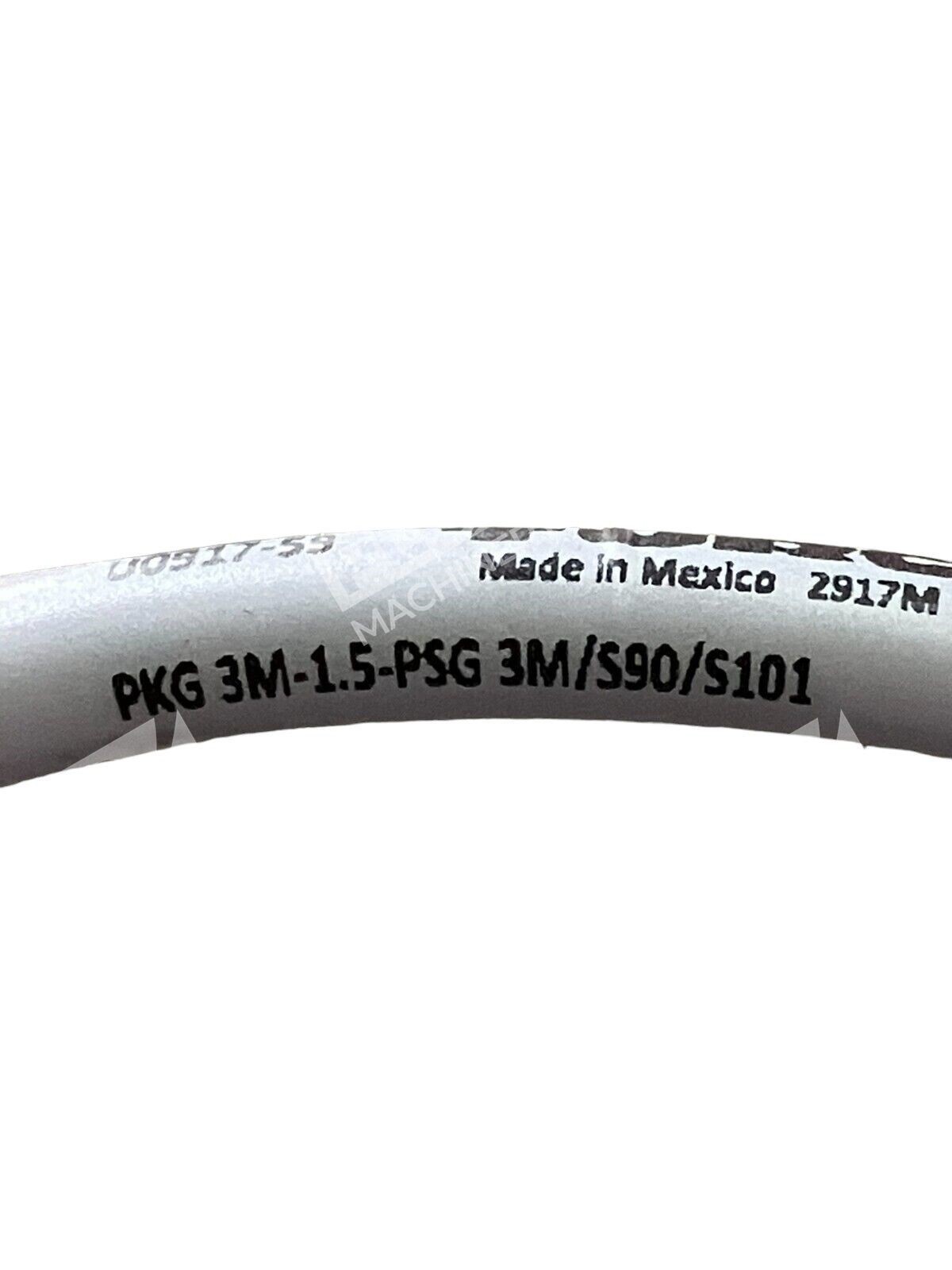

<p>The <strong>Turck PKG 3M-1.5-PSG 3M/S90/S101</strong> is an industrial-grade actuator and sensor extension cable designed for reliable signal transmission in harsh automation environments. This double-ended cordset features a female M8×1 connector on one end and a male M8×1 connector on the other, delivering robust connectivity for sensors, actuators, and fieldbus devices. The 1.5-meter length provides flexible routing in panel-mounted and machine-embedded applications.</p>
<h2>Key Features</h2>
<ul>
<li>Double-ended M8 cordset with 3-pin straight connectors (female and male)</li>
<li>TPU cable jacket rated for cut and abrasion resistance</li>
<li>IP67 protection rating (NEMA 1, 3, 4, 6P) when properly coupled</li>
<li>Flexlife®-approved high-flex cable with superior bendability</li>
<li>-40°C cold bend rating for low-temperature operation</li>
<li>UL1061 and CSA FT1 flame certification</li>
</ul>
<h2>Technical Specifications</h2>
<p>The cable assembly meets IEC 61076-2-104 design standards and supports continuous industrial automation duty cycles.</p>
<ul>
<li><strong>Cable Length:</strong> 1.5 m (59 inches)</li>

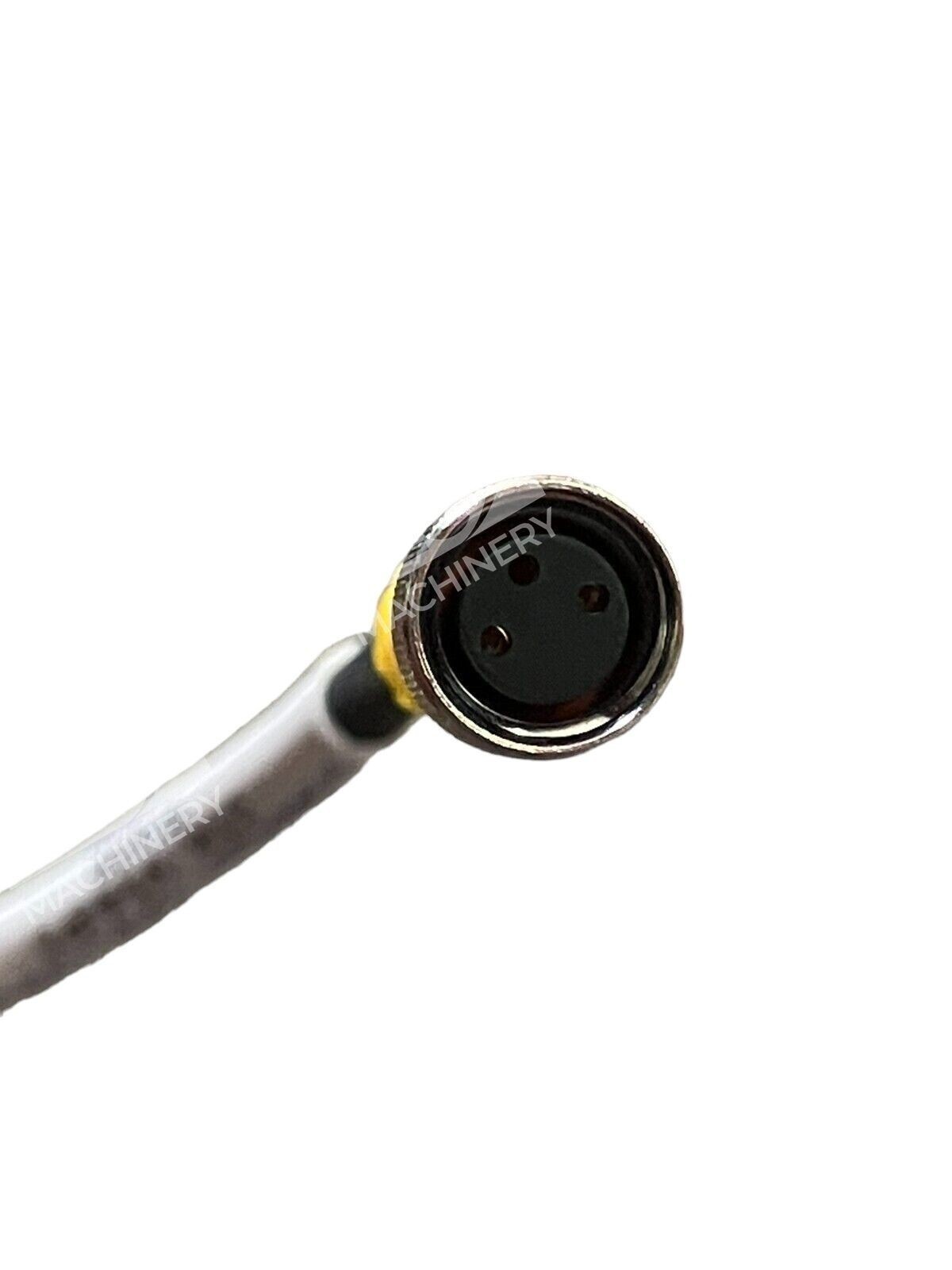

<li><strong>Connector A (End 1):</strong> M8×1 threaded female, straight 3-pin</li>

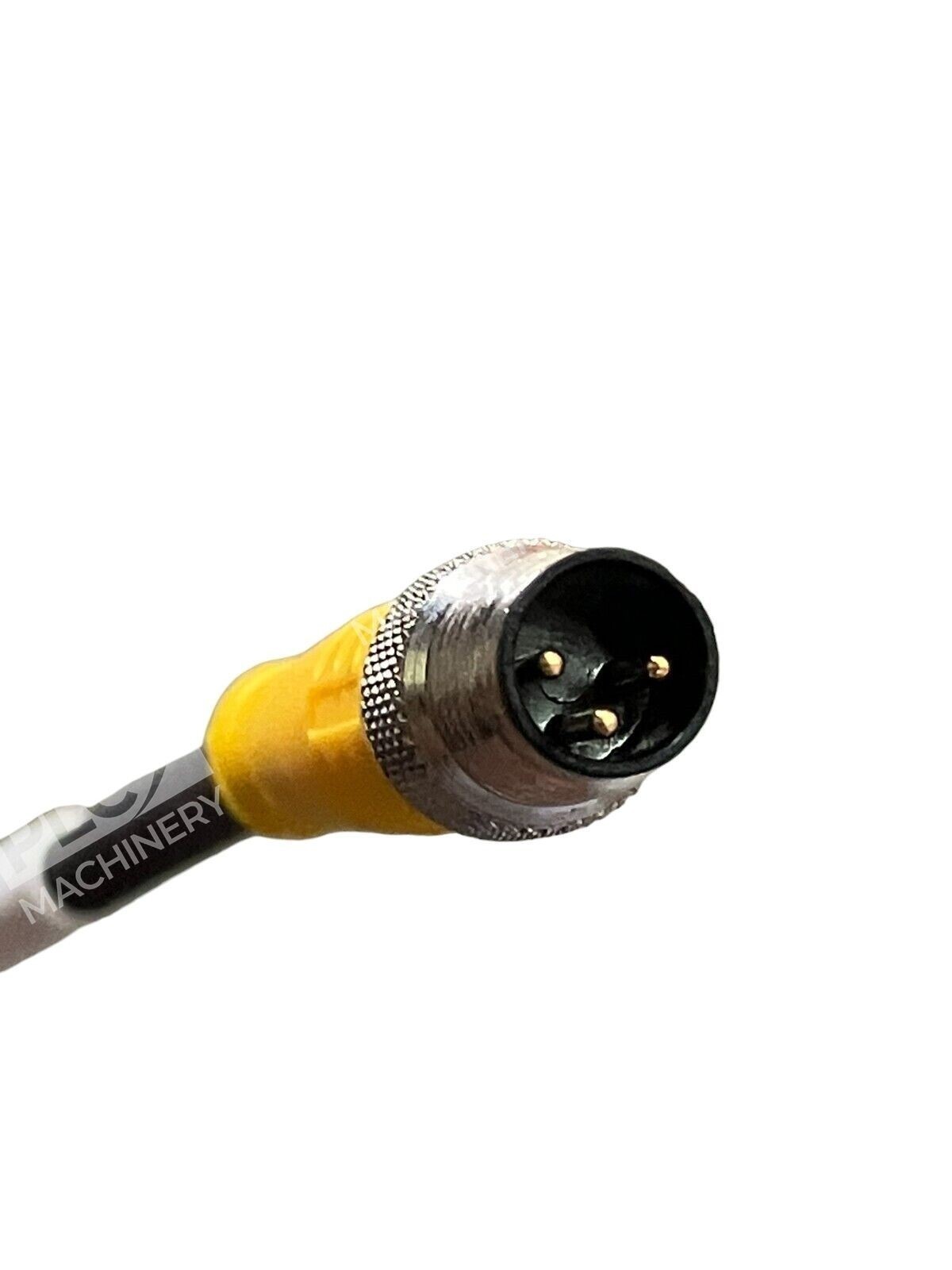

<li><strong>Connector B (End 2):</strong> M8×1 threaded male, straight 3-pin</li>
<li><strong>Wire Gauge:</strong> 3× #24 AWG</li>
<li><strong>Jacket Material:</strong> TPU (thermoplastic polyurethane), black sheath</li>
<li><strong>Contact Material:</strong> Gold-plated brass (CuZn)</li>
<li><strong>Coupling Nut:</strong> Nickel-plated brass</li>
<li><strong>Protection Class:</strong> IP67 (when coupled)</li>
<li><strong>NEMA Rating:</strong> NEMA 1, 3, 4, 6P</li>
<li><strong>Operating Temperature:</strong> -40°C to +80°C</li>
<li><strong>Tightening Torque:</strong> 0.4–0.8 Nm</li>
<li><strong>Mechanical Life:</strong> >100 mating cycles</li>
<li><strong>Certifications:</strong> UL 2238, CSA C22.2, UL1061, CSA FT1, Flexlife® Approved, C-Track Approved</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Sensor-to-PLC extension cables in control cabinets and distributed I/O systems</li>
<li>Actuator signal extension in machine tool and robotics applications</li>
<li>Fieldbus connectivity for IO-Link and analog sensor arrays</li>
<li>Food & beverage, pharmaceutical, and automotive manufacturing environments</li>
<li>Washdown and wet-environment installations requiring IP67 sealing</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Any M8×1 straight 3-pin sensor or actuator connector (ISO IEC 61076-2-104)</li>
<li>Turck TID IO-Link and analog pressure/position transducers</li>
<li>SICK, Balluff, Pepperl+Fuchs, and other M8 industrial sensors</li>
<li>Allen-Bradley Micro800 and CompactLogix with compatible I/O modules</li>
<li>Siemens S7-1200/1500 and PROFINET-enabled devices with M8 connectors</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Turck PKG 3M-1-PSG 3M/S90/S101 (1 m version) — with reconfiguration for longer span</li>
<li>Generic M8 3-pin cordsets with equivalent gauge and jacket rating</li>
<li>Turck cable model RF51166-M (base cable used in this assembly)</li>
</ul>
<h3>Works With</h3>
<ul>
<li>IEC 61076-2-104 compliant M8 connectors</li>
<li>IO-Link master modules and gateways</li>
<li>IP67 panel connector systems</li>
<li>Any 3-pin sensor or actuator requiring M8×1 threaded coupling</li>
</ul>
