Overview

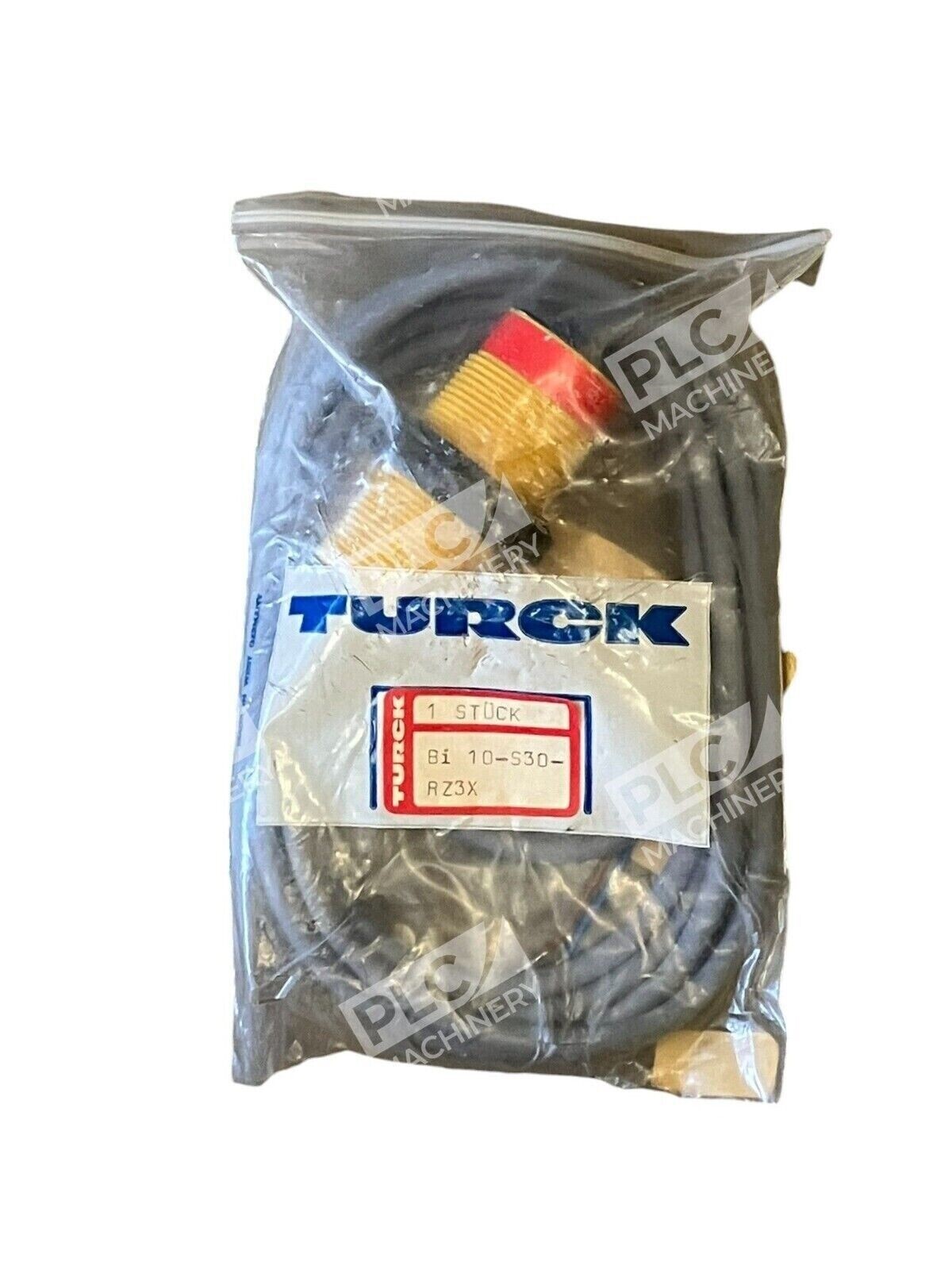

The Turck BI10-S30-RZ3X is a rugged inductive proximity sensor engineered for metal detection in factory automation and process control. With a 10mm rated switching distance and flush-mount capability, this M30 x 1.5 threaded barrel design integrates seamlessly into machinery and assembly equipment. The sensor operates across a wide voltage range (AC 20–250 VAC / DC 10–300 VDC) and features a normally closed (NC) 2-wire contact output, making it compatible with standard industrial control systems and PLCs.
Key Features
- 10mm sensing range — accurate proximity detection for ferrous and non-ferrous metals
- M30 x 1.5 threaded barrel — flush-mount installation with standard industrial thread pattern
- Dual-voltage input — AC 20–250 VAC and DC 10–300 VDC operation from single sensor
- IP67 protection — sealed against dust and moisture for washdown and outdoor use
- NC 2-wire output — simple wiring to relays, PLC inputs, or controller modules
- Glass-reinforced plastic housing — PA12-GF30 construction for chemical and UV resistance
Technical Specifications
Comprehensive specifications ensure proper system integration and performance validation:
- Design: Threaded barrel, flush-mount inductive
- Sensing Distance: 10 mm (rated switching distance)
- Barrel Size: M30 x 1.5
- Housing Material: PA12-GF30 (polyamide, glass-fiber reinforced)
- AC Supply: 2-wire, 20–250 VAC
- DC Supply: 2-wire, 10–300 VDC
- Output Contact: NC (normally closed), 2-wire
- Switching Frequency: 0.020 kHz (50 Hz / 60 Hz compatible)
- Cable Length: 2 m (6.5 ft) bare-end flying leads
- Operating Temperature: −25 to +70 °C
- Protection Class: IP67
Typical Applications
The Turck BI10-S30-RZ3X excels in high-speed production and material handling:
- Metal part presence/absence detection on conveyors and assembly lines
- Machine tool spindle position monitoring
- Press-brake and punch-press stroke confirmation
- Packaging and labeling equipment sensor inputs
- Hydraulic and pneumatic actuator end-of-stroke feedback
- AGV and mobile robot navigation waypoint detection
Compatibility & Replacements
Compatible With
- Siemens S7-1200, S7-1500, S7-300 discrete I/O modules
- Allen-Bradley CompactLogix, ControlLogix analog and digital input cards
- Mitsubishi FX and Q-series PLC input terminals
- Omron CP1L, NX-series controller I/O
- Standard industrial relays and 24 VDC pilot-duty contactors
- Direct wiring to variable frequency drives (VFD) enable/fault logic
- EtherNet/IP and PROFINET gateways with discrete I/O bridging
Replaces / Drop-In Replacement For
The BI10-S30-RZ3X is directly interchangeable with legacy Turck BI10 M30 models featuring NC contact output and identical voltage ratings. Verify cable length and contact configuration (NC vs. NO) before substitution. Consult your equipment documentation or contact your integrator for specific part numbers being replaced.
