Overview
The Cognex DM100-WPSTL-000 is a precision light reader illuminator unit designed for integration with the DataMan 100 Series barcode readers. This 24VDC-powered light bar assembly (model 800-9045-1R) provides optimized illumination for reliable barcode reading and part mark detection in industrial automation environments. The unit delivers consistent, focused light output to enhance reader performance and ensure accurate symbol decoding across a range of materials and surface finishes.
Key Features
- 24VDC power supply specification for safe industrial operation
- Optimized light output for barcode and 1D/2D symbol reading
- Direct integration with DataMan 100 reader systems
- Compact design suitable for limited mounting spaces
- Proven reliability in manufacturing and logistics applications
- New – no box condition; fully functional out of the box
Technical Specifications

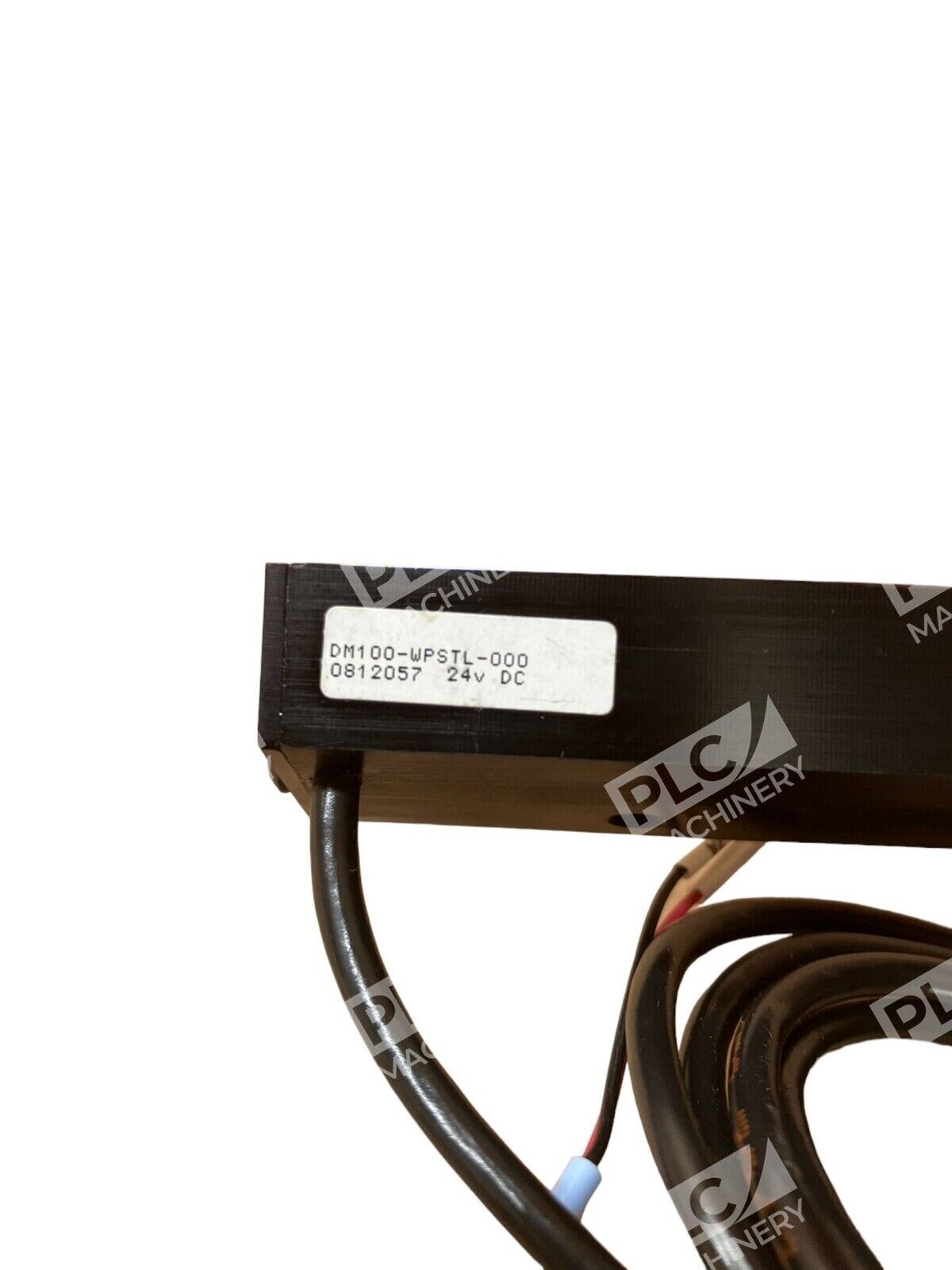

- Model: DM100-WPSTL-000 (Assembly: 800-9045-1R)
- Supply Voltage: 24VDC
- Weight: 2.0 lb

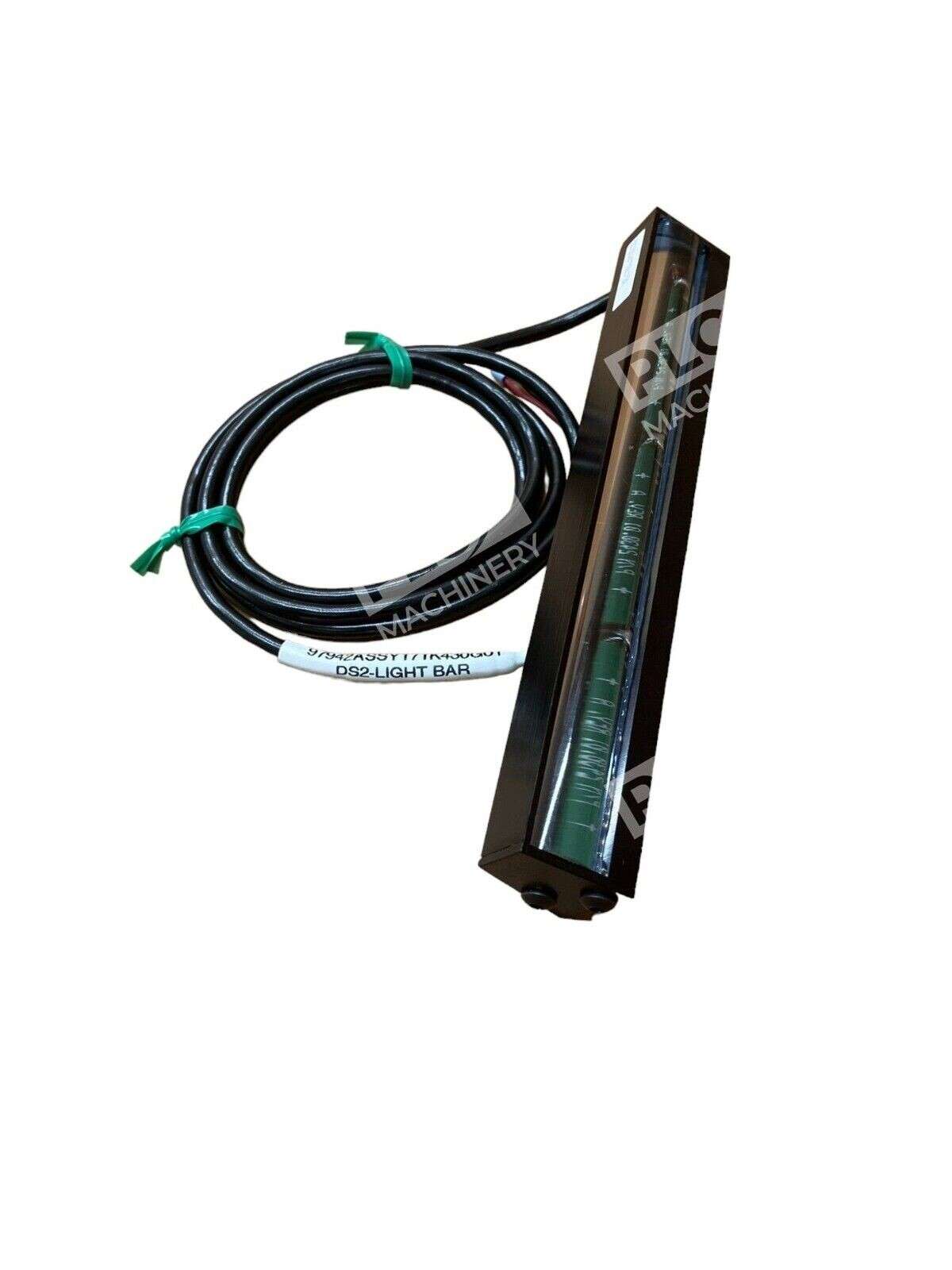

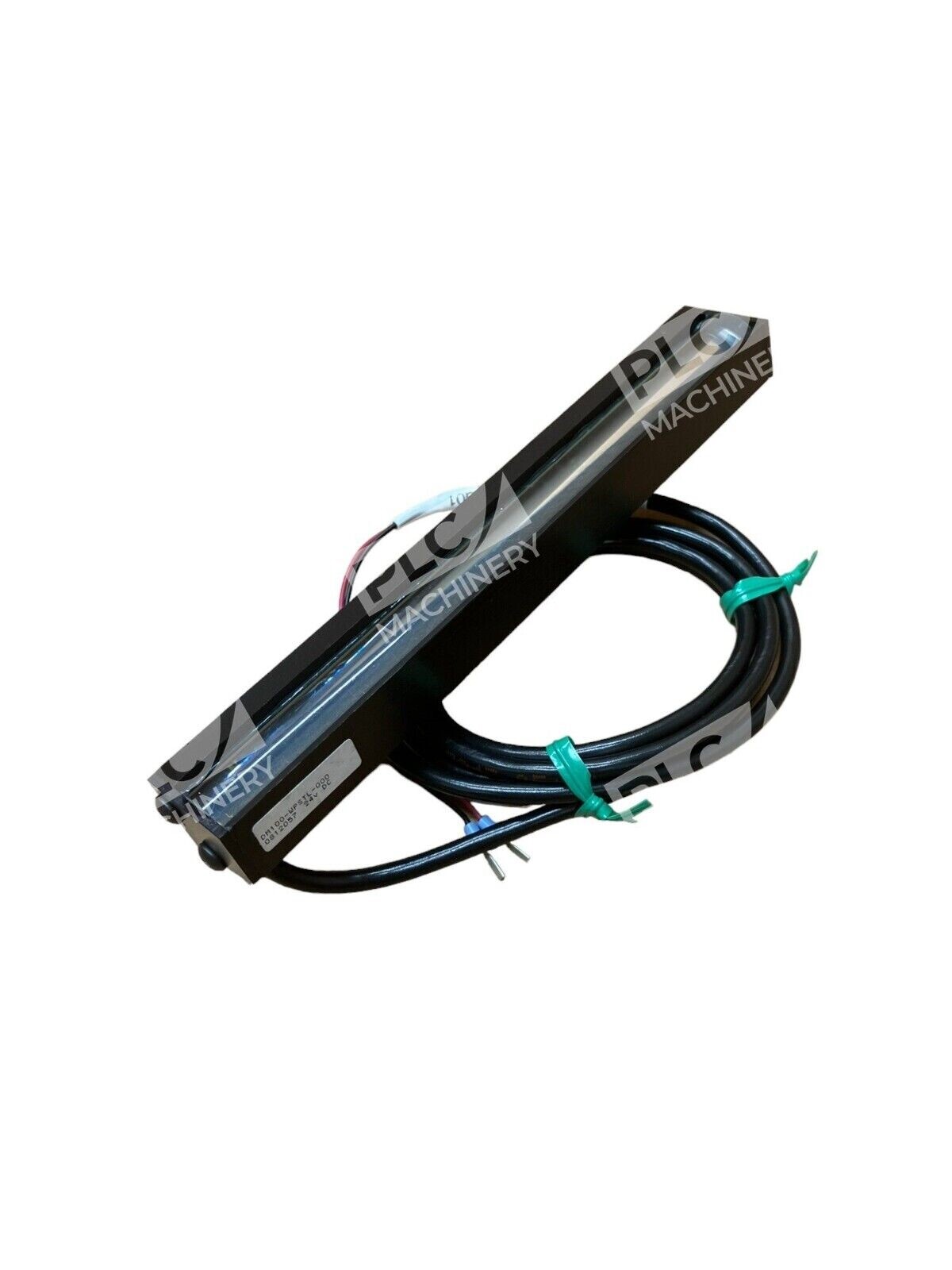

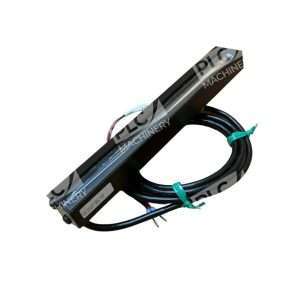

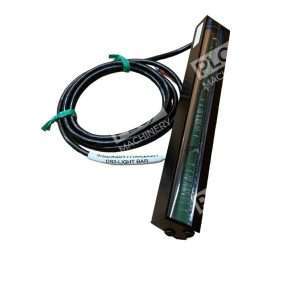

- Product Type: Light Bar/Postel Illuminator
- Condition: New – No Box
- Application: DataMan 100 Series barcode readers
Typical Applications
The Cognex DM100-WPSTL-000 light reader is used in:
- Manufacturing assembly lines requiring barcode verification
- Logistics and package tracking systems
- Product serialization and traceability
- Quality control and inspection stations
- Part marking and direct mark reading applications
- Automated data capture in warehouse environments
Compatibility & Replacements
Compatible With
- Cognex DataMan 100 barcode reader series
- DataMan systems with 24VDC power supply
- Industrial automation PLCs with 24VDC outputs
- Cognex Setup Tool software for configuration
- RS-232 and USB communication interfaces (via DataMan 100 host reader)
Replaces / Drop-In Replacement For
Direct replacement for original Cognex DM100-WPSTL-000 units in DataMan 100 installations. Verify compatibility with your specific DataMan 100 reader firmware version before ordering.
Works With
- Cognex DataMan 100 barcode readers (fixed-mount)
- DataMan I/O modules (DM100-IOBOX-000)
- Cognex Setup Tool configuration software
- RS-232 serial interface
- USB communication protocols
- 24VDC industrial power distribution systems
