Overview

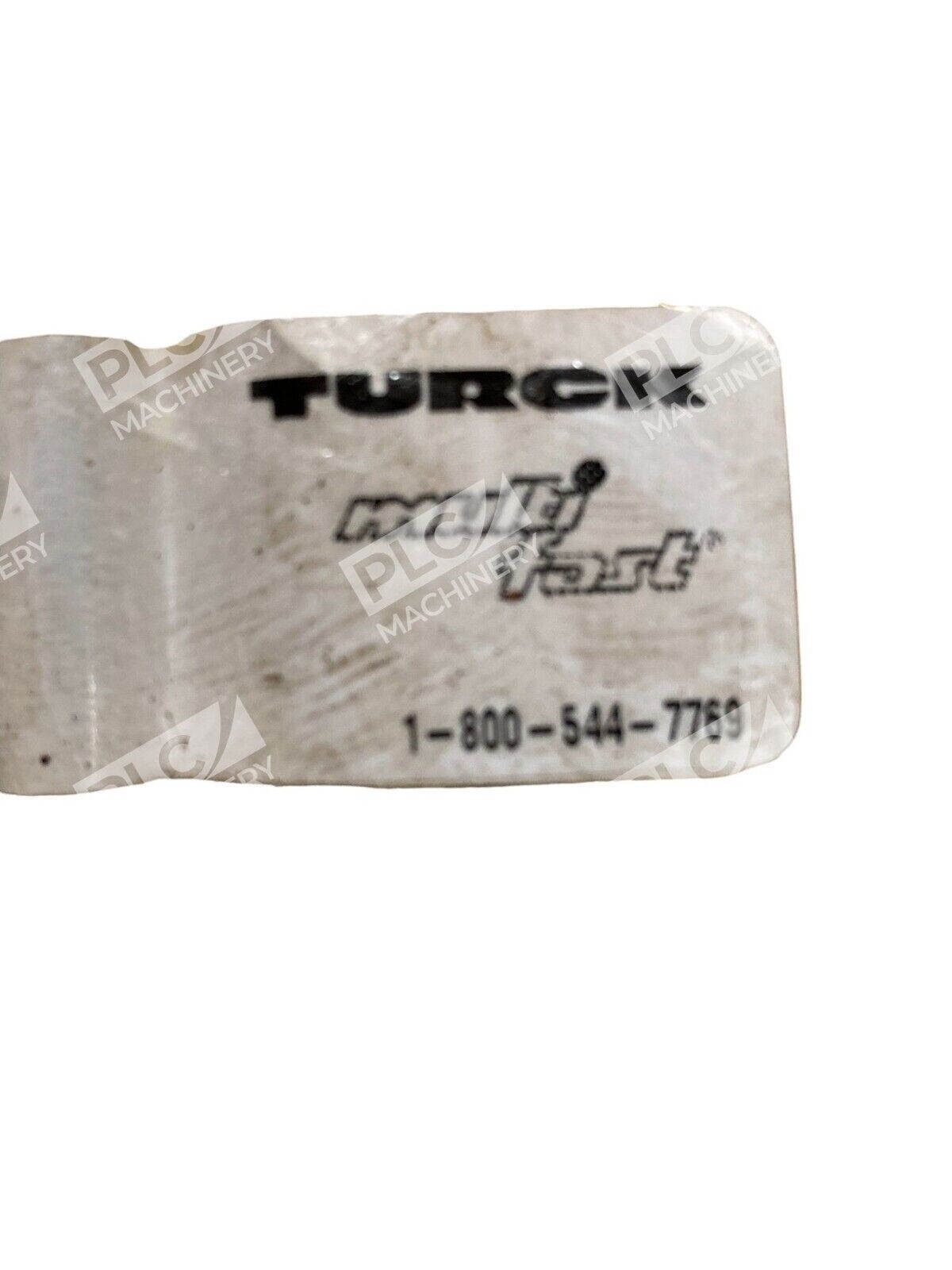

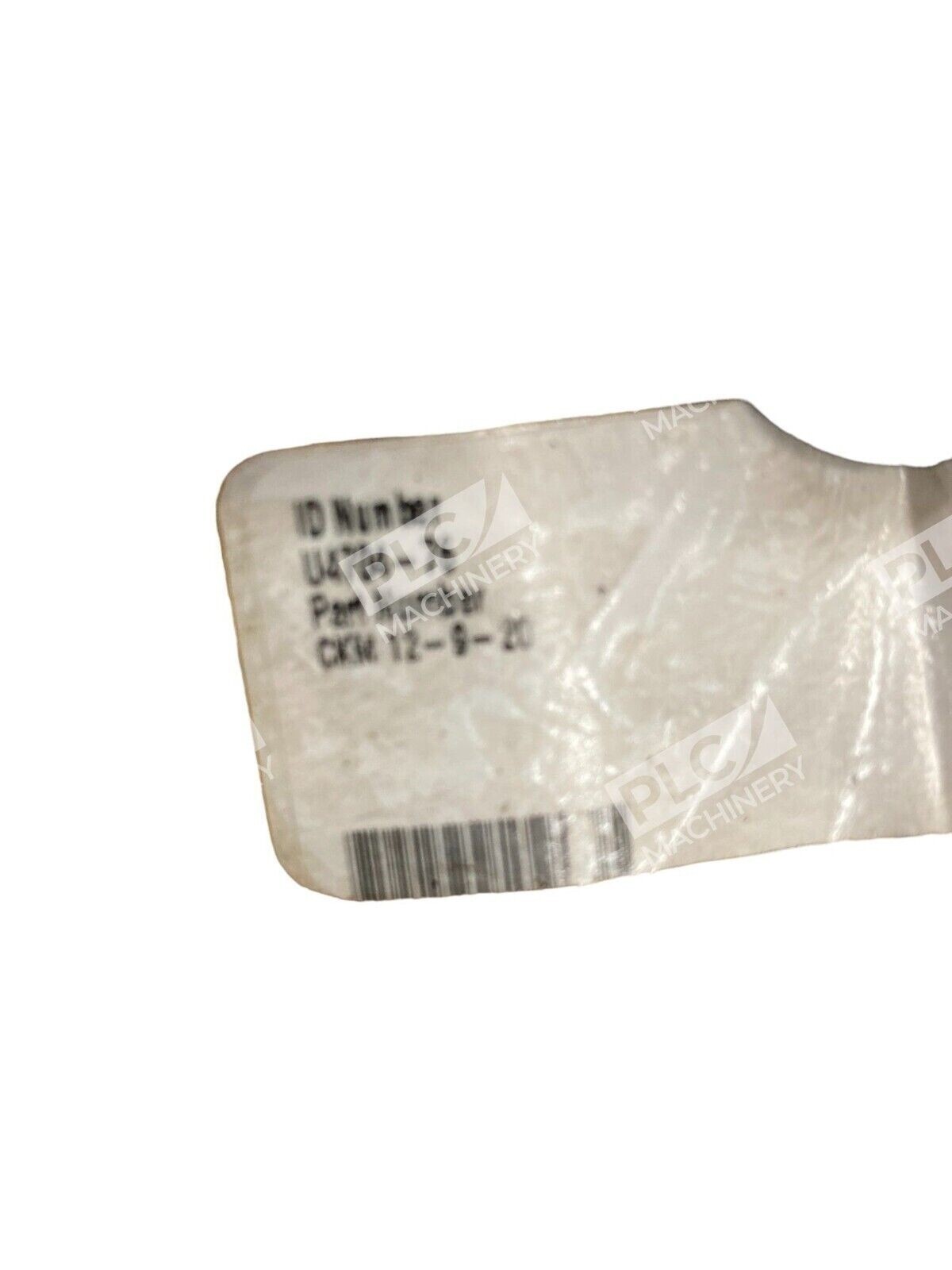

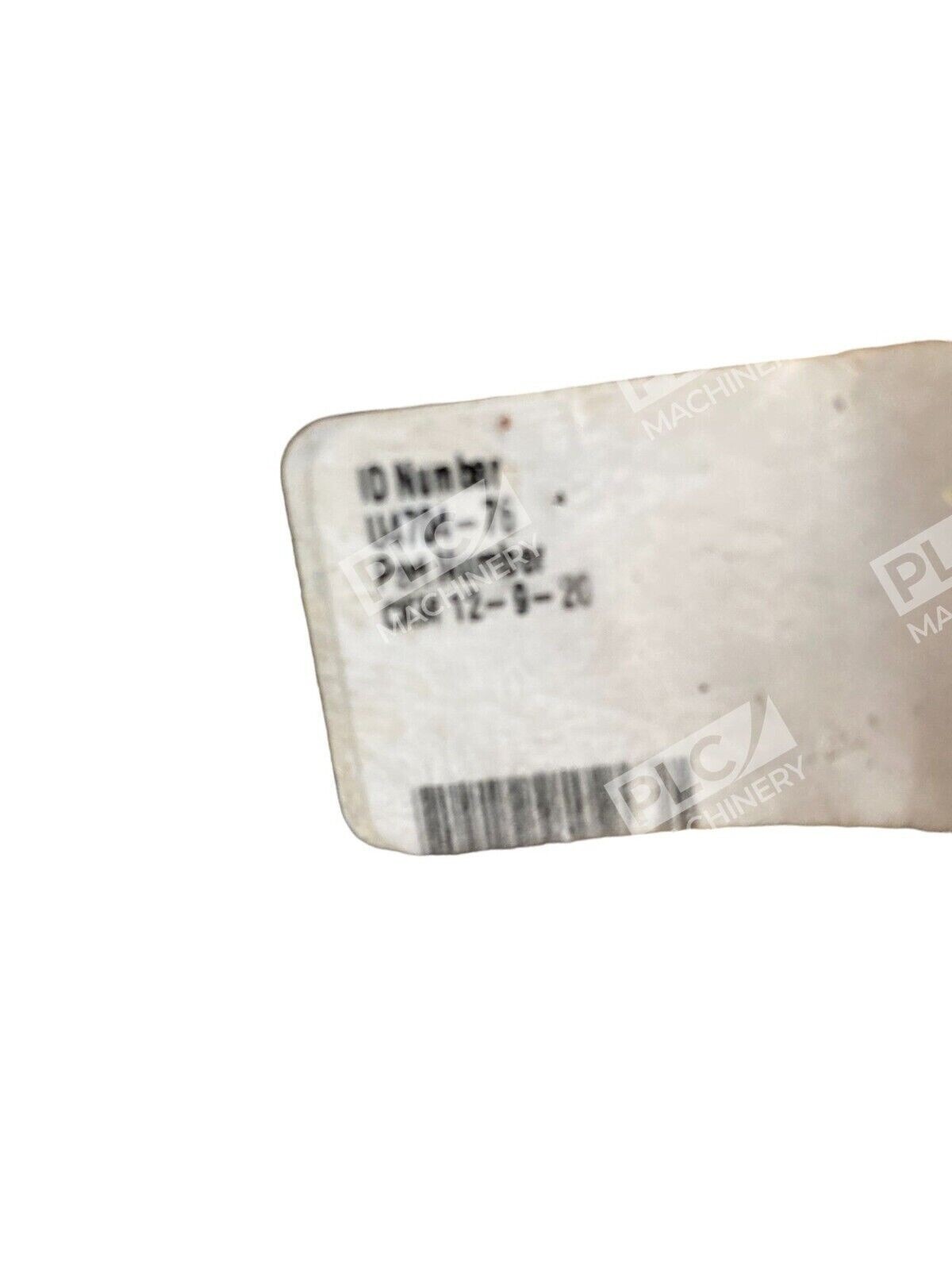

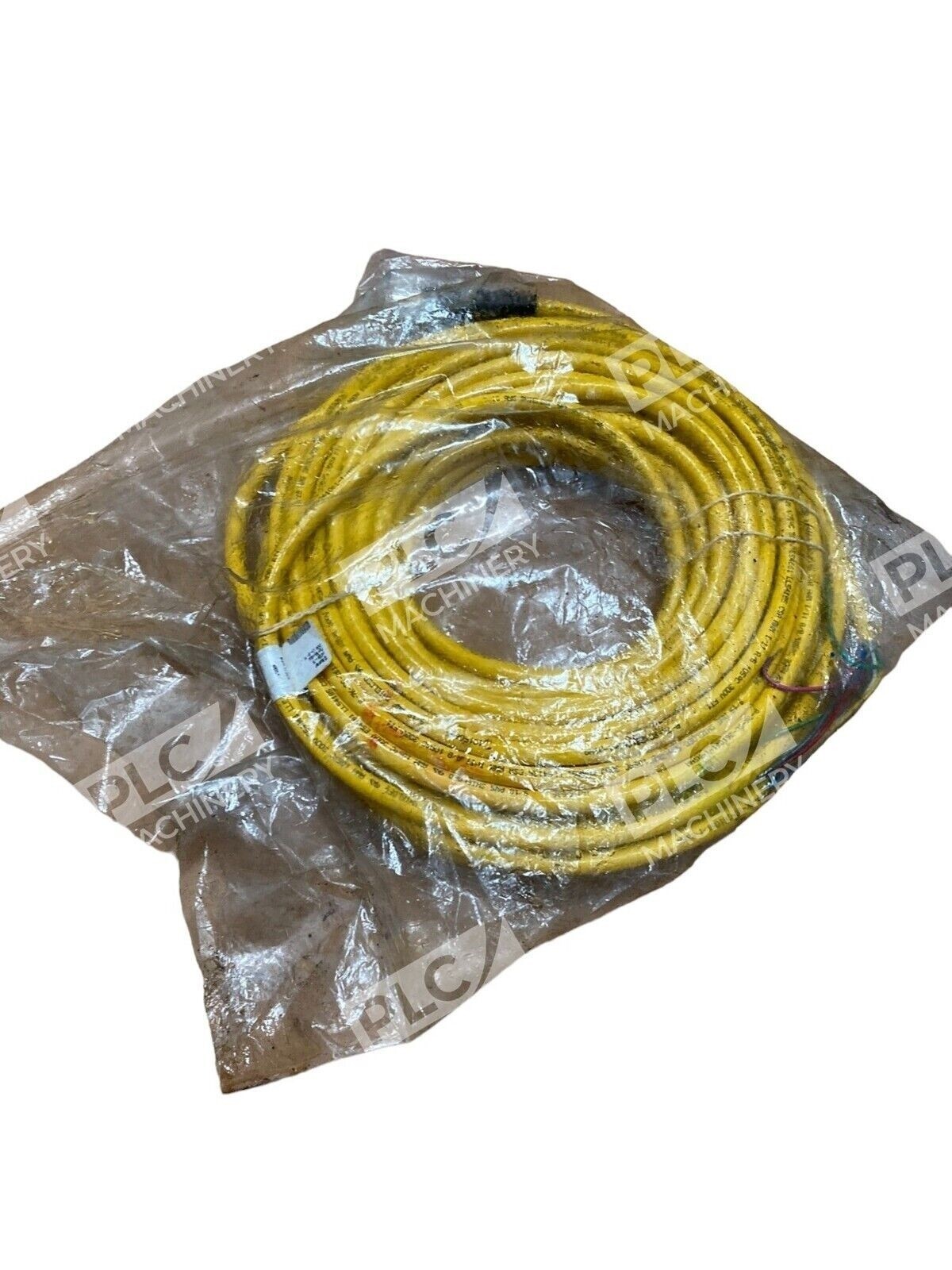

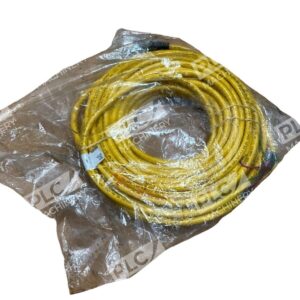

The Turck CKM12-9-20 U4704-76 is a molded actuator and sensor cordset part of Turck’s MultiFast product family. This pre-assembled cable solution provides certified connectivity between actuators and sensors in industrial automation systems. The unit combines a durable cable jacket with standard M12 connectors to ensure reliable signal transmission in demanding manufacturing environments.
Key Features
- Molded connector design for durability and ease of installation
- Standard M12 pin configuration for broad compatibility
- PVC cable jacket rated for industrial environments
- Part of Turck’s proven MultiFast cordset family
- Pre-assembled and ready for immediate deployment
- Aluminum/polyester shielding for EMI protection
Technical Specifications
Connector type, conductor count, cable diameter, length, and environmental ratings are determined by the specific CKM12-9-20 configuration variant (U4704-76 designation). For exact specifications including pin count, cable length, operating temperature range, and NEMA/IP ratings, consult the manufacturer datasheet or contact Turck technical support with this part number.
Typical Applications
- Sensor-to-PLC connections in manufacturing automation
- Actuator control circuits and feedback loops
- Machine tool integration and robotics
- Process automation and material handling systems
- Industrial communication networks requiring certified cable assemblies
Compatibility & Replacements
Compatible With
- Turck M12 receptacles and connectors
- Standard M12-A and M12-D socket configurations
- Industrial PLCs supporting M12 sensor/actuator inputs
- Automated manufacturing and conveyor systems
- Most industrial sensor and actuator manufacturers using M12 standards
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Turck CKM12-9-20 U4704-76 is a specific variant; alternative CKM series cordsets may exist with different electrical or mechanical specifications.
Works With
- Turck IO-Link and standard analog sensor/actuator protocols
- M12 circular connector standards (ISO 12098 series)
- Industrial Ethernet networks via appropriate gateway modules
- Standard PLC digital and analog input modules
