Overview

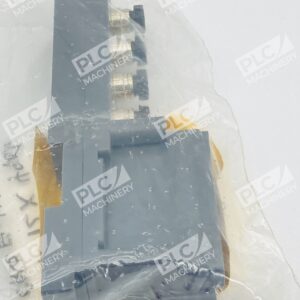

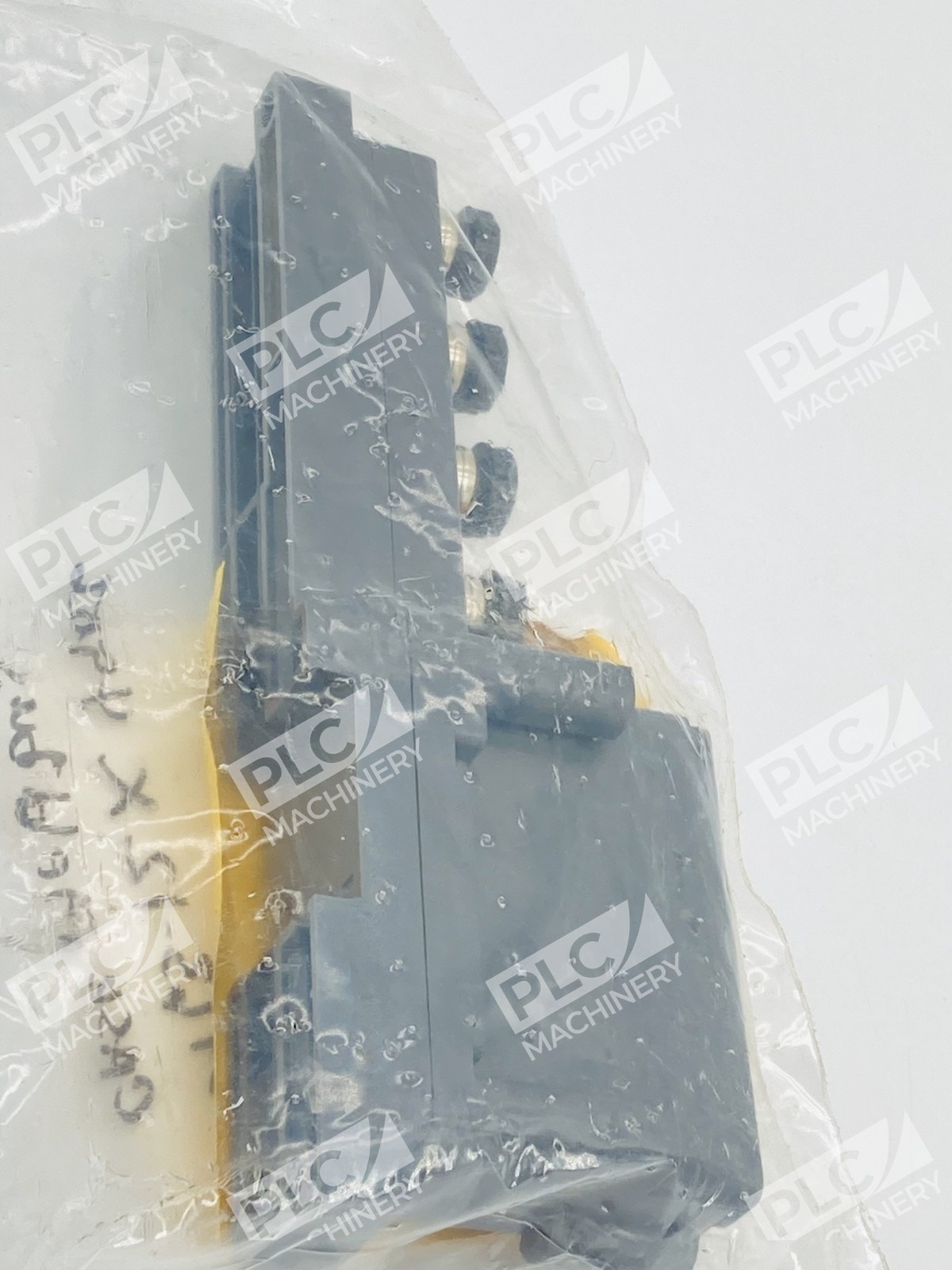

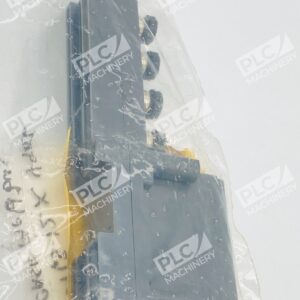

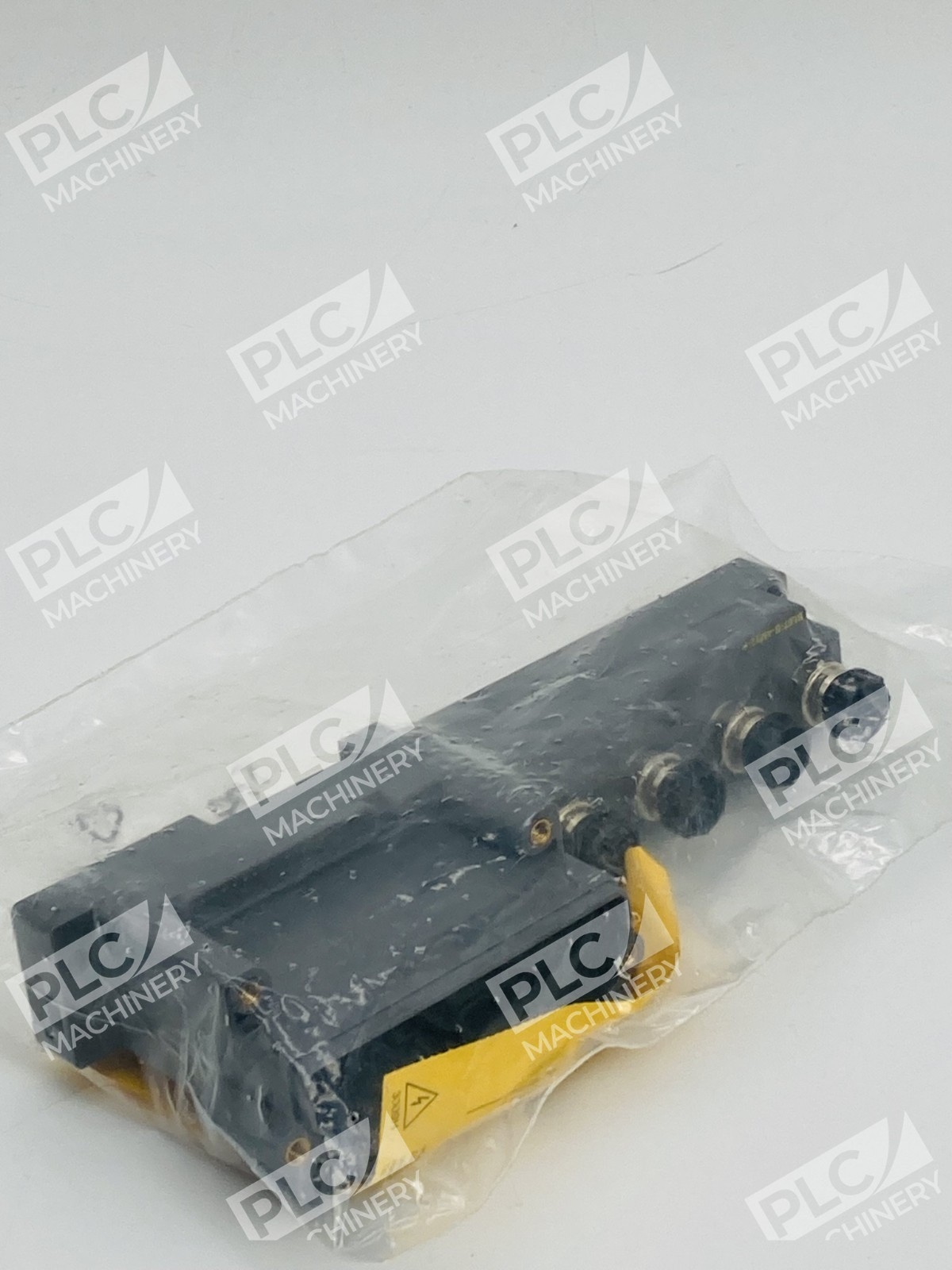

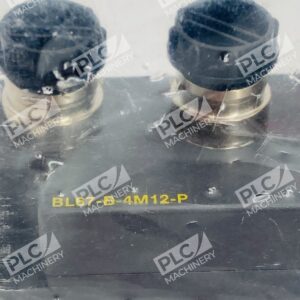

The Turck BL67-B-4M12-P is a passive wiring base module for the BL67 modular I/O system, delivering a rugged, fieldbus-ready platform for distributed control at the point of use. Passive connection components for sensors and actuators, with quick replacement of electronics in wired state, this base module bridges factory and field installation requirements without costly rewiring cycles.
Key Features
- Protection class IP67 — sealed against dust and water ingress for outdoor and harsh-environment deployment
- M12 connection technology, 5-pin — standardized connectors ensure plug-compatibility across industrial platforms
- Mechanical coding prevents incorrect electronic modules from being plugged in accidentally — eliminates wiring errors and system damage
- On-machine modular I.O. (BL67 series) with DIN rail mounting (42mm width) — compact footprint for cabinet or panel installation
- 4 slots for paired M12 connectors — supports multiple sensor/actuator pairs in a single unit
Technical Specifications
- Connection Technology: M12 connection technology, 5-pin
- Connector Count: 4 × M12 Connector, 5-pin, Paired
- Protection Class: IP67
- Device Type: Base module
- Ambient Temperature: -40 +70 °C
- Housing Material: Polycarbonate
- Dimensions (W × L × H): 1.654 in (width) x 7.677 in (length) x 2.677 in (height)
- DIN Rail Mounting: 42mm width

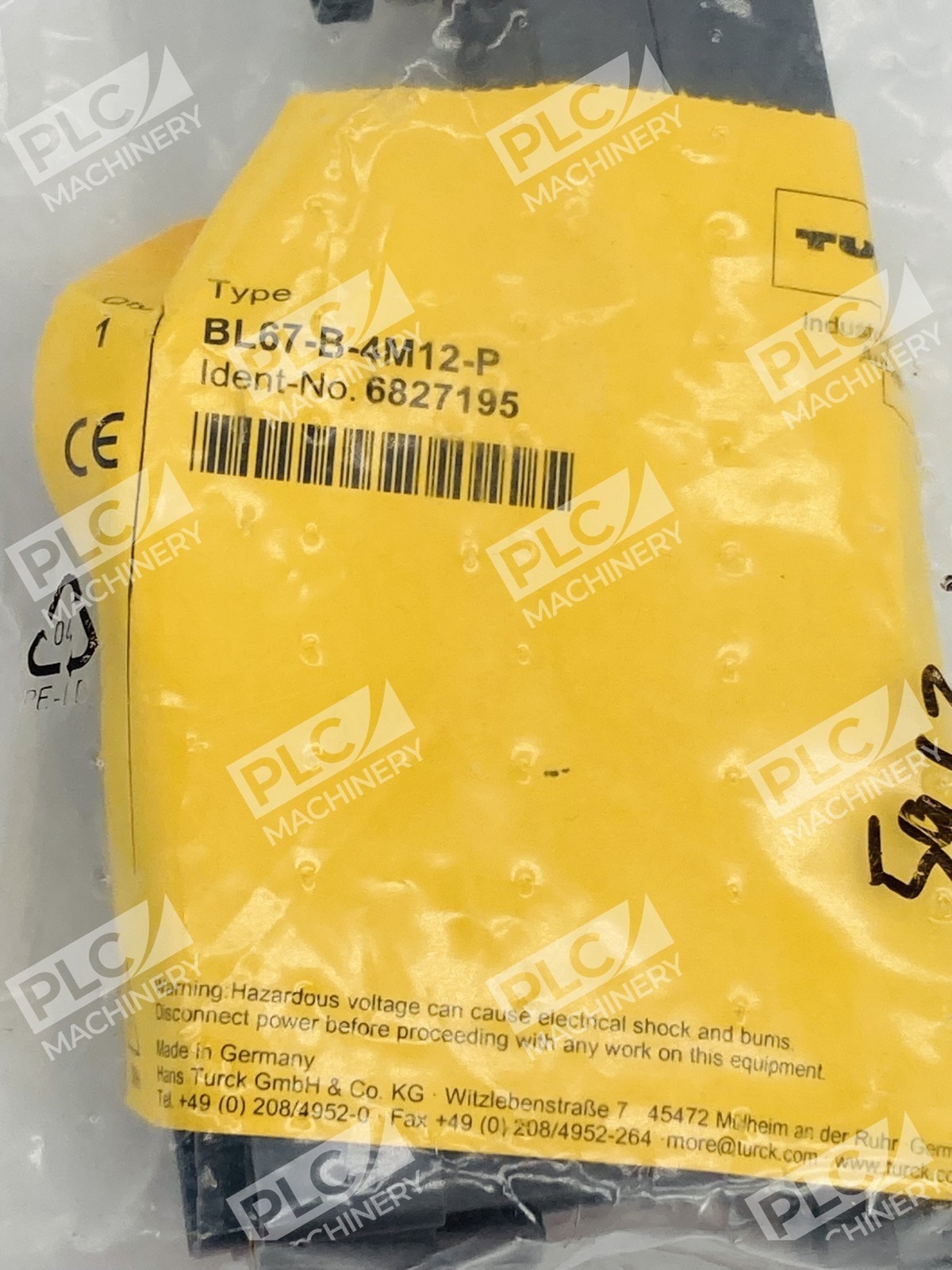

- Manufacturer ID: 6827195
- Approvals: cULus
Typical Applications
The BL67-B-4M12-P serves as a foundation module in distributed I/O architectures for:
- Machine tool and production line control networks
- Modular factory automation systems requiring field-installable I/O nodes
- Hazardous and harsh-environment sensor/actuator interfaces
- Panel or machine mounted expandable I/O for placing control at the point of use
- Rapid prototyping and reconfigurable manufacturing cells
Compatibility & Replacements
Compatible With
- Turck BL67 series modular I/O slices and electronic modules
- Industrial M12 sensor and actuator networks
- Available in a wide range of industrial communication protocols including PROFINET, EtherCAT, and PROFIBUS via protocol-specific modules
- Standard 42 mm DIN rail mounting systems
Replaces / Drop-In Replacement For
- Turck BL67-B-4M12 (unpaired variant, model 6827187)
- Legacy fieldbus I/O base modules requiring M12 5-pin upgrade
Works With
- Turck BL67 I/O slices: multiprotocol gateway, fieldbus interface, and I/O modules
- Industrial communication standards: PROFINET, EtherCAT, PROFIBUS, Modbus TCP/IP
- Standard industrial automation control software (PLCs, motion controllers, SCADA)
- M12 A-code and M12 X-code connectors and cables
[
{
“label”: “Connection Technology”,
“value”: “M12 5-pin”
},
{
“label”: “Connector Count”,
“value”: “4 × M12 paired connectors”
},
{
“label”: “Protection Class”,
“value”: “IP67”
},
{
“label”: “Operating Temperature”,
“value”: “-40 to +70 °C”
},
{
“label”: “Housing Material”,
“value”: “Polycarbonate”
},
{
“label”: “Dimensions (W × L × H)”,
“value”: “1.654” × 7.677″ × 2.677″”
},
{
“label”: “DIN Rail Mount Width”,
“value”: “42 mm”
},
{
“label”: “Device Type”,
“value”: “Base module”
},
{
“label”: “Manufacturer Part Number”,
“value”: “6827195”
},
{
“label”: “Approvals”,
“value”: “cULus”
},
{
“label”: “Series”,
“value”: “BL67”
},
{
“label”: “Compatible Models”,
“value”: “BL67 electronic modules, M12 industrial sensors/actuators”
}
]
