Overview

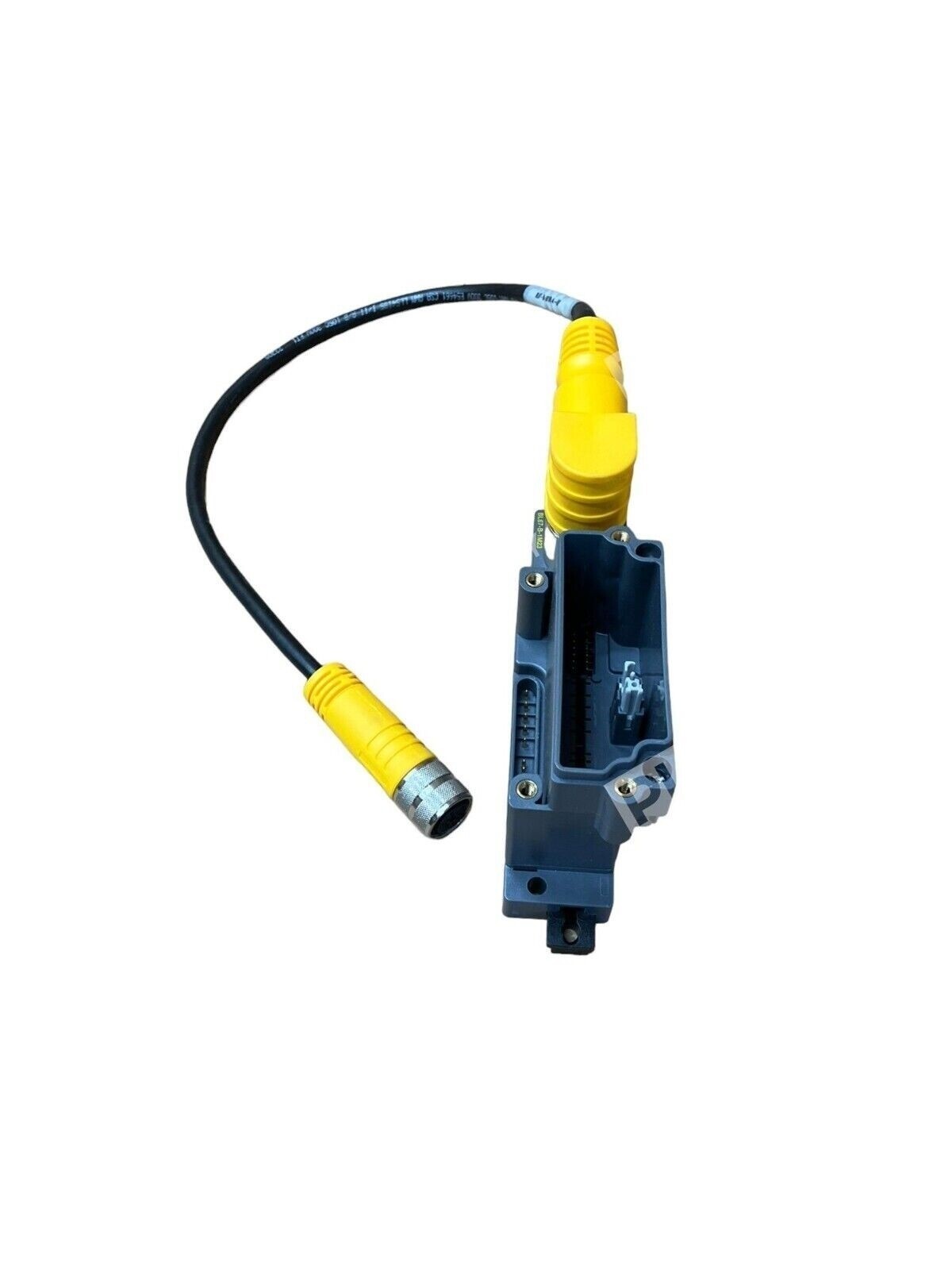

The Turck BL67-B-1M16-14-0.5M is a base module component designed for the BL67 modular I/O system. This unit provides a single multifast M16 connector interface with an integrated 0.5-meter pre-terminated cordset, eliminating field wiring and reducing commissioning time in industrial automation systems. The base module serves as the mechanical and electrical foundation for mounting BL67 electronics modules.
Key Features
- Single multifast M16 connector, 14-pin configuration
- Built-in 0.5-meter pre-terminated cordset for quick deployment
- Modular design compatible with BL67 electronics slice modules
- Compact footprint suitable for control panel integration
- Standardized Turck connection interface for industrial environments
Technical Specifications

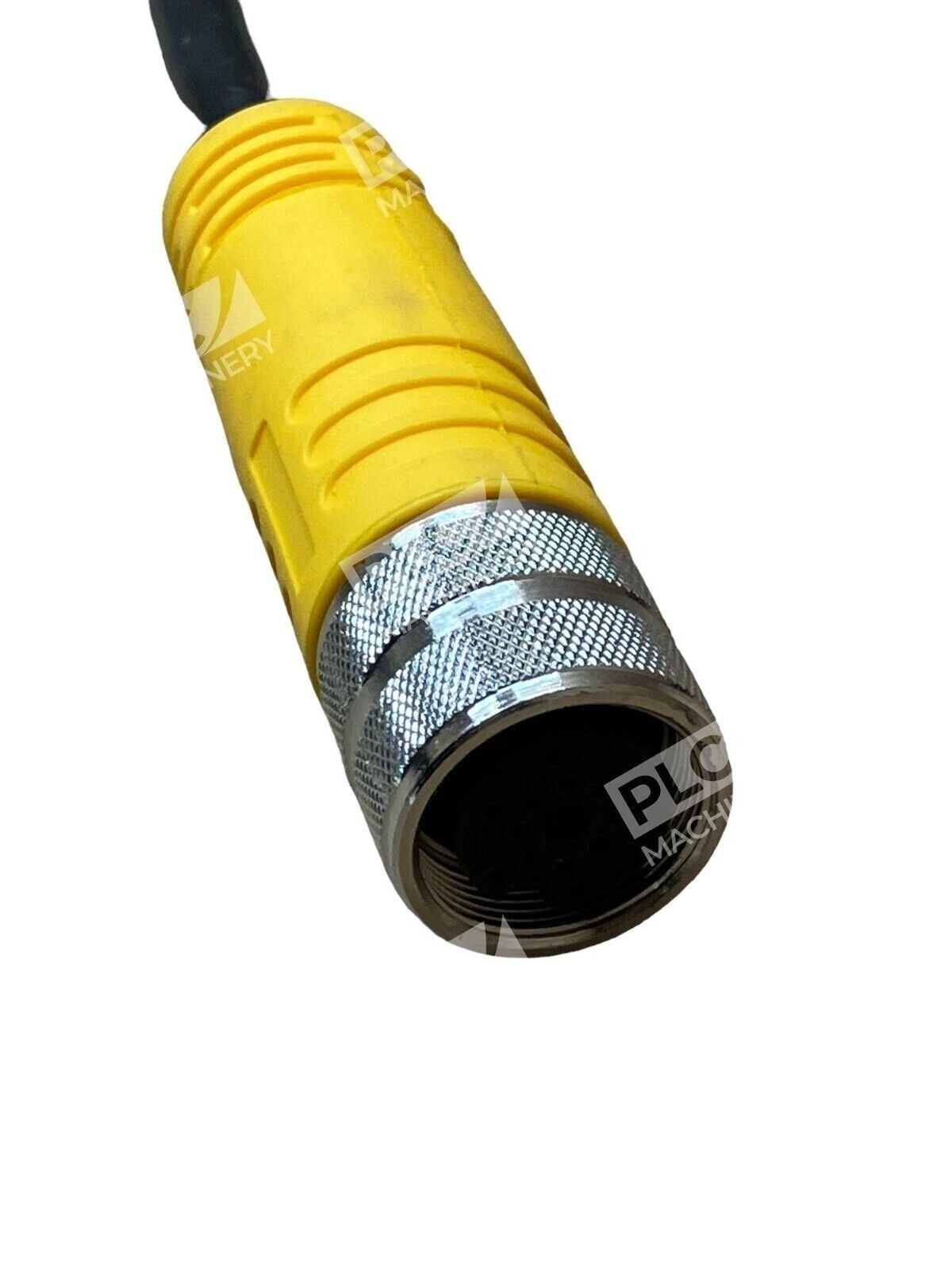

- Connector Type: Multifast M16, 14-pin

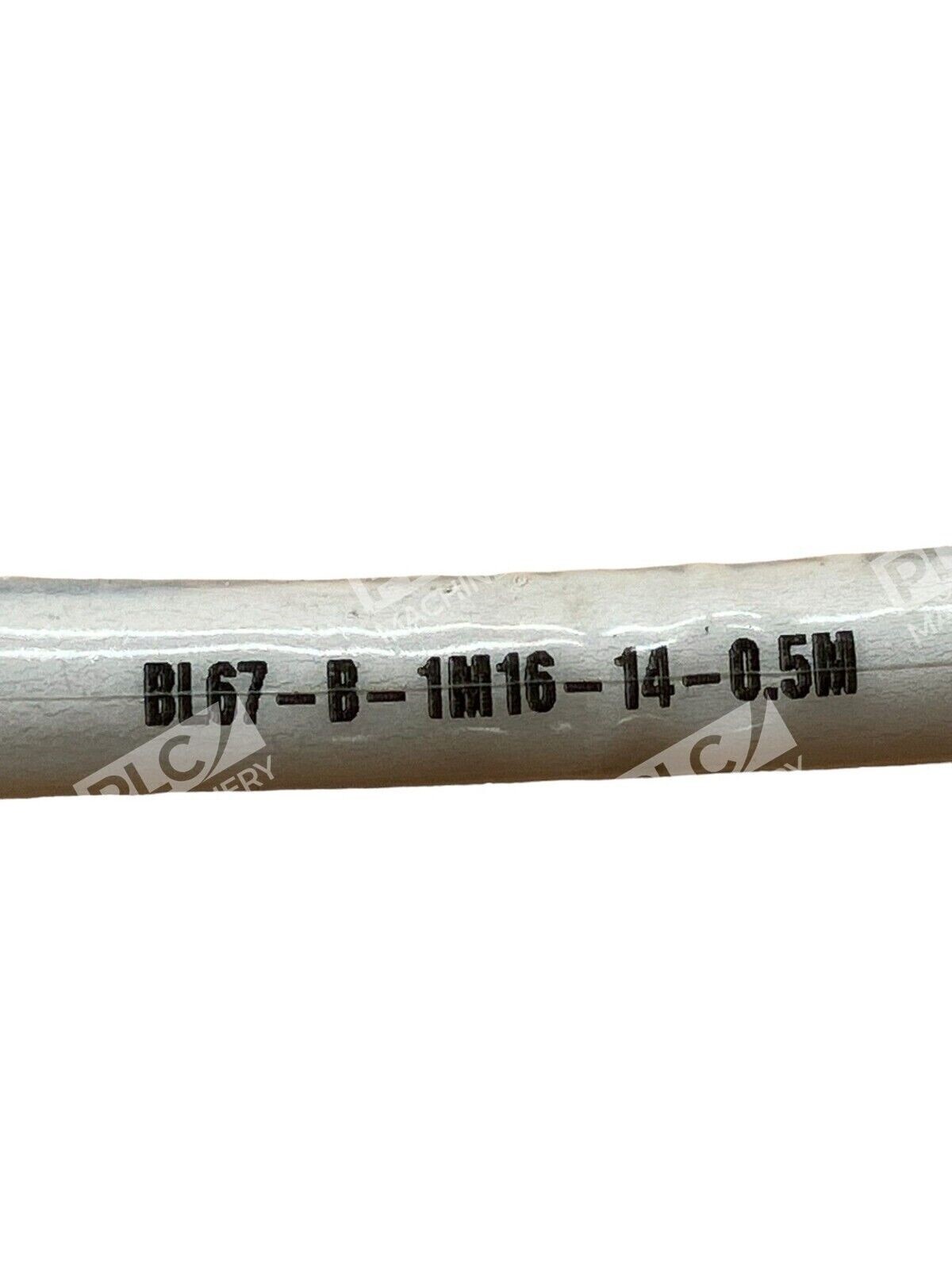

- Cordset Length: 0.5 meter (pre-terminated)
- Module Type: Base module (no internal electronics)
- Mounting: DIN rail compatible via BL67 series stack
- Compatibility: BL67 modular I/O system
- Operating Temperature: As per BL67 series specifications
- Manufacturer: Turck USA
Typical Applications
- Factory automation control systems
- Process automation and sensor networking
- Distributed I/O in industrial machinery
- Control panel integration with compact form factor requirement
- Field device connectivity in harsh industrial environments
Compatibility & Replacements
Compatible With
- BL67 digital input modules (4DI-P, 8DI-P, 4DI-N variants)
- BL67 digital output modules
- BL67 analog modules
- BL67 power supply modules
- Turck fieldbus gateway modules (configured for BL67 stack)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BL67-B-1M16-14-0.5M is a specific base module variant; other BL67 base configurations (M8, M12) are not direct replacements.
Works With
- Turck TBEN gateway modules (EtherNet/IP, PROFINET variants)
- Turck TIA Portal integration packages
- Studio 5000 via compatible Turck gateway firmware
- Fieldbus protocols: PROFINET, EtherCAT, Modbus TCP (via appropriate gateway)
- Industrial Ethernet networks with Turck connectivity solutions
