Overview
The Turck BL67-8DO-0.5A-P is an industrial-grade digital output module designed for fieldbus-independent control applications. This BL67-8DO-0.5A-P module provides 8 independent PNP output channels, each rated for 0.5A at 24 VDC, making it suitable for controlling solenoids, indicator lights, small motors, and relay coils in manufacturing and process automation systems.
Key Features
- 8 Digital Outputs: Independent PNP switching channels, 0.5A per channel maximum
- IP67 Protection: Sealed design rated for harsh industrial environments
- Galvanic Isolation: Electronics separated from field level via optocouplers for noise immunity

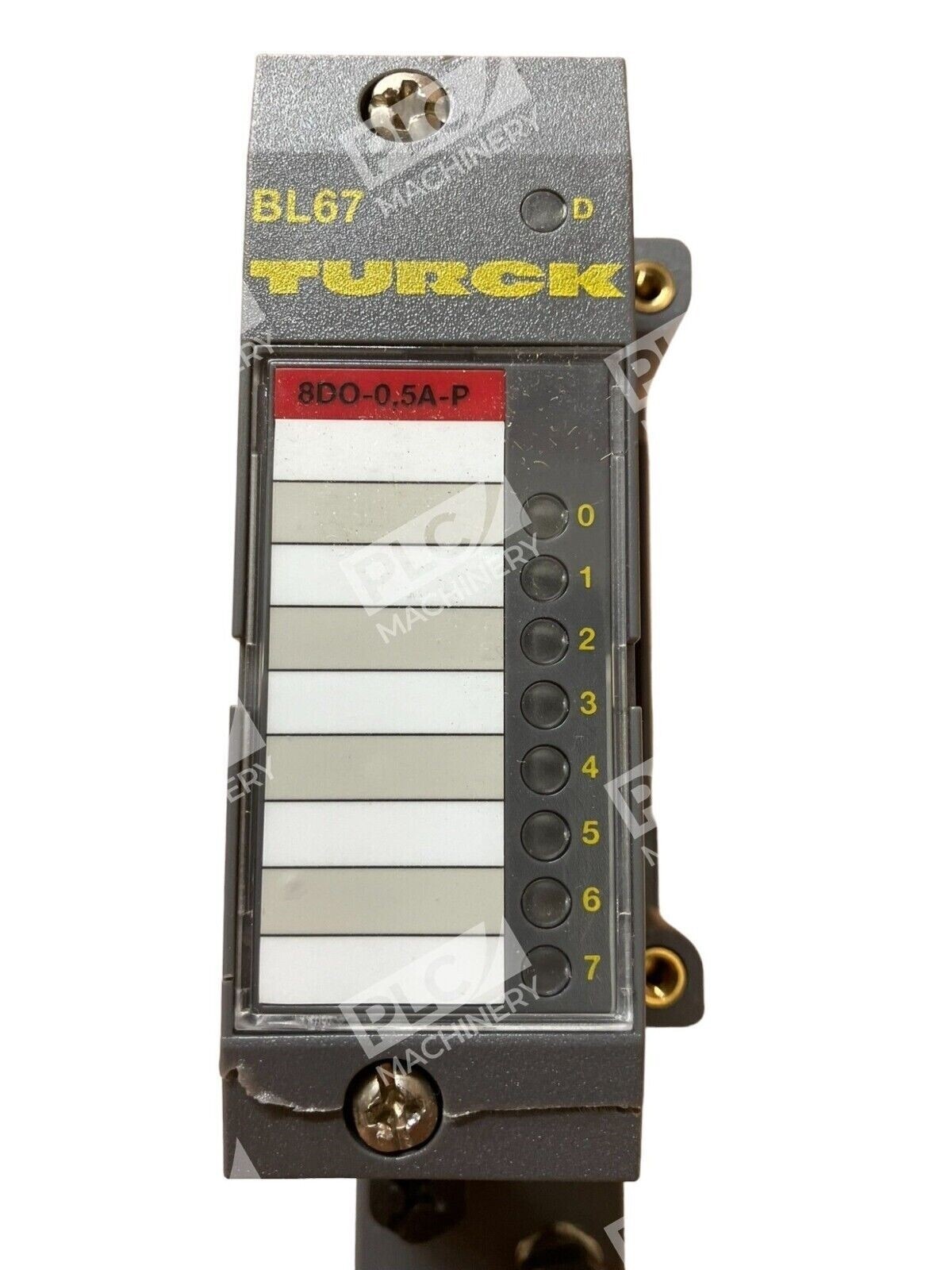

- LED Status Indicators: Built-in LEDs for output status and diagnostics
- Fast Start-Up Support: Firmware VN 01-07 and higher supports Fast Start-Up (FSU) and QuickConnect (QC) protocols
- Fieldbus-Independent Design: Compatible with multiple fieldbus technologies and connection methods
Technical Specifications
- Output Type: Digital (PNP)
- Number of Channels: 8
- Output Current (per channel): 0.5A maximum
- Rated Voltage: 24 VDC
- Protection Class: IP67
- Isolation: Optocoupler galvanic isolation
- Switching Logic: PNP (sourcing)
- Manufacturer Part Number: BL67-8DO-0.5A-P
- Alternative Part Number: M6827172
- Series: BL67
Typical Applications
- Solenoid valve control in pneumatic and hydraulic systems
- Status indicator lighting and alarm signaling
- Relay coil switching and interlock control
- Motor starter and contactor control in manufacturing
- Packaging, bottling, and conveyor line automation
- HVAC and environmental control systems
- Process monitoring and fault indication
Compatibility & Replacements
Compatible With
- Turck BL67 base modules and gateway units
- M8 connector interface (standard Turck BL67 mounting)
- Multiple fieldbus protocols (PROFINET, EtherNet/IP, MODBUS, and others)
- 24 VDC industrial power supplies
- PLC and DCS control systems
Replaces / Drop-In Replacement For
- Earlier BL67 versions requiring 8 digital output channels at 0.5A
- Verify compatibility with your system integrator for legacy system upgrades
Works With
- Turck fieldbus gateways and I/O controllers
- PROFINET industrial networks
- EtherNet/IP communication
- Modular I/O configuration platforms
- Standard industrial PLC and automation software
