Overview

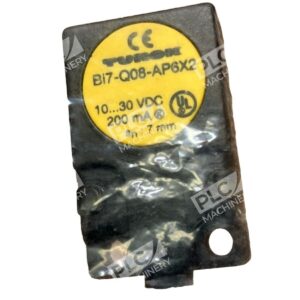

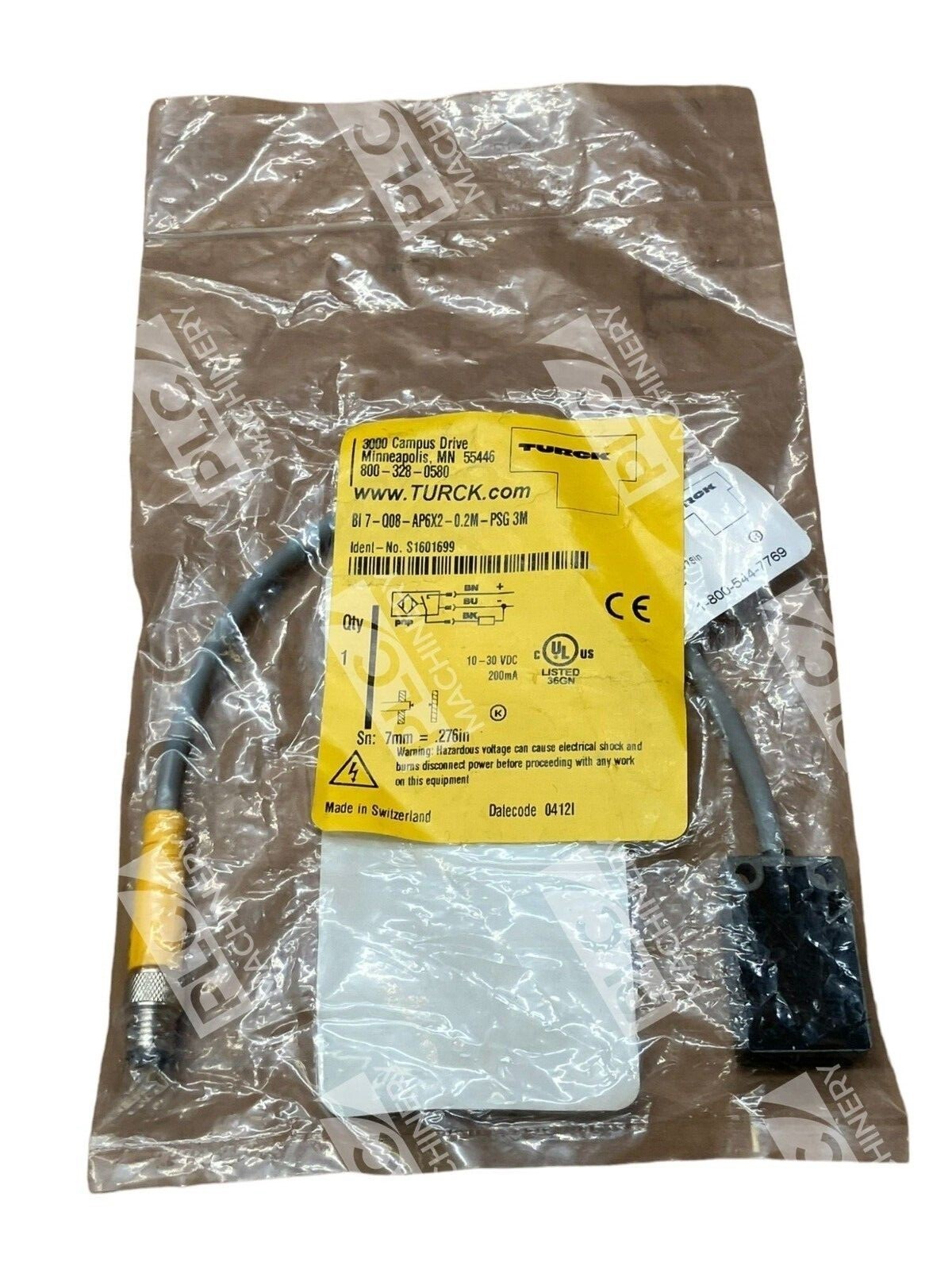

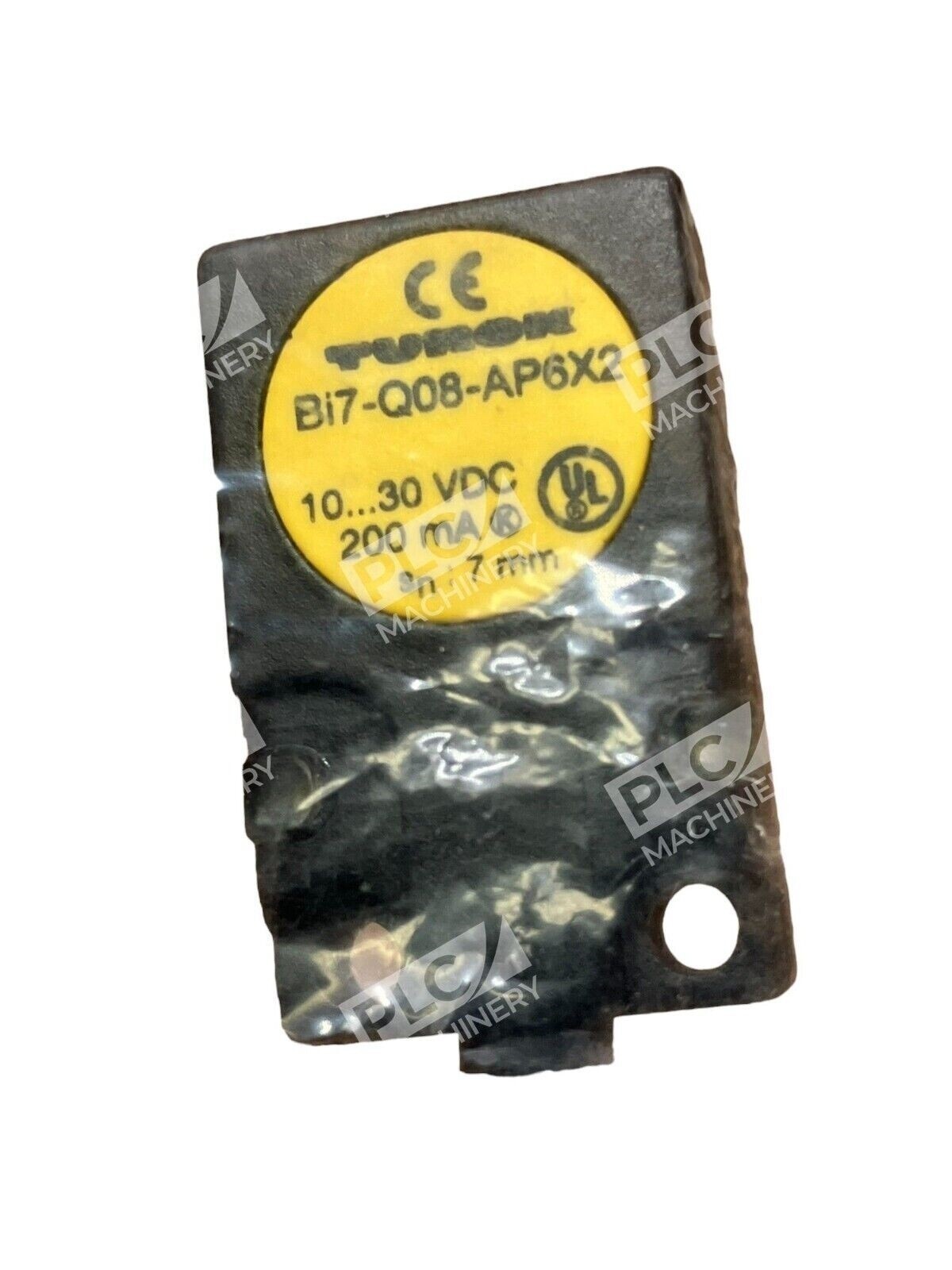

The Turck BI7-Q08-AP6X2-0.2-PSG3M is a flush-mount inductive proximity sensor engineered for precision object detection in industrial automation and motion control applications. With a rated switching distance of 7 mm and compact rectangular housing, this sensor integrates seamlessly into assembly lines, material handling systems, and production equipment. The embeddable design allows for easy installation without external mounting brackets.
Key Features
- 7 mm rated switching distance with adjustable detection range via material correction factors (steel, aluminum, stainless steel)
- Operating voltage range: 10–30 VDC with ≤ 15 mA no-load current for low-power applications
- DC rated operating current: ≤ 200 mA with short-circuit protection and cyclic recovery

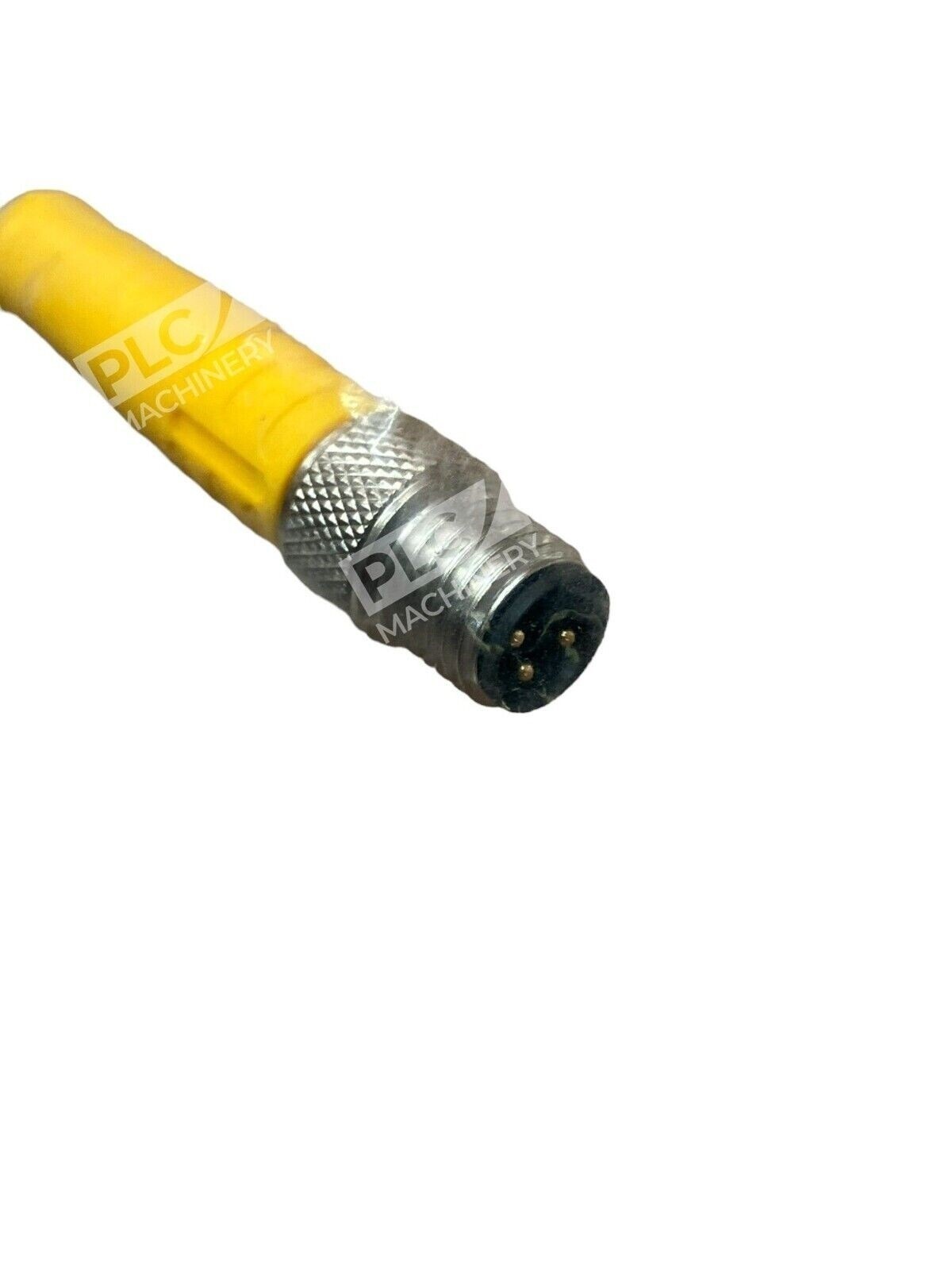

- M8 × 1 cable connector with 0.2 m PUR cable, suitable for e-chain systems
- ≤ 2% repeat accuracy and 3–15% hysteresis for consistent, reliable switching
- Wire break and reverse polarity protection for safety and uptime

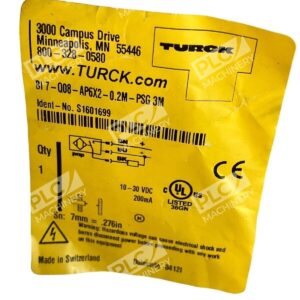

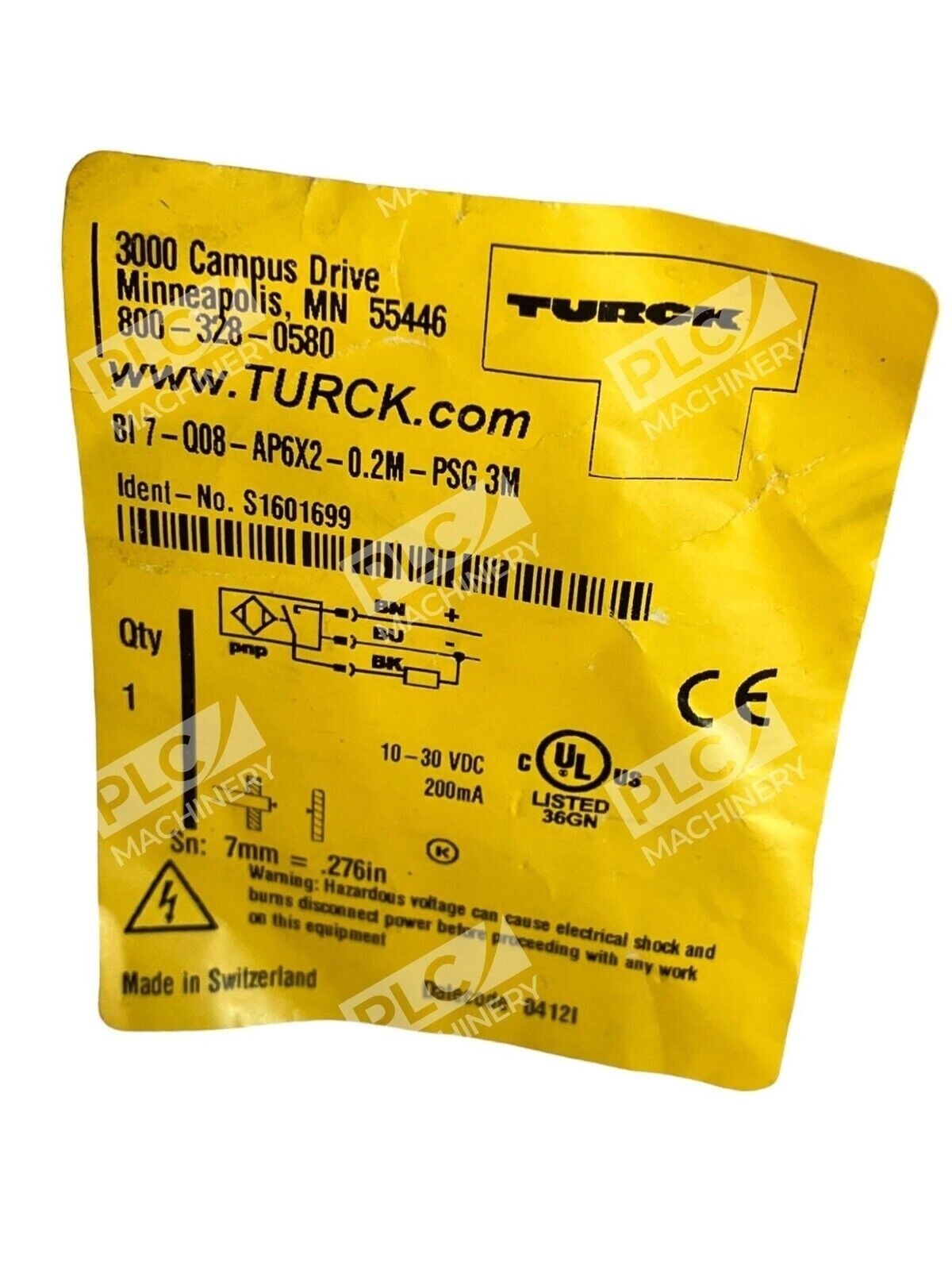

Technical Specifications
- Rated Switching Distance: 7 mm
- Operating Voltage: 10–30 VDC
- DC Rated Operating Current: ≤ 200 mA
- No-Load Current: ≤ 15 mA
- Residual Current: ≤ 0.1 mA
- Voltage Ripple (Uss): ≤ 10% UBmax
- Voltage Drop @ Rated Current: ≤ 1.8 V
- Repeat Accuracy: ≤ 2% of full scale
- Hysteresis: 3–15%
- Isolation Test Voltage: 0.5 kV
- Housing Material: Metal, Zamak, nickel-plated
- Dimensions: 32 × 20 × 8 mm
- Mounting: Flush
- Cable Connector: M8 × 1 with 0.2 m cable
- Protection Features: Short-circuit protection (cyclic), wire break and reverse polarity protection
Typical Applications
- Conveyor systems and automated material handling
- Assembly line part detection and positioning
- Machine tool presence detection and workpiece identification
- Motion control and limit switching in packaging equipment
- Food and beverage production automation
- Pharmaceutical and medical device manufacturing
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC platforms
- Siemens SIMATIC S7-1200, S7-1500, and S7-300/400 systems
- Mitsubishi MELSEC-Q and iQ-F series PLCs
- Omron CP-series and NX-series controllers
- Schneider Electric Modicon M241 and M251 PLCs
- Any 10–30 VDC industrial control system with 200 mA output capacity
- Industrial Ethernet networks (EtherNet/IP, PROFINET, MODBUS TCP)
Replaces / Drop-In Replacement For
- Turck BI7-Q08-AP6X2 (non-connectorized versions)
- BI5-Q08-AP6X2-0.2-PSG3F (lower switching distance alternative)
- Other rectangular M8-connectorized 7 mm inductive sensors from Turck BI7 series
Works With
- DC 10–30 VDC power supplies and regulated outputs
- PLC analog/digital I/O modules and discrete input cards
- Industrial automation software: Siemens TIA Portal, Rockwell Studio 5000, Mitsubishi GX Works3, Omron Sysmac
- Motion control and HMI systems requiring NO/NC switching logic
- E-chain cable management systems (PUR jacket rated per H1063M)
