Overview

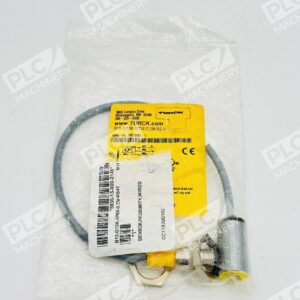

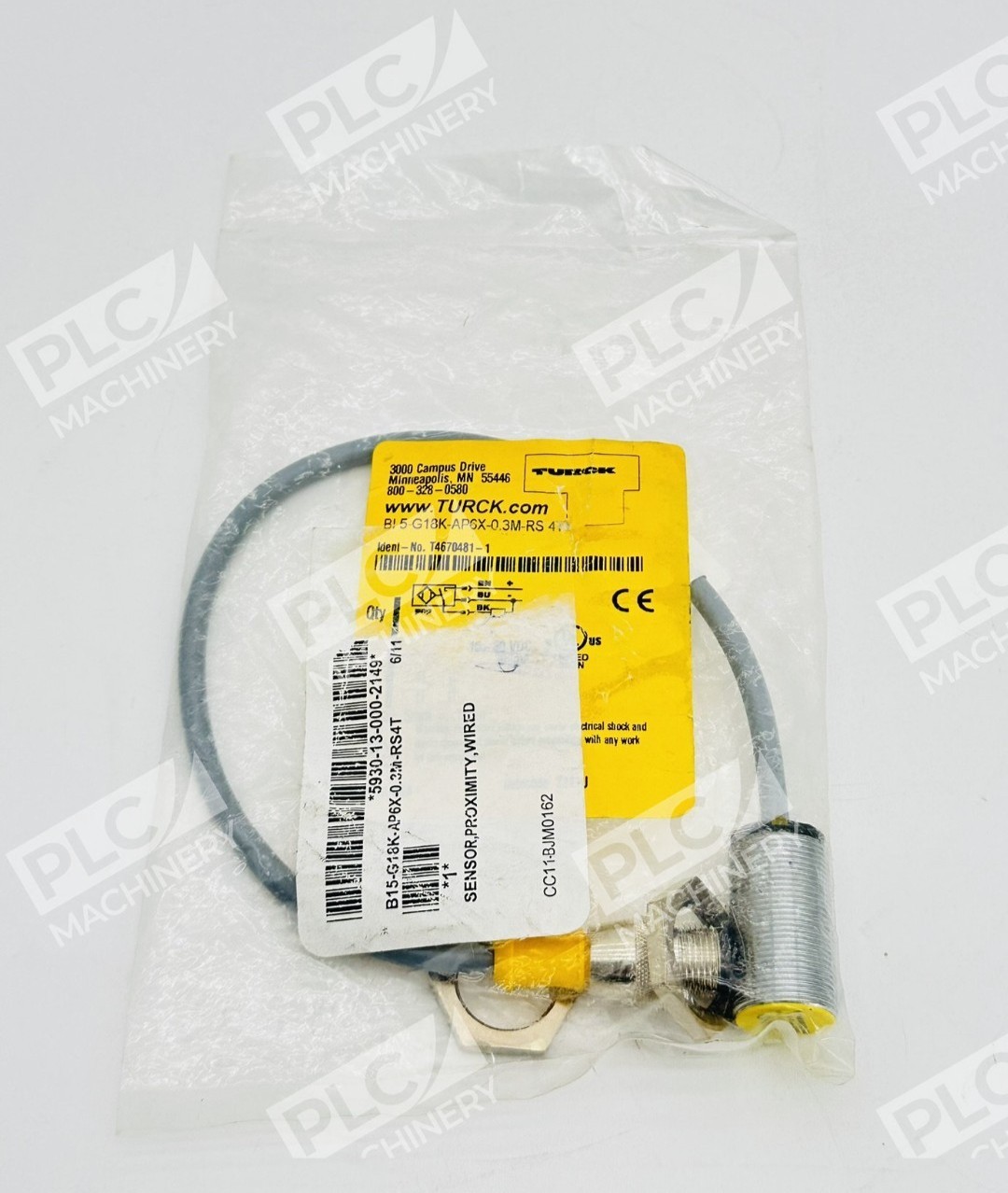

The Turck BI5-G18K-AP6X-0.3M-RS4T is a compact inductive proximity sensor engineered for industrial automation and motion control. This flush-mounting M18 sensor detects ferrous and non-ferrous metal objects without physical contact, ensuring reliable and repeatable performance in harsh manufacturing environments. The sensor features a 5 mm rated switching distance and comes with a 0.3 meter pre-attached cable terminating in a male M12 x 1 connector for quick integration.
Key Features
- Flush M18 × 1 Design: Threaded barrel with chrome-plated brass housing resists corrosion and mechanical damage
- 5 mm Switching Distance: Rated detection range optimized for compact machine cavities and tight assemblies
- PNP Output: Normally open (NO) 3-wire DC logic output compatible with standard industrial controllers
- 10–30 VDC Supply: Wide operating voltage accommodates 24 VDC standard plant power and 12 VDC portable equipment
- Pre-Wired Cable: 0.3 meter pigtail with M12 connector eliminates integration delays
- Short-Circuit & Reverse Polarity Protection: Built-in safeguards extend sensor life and simplify field wiring
Technical Specifications
- Switching Distance (Rated): 5 mm
- Connector Type: M12 x 1 (male) pigtail
- Cable Length: 0.3 meter
- Supply Voltage: 10–30 VDC
- Output Type: PNP, 3-wire DC
- Output Function: Normally Open (NO)
- Housing Material: Chrome-plated brass
- Mounting Style: Flush, threaded barrel (M18 × 1)
- Protection Features: Short-circuit protection, reverse polarity protection
- LED Indicator: Switching state indication
Typical Applications
- Assembly line part presence detection
- Motion control position sensing
- Conveyor system object counting
- Punch press safety interlocks
- Machine tool spindle position confirmation
- Robotic arm part verification
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and micro800 controllers
- Siemens S7-1200, S7-1500, and S7-300 PLCs
- Mitsubishi FX and Q-series controllers
- Omron CP1E and CJ2 processors
- Schneider Electric M221, M241 controllers
- Standard 24 VDC industrial relay logic cabinets
- EtherNet/IP, PROFINET, and Modbus gateways via appropriate I/O modules
Replaces / Drop-In Replacement For
- Turck BI5-G18K-AP6X-0.2M-RS4T (0.2 meter cable variant)
- Turck BI5-G18K-AP6X-1-RS4T (1 meter cable variant)
- Other Turck BI5-G18K series flush M18 inductive sensors with equivalent electrical ratings
Works With
- Communication Protocols: EtherNet/IP, PROFINET, Modbus (via IO modules)
- Software Platforms: Studio 5000, TIA Portal, GX Works, Sysmac Studio
- Industrial Networks: Any 24 VDC DC-powered distributed I/O architecture
- Connector Standard: M12 circular connectors for push-pull field replacements
