Overview

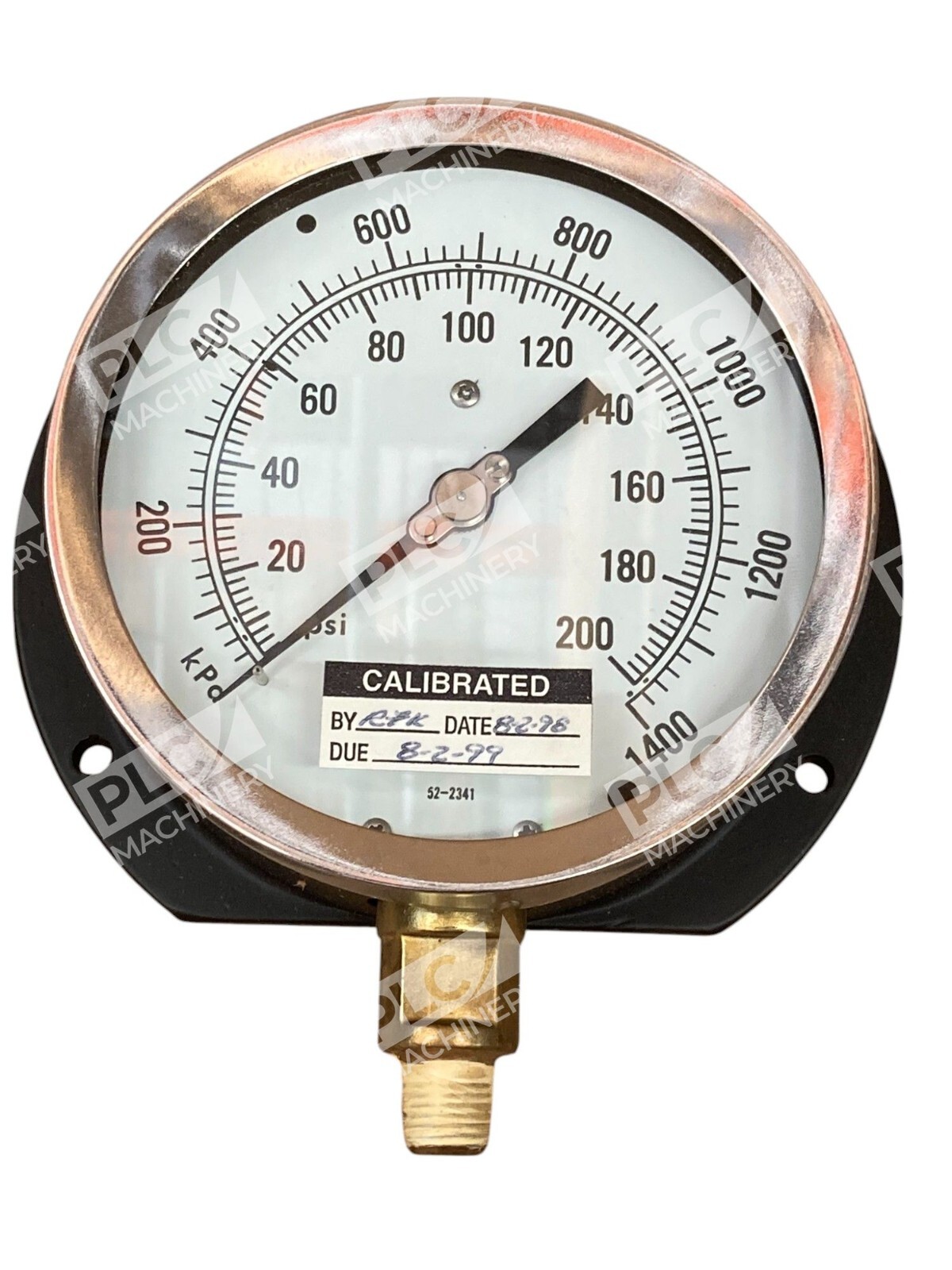

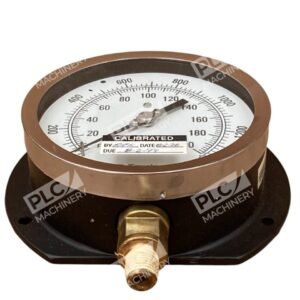

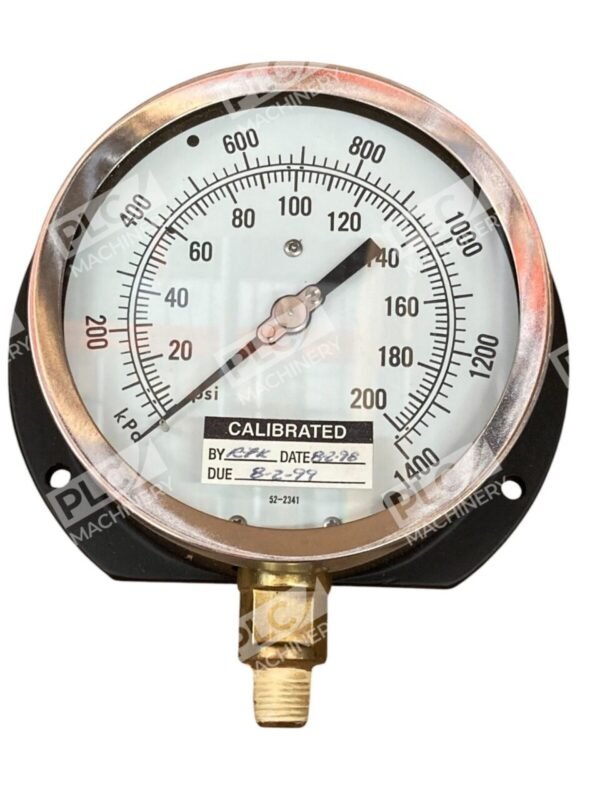

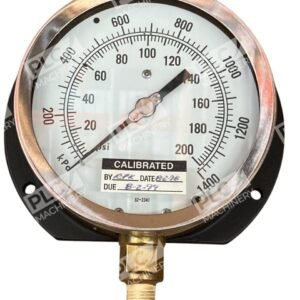

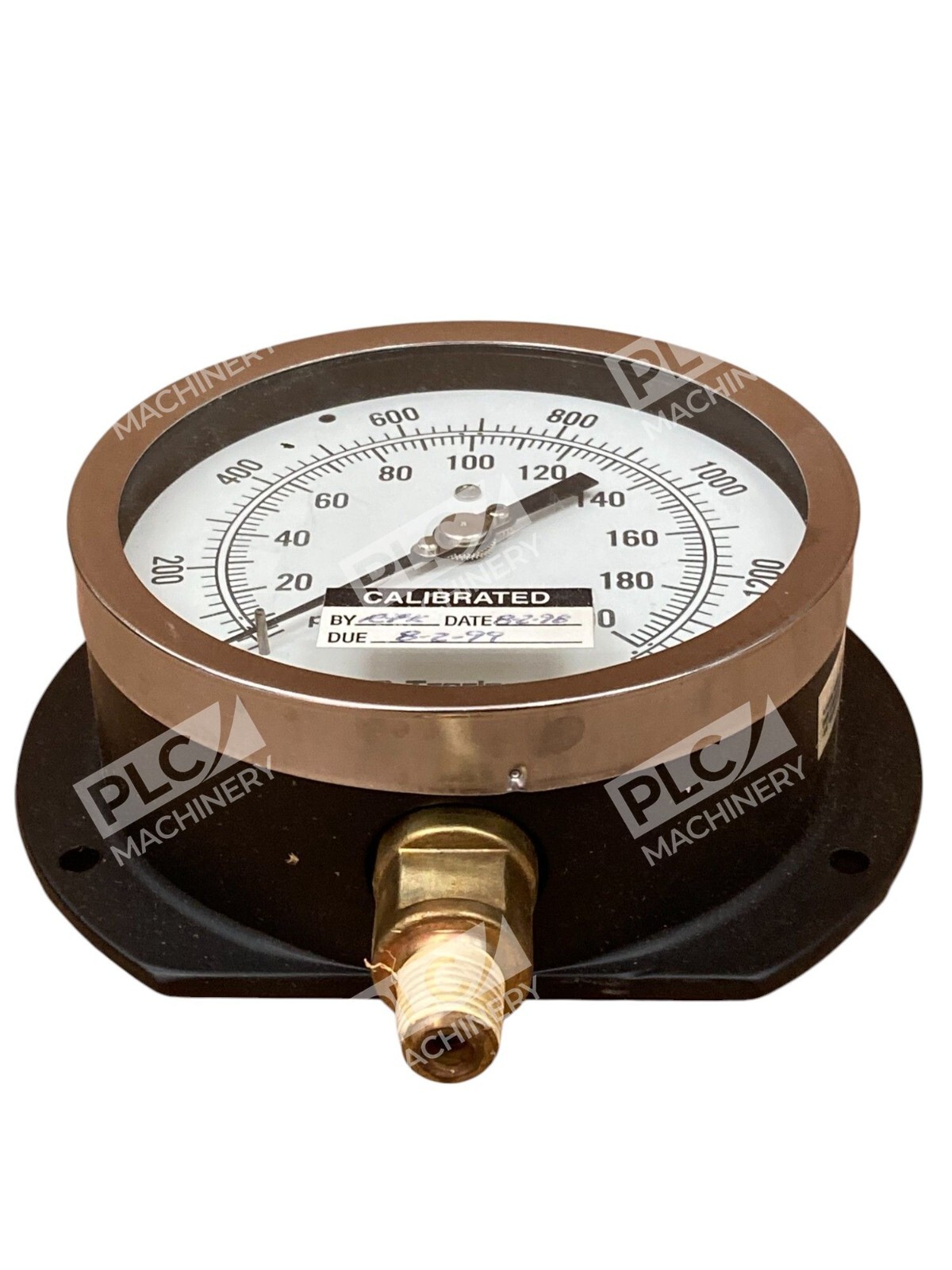

The Trerice D001195 500XB is a robust mechanical pressure gauge designed for accurate measurement across dual-scale ranges (0–200 PSI/KPa). Trerice pressure gauges utilize bourdon tube construction; when the bourdon tube is subjected to pressures of the media being measured, the tube flexes and this motion is transmitted to the pointer through a mechanical multiplication-type movement. This gauge features a 4.5″ diameter face and 1/4″ NPT male connection, making it suitable for mounting on industrial equipment, test benches, and hydraulic systems.
Key Features
- Dual-scale display (PSI and KPa) for metric and imperial measurements
- Bourdon tube mechanism for reliable, long-service performance without electronics
- Lower male (LM) mounting configuration for direct connection to lines and vessels
- 4.5″ dial face for clear readability in industrial environments
- Suitable for water, air, gas, and non-corrosive media measurement
Technical Specifications
- Pressure Range: 0–200 PSI / 0–1379 kPa
- Dial Diameter: 4.5 inches (114.3 mm)
- Connection Type: 1/4″ NPT (National Pipe Thread)
- Connection Location: Lower mounting
- Measurement Type: Mechanical (bourdon tube)
- Scale Display: Dual scale (PSI/KPa)
- Tube Material: Brass or bronze (standard for non-corrosive media)
- Certifications: ASME B40.100 compliant
- Manufacturer: Trerice (Oak Park, Michigan, USA)
Typical Applications
The Trerice D001195 500XB is commonly used in:
- Hydraulic system monitoring and troubleshooting
- Pneumatic equipment and compressed air line validation
- Water pressure measurement in industrial plants and facilities
- General manufacturing quality control and inspection
- Pump discharge and system pressure verification
- Test benches and mobile equipment measurement
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT threaded ports on hydraulic manifolds, pumps, and accumulators
- Pneumatic system test points and regulator outlets
- Water pressure systems and booster pump discharge lines
- Any equipment with 1/4″ NPT female connection
Replaces / Drop-In Replacement For
Verify compatibility with your equipment before ordering. The D001195 is a standard industrial gauge model; other Trerice 500XB series gauges with identical 0–200 PSI/KPa ratings and 1/4″ NPT connections will share mounting and thread compatibility.
Works With
- No software or electronic integration required—mechanical gauge operates independently
- Compatible with all standard hydraulic, pneumatic, and fluid measurement systems
- Passive instrument; no power supply or calibration firmware needed
