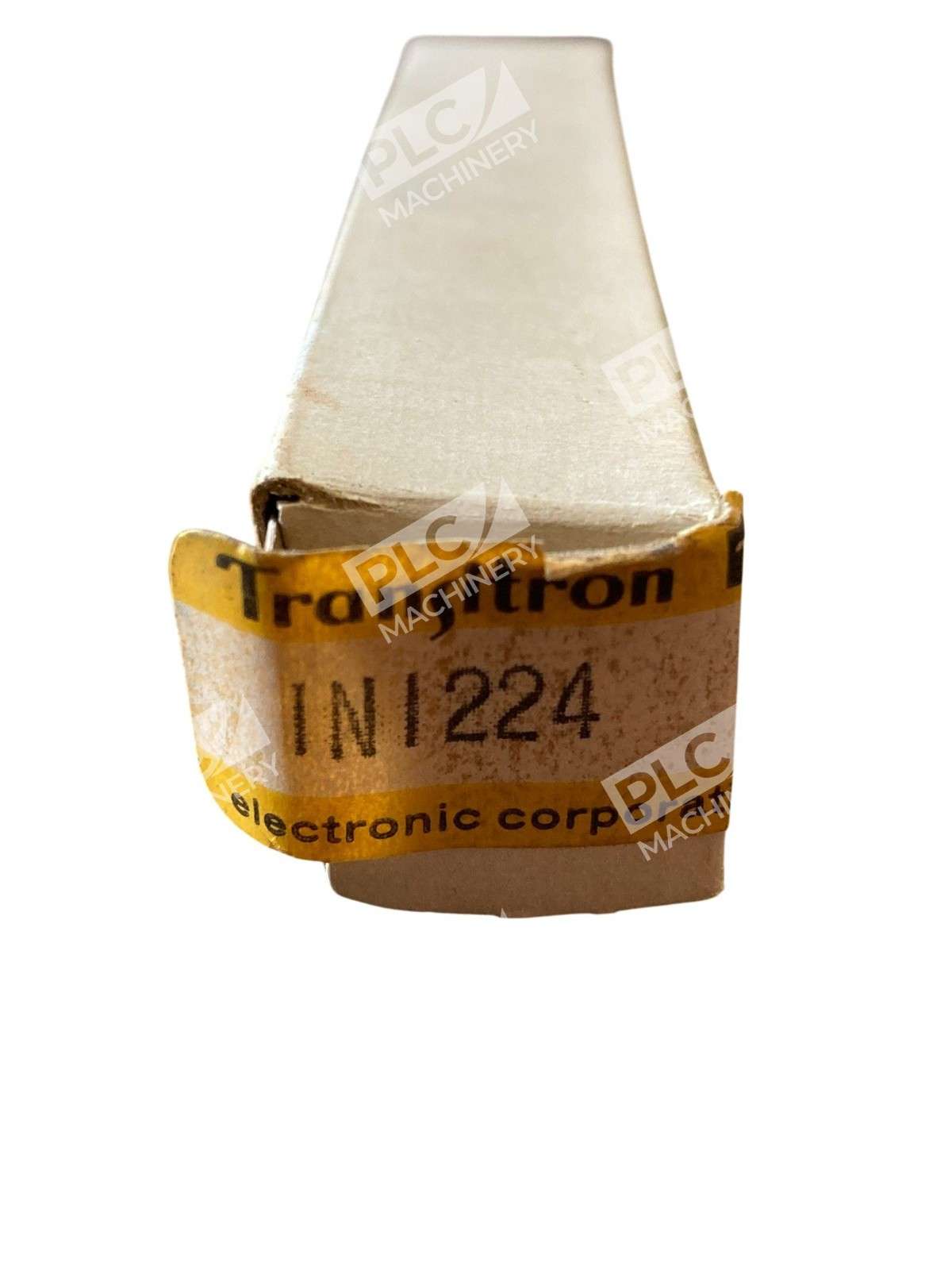

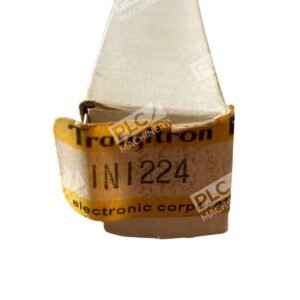

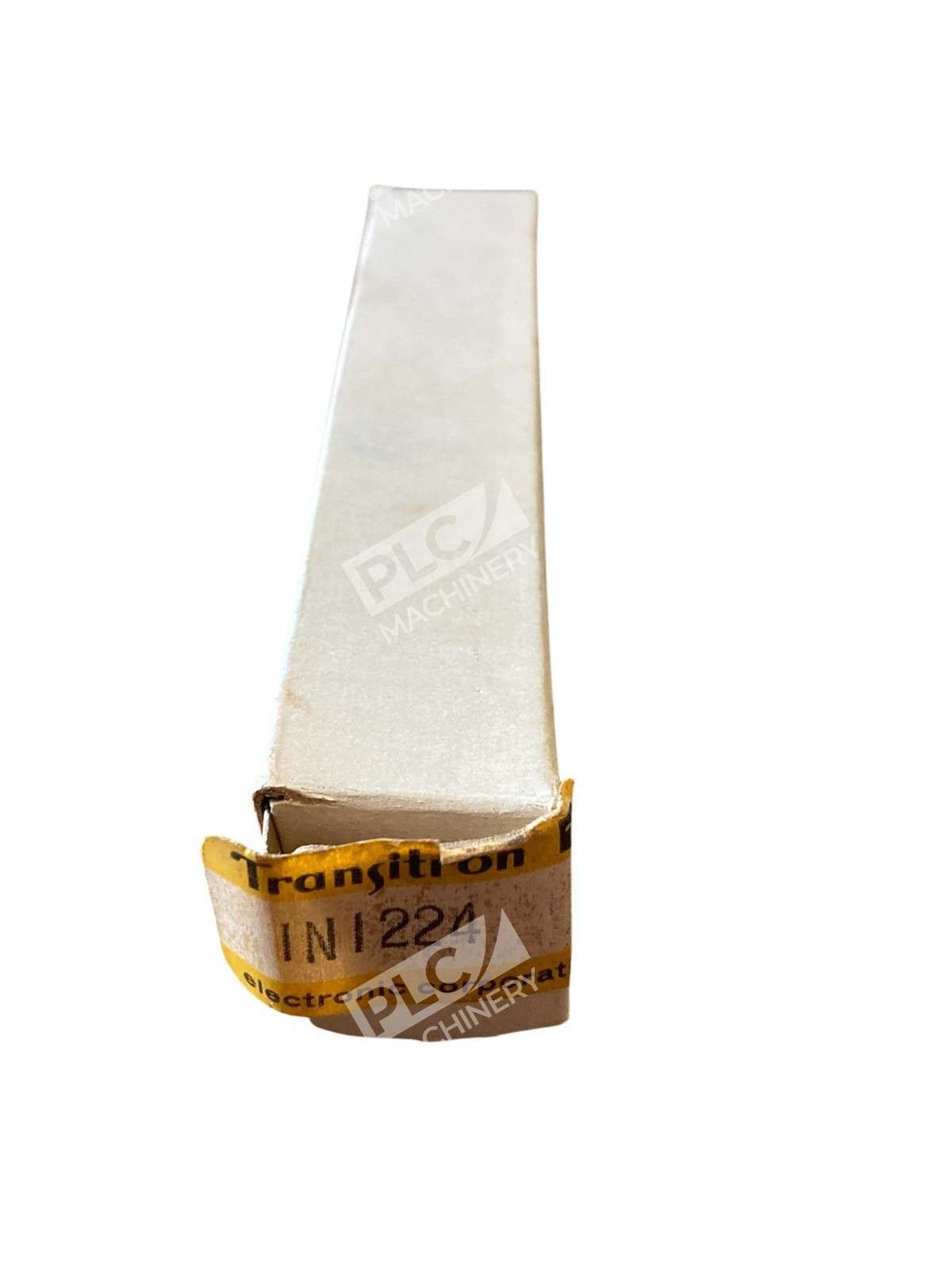

Transitron IN1224 Silicon Rectifier Diode 600V 1.6A Vintage Semiconductor 0189

Transitron IN1224 Silicon Rectifier Diode 600V 1.6A Vintage Semiconductor 0189

The Transitron IN1224 is a vintage silicon rectifier diode renowned for its reliability and performance in high-voltage applications. Designed to handle a peak inverse voltage of 600V and a forward current of 1.6A, this diode is well-suited for various rectification tasks in electronic circuits.

Key Features

• High Voltage Handling: Capable of withstanding up to 600V, making it ideal for applications requiring substantial voltage tolerance.
• Moderate Current Capacity: Supports a forward current of 1.6A, suitable for medium power applications.
• Silicon Construction: Ensures durability and consistent performance over time.
• Vintage Component: As a product from the earlier days of semiconductor development, it holds value for both functional use and historical significance.

Applications

The IN1224 diode is commonly utilized in:

• Power supply rectification
• Voltage regulation circuits
• General-purpose rectification tasks in electronic devices

Physical Characteristics

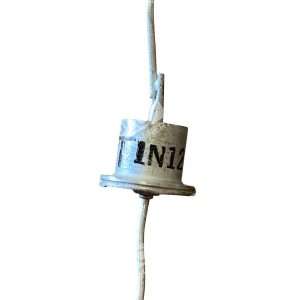

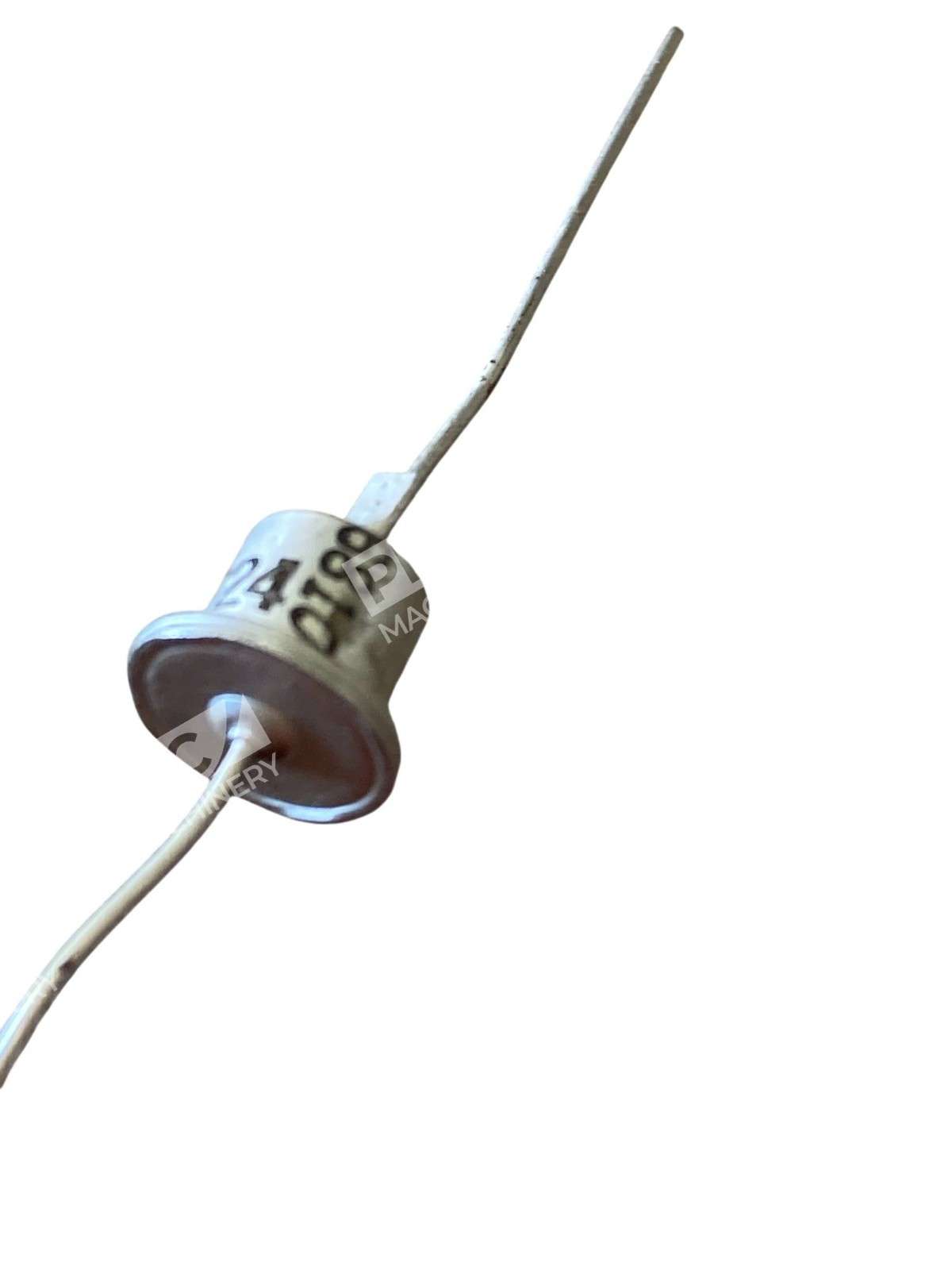

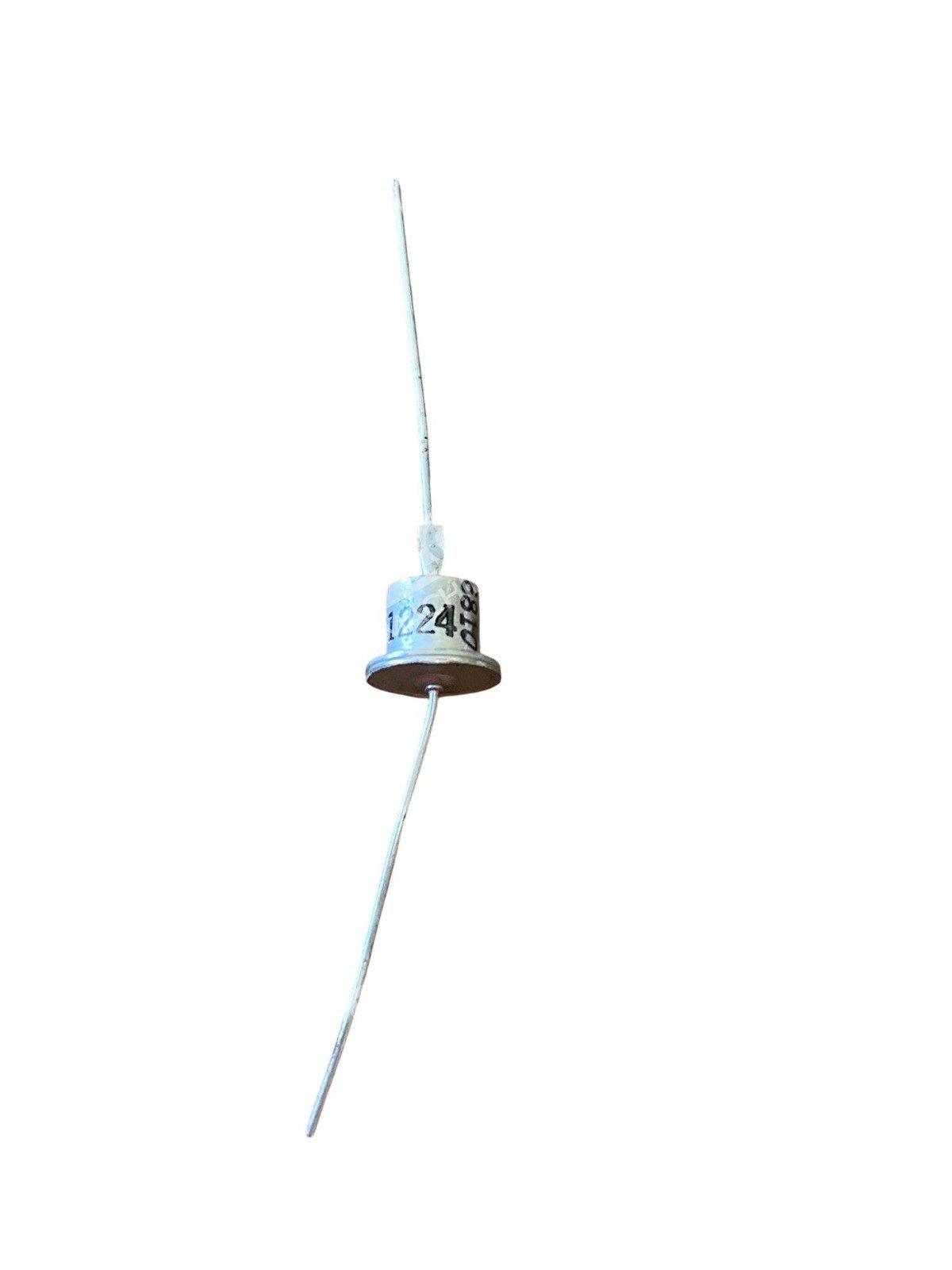

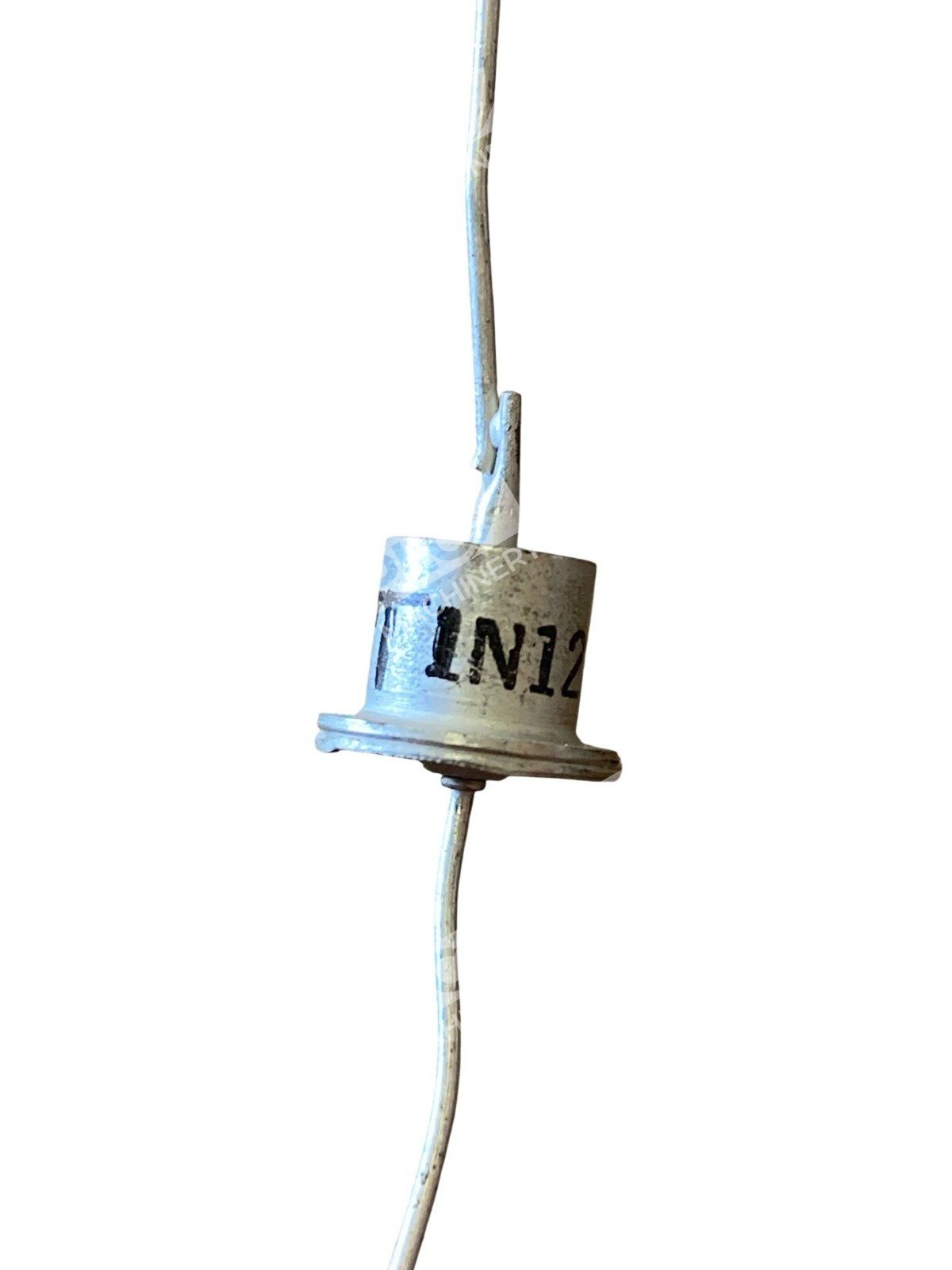

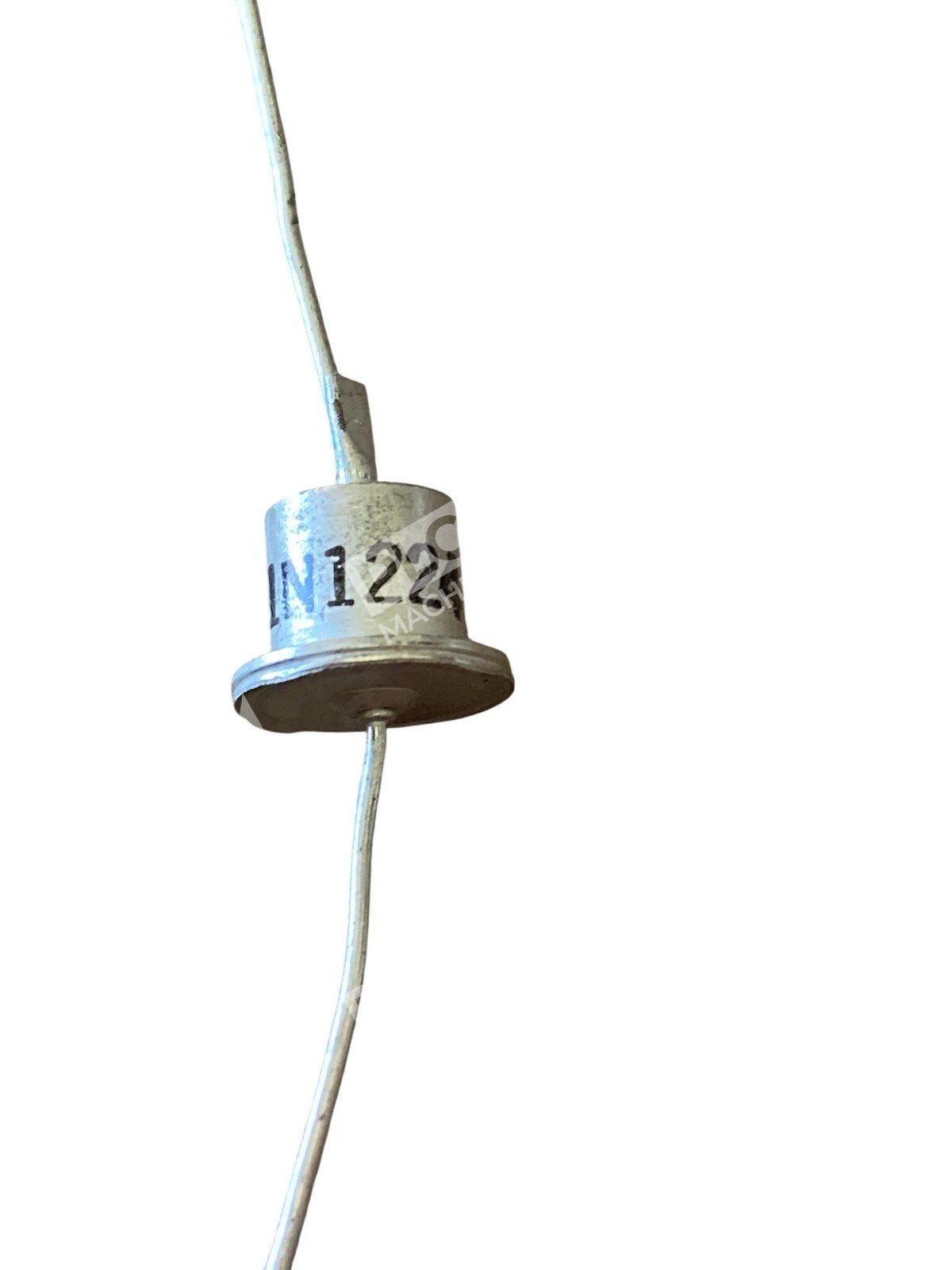

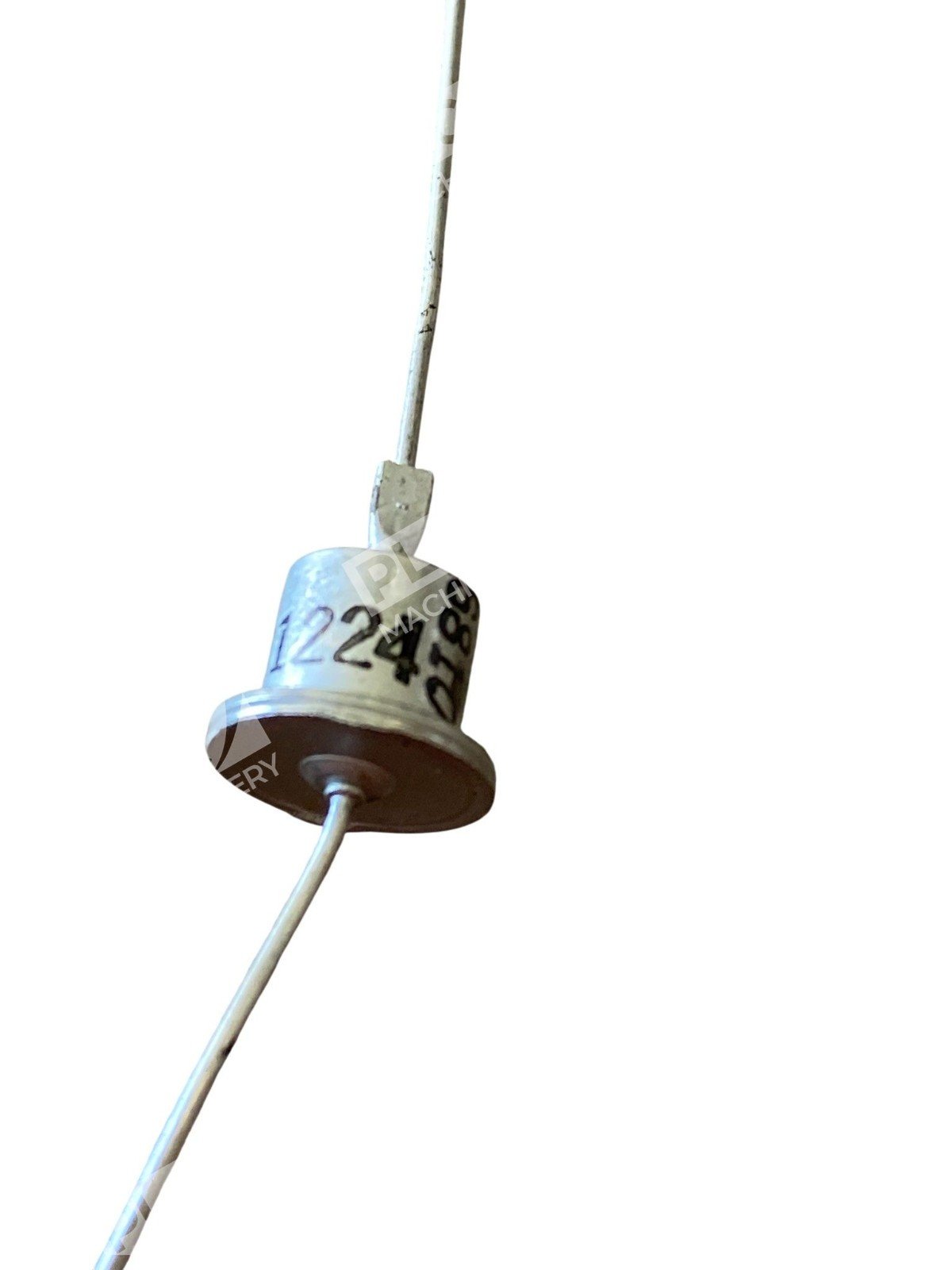

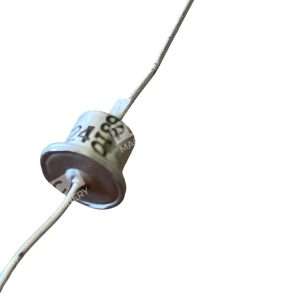

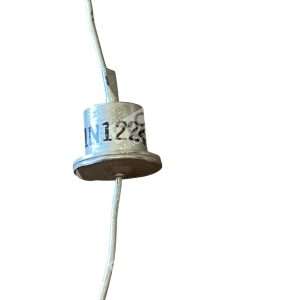

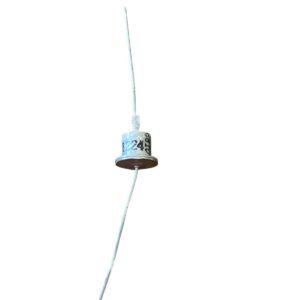

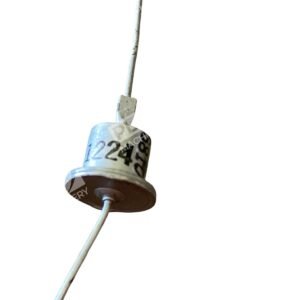

Encased in a DO-1 package, the IN1224 offers a compact form factor suitable for various circuit designs. Its robust construction ensures longevity and reliability in diverse operating conditions.

Historical Significance

Manufactured by Transitron, a notable company in the semiconductor industry, the IN1224 represents a piece of electronic history. Collectors and enthusiasts may find this component particularly appealing due to its vintage nature and the role it played in the evolution of semiconductor technology.

Whether for practical applications or as a collectible item, the Transitron IN1224 silicon rectifier diode stands as a testament to the enduring quality of early semiconductor components.
