Overview

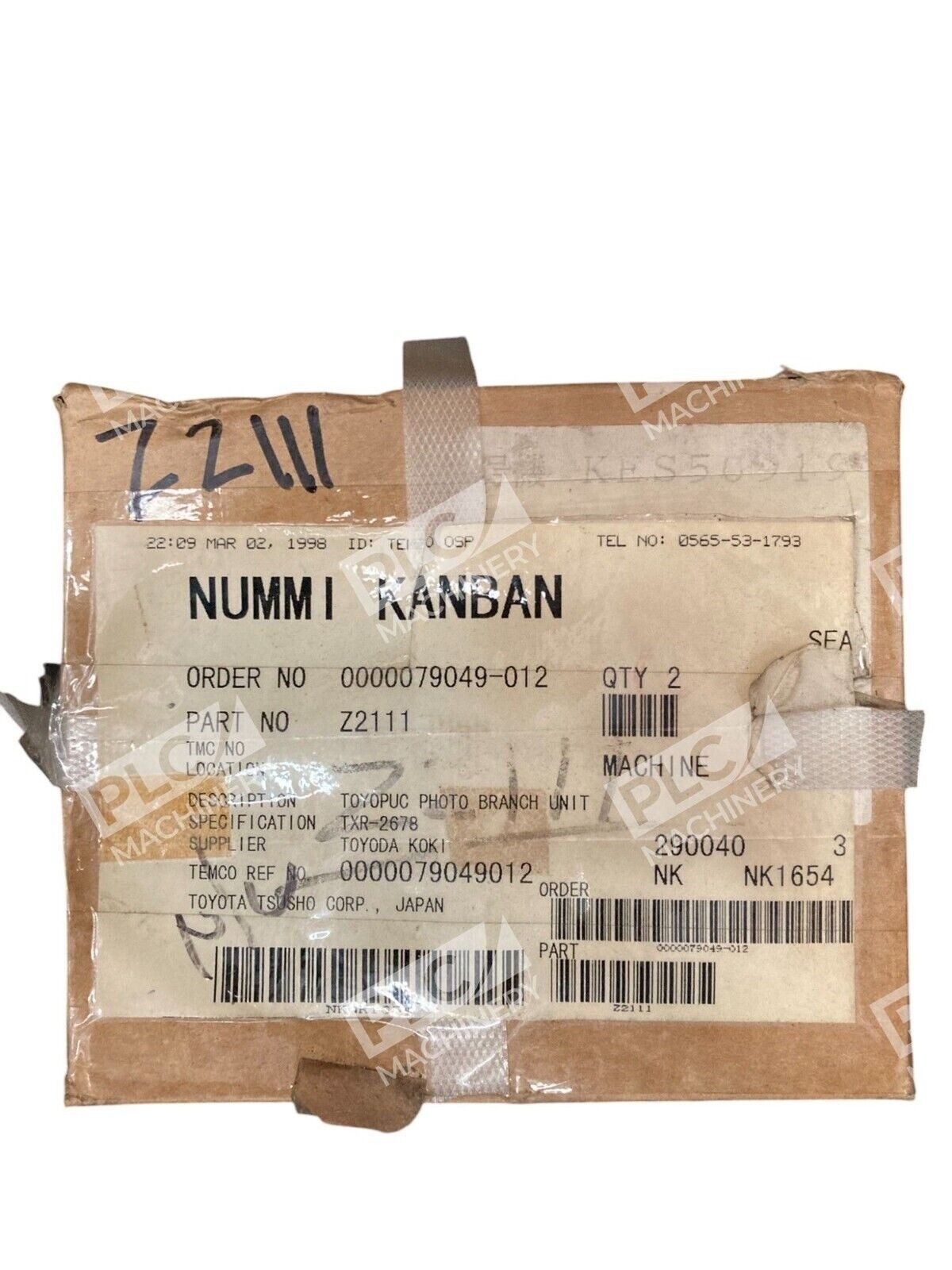

The Toyopuc TXR-2678 is a photo branch unit designed for JTEKT’s Toyopuc programmable logic controller platform. This module integrates photo detection and signal processing capabilities into Toyopuc PLC systems, supporting equipment control and automation applications in manufacturing environments. The Z2111 designation identifies this as part of the Nuumi Kanban control suite.
Key Features
- Photo detection module for motion control and equipment coordination
- Designed for integration with Toyopuc PLC processor modules
- Supports industrial automation and material handling applications
- Compact modular design for panel mounting and space-constrained installations
- Compatible with standard Toyopuc I/O architecture
Technical Specifications
Detailed specifications for the TXR-2678 are available from the manufacturer upon request. Typical Toyopuc photo branch modules support 24VDC control signals and interface directly with CPU and I/O base modules. For exact electrical specifications, voltage ratings, and signal characteristics, contact JTEKT technical support or consult the original equipment documentation.
Typical Applications
- CNC machine tool automation and control
- Material handling and conveyor systems
- Photo detection and position sensing in manufacturing
- Equipment sequencing and process coordination
- Parts tracking in production lines
Compatibility & Replacements
Compatible With
- Toyopuc PLC CPU modules and I/O bases
- Toyopuc-Plus compact PLC systems
- Toyopuc-PCS safety PLC platforms
- JTEKT industrial control solutions
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or JTEKT technical support before ordering. Photo branch module compatibility depends on specific PLC generation and base configuration.
Works With
- Toyopuc ladder logic programming environment
- Standard Toyopuc communication protocols
- 24VDC control signaling
- Industrial automation control systems
