Overview

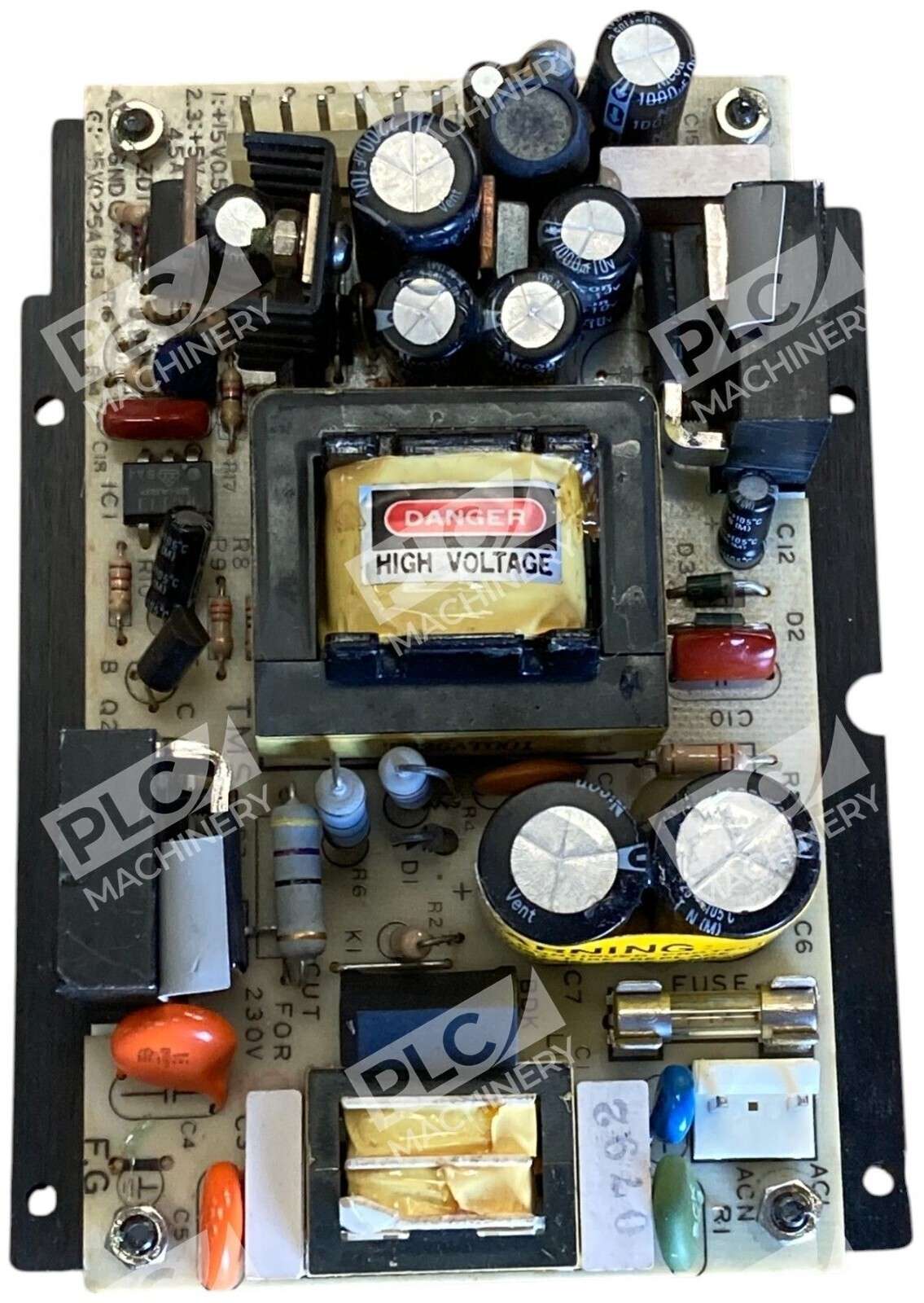

The Total Power International TF03T02 is a compact PCB-based power supply board built for industrial automation, servo drives, and motion control equipment. This unit provides stable, regulated power distribution with dual output voltage options, making it an essential component for equipment requiring precise power management in demanding industrial environments.
Key Features
- Dual output voltage range: 5VDC and 15VDC
- 30W power capacity for reliable servo and control system operation
- Input voltage: 115/250V AC selectable
- Operating frequency: 47–63 Hz
- Compact PCB design for space-constrained installations
- Industrial-grade construction for harsh operating conditions
Technical Specifications
- Part Number: TF03T02
- Manufacturer: Total Power International
- Output Voltage: 5VDC / 15VDC
- Output Power: 30W
- Input Voltage: 115V / 250V AC (selectable)
- Input Frequency: 47–63 Hz
- Product Type: Power Supply Board (PCB)
- Condition: Used, tested, fully functional
Typical Applications
The TF03T02 is commonly deployed in:
- Servo drive control circuits and amplifier modules
- Industrial motion control systems
- CNC machine tool power management
- Automation equipment auxiliary power supply
- Legacy industrial machinery retrofit and upgrades
- Equipment maintenance and board-level replacements
Compatibility & Replacements
Compatible With
- Servo drive amplifiers requiring 5V and 15V rail inputs
- Industrial automation control cabinets
- Motion control systems and CNC controllers
- AC mains power distribution panels (115V/250V)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering. The TF03T02 is a direct replacement for identical Total Power International model TF03T02 boards in servo drive and motion control applications.
Works With
- Industrial automation systems using 5VDC and 15VDC rails
- Legacy servo drive modules and control circuits
- Standard industrial power distribution networks
- Automation equipment designed for dual-voltage rail architecture
