Overview

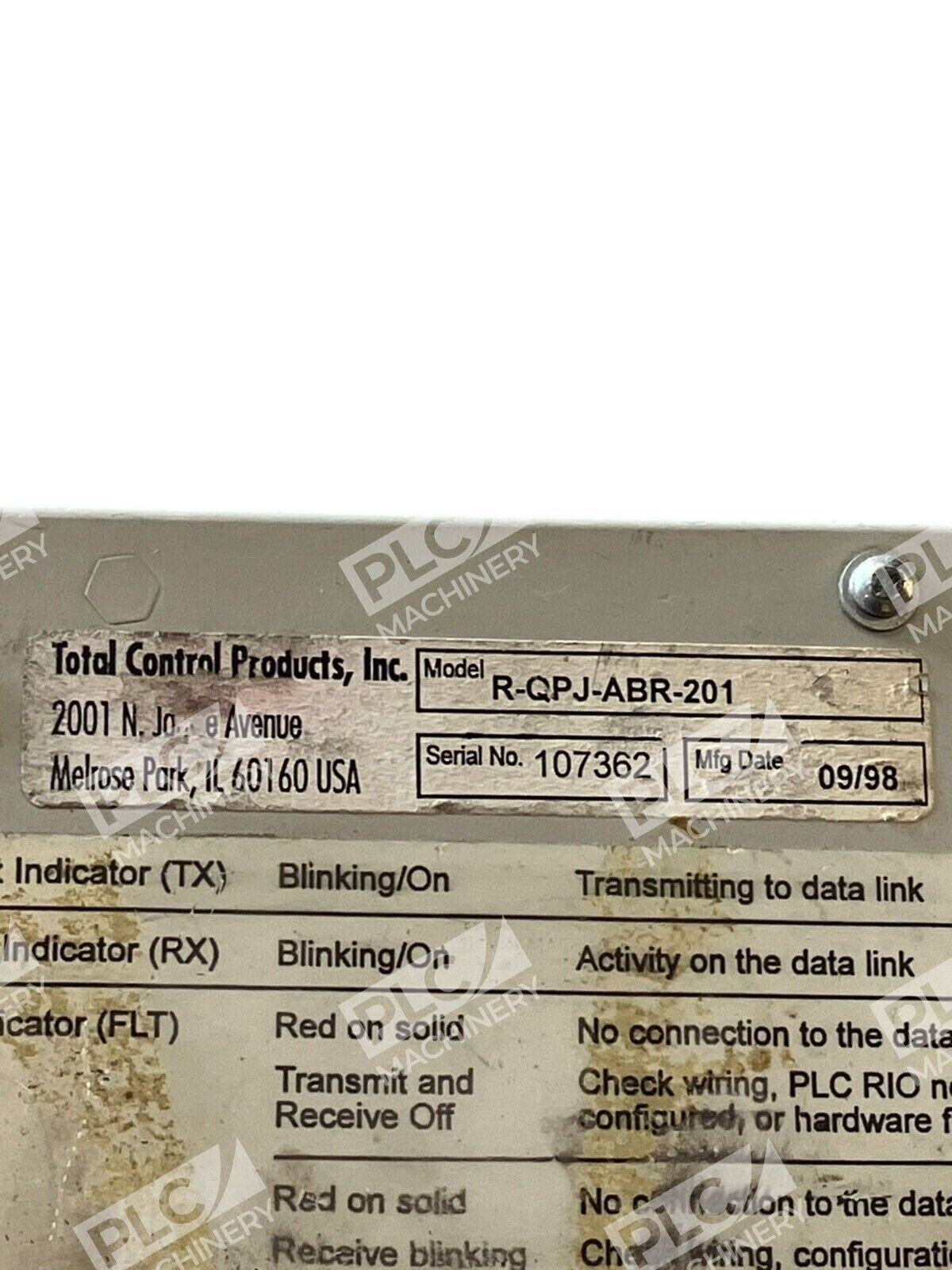

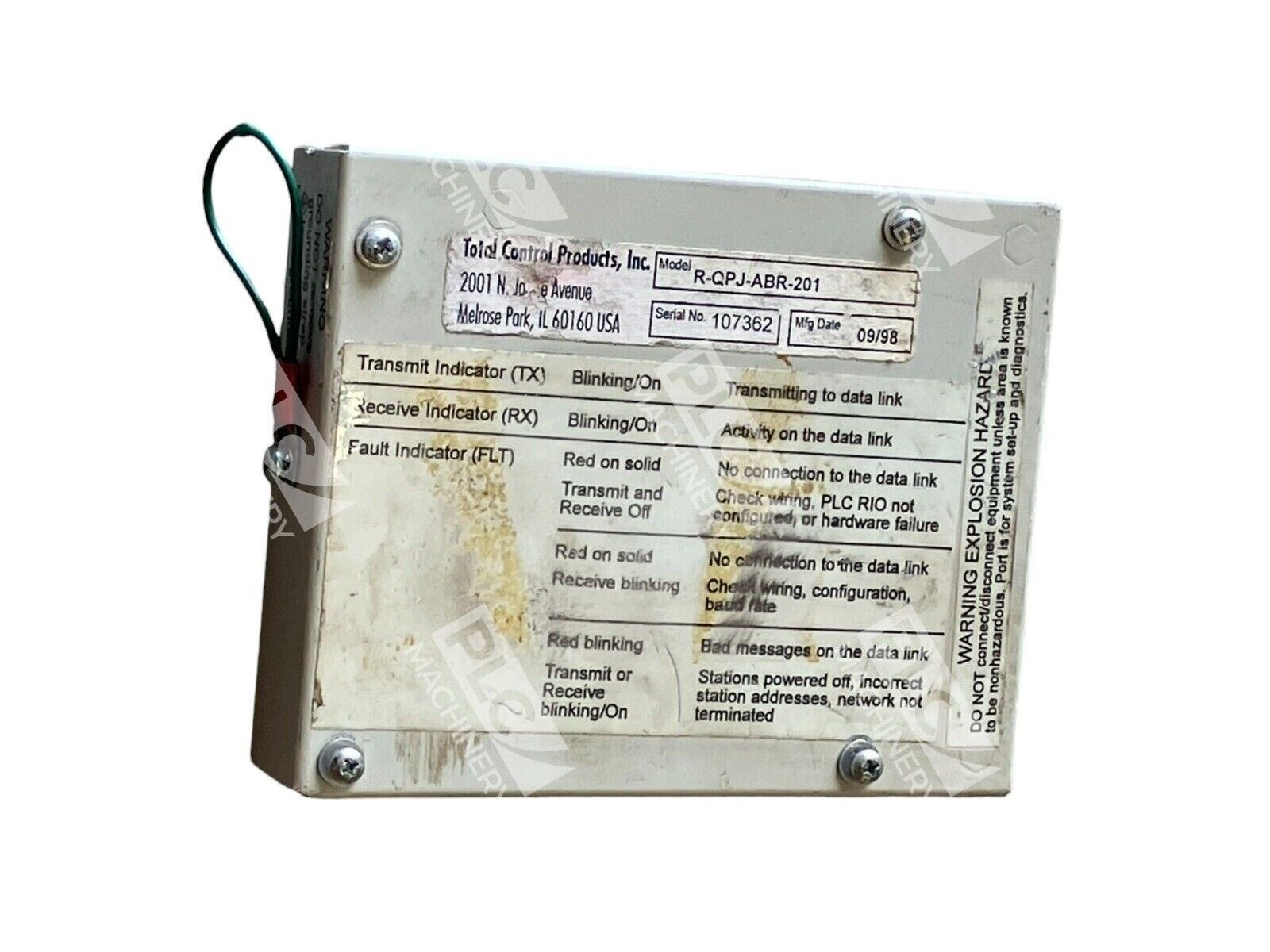

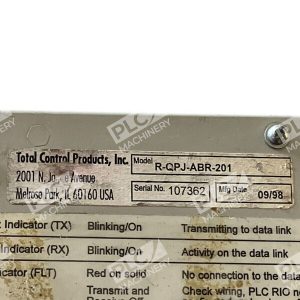

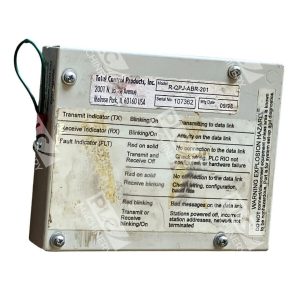

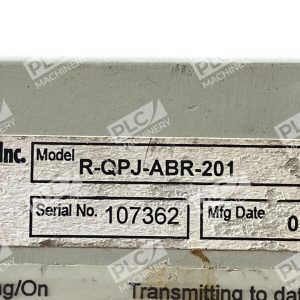

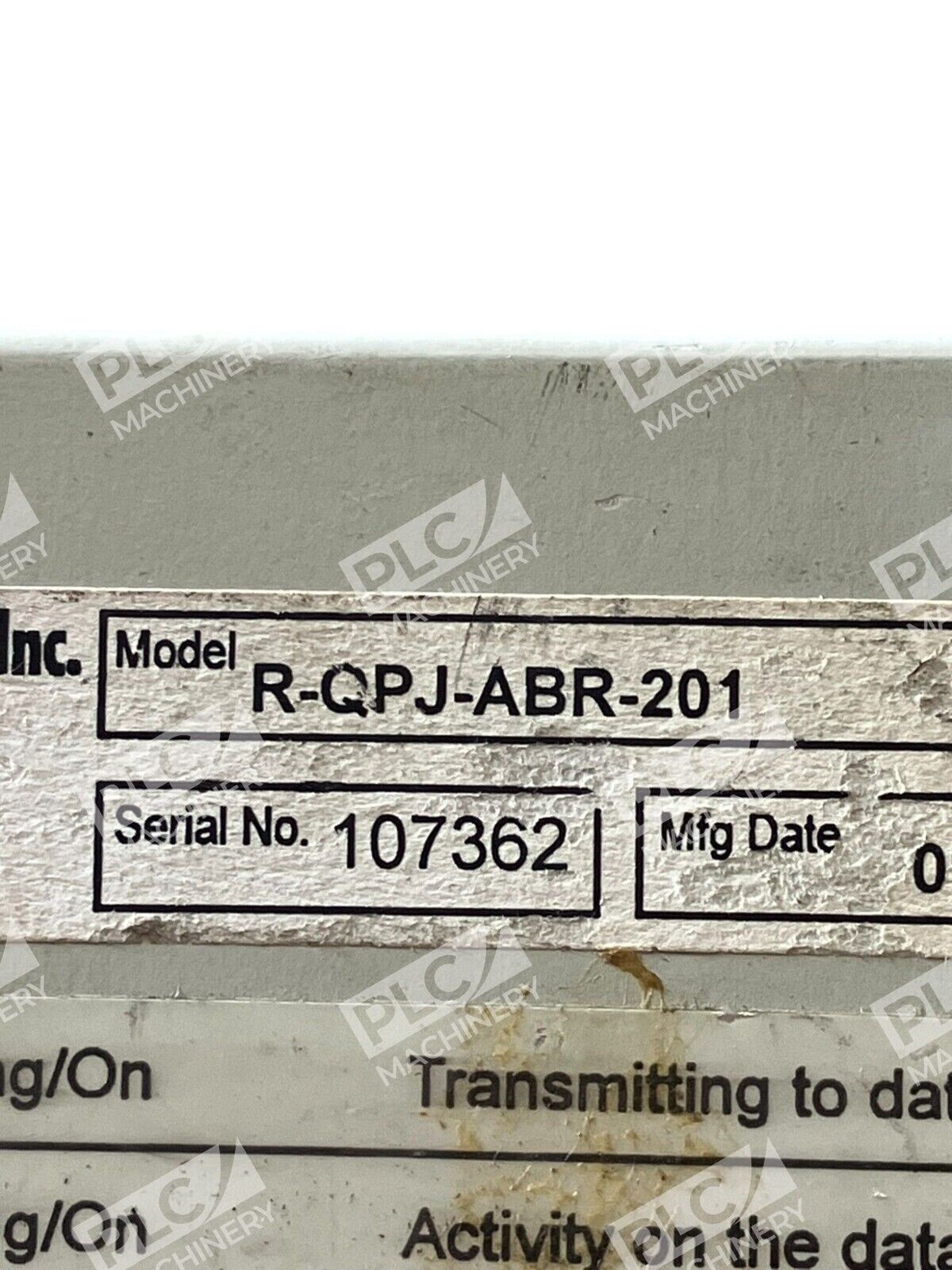

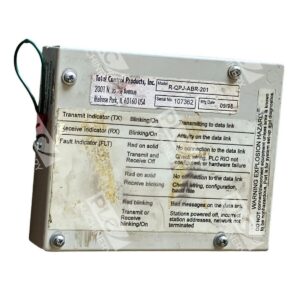

The Total Control Products R-QPJ-ABR-201 is a communication interface module designed for the QuickPanel series of industrial touch screen HMI units. This module establishes connectivity between the A-B Remote I/O system and a QuickPanel touch screen unit. Originally developed and produced by the industrial automation branch of General Electric, the QPJ-ABR-201 enables seamless data exchange between QuickPanel HMI systems and Allen-Bradley Remote I/O control networks.
Key Features
- Enables communication between QuickPanel HMIs and A-B Remote I/O systems
- QuickPanel models are capable of interfacing with all major programmable logic controllers, including A-B Remote I/O, A-B DH Plus, Modbus Plus, Genius I/O, Profibus, DeviceNet, and Interbus-S
- Optional module that extends QuickPanel connectivity without replacing core functionality
- Bridges operator interface and control system communication in industrial automation environments
Technical Specifications
Specific voltage, power, and dimensional specifications are not available in current distributor documentation. Verify detailed technical requirements with your system integrator or contact PLC Machinery for additional datasheet information.
Typical Applications
- QuickPanel HMI systems requiring Allen-Bradley Remote I/O network connectivity
- Industrial automation environments with distributed I/O architectures
- Operator interface integration with legacy and modern A-B control systems
- Multi-network industrial plants supporting DH Plus, Modbus, and Profibus protocols
Compatibility & Replacements
Compatible With
- QuickPanel jr. and QuickPanel series HMI units
- Allen-Bradley Remote I/O control networks
- A-B DH Plus networks
- Modbus Plus industrial networks
- Genius I/O systems
- Profibus and DeviceNet protocols
Replaces / Drop-In Replacement For
- This is the standard QPJ-ABR-201 variant (R-QPJ-ABR-201 is the refurbished or surplus designation)
- Verify exact compatibility with your QuickPanel model before ordering
Works With
- QuickPanel Series HMI software and QuickDesigner for Windows
- Allen-Bradley Remote I/O interface protocols
- Industrial communication standards: DH Plus, Modbus Plus, Profibus, DeviceNet, Interbus-S
- Legacy and modern General Electric automation ecosystems
