Overview

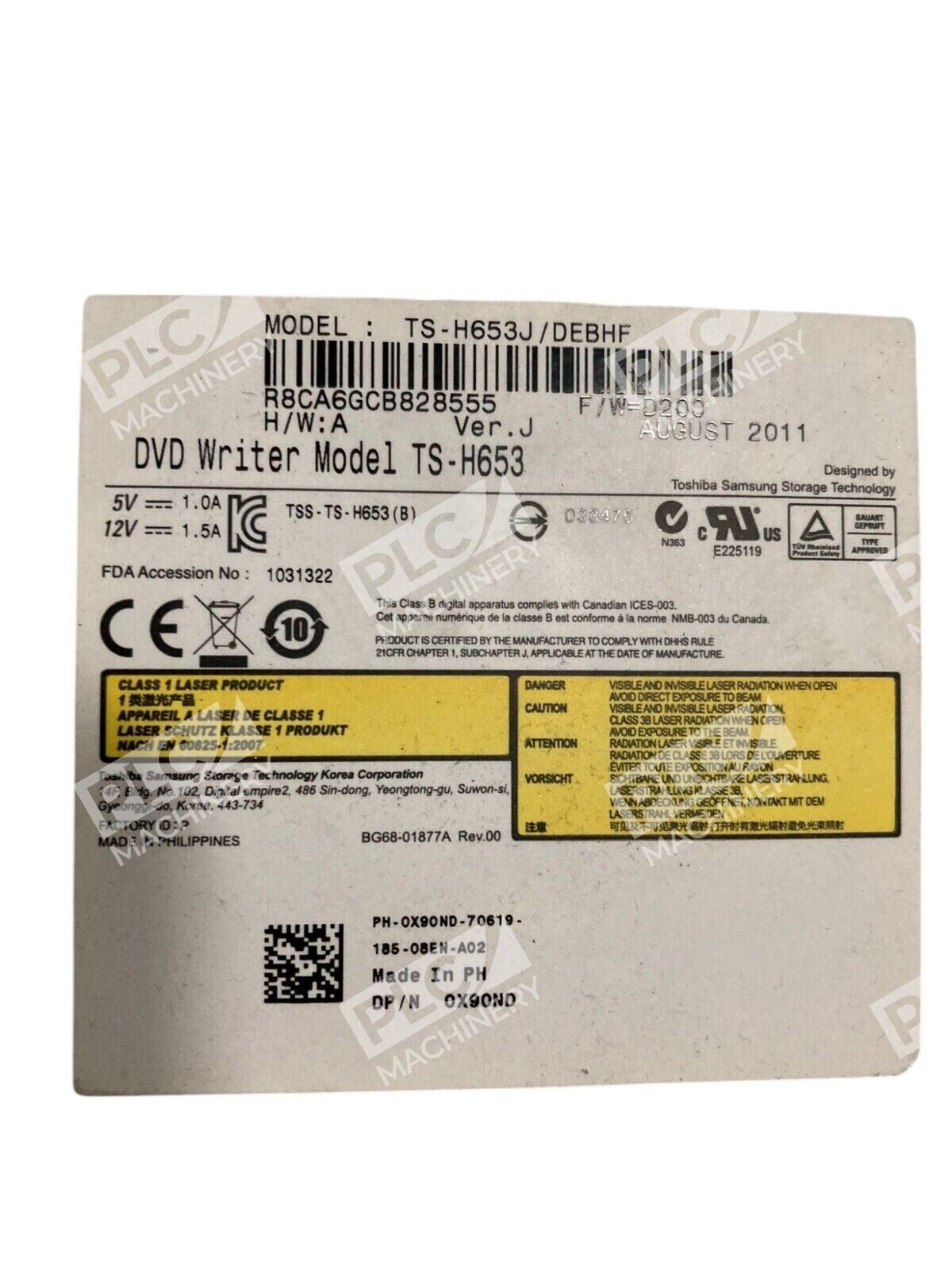

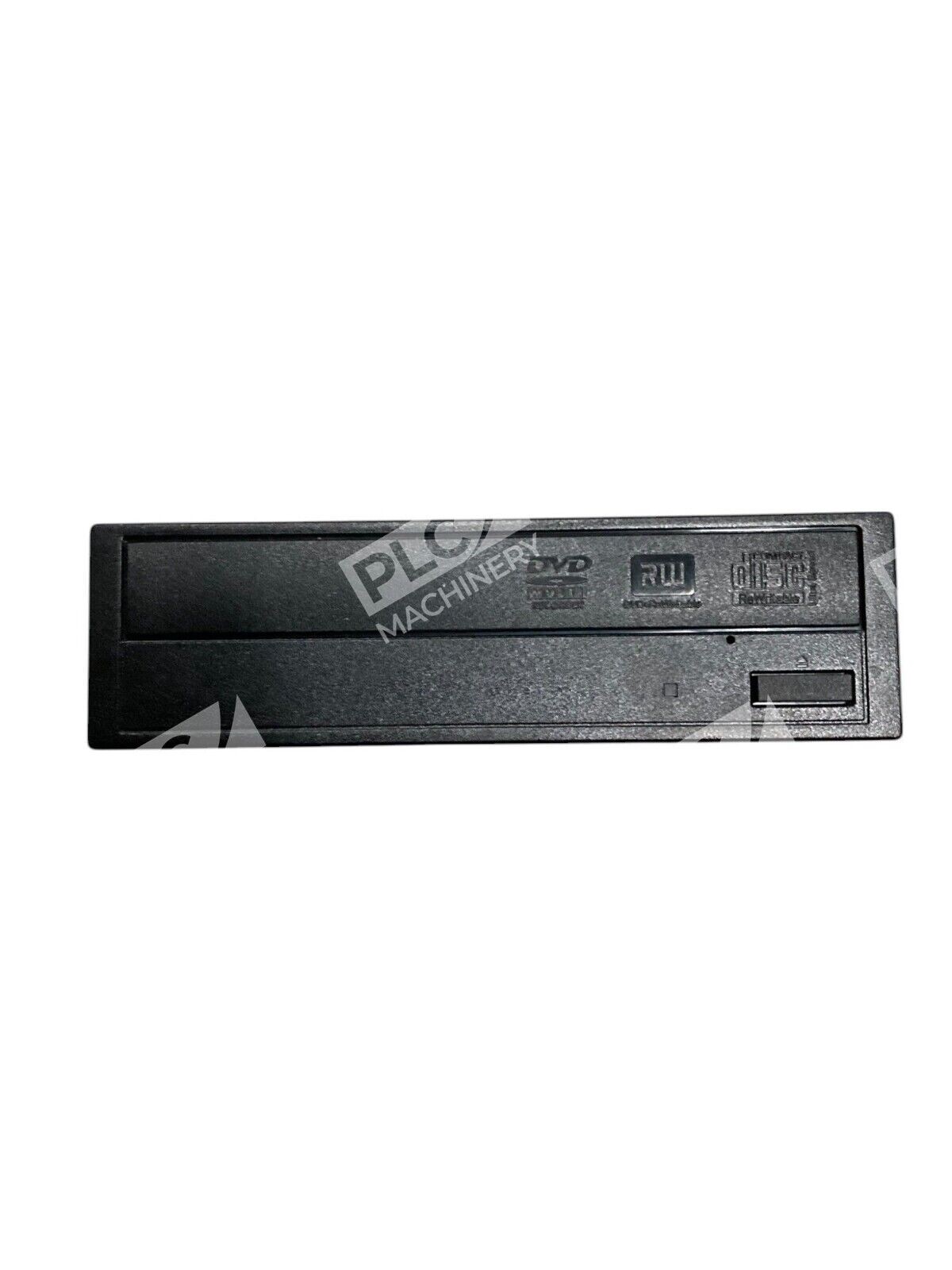

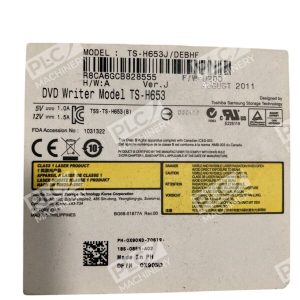

The Toshiba Samsung TS-H653 DVD writer is a SATA internal optical drive manufactured by TSST (Toshiba-Samsung Storage Technology joint venture). This multi-format DVD recorder delivers write speeds up to 20x for DVD±R media and supports dual-layer discs, enabling users to burn up to 8.5 GB on a single disc. The unit includes a 2 MB buffer and operates via standard SATA interface and power connector.
Key Features
- Multi-format support: DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW, DVD+R DL, DVD-R DL, CD-ROM, CD-R, and CD-RW
- High write speeds: 20x DVD±R, 16x DVD±R DL, 8x DVD±RW, 48x CD-R
- Dual-layer capability: Burn up to 8.5 GB on single disc
- SATA interface: Standard desktop integration with 2 MB buffer
- Precision technologies: Buffer Underrun Free, Speed Adjustment, and Double Optimum Power Control
Technical Specifications
The drive offers comprehensive support across legacy and modern optical media formats with the following performance metrics:
- Write speed (DVD±R): 20x
- Write speed (DVD±R DL): 16x
- Rewrite speed (DVD±RW): 8x
- Write speed (CD-R): 48x
- Buffer size: 2 MB
- Interface: SATA
- Form factor: 5.25 inch internal
- Dimensions: 145mm (W) × 170mm (D) × 40mm (H)
- Media capacity: Up to 8.5 GB (dual-layer DVD)
Typical Applications
The TS-H653 is suited for data archival, backup media creation, and optical disc burning in office and desktop environments. It works with legacy PC systems and workstations that require reliable DVD-writing capability without modern streaming or cloud dependency.
Compatibility & Replacements
Compatible With
- Standard SATA desktop systems and workstations
- Dell OptiPlex and other OEM systems with SATA bays
- Any operating system supporting SATA optical drives (Windows, Linux)
- Standard 5.25-inch drive bays with SATA power and data connections
Replaces / Drop-In Replacement For
- Dell 0UU971 (TS-H653B/DEWH variant)
- Dell 1Y66R
- Lenovo 45K0482 / 71Y5545 (TS-H653J/LEAHF variant)
- Dell 0D5PV2 (TS-H653G/DEWHW variant)
- Other OEM TS-H653 models with matching SATA interface
Works With
- SATA optical drive support in BIOS/firmware
- Standard Windows, Linux, and DOS optical disc authoring software
- Any legacy data recovery or archival workflow using optical media
- Systems requiring Dual Layer (DL) DVD writing capability
