Overview

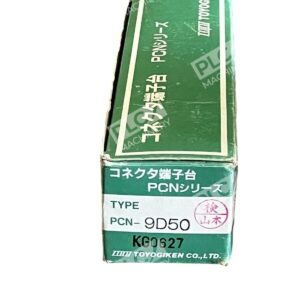

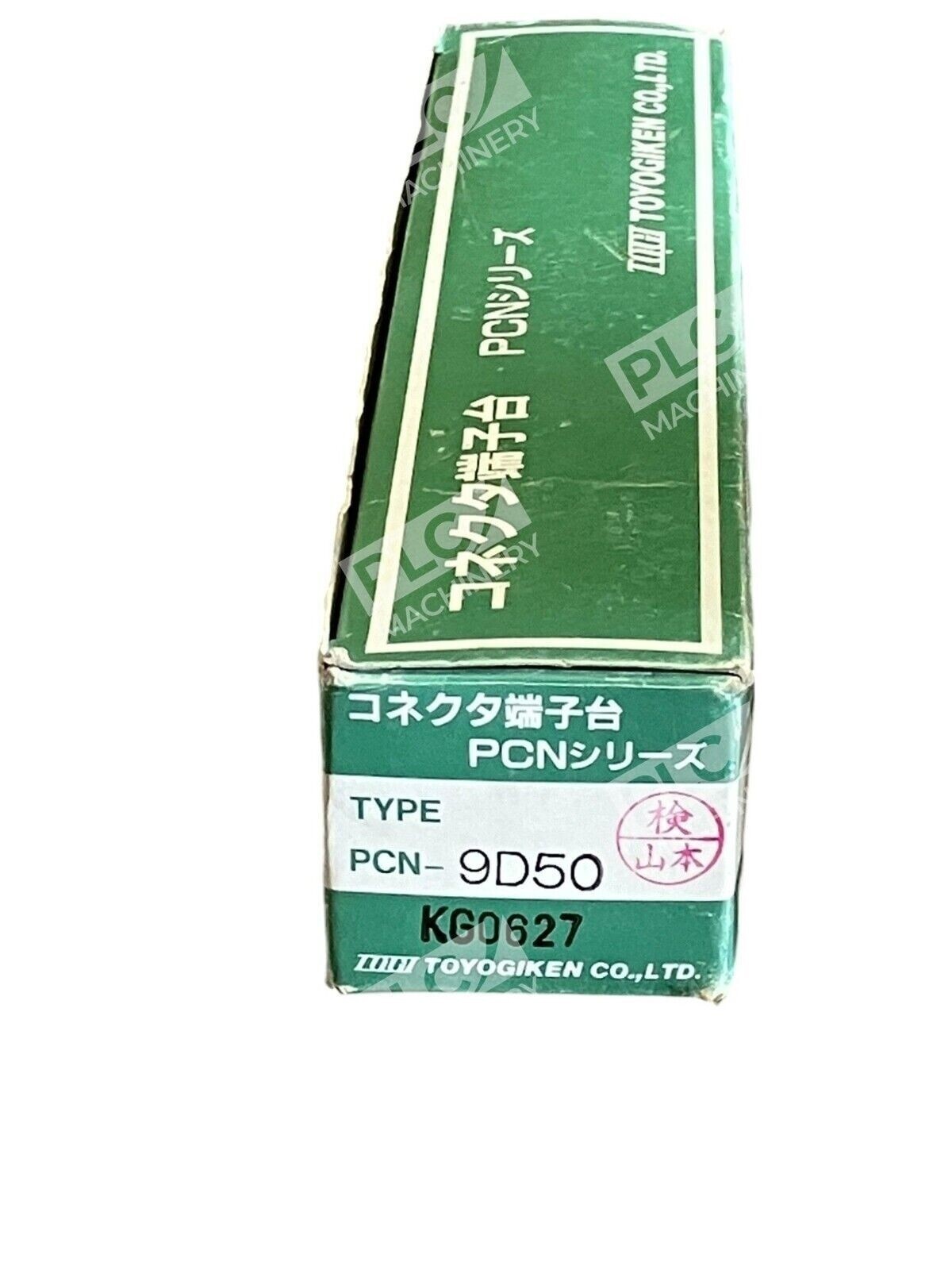

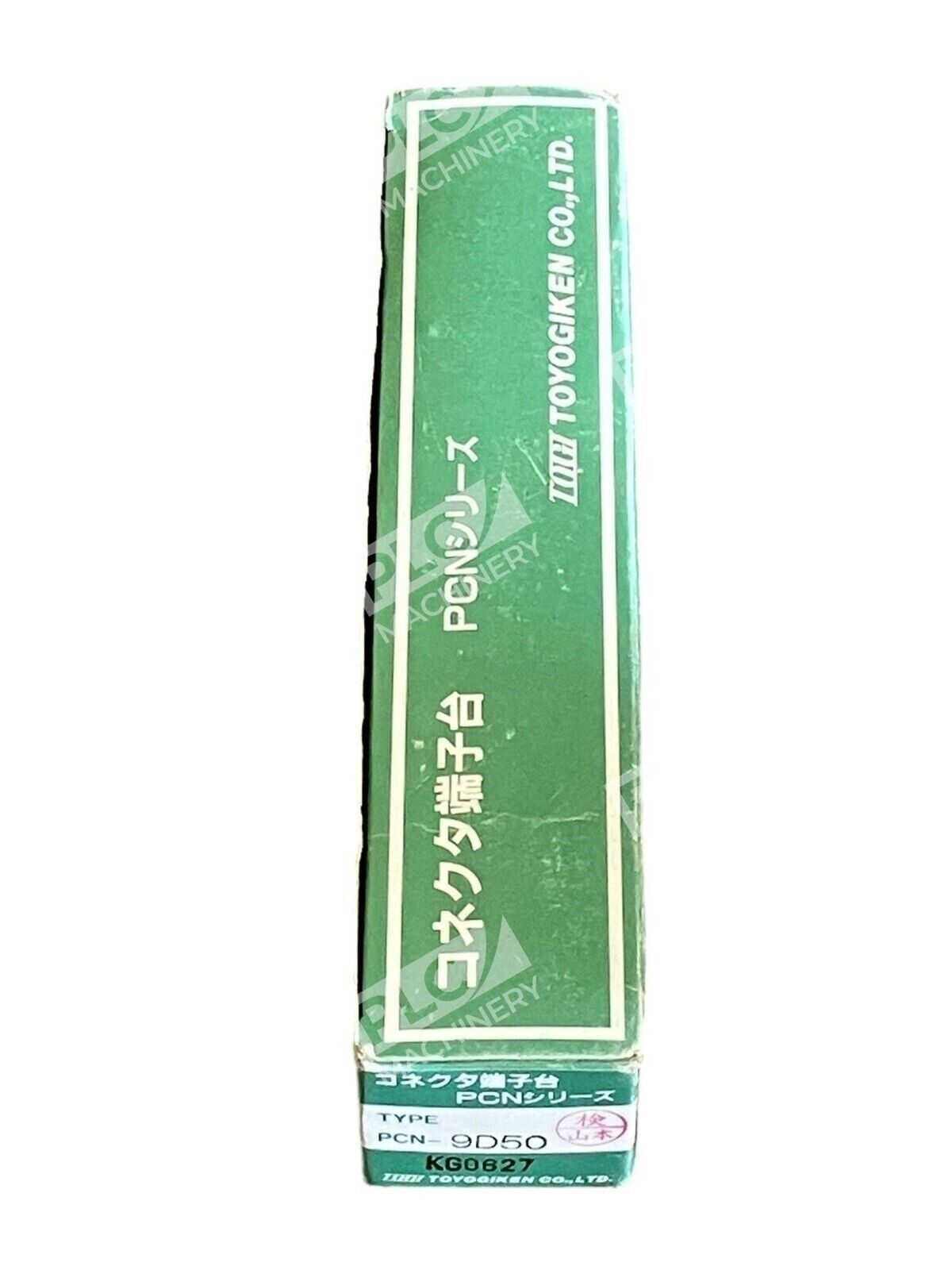

The Togi PCN-9D50 is a professional-grade terminal block interface manufactured by Toyogiken Co., Ltd. This 50-pole terminal block combines a screw-clamp terminal block with an integrated MIL-style connector on the PCB, eliminating wiring errors and ensuring one-to-one correlation between terminal and connector numbering. The PCN-9D50 is widely used in industrial control panels, PLC interfaces, and automation systems requiring reliable signal distribution and connectivity.
Key Features
- 50-pole terminal and connector configuration for high-density signal routing
- Integrated PCB connection eliminates misalignment and cross-wiring errors
- Screw-clamp terminal design for secure wire termination with improved accessibility
- Lever-type DIN rail attachment—tool-free removal and installation
- Dual mounting capability: DIN rail or direct surface mounting
- 125V/1A rated for typical control circuit applications
Technical Specifications
- Number of Poles: 50
- Voltage Rating: 125V AC/DC
- Current Rating: 1A per contact
- Connection Type: Screw-clamp terminals with fork or round-pin crimp compatibility
- Mounting Style: DIN rail (lever-lock) or direct panel mount
- Connector Type: MIL-style connector (integrated on PCB)
- Width: 90mm (standard for 50-pole configuration)
Typical Applications
- Mitsubishi PLC I/O interface modules
- Industrial control panel signal distribution
- Automation equipment wiring hubs
- Remote I/O terminal blocks for machinery control
- Factory automation and production line systems
Compatibility & Replacements
Compatible With
- Mitsubishi PLC systems (PCN series designed for Mitsubishi compatibility)
- Industrial control panels with DIN rail mounting
- Systems requiring 125V signal-level terminal distribution
- Standard automation platforms using MIL-connector interfaces
Replaces / Drop-In Replacement For
The PCN-9D50 is compatible with other 50-pole Toyogiken terminal blocks in the PCN and PCN7 series. Verify compatibility with your system integrator before ordering to ensure connector pinout alignment.
Works With
- Fork-type and round-pin crimp terminals for wire attachment
- Standard DIN rail systems (35mm profile)
- Mitsubishi-based control architectures
- Industrial signal conditioning and distribution networks
