Overview

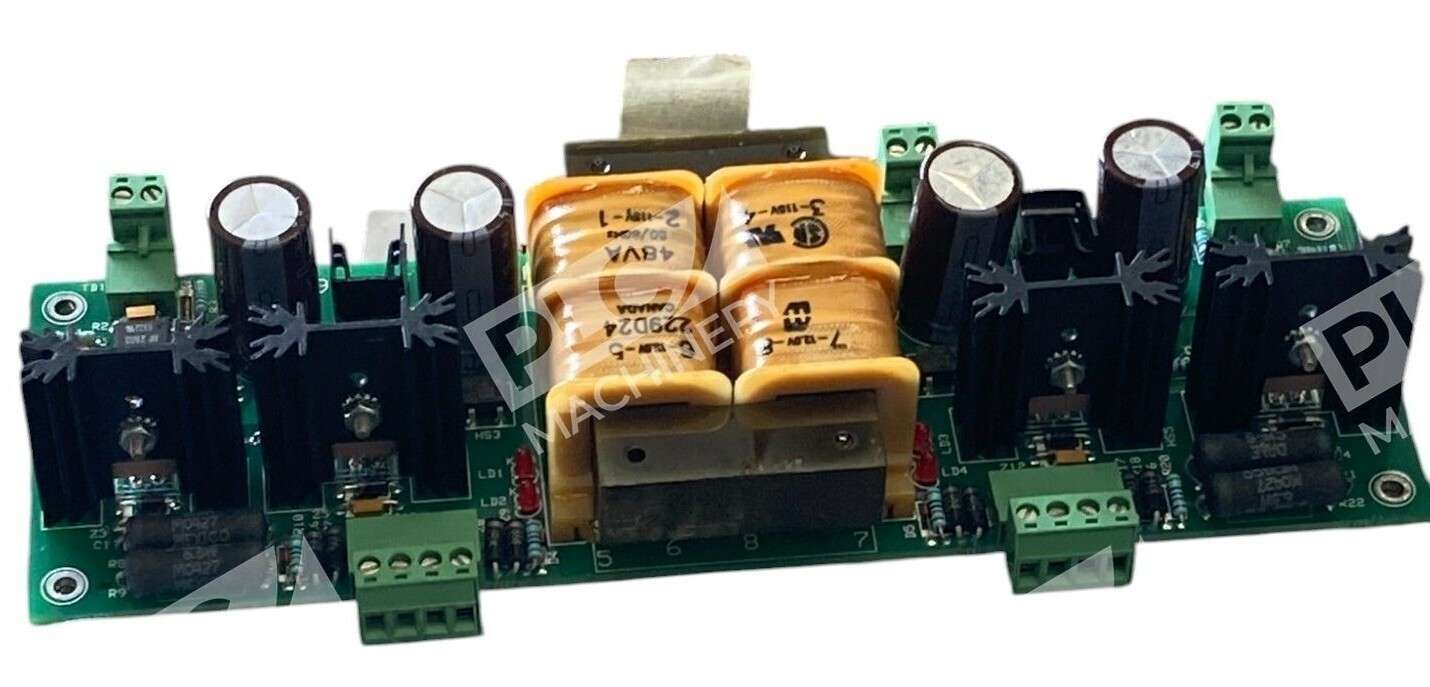

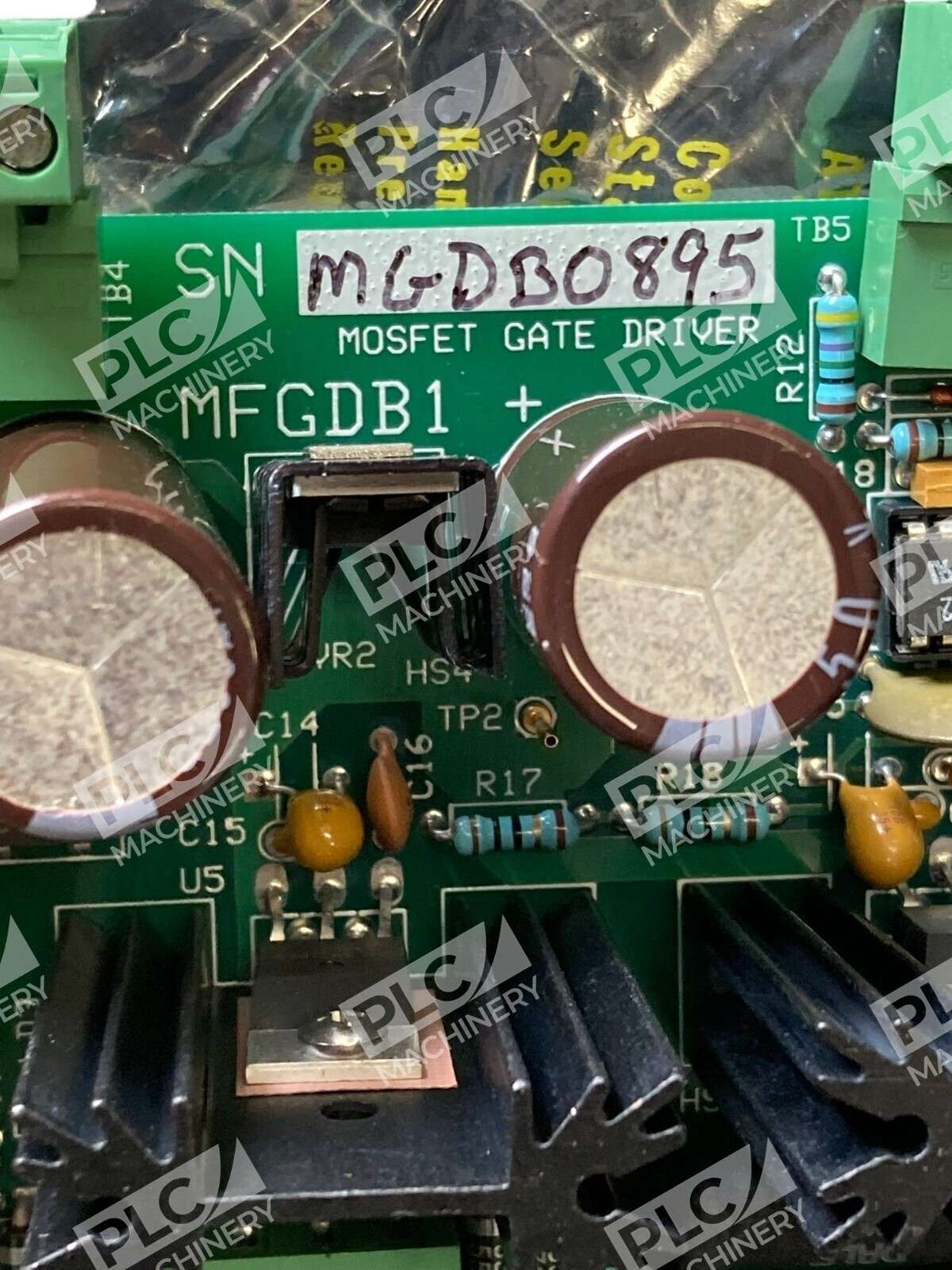

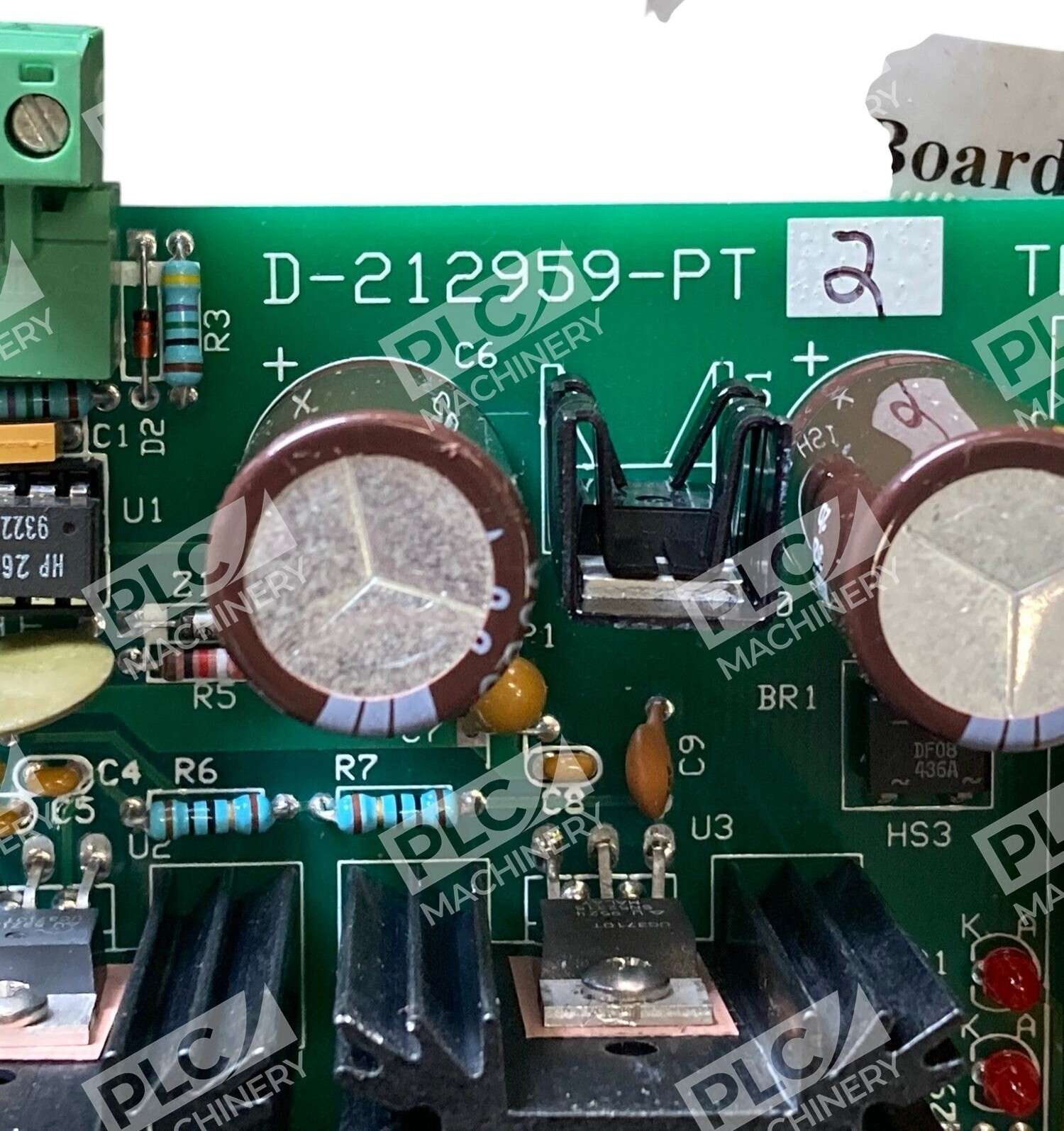

The Tocco D-212959-PT2 is a MOSFET gate driver board module (revision IP-30394 Rev 1, MFGDB1 designation) engineered for precision switching control in industrial power electronics. Gate drivers isolate low-signal control circuits from high-voltage power stages, enabling reliable on/off switching of MOSFETs in frequency converters, DC-DC supplies, motor drives, and soft-start applications.
Key Features
- Dedicated MOSFET gate drive circuitry for reliable switching control
- Compact modular design suitable for OEM power equipment integration
- Industrial-grade construction for demanding thermal and electrical environments

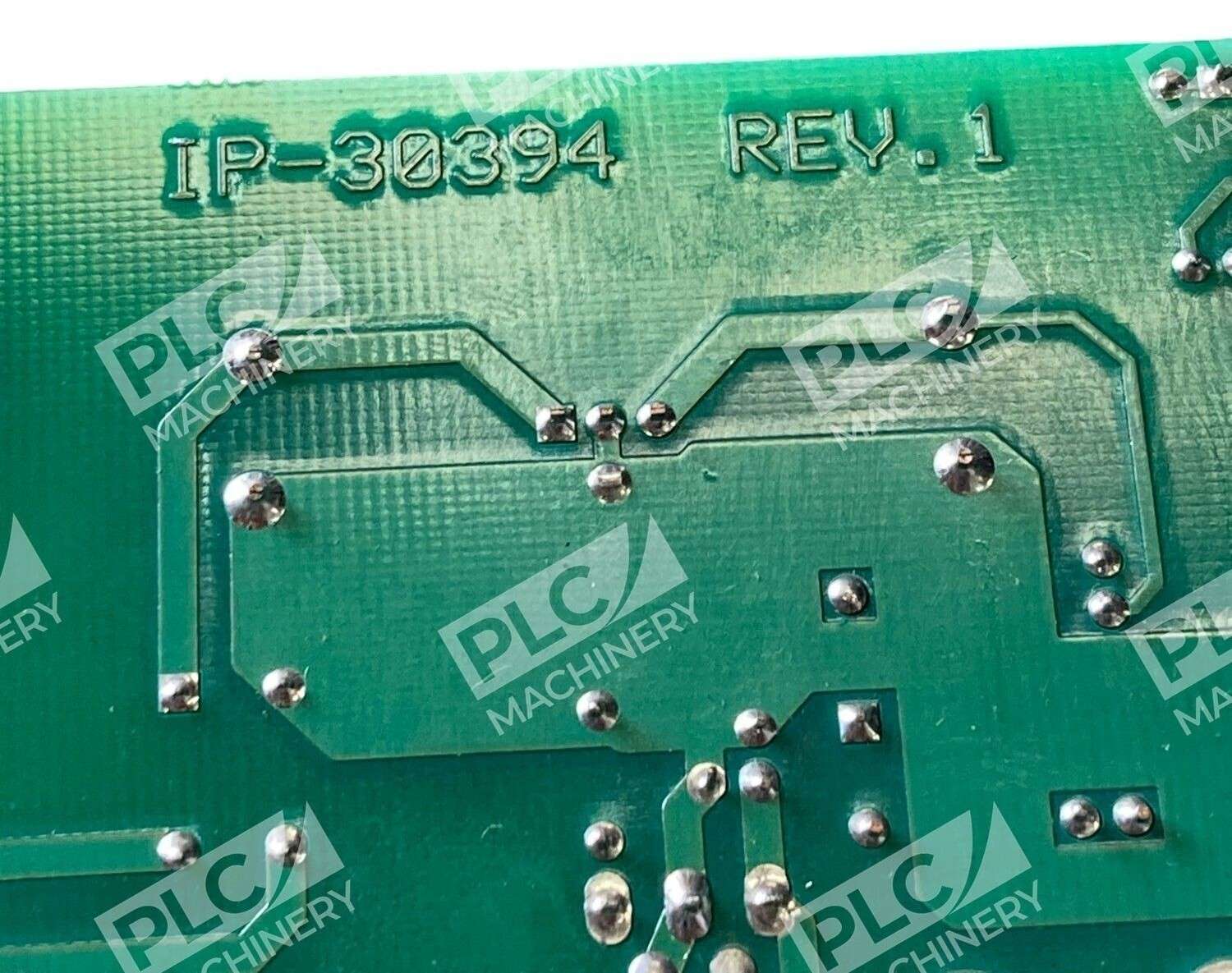

- Revision-controlled board design (IP-30394 Rev 1) ensuring consistency
- Direct replacement for original equipment applications
Technical Specifications
Detailed electrical specifications (input voltage, output current, gate drive voltage, control signal levels) are available upon request from the manufacturer datasheet or upon contacting our technical team. The board is designed to interface with standard industrial control logic (24 VDC signals, 3.3 V/5 V TTL/CMOS compatible in typical configurations).
Typical Applications
- Industrial frequency converters and variable frequency drives (VFDs)
- Motor soft-start controllers
- Power supply switching stages
- DC-DC converter modules
- Induction heating and welding equipment gate control
- Industrial automation switchgear and power distribution modules
Compatibility & Replacements
Compatible With
- Tocco-branded frequency converters and drives
- OEM power electronics platforms requiring isolated gate drive
- N-channel and P-channel MOSFET switching stages
- Industrial control systems with 24 VDC and logic-level signal interfaces
Replaces / Drop-In Replacement For
- Tocco D-212959-PT (original revision)
- Verify compatibility with your system integrator or equipment documentation before ordering to confirm this unit matches your original module configuration
Works With
- Industrial gate driver interfaces (TTL, CMOS, 24 VDC logic)
- MOSFET power modules from Semikron, Infineon, International Rectifier, and other standard manufacturers
- Tocco control and power boards in frequency converter and drive systems
