Overview

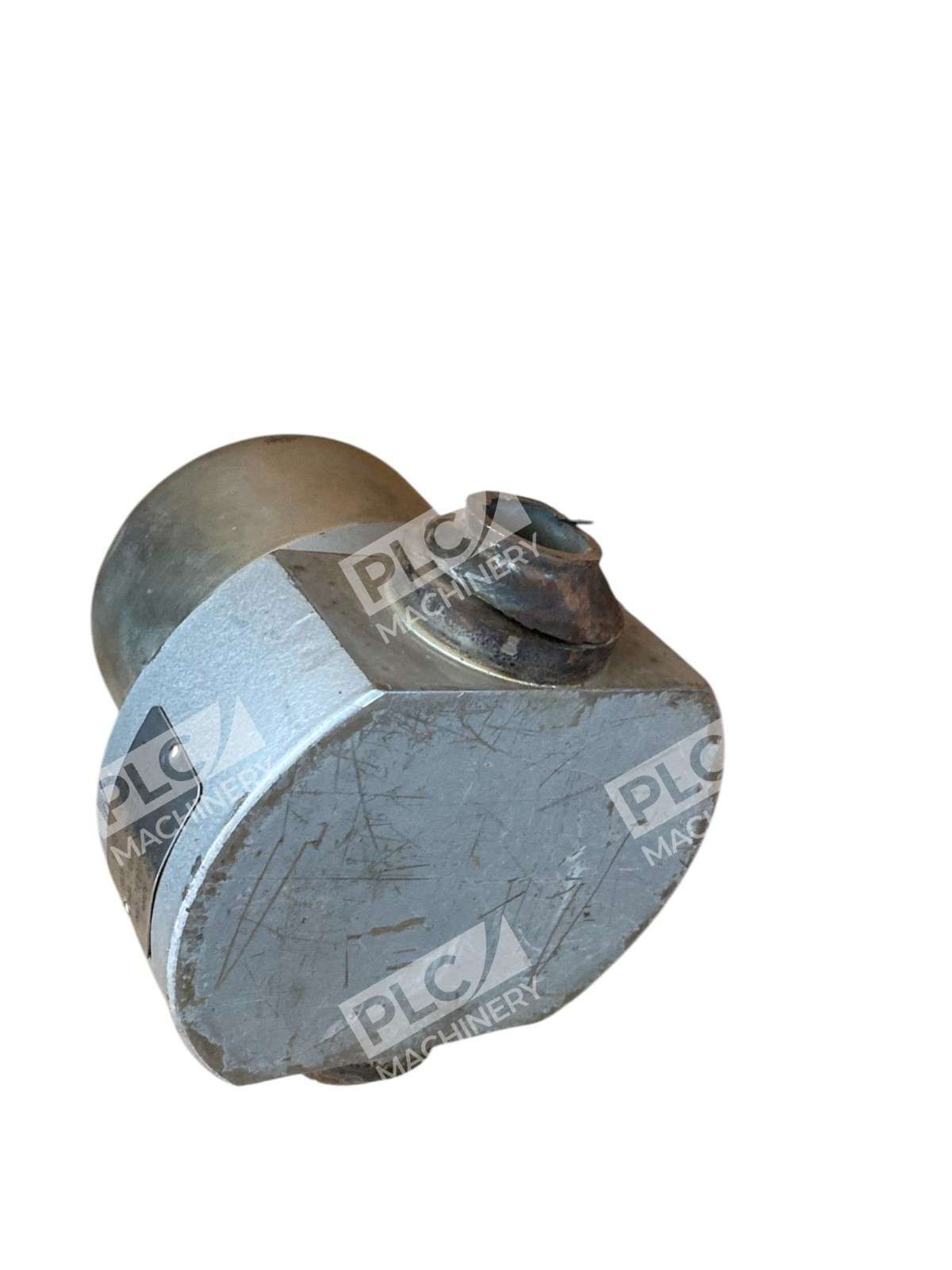

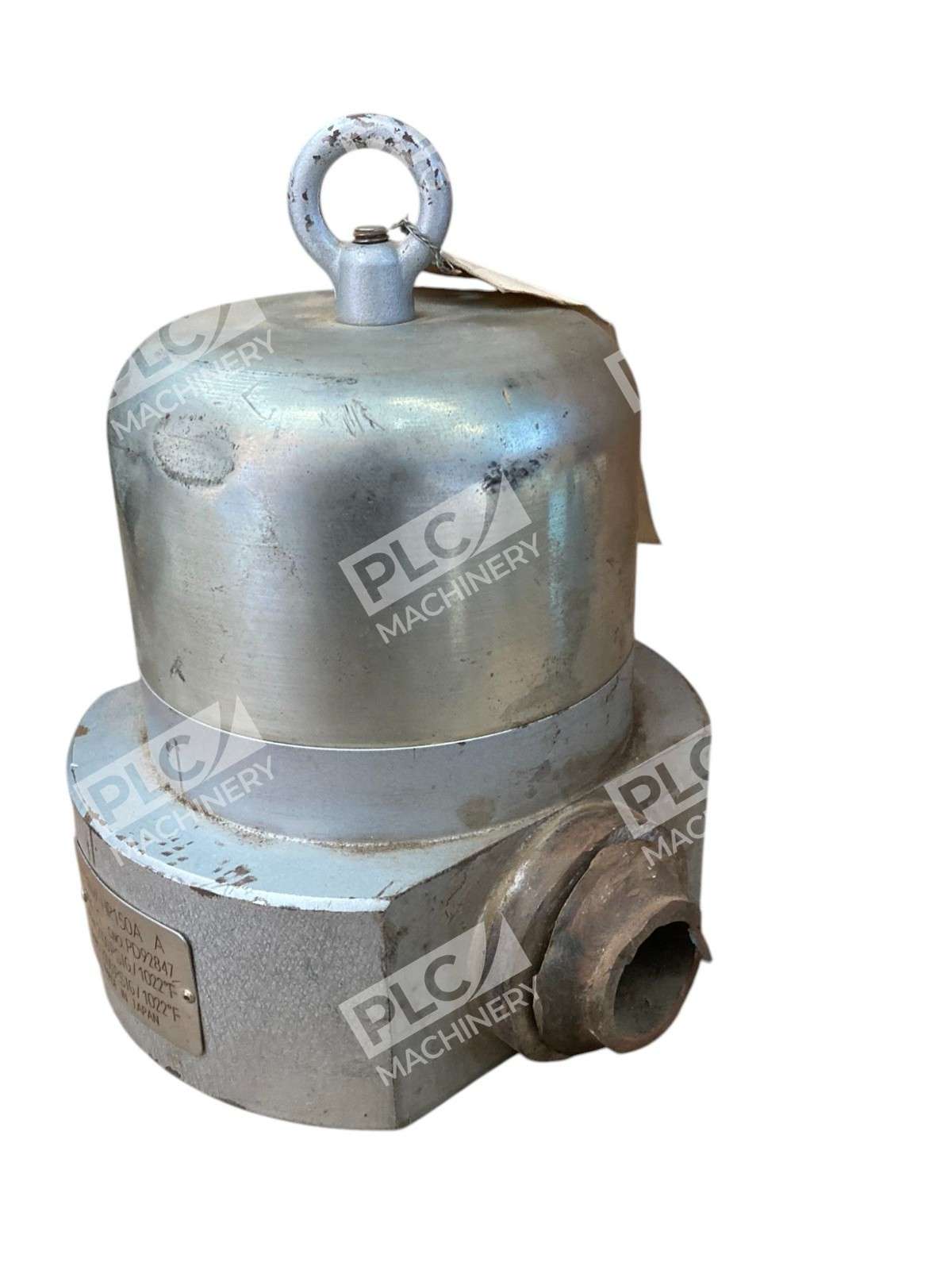

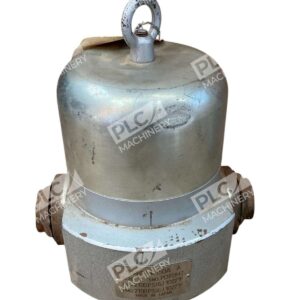

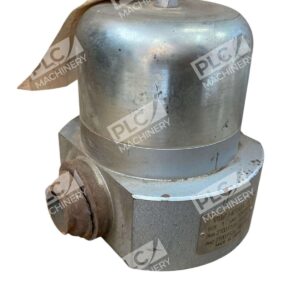

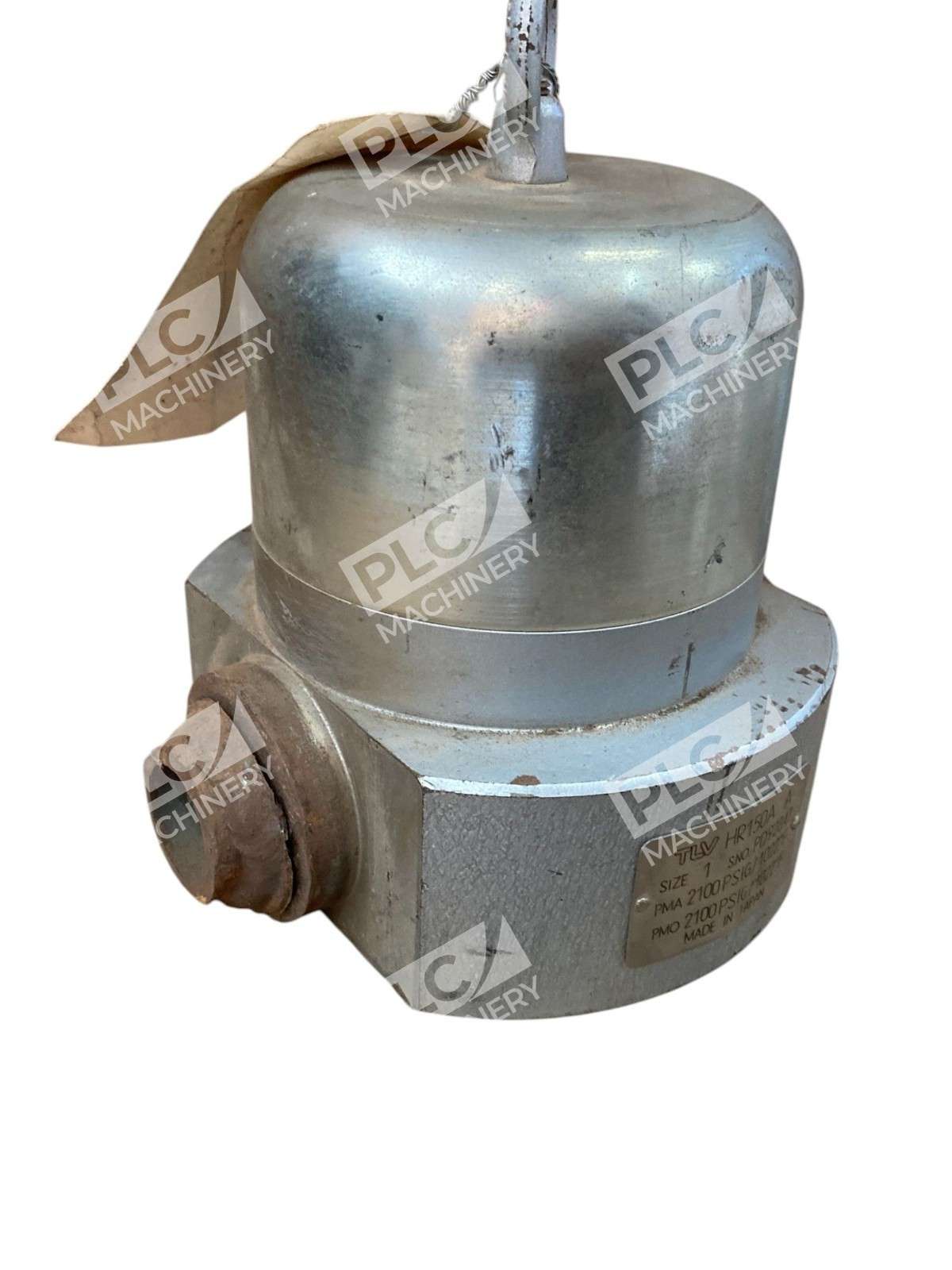

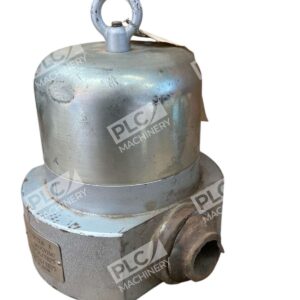

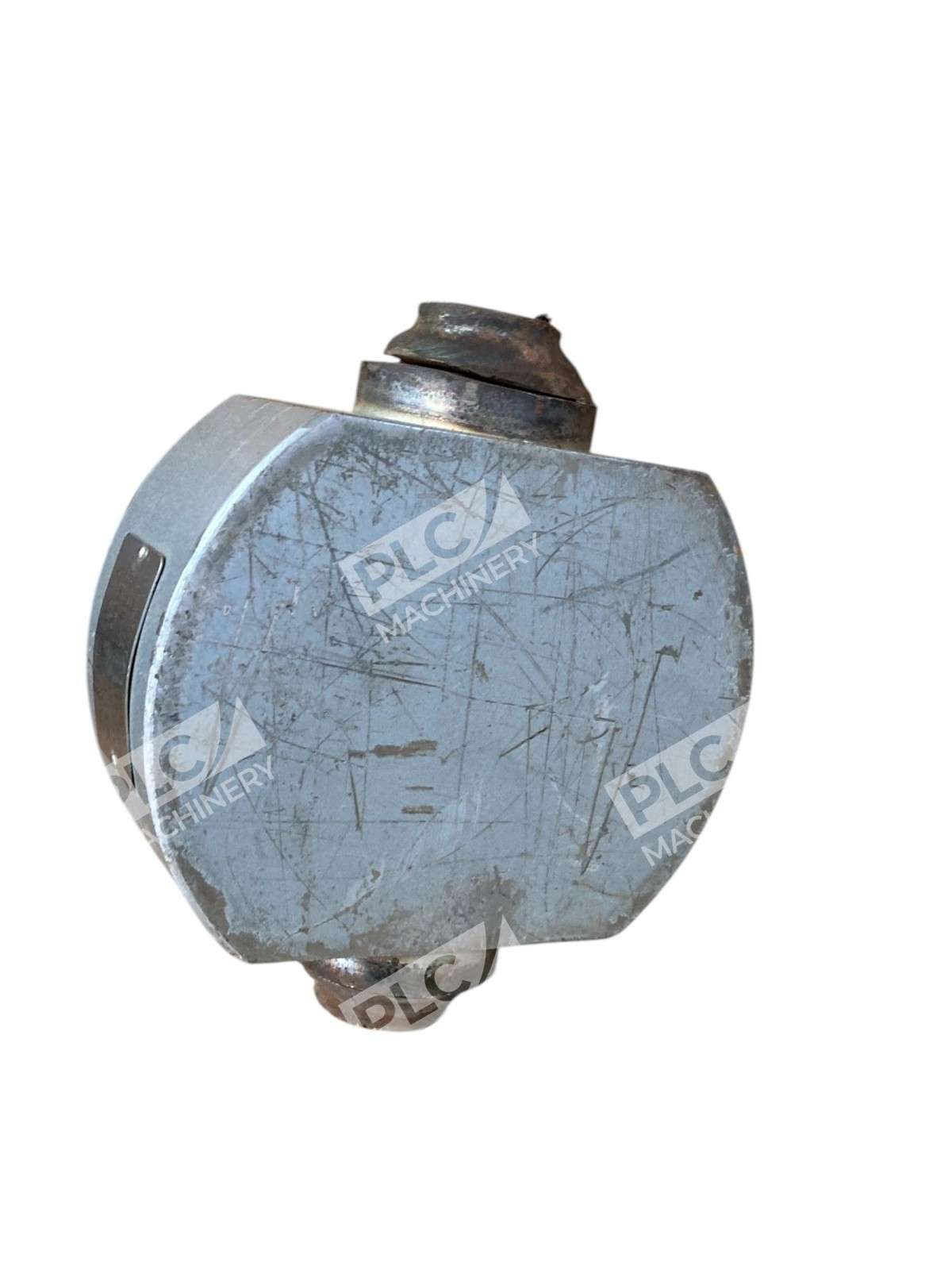

The TLV HR150A is a thermodynamic disc-type steam trap engineered for efficient condensate removal in high-temperature and high-pressure steam applications. The high-precision machined disc valve and valve seat offer excellent sealing properties, preventing wasteful discharge of steam. This model is part of TLV’s PowerDyne product line and is widely used in industrial steam systems requiring dependable trap performance.
Key Features
- Compact trap design includes built-in Y-strainer
- Air-jacketed and steam-jacketed pressure chamber models available for enhanced insulation
- Modular valve and seat design for easy maintenance and replacement
- Operating pressure range of 1.6 to 15.0 MPaG with maximum discharge capacity of 220 kg/h
- Universal flange connection allows straightforward inline replacement
- Ideal for steam distribution mains and process heating applications
Technical Specifications
Refer to the official TLV specification data sheet for complete pressure, capacity, and material details. Full product details (sizes, pressures, capacities and materials) are included in the individual specification data sheets (SDS).
Typical Applications
- Steam distribution mains and header systems
- High-pressure and high-temperature steam lines
- Industrial heating equipment and process steam
- Condensate removal in closed-loop steam systems
- Machine tool and autoclave steam supply
Compatibility & Replacements
Compatible With

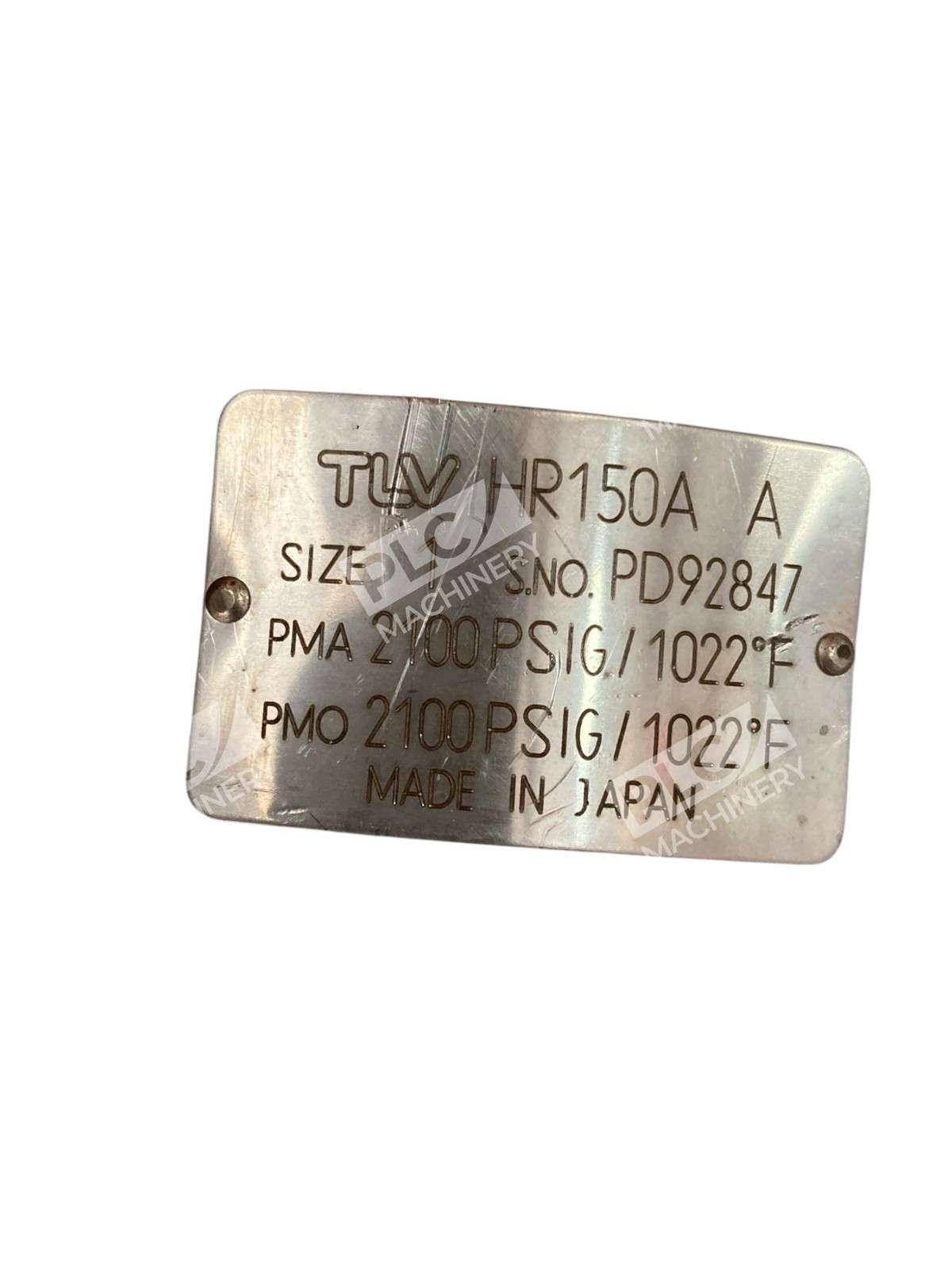

- High-pressure steam systems up to 2100 PSIG
- Socket weld and flanged steam line connections
- TLV steam trap management and monitoring systems
- Standard industrial steam distribution networks
Replaces / Drop-In Replacement For
- Earlier TLV HR150A units requiring maintenance or replacement
- Compatible with both socket weld and flanged connection variants
- Verify connection type and pressure rating with your system specifications before ordering
Works With
- TLV condensate recovery and steam system optimization solutions
- Standard industrial steam piping and valve systems
- Pressure relief systems operating within HR150A specification range
- Modular valve seat units for field replacement and maintenance
