Overview

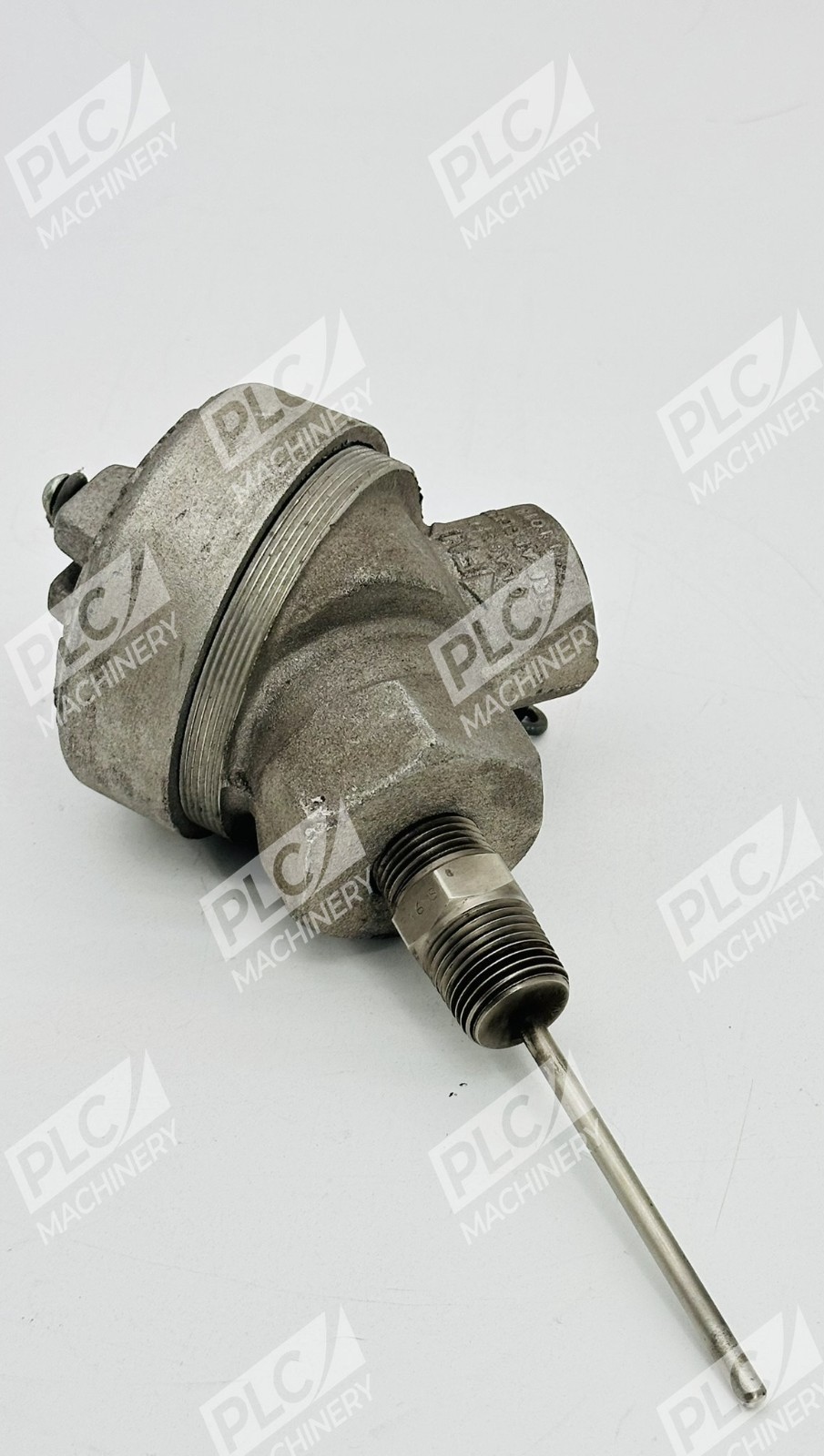

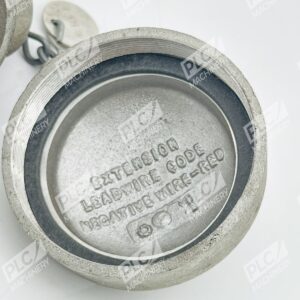

The Thermo Couple Products 1013 explosion-proof thermocouple connection head is a specialized component engineered for temperature measurement systems deployed in hazardous locations and explosive atmospheres. This jack panel connector provides a secure interface between thermocouples and instrumentation while maintaining explosion-proof certification for regulated industrial applications.
Key Features
- Explosion-proof design certified for hazardous location compliance
- Jack panel mounting for simplified installation and maintenance

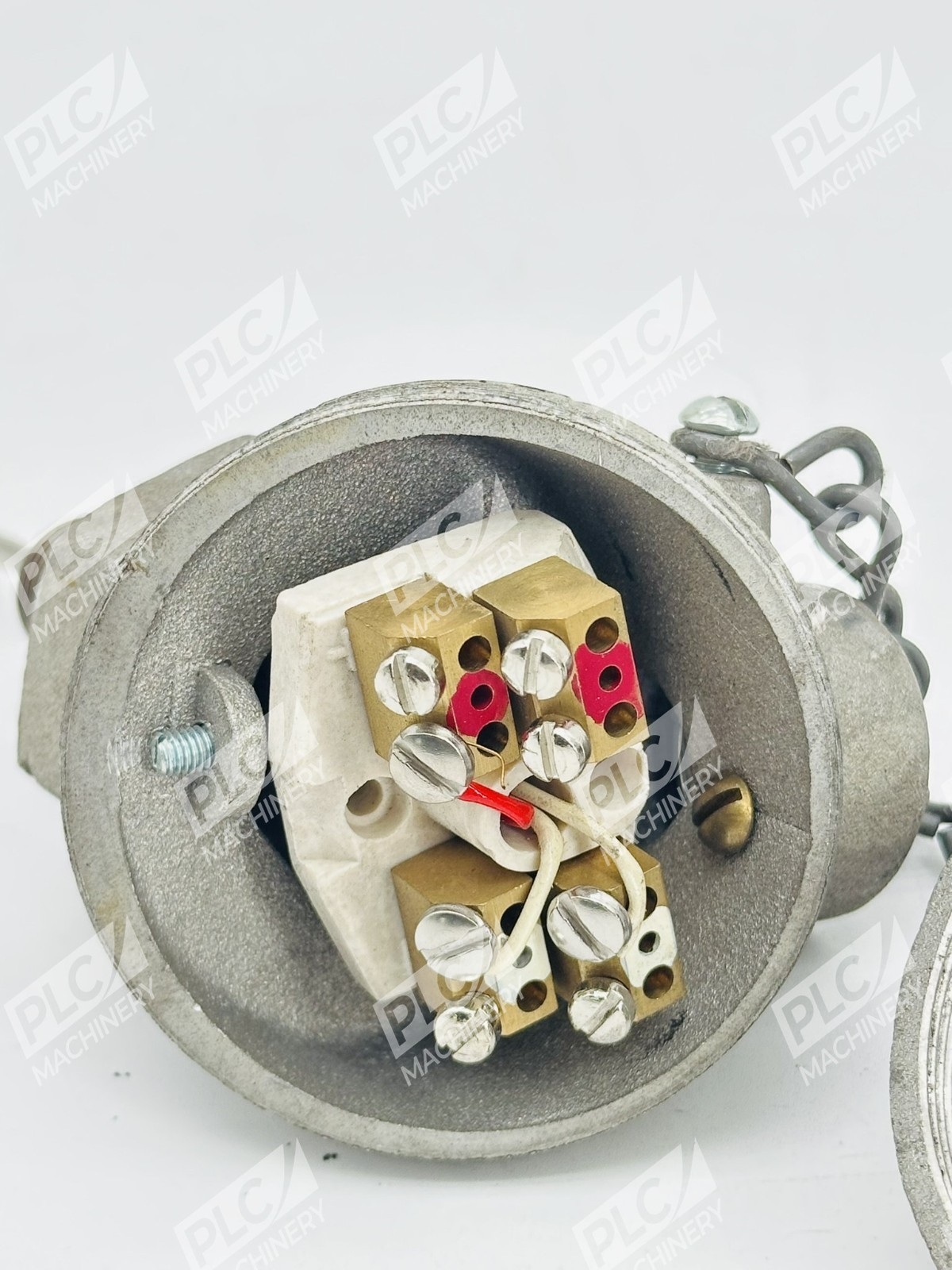

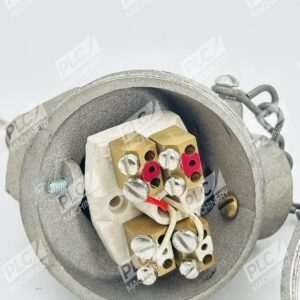

- Secure thermocouple wire termination and signal connectivity
- Heavy-duty construction for industrial and process environments
- Reliable temperature sensing in potentially dangerous atmospheres
- Gasketed sealing to protect against moisture and corrosive agents
Technical Specifications
Verify the following specifications with Thermo Couple Products or your authorized distributor before ordering, as detailed manufacturing data is limited:
- Manufacturer: Thermo Couple Products
- Part Number: 1013
- Product Type: Explosion Proof Thermocouple Connection Head
- Configuration: Jack Panel
- Primary Application: Hazardous Location Temperature Measurement
- Certifications: Explosion Proof (verify FM, CSA, ATEX compliance with manufacturer)
Typical Applications
The Thermo Couple Products 1013 connection head is suited for temperature measurement in industrial environments where explosion-proof equipment is mandated, including:
- Petroleum refineries and chemical processing plants
- Oil and gas production facilities
- Hazardous material storage and handling areas
- Industrial furnaces and high-temperature processes
- Compliance-critical manufacturing and production lines
- Remote temperature monitoring in classified zones
Compatibility & Replacements
Compatible With
- Standard thermocouple wire assemblies (J, K, T, E, N type sensors)
- Industrial process instrumentation and control panels
- Temperature transmitters and data acquisition systems
- Hazardous location electrical equipment networks
- Thermocouple extension and compensating cables
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Consult Thermo Couple Products documentation to confirm cross-compatibility with other series (1015, 1016, 1018A, 1018B, 1018C, etc.) and whether this unit serves as a direct replacement for legacy installations.
Works With
- Standard thermocouple connectors and jack terminals
- Industrial process control software and SCADA systems
- Hazardous location compliance frameworks (NEC Article 500, IEC 60079)
- Temperature monitoring and alarm systems
- Data logging and instrumentation networks
