Overview

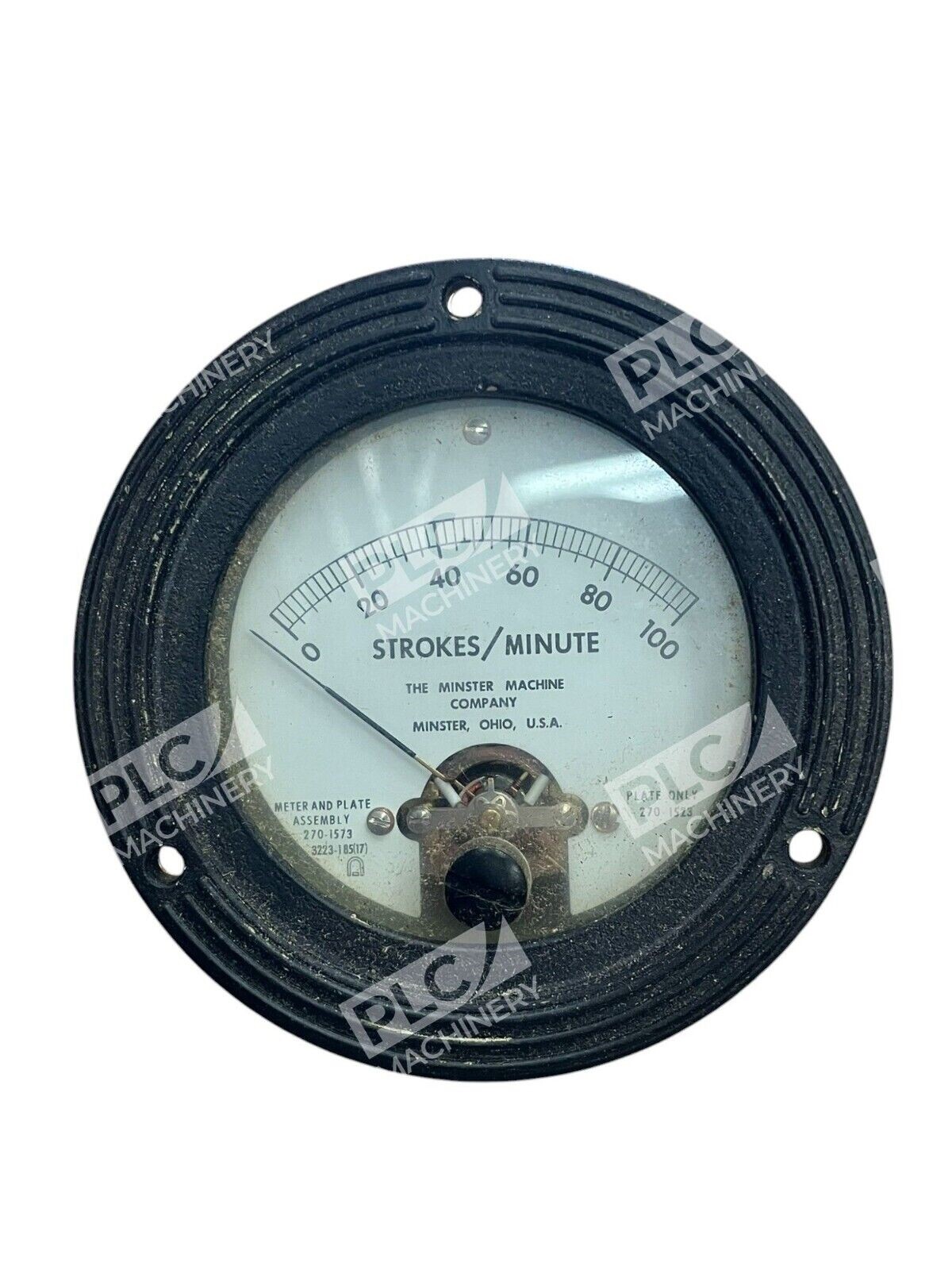

The Minster Machine 270-1573 strokes meter is an analog instrumentation gauge engineered for real-time monitoring of press machine stroke rates. Built to industrial specifications, this 0-100 strokes/minute meter provides reliable performance in high-demand manufacturing environments. The model 3223-185(17) designation reflects Minster’s engineering standards for precision metalworking equipment diagnostics.
Key Features
- 0-100 strokes-per-minute range for precise speed monitoring
- Direct mechanical readout without external power requirements
- Robust analog gauge construction for durability in plant environments
- Compatible with Minster press machinery line
- Industrial-grade instrumentation for production control and diagnostics
Technical Specifications

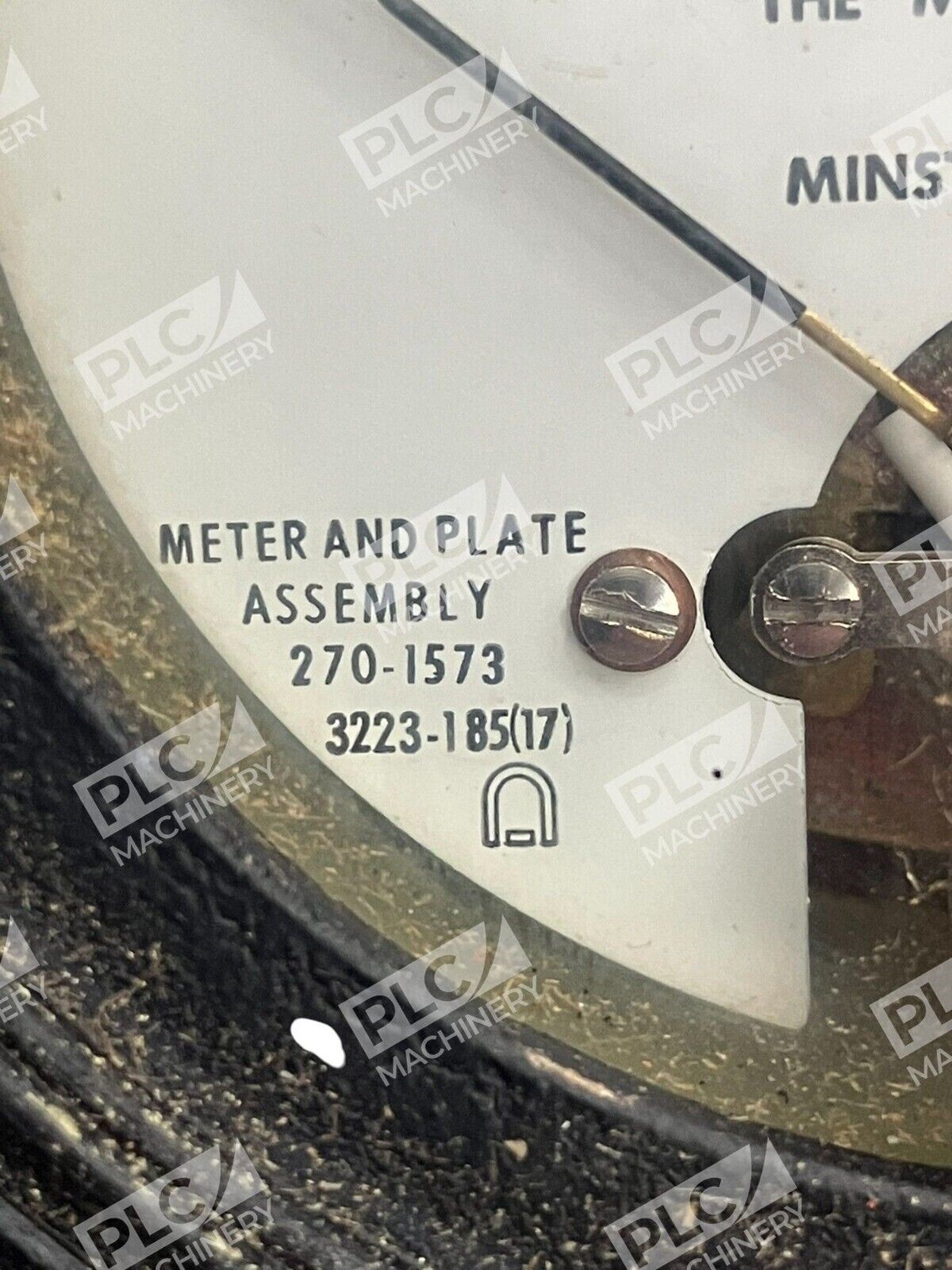

- Model Number: 3223-185(17) / 270-1573
- Measurement Range: 0–100 strokes per minute

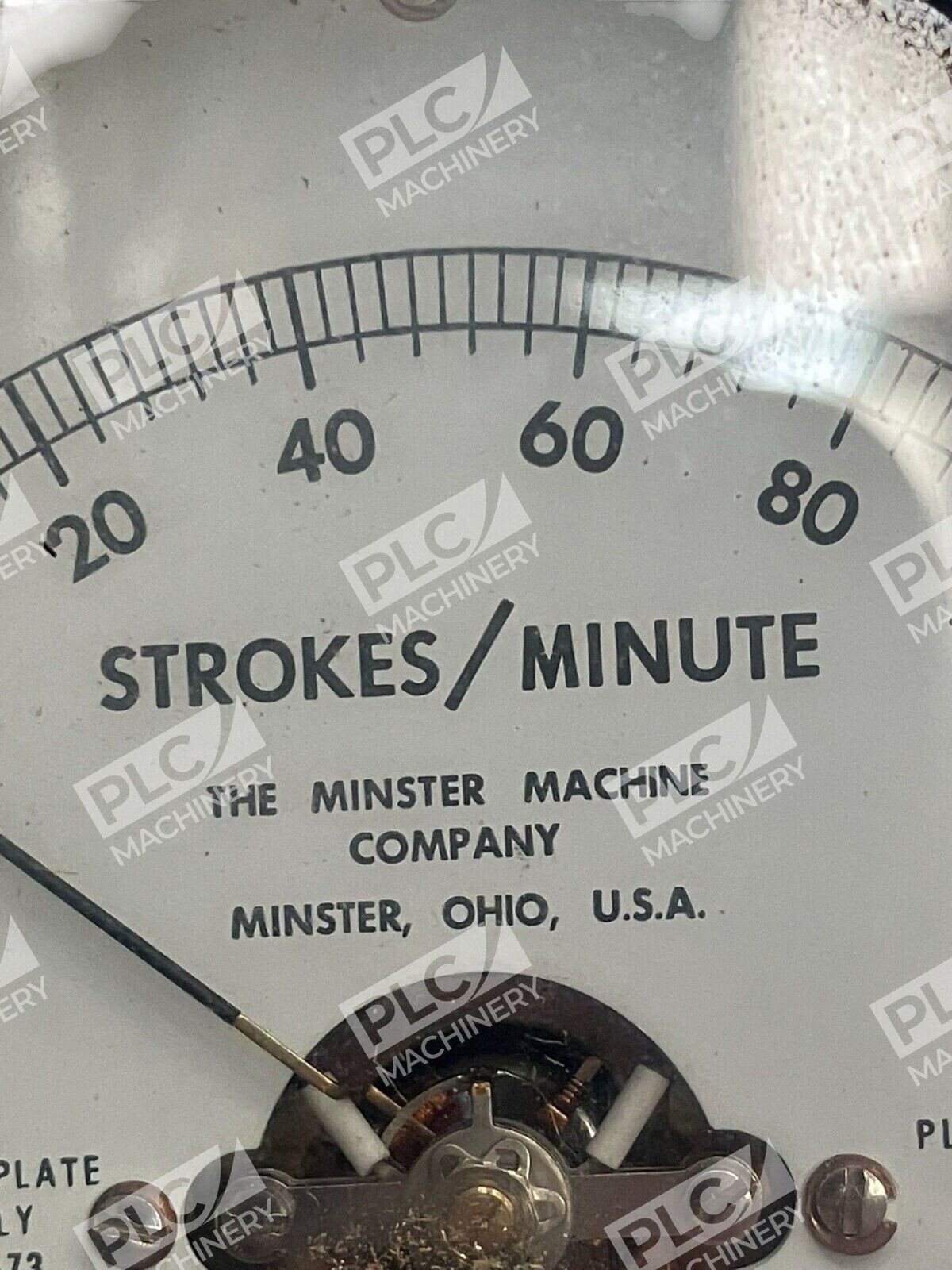

- Display Type: Analog needle gauge
- Manufacturer: The Minster Machine Company
- Application: Press machine speed monitoring
- Power Source: Mechanical (direct drive from press mechanism)
- Construction: Industrial-grade metal housing
Typical Applications
The Minster 270-1573 meter is essential for:
- Stamping press operations requiring speed verification
- Production line diagnostics and process control
- Machine maintenance and performance baseline documentation
- Replacement of worn or inaccurate speed instrumentation
- Integration into existing Minster press equipment
Compatibility & Replacements
Compatible With
- Minster Machine brand presses and stamping equipment
- Press systems requiring 0-100 strokes/minute instrumentation
- Direct mechanical meter coupling to press drive mechanisms
Replaces / Drop-In Replacement For
Verify compatibility with your specific Minster press model before ordering. This meter is designed as a direct replacement for obsolete or failed 270-1573 units in matching Minster installations.
Works With
- Minster open-back inclinable (OBI) press models
- Minster P-series and mid-range tonnage presses
- Press machine diagnostic and maintenance protocols
- Manual production monitoring systems
