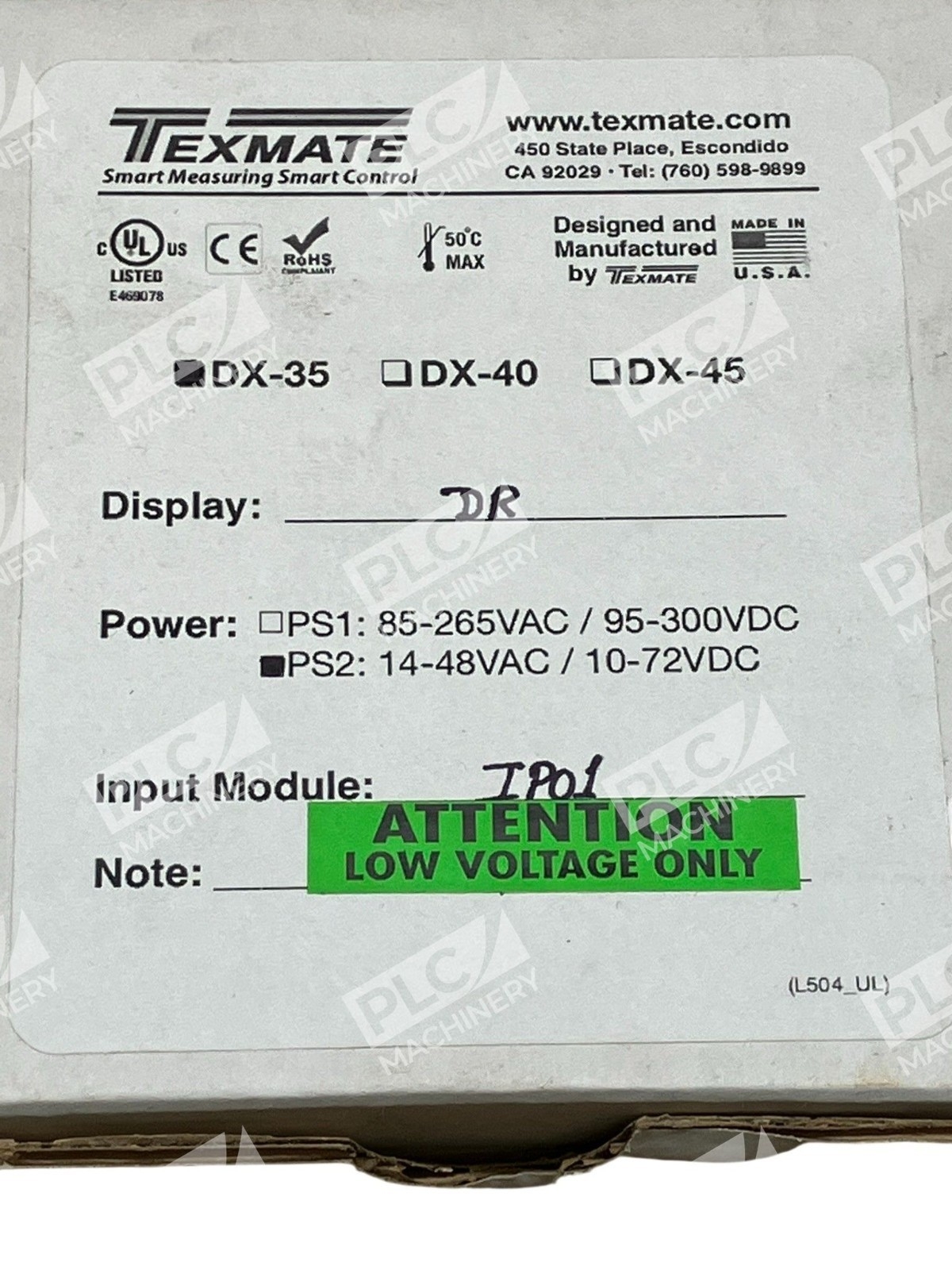

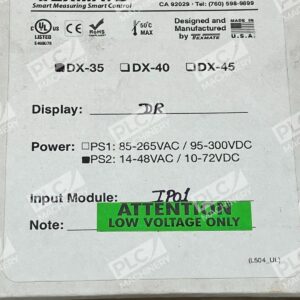

Overview
The Texmate DX-35 digital panel meter is a versatile 3.5-digit indicator from the Lynx series designed for industrial monitoring, testing, and measurement applications. With AC/DC auto-sensing power supply supporting PS2 input voltage range (14-48VAC/10-72VDC), the DX-35 delivers reliable operation across diverse electrical environments without external power conditioning. The modular input card architecture allows users to configure the meter for various measurement types—including DC voltage, AC current, process signals, and temperature—making it a cost-effective solution for control panels, test equipment, and automation systems.
Key Features
- 3.5-digit red LED display with 0.56″ or 0.8″ high-visibility digits
- AC/DC auto-sensing power supply compatible with PS2 range (14-48VAC / 10-72VDC)
- 1/8 DIN form factor (96 × 48 mm) with 117 mm depth behind bezel
- Modular plug-in input signal conditioning cards for easy reconfiguration
- Display Hold and Display Test functions for troubleshooting
- Pre-calibrated I-Series input modules with span/zero potentiometers
- Optional fire-resistant metal case and NEMA-4X IP-65 hinged cover available
Technical Specifications
- Display: 3.5-digit, red LED (green and super-bright red optional)
- Measurement Range: -1999 to +1999 counts
- Case Dimensions: 96 × 48 mm (3.78″ × 1.89″) front panel
- Depth Behind Bezel: 117 mm (4.61″)
- Power Supply: AC/DC auto-sensing, PS2 range (15-48VAC / 10-72VDC)
- Excitation: 24V DC for external transmitters; 5V or 10V DC for strain gauges and load cells
- Input Modules: Over 38 plug-in signal conditioner options available
- Panel Mounting: Fits standard 1/8 DIN cutout (thin or thick panels up to 2″ thick)
- Operating Environment: Industrial control, test, and measurement applications
Typical Applications
- DC and AC voltage/current measurement in industrial panels
- Temperature monitoring via thermocouple or RTD input modules
- Process control and 4-20mA signal monitoring
- Strain gauge and load cell display in materials testing equipment
- AC line frequency measurement (15.0–199.9 Hz) for multi-phase systems
- Equipment calibration and troubleshooting in maintenance applications
- HVAC, motor control, and power distribution monitoring
Compatibility & Replacements
Compatible With
- Over 38 modular I-Series input signal conditioning cards
- 24V DC excitation supplies for external transmitters
- 5V and 10V DC excitation for strain gauges and load cells
- Standard 1/8 DIN panel cutout installations
- Fire-resistant metal case options and NEMA-4X IP-65 covers
Replaces / Drop-In Replacement For
- Texmate DX-35 base units with different input module configurations
- Verify specific module compatibility (e.g., DX-35-DCA, DX-35-ACA, DX-35-TC) with your system integrator before ordering
Works With
- Modular I-Series input cards: IA06, IA07, IA12, IA3V, ID01, ID02, ID03, ID04, ID05, and others
- Pre-calibrated input modules that interchange without recalibration
- Optional relay output modules and analog/serial output modules
- Standard industrial signal sources (4-20mA, 0-10VDC, thermocouples, RTDs)
