Overview

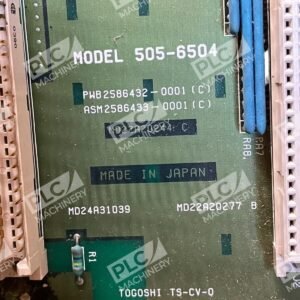

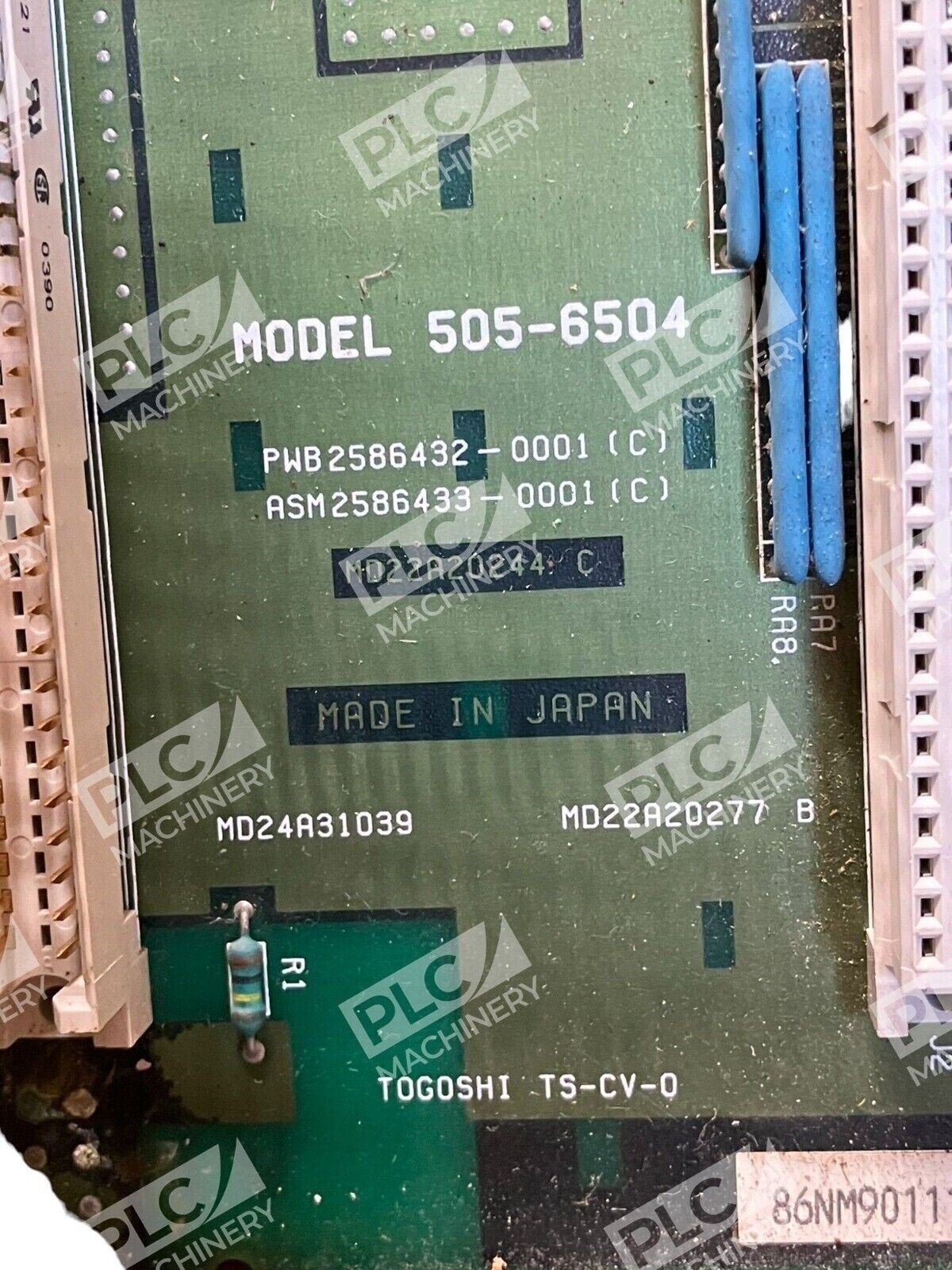

The Texas Instruments 505-6504 is an I/O module designed for the Series 505 family of programmable logic controllers. This module provides reliable signal handling and interface capability for industrial control applications. As a legacy component, it remains in service across many installed systems in manufacturing, process control, and machine automation environments.
Key Features
- Designed for Series 505 PLC family compatibility
- Proven reliability in industrial automation applications
- Legacy support for existing 505 system installations

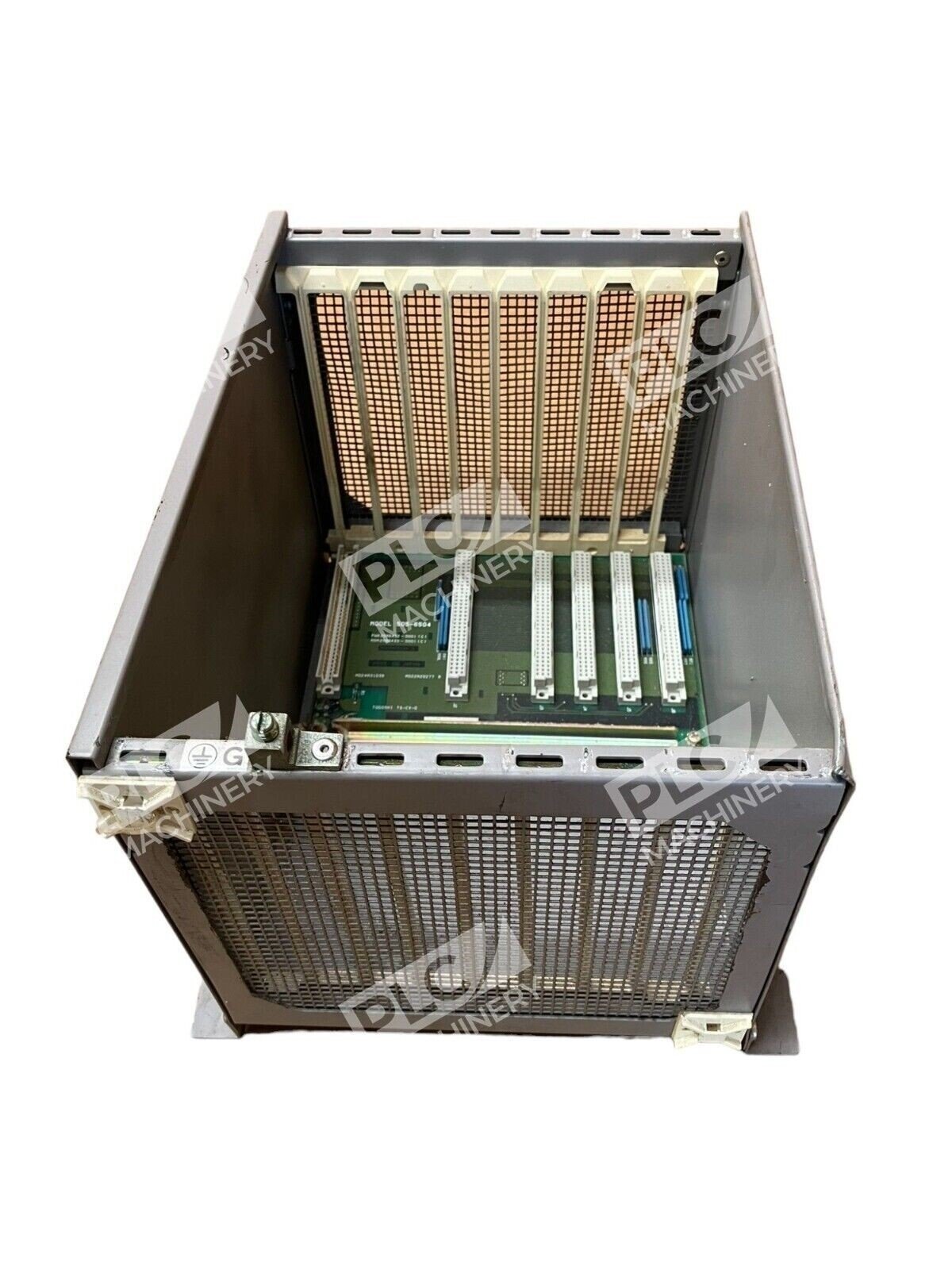

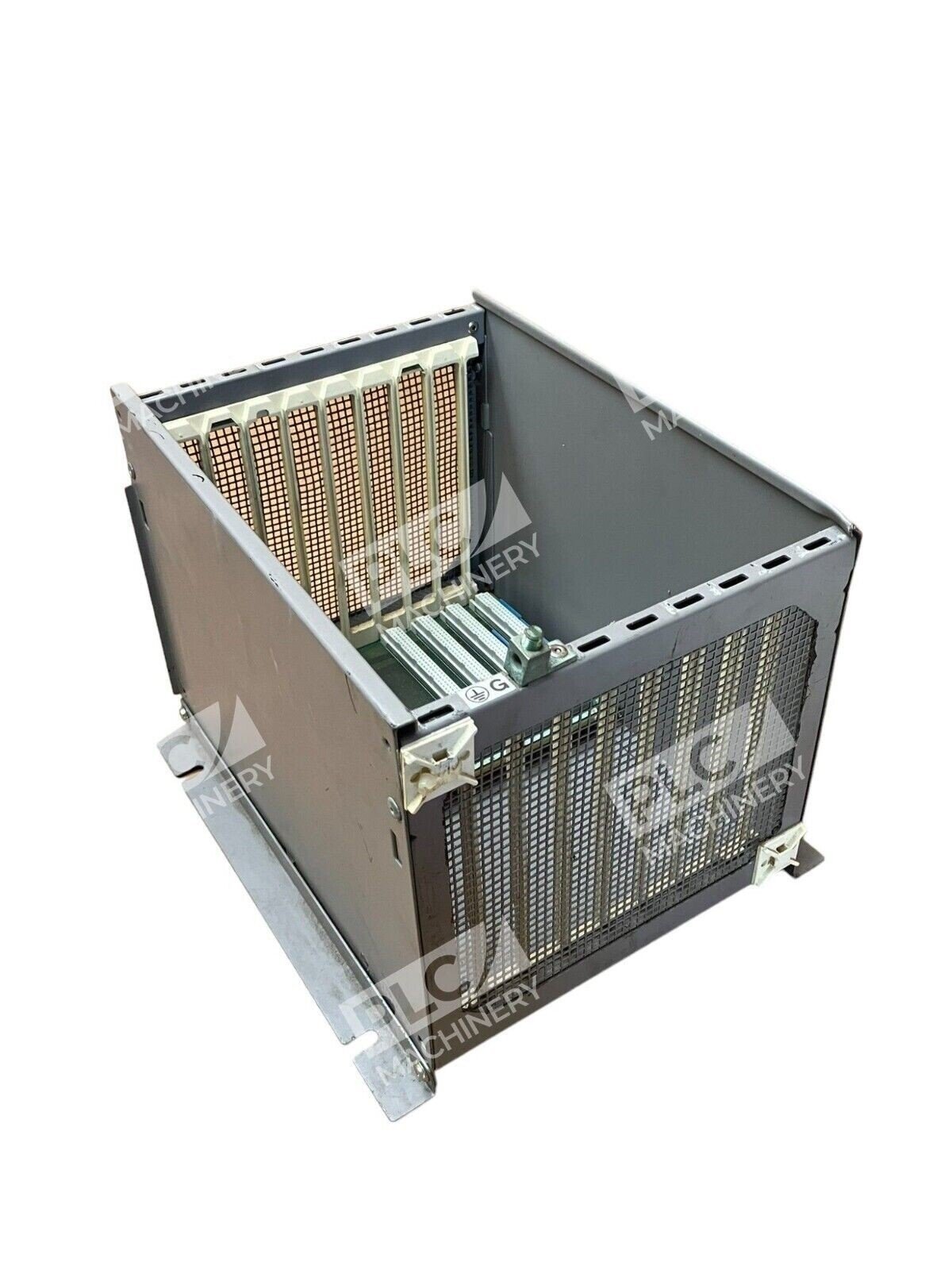

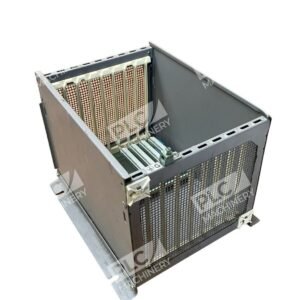

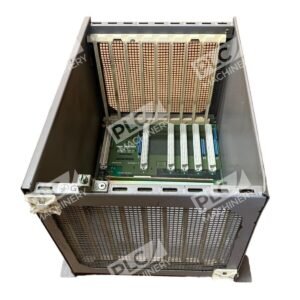

- Standard slot-mount architecture for Series 505 I/O racks
- Used condition—fully functional and tested
Technical Specifications
For detailed technical specifications, including I/O count, voltage ratings, and operating parameters, verify compatibility with your system integrator or refer to your system documentation, as the 505-6504 may have configuration variants depending on your specific installation.
Typical Applications
- Legacy PLC system maintenance and repair
- Series 505 rack expansion or module replacement
- Industrial automation and machine control
- Process control and monitoring systems
- Manufacturing equipment retrofitting
Compatibility & Replacements
Compatible With
- Texas Instruments/SIEMENS Series 505 PLC controllers
- Series 505 I/O racks and chassis
- Legacy industrial automation systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This module is a Series 505 component; confirm part interchangeability with your existing rack configuration and control system documentation.
Works With
- Series 505 PLC programming software
- Texas Instruments/SIEMENS automation systems
- Standard 505 I/O rack mounting architecture
