Overview

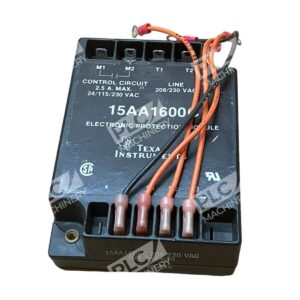

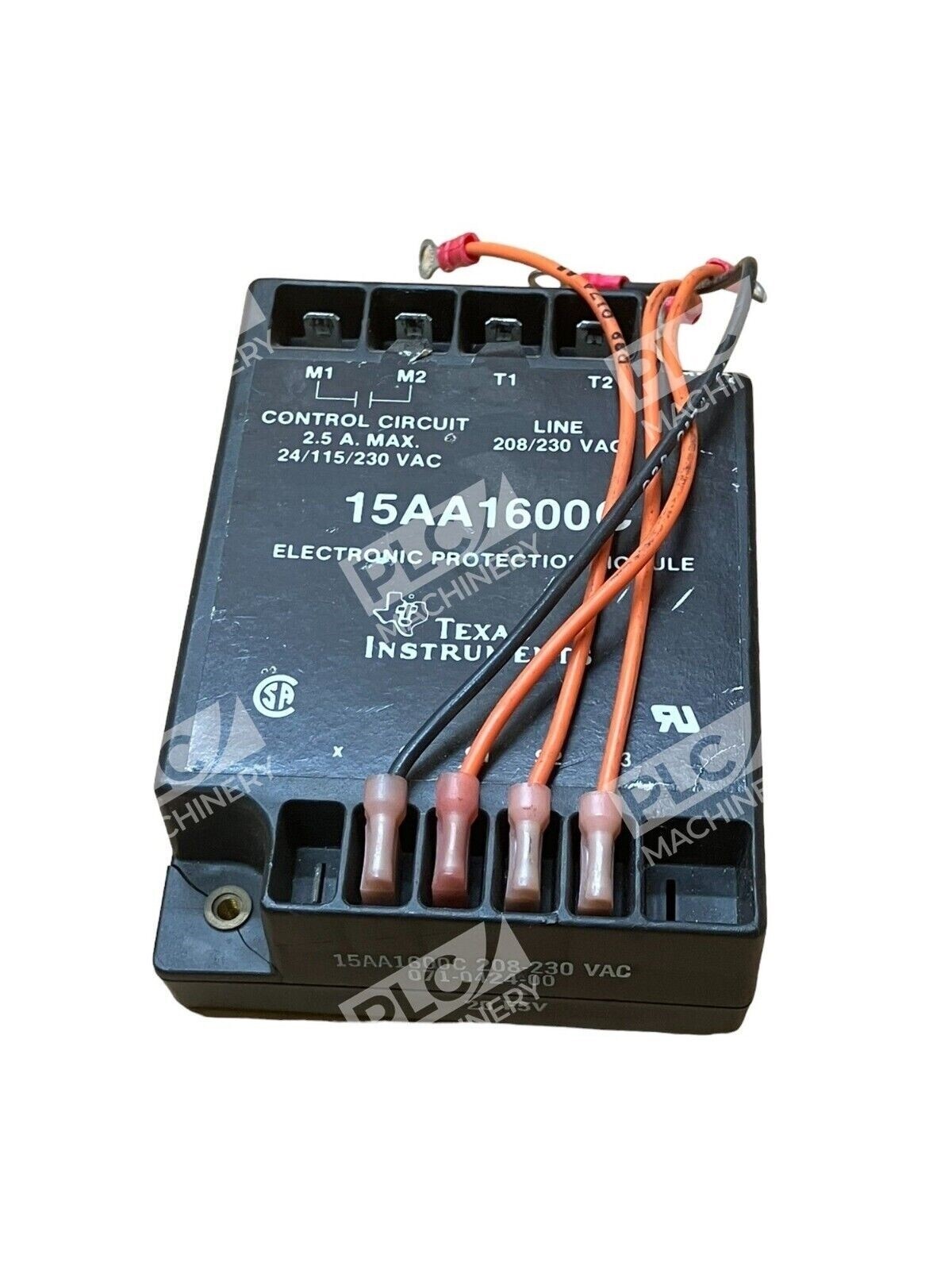

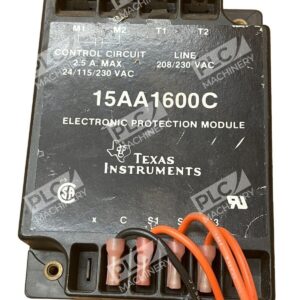

The Texas Instruments 15AA1600C is an electronic protection module designed to safeguard motor circuits and electrical systems in industrial automation environments. This compact protection device handles 208-230VAC line voltage applications with a 2.5A control circuit rating and supports auxiliary voltages of 24VDC, 115VAC, and 230VAC, making it suitable for diverse electrical protection requirements across manufacturing and facility automation systems.
Key Features
- 2.5A maximum control circuit rating for reliable motor protection
- Multi-voltage compatibility: 24VDC, 115VAC, and 230VAC support
- 208-230VAC line voltage operation for standard industrial three-phase systems
- Compact electronic design for space-constrained installations
- Proven reliability in motor control and circuit protection applications
Technical Specifications
- Manufacturer: Texas Instruments PLC

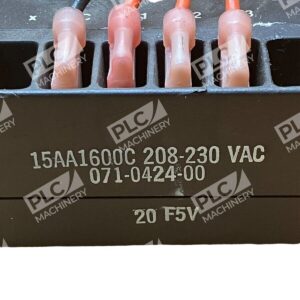

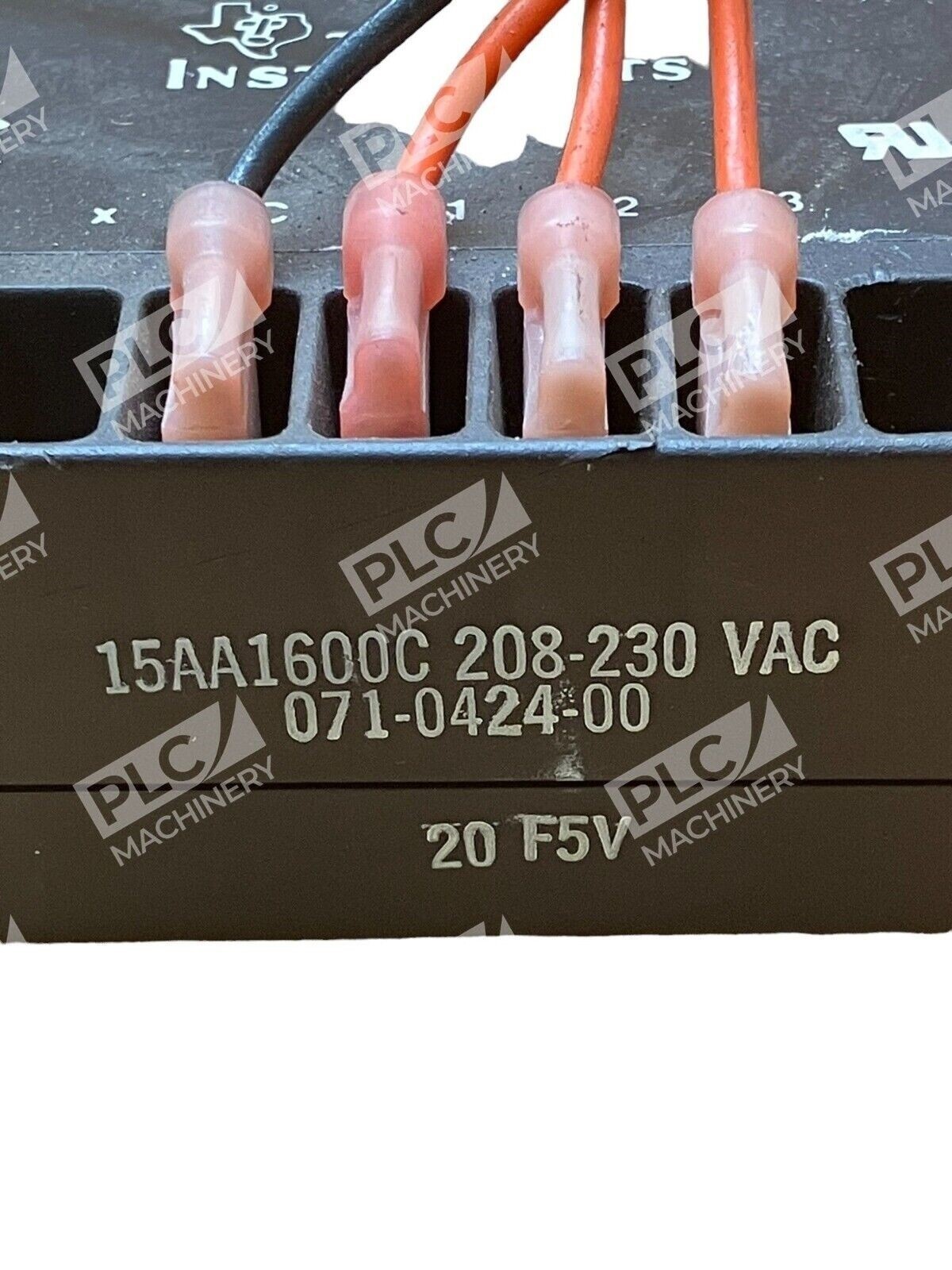

- Model Number: 15AA1600C
- Line Voltage Rating: 208-230VAC
- Control Circuit Rating: 2.5A maximum
- Auxiliary Voltage Support: 24VDC, 115VAC, 230VAC
- Product Type: Electronic Protection Module
- Typical Application: Motor circuit protection, electrical fault prevention
- Reference Number: 071-0424-00
