Overview

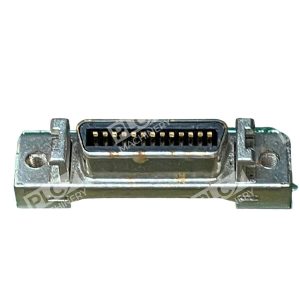

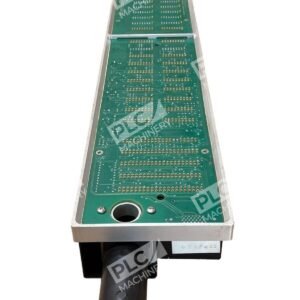

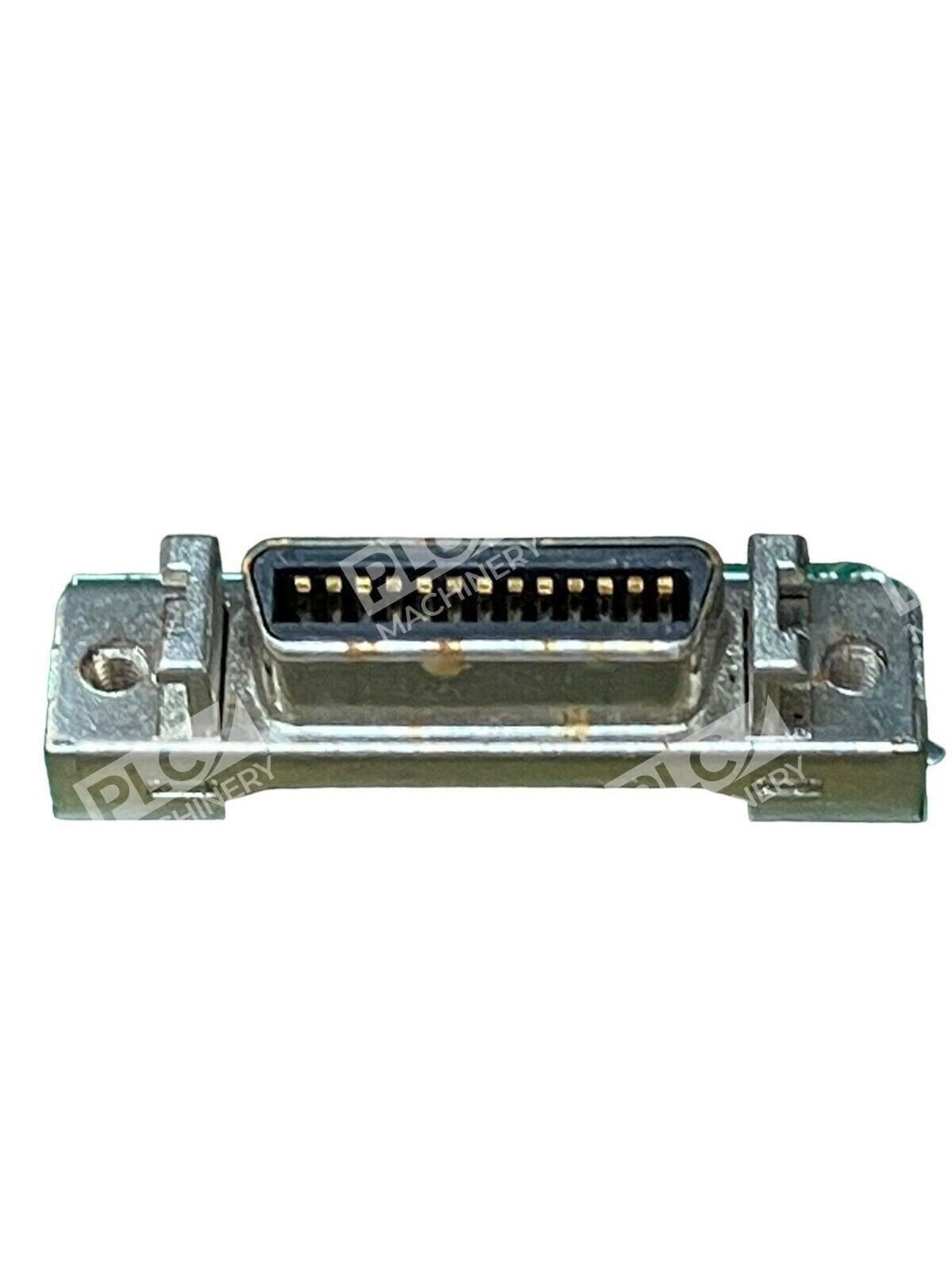

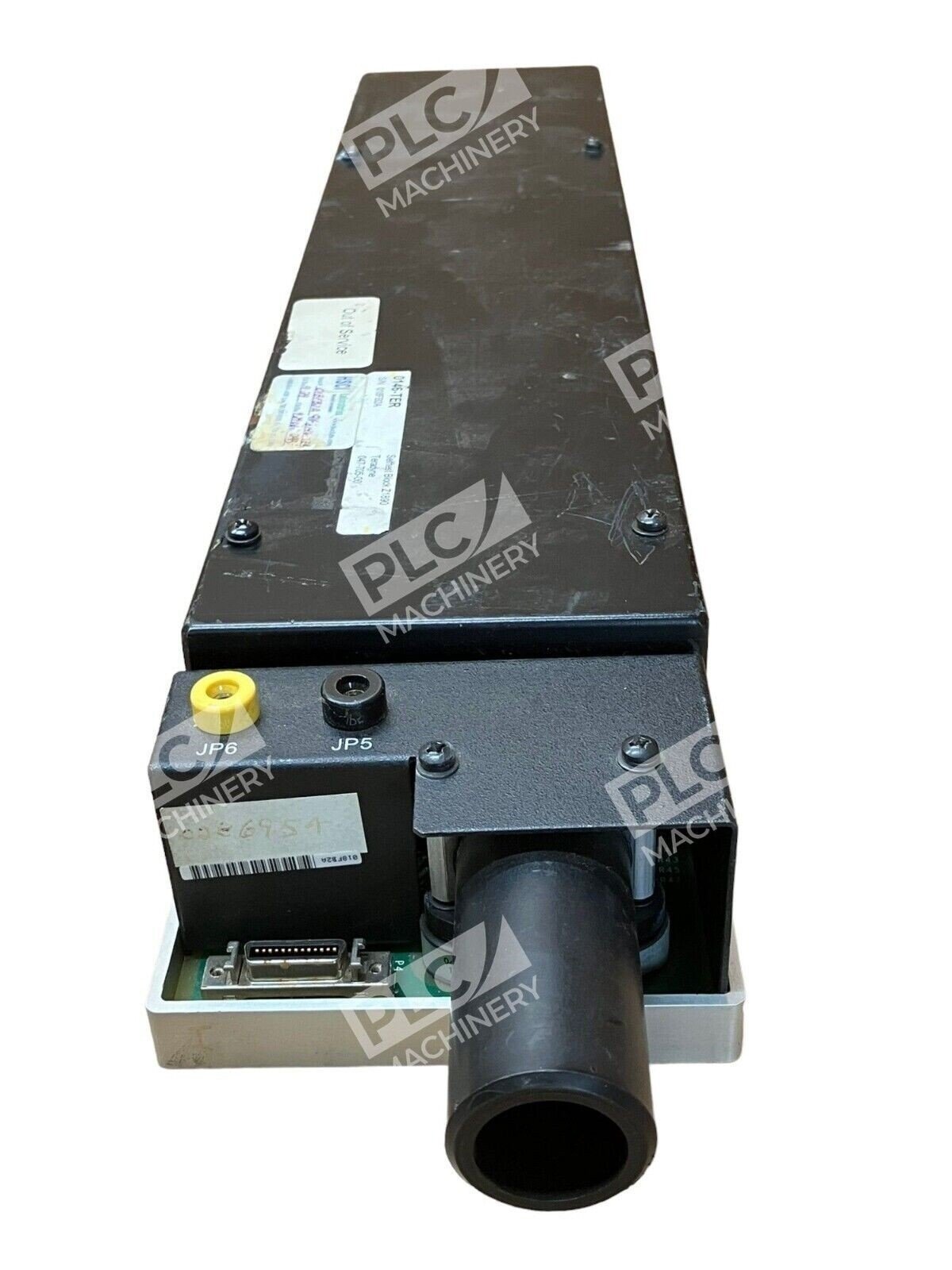

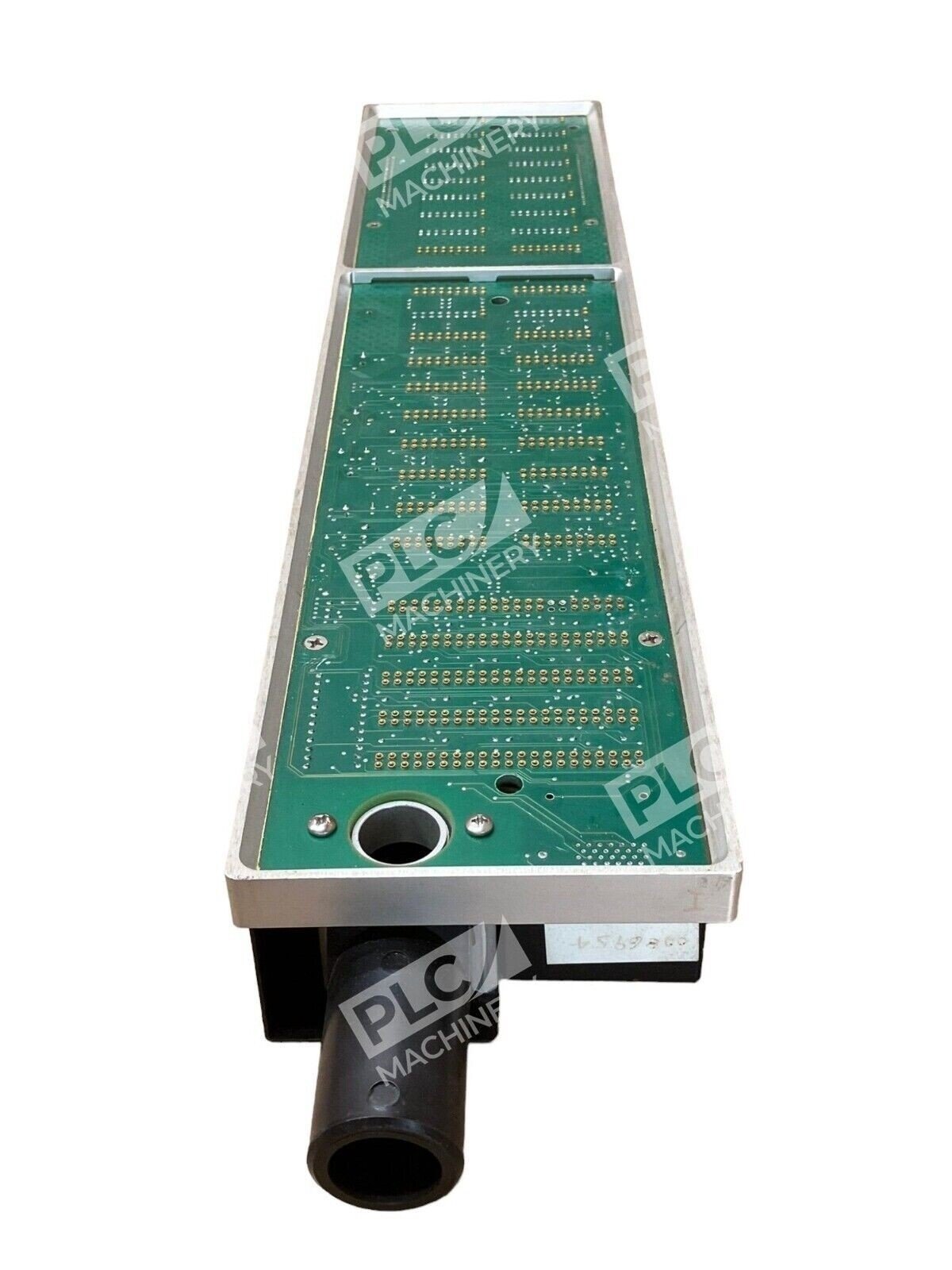

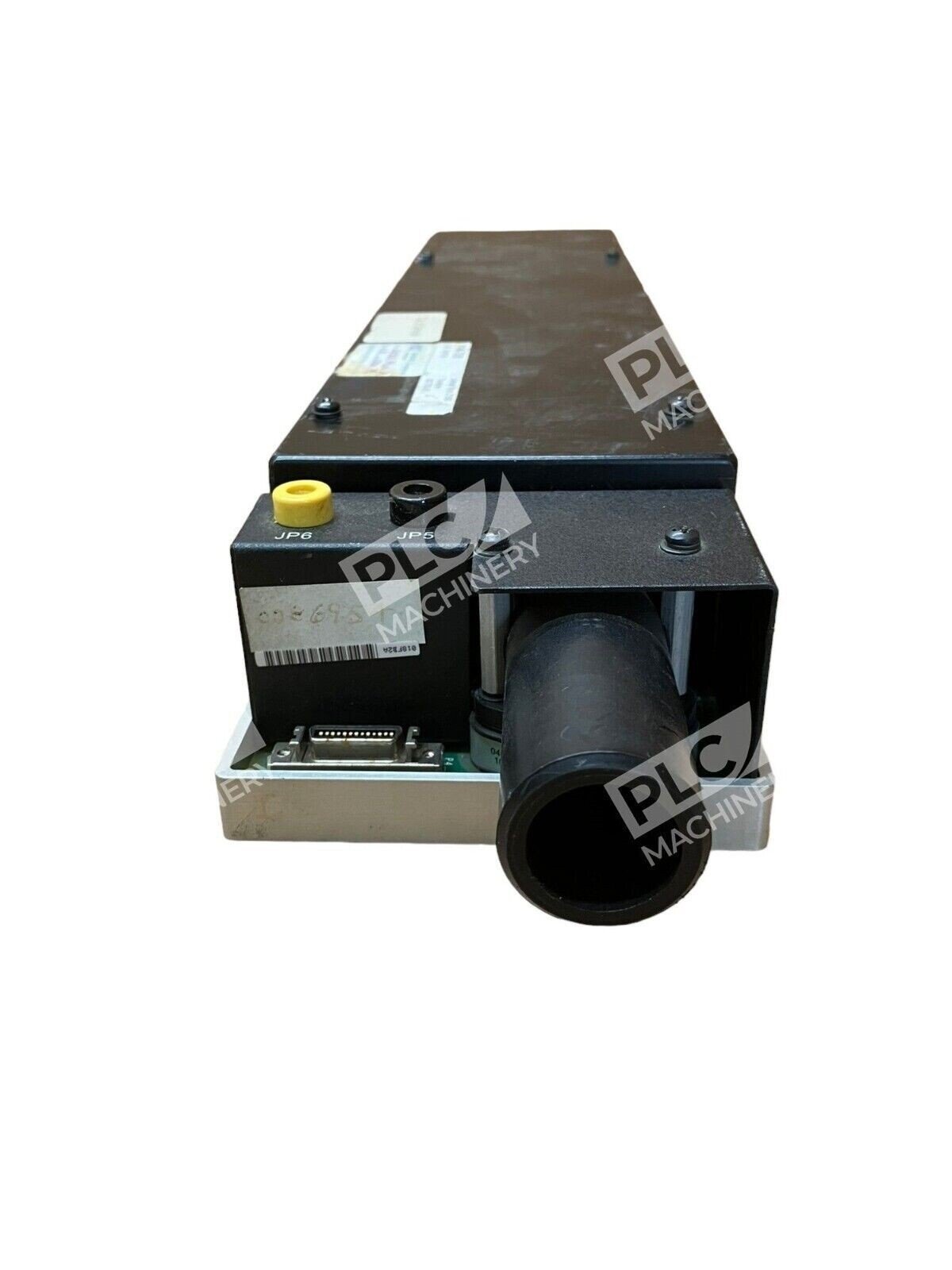

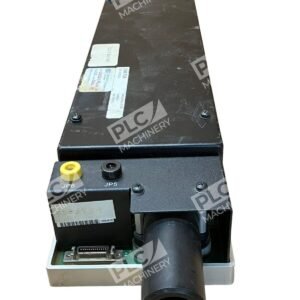

The Teradyne 047-705-00 selftest block assembly is a diagnostic component designed for Teradyne’s Z1890 in-circuit test (ICT) system. This assembly enables integrated self-testing and calibration routines on the Z1890 platform, allowing manufacturers to verify equipment integrity and performance before production runs.
Key Features
- Compatible with Teradyne Z1890 in-circuit test systems
- Supports system-level diagnostics and calibration procedures
- Enables verification of analog and digital test channels
- Used in high-volume electronics manufacturing and test environments
- Compact assembly design for direct integration into Z1890 fixtures
Technical Specifications
While detailed vendor specifications are not publicly available, the Teradyne 047-705-00 integrates with the Z1890 platform and functions as a self-test assembly within the larger ICT system architecture.
Typical Applications
The Teradyne 047-705-00 selftest block is used in:
- Printed circuit board (PCB) in-circuit testing and diagnostics
- Automated electronics manufacturing quality assurance
- System calibration and alignment procedures on Z1890 testers
- Production line validation and troubleshooting
- Equipment maintenance and periodic system checks
Compatibility & Replacements
Compatible With
- Teradyne Z1890 in-circuit test system
- Teradyne Z1800-series board test platforms
- Standard Teradyne ICT fixture architectures
Replaces / Drop-In Replacement For

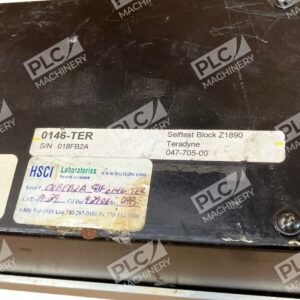

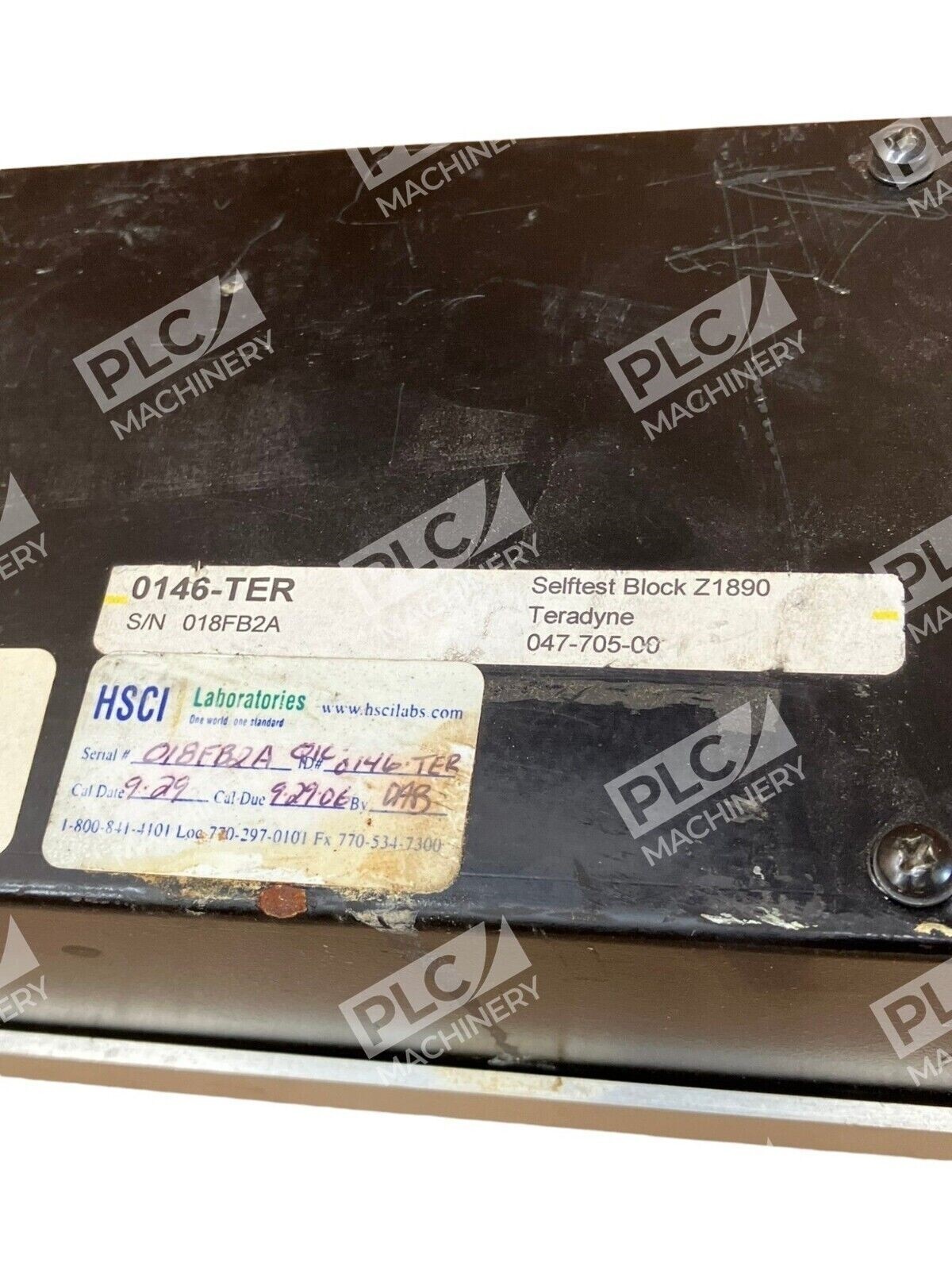

Verify compatibility with your system integrator or Teradyne service documentation before ordering. Selftest block assemblies may have variant configurations; cross-reference part number 0146-TER with your original equipment documentation.
Works With
- Teradyne Z1890 test system software and firmware
- Teradyne diagnostics and calibration routines
- Standard ICT test program workflows
