Overview

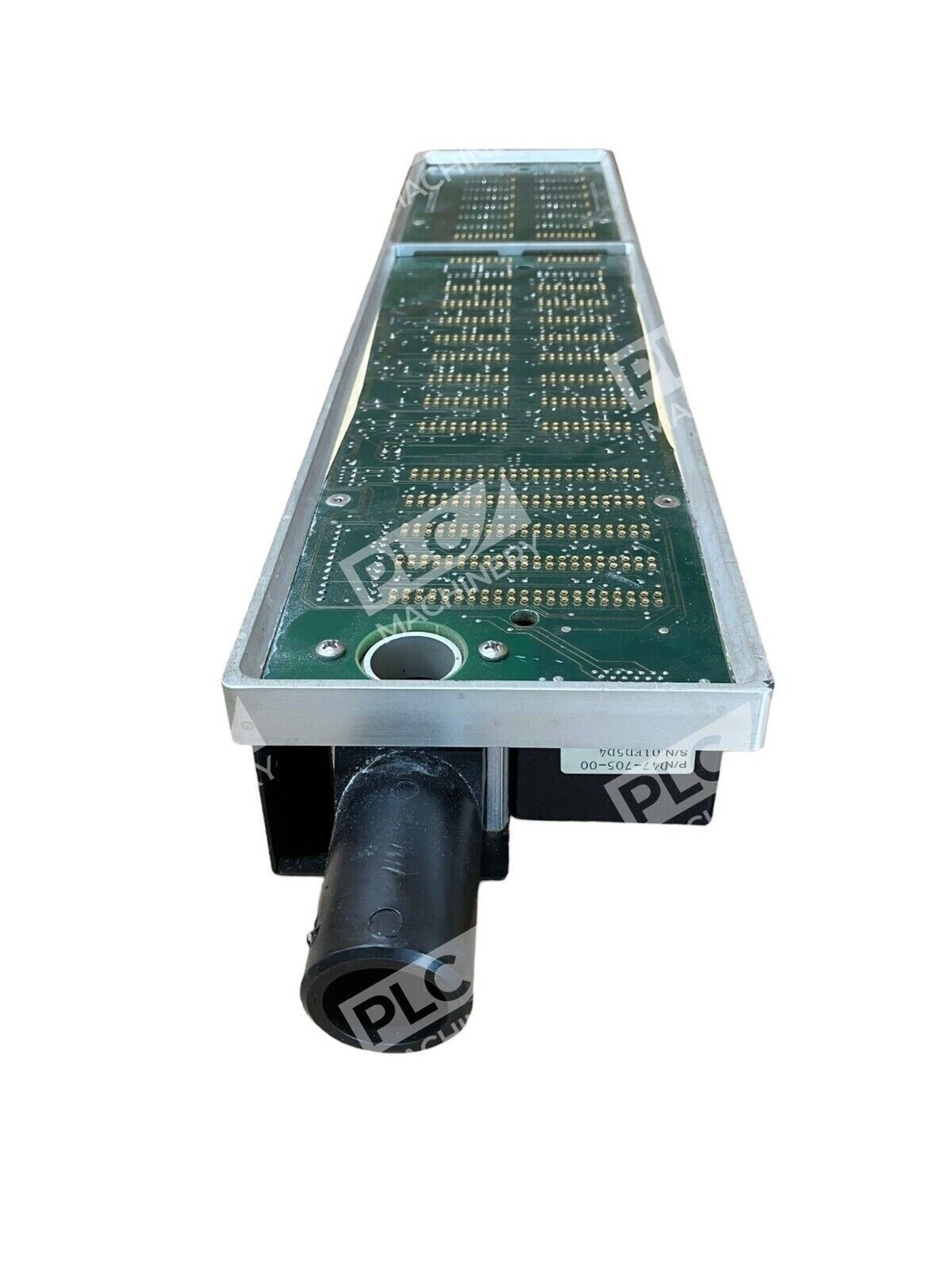

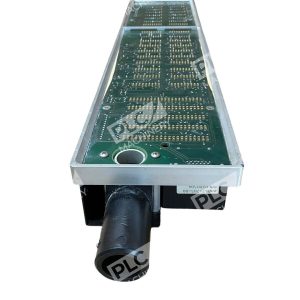

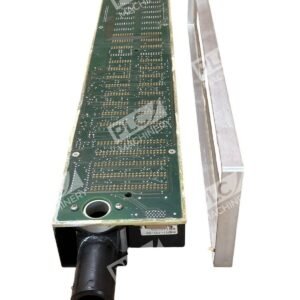

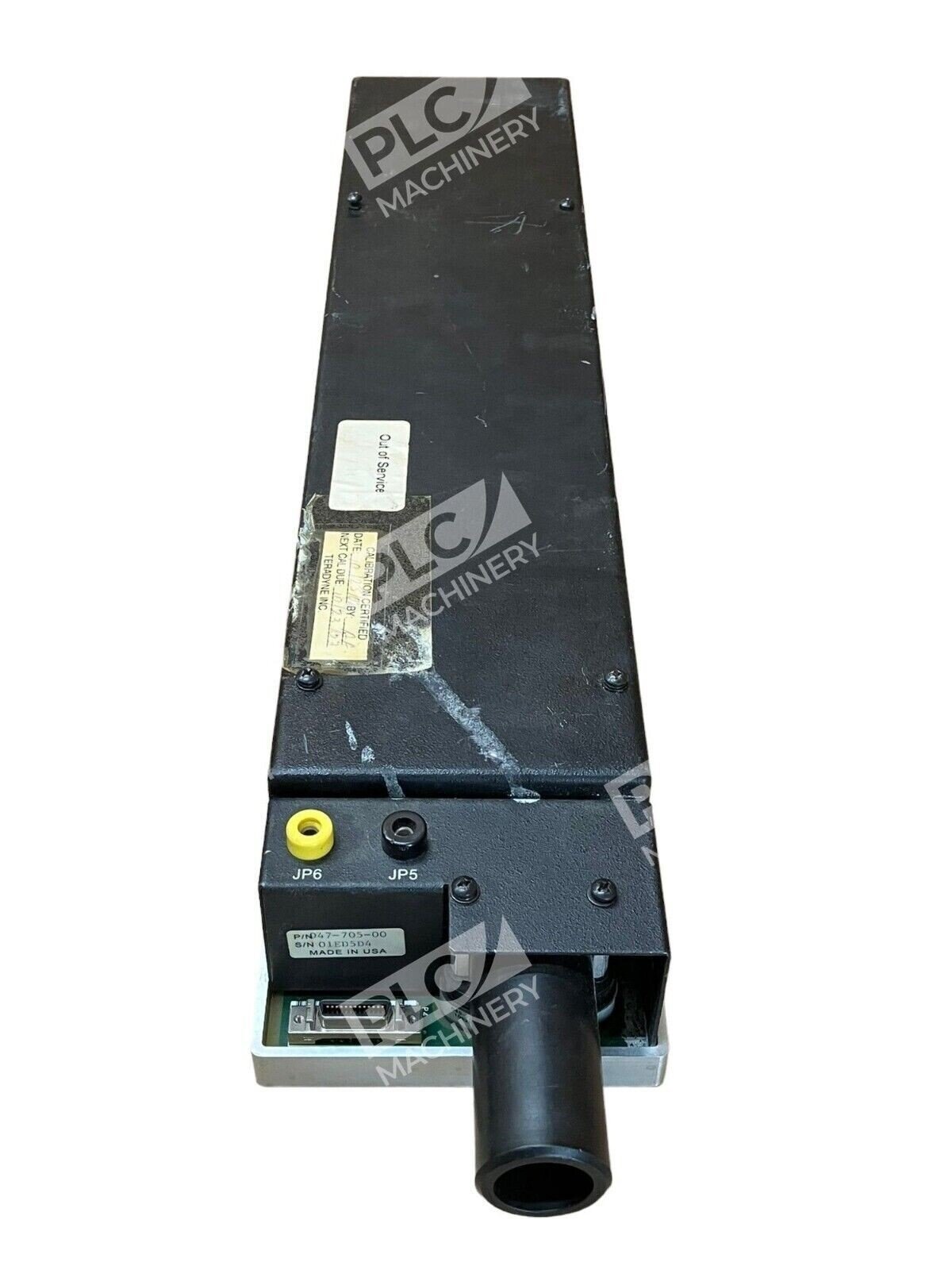

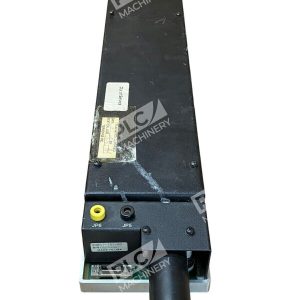

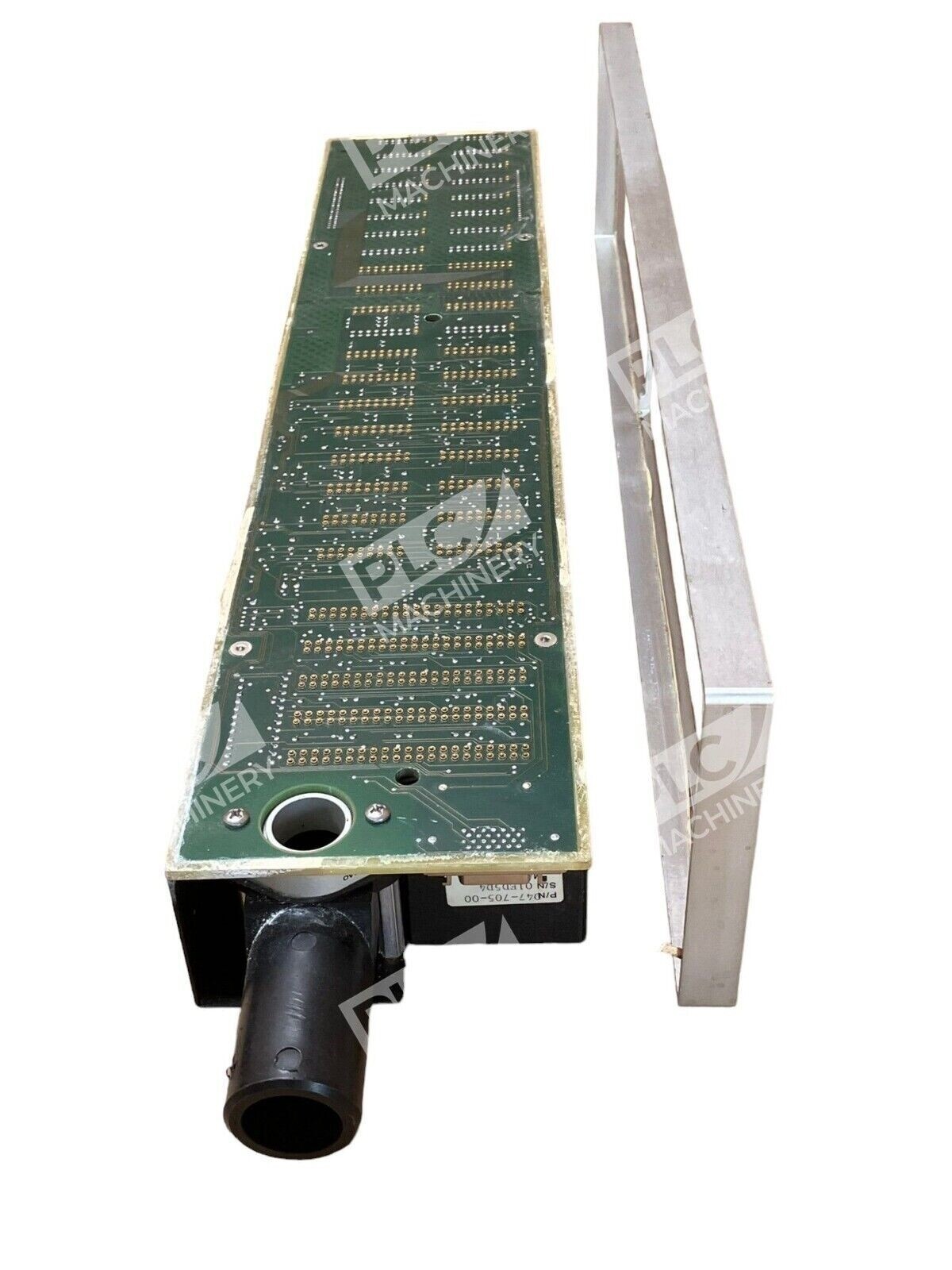

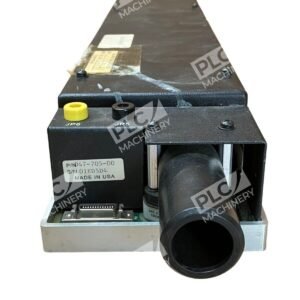

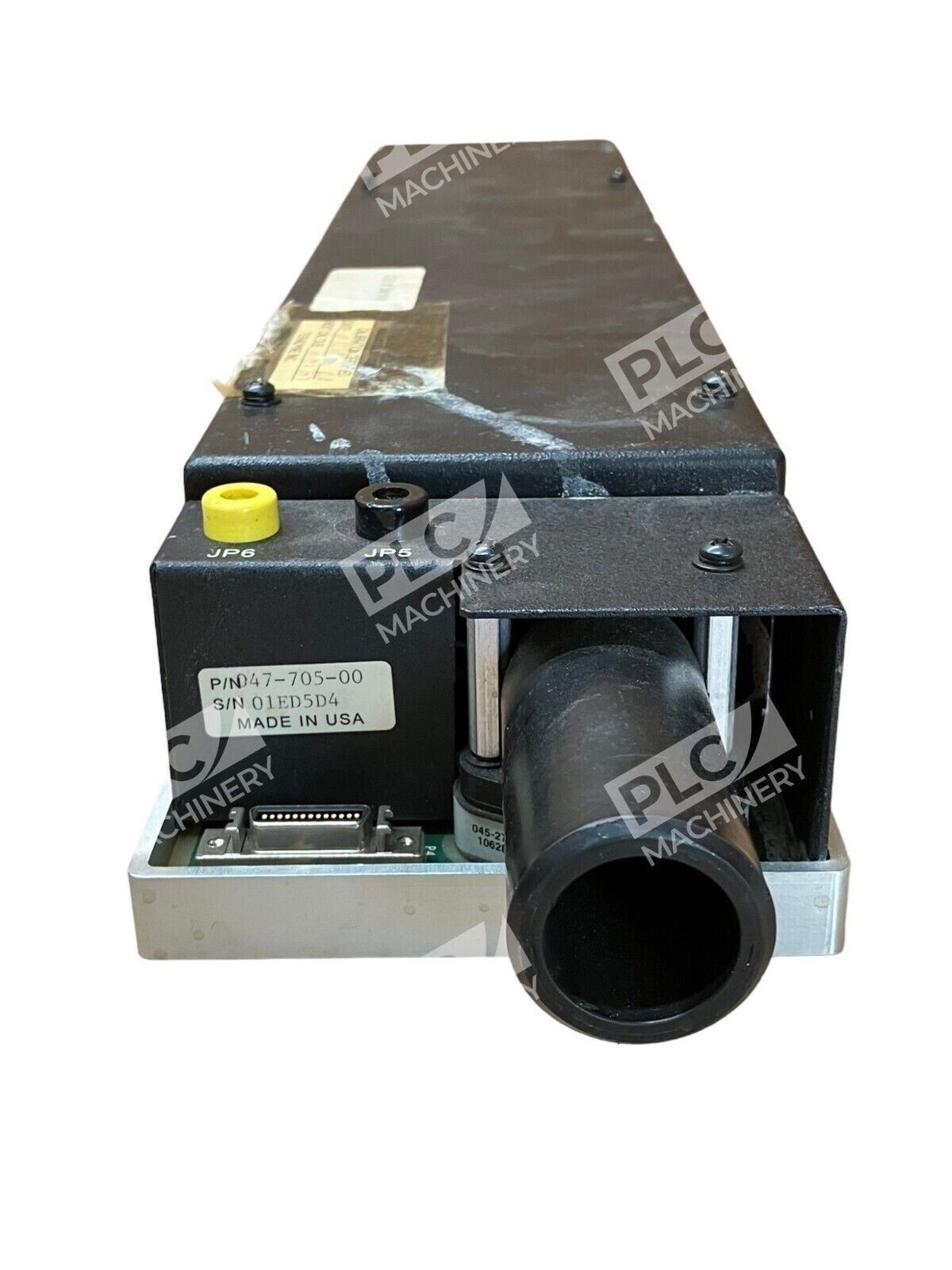

The Teradyne 047-705-00 is a self-test assembly module designed for in-circuit testing (ICT) applications. Built for reliability and ease of use, this block enables comprehensive testing of computer components across a wide range of systems—from personal computers to servers and workstations. The compact design makes it suitable for integration into existing test stations or as a drop-in replacement for failed modules.
Key Features
- Compact form factor for easy integration into test environments
- Wide compatibility with computer component testing (processors, memory, I/O devices)
- Proven Teradyne quality and reliability in automated test equipment
- Used unit tested and fully functional for immediate deployment
- Suitable for manufacturing, service centers, and R&D applications
Technical Specifications
The following specifications are based on available technical documentation:
- Manufacturer: Teradyne Inc.

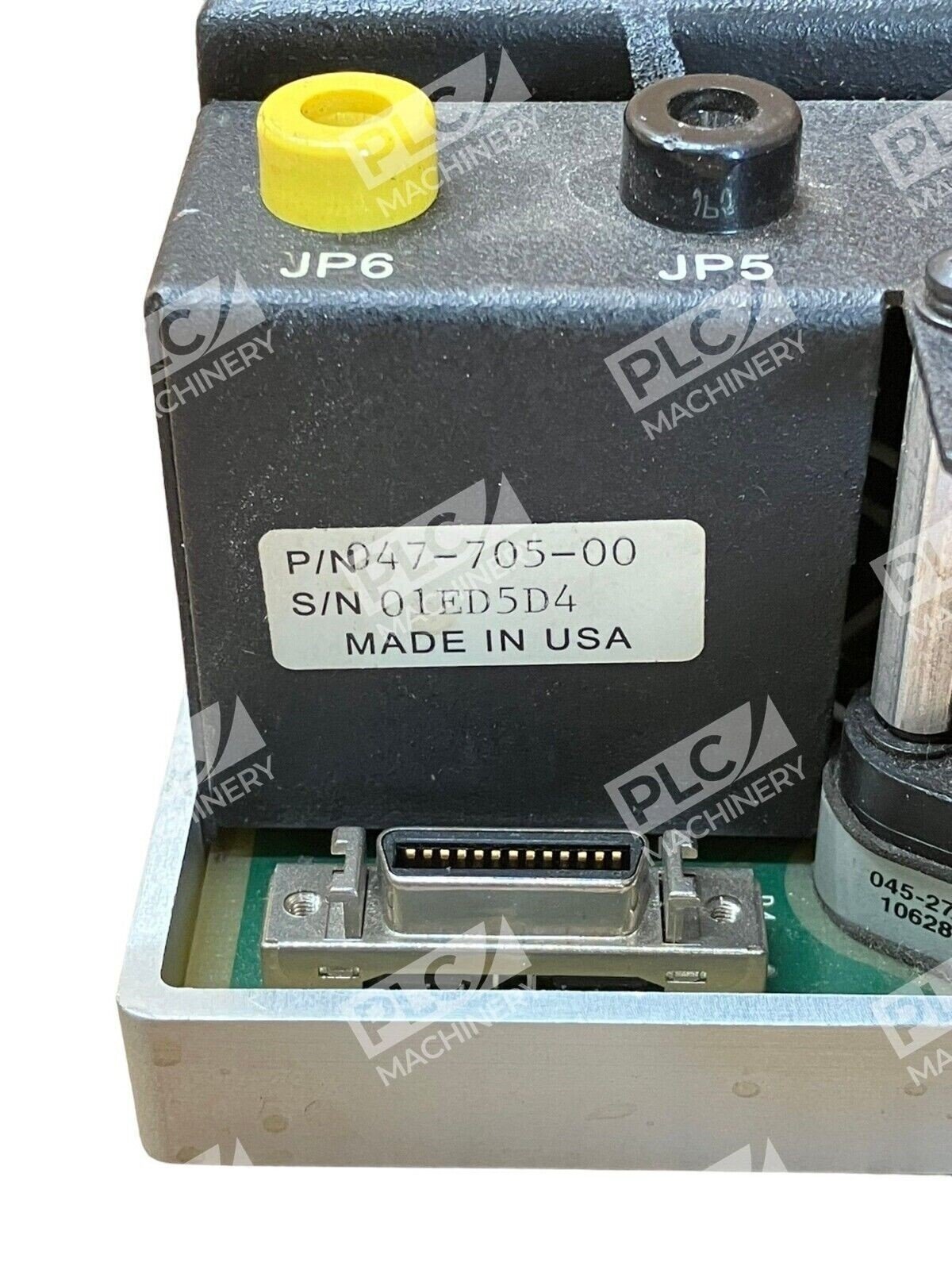

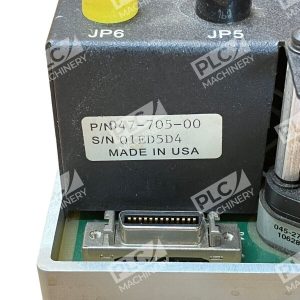

- Part Number: 047-705-00
- Module Type: Self-Test Assembly / ICT Block
- Associated System: Z1890 In-Circuit Tester
- Application: Computer component testing (CPU, memory, I/O)
- Condition: Used, fully functional
Typical Applications
The Teradyne 047-705-00 self-test assembly is commonly used in:
- In-circuit test (ICT) stations for PCB and component verification
- Manufacturing quality control and functional testing
- Computer system assembly and validation
- Service center diagnostics and troubleshooting
- Research and development testing environments
- Replacement modules for existing Z1890 test systems
Compatibility & Replacements
Compatible With
- Teradyne Z1890 in-circuit test platform
- Standard PC and server component testing workflows
- Automated test equipment (ATE) environments
- Existing Teradyne test stations and harnesses
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Part numbers for direct replacements should be confirmed against your specific Z1890 system configuration.
Works With
- Teradyne Z1890 in-circuit tester systems
- Standard ICT software and test program interfaces
- Industry-standard test connectors and harnesses
- PCB test probe stations
