Overview

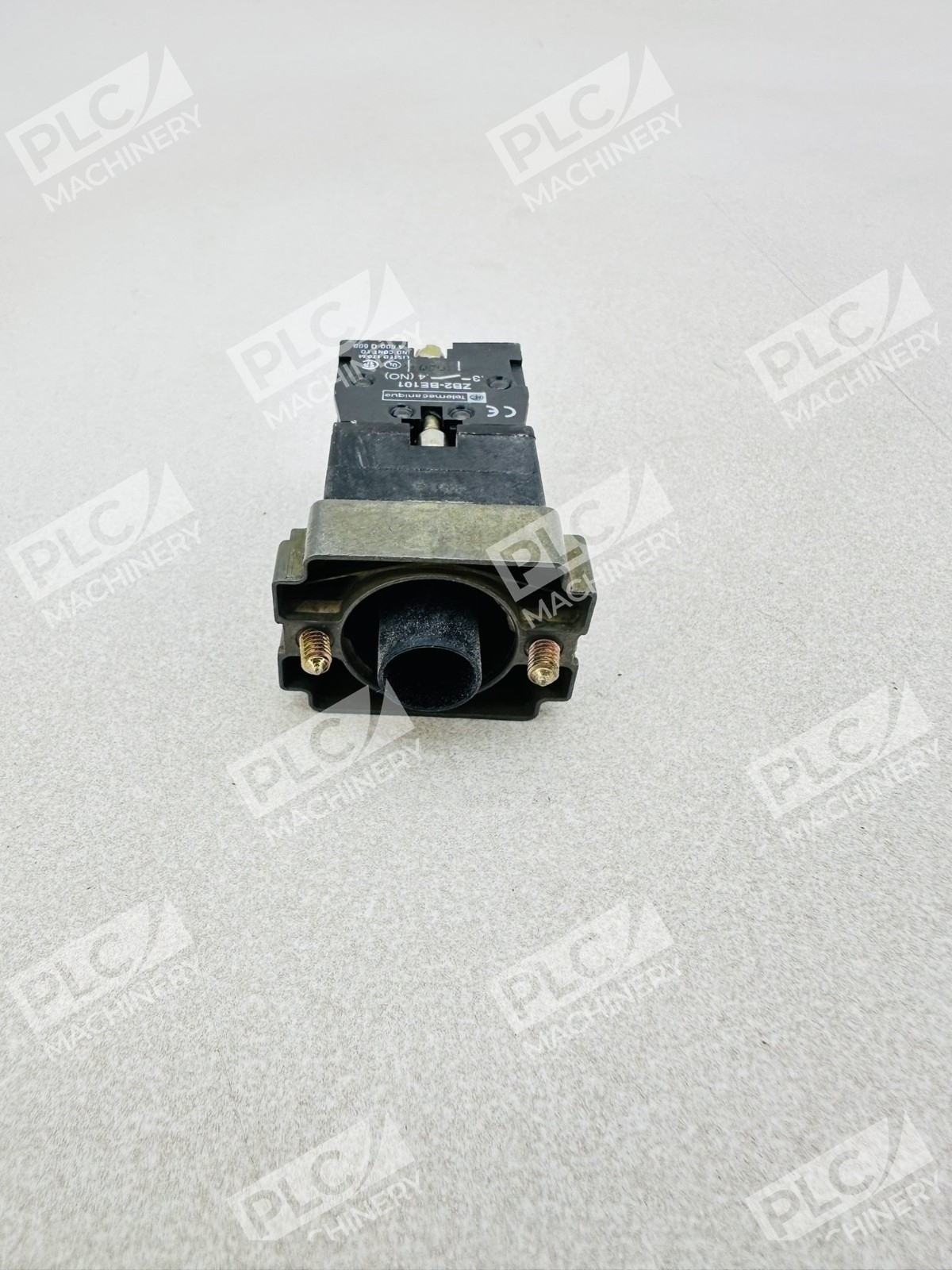

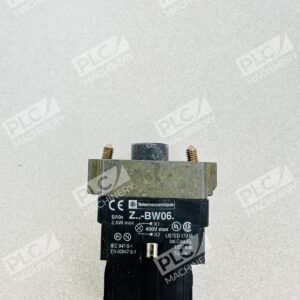

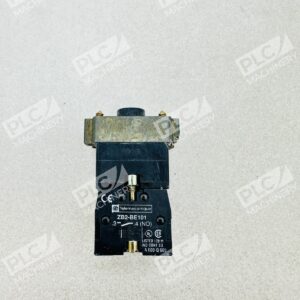

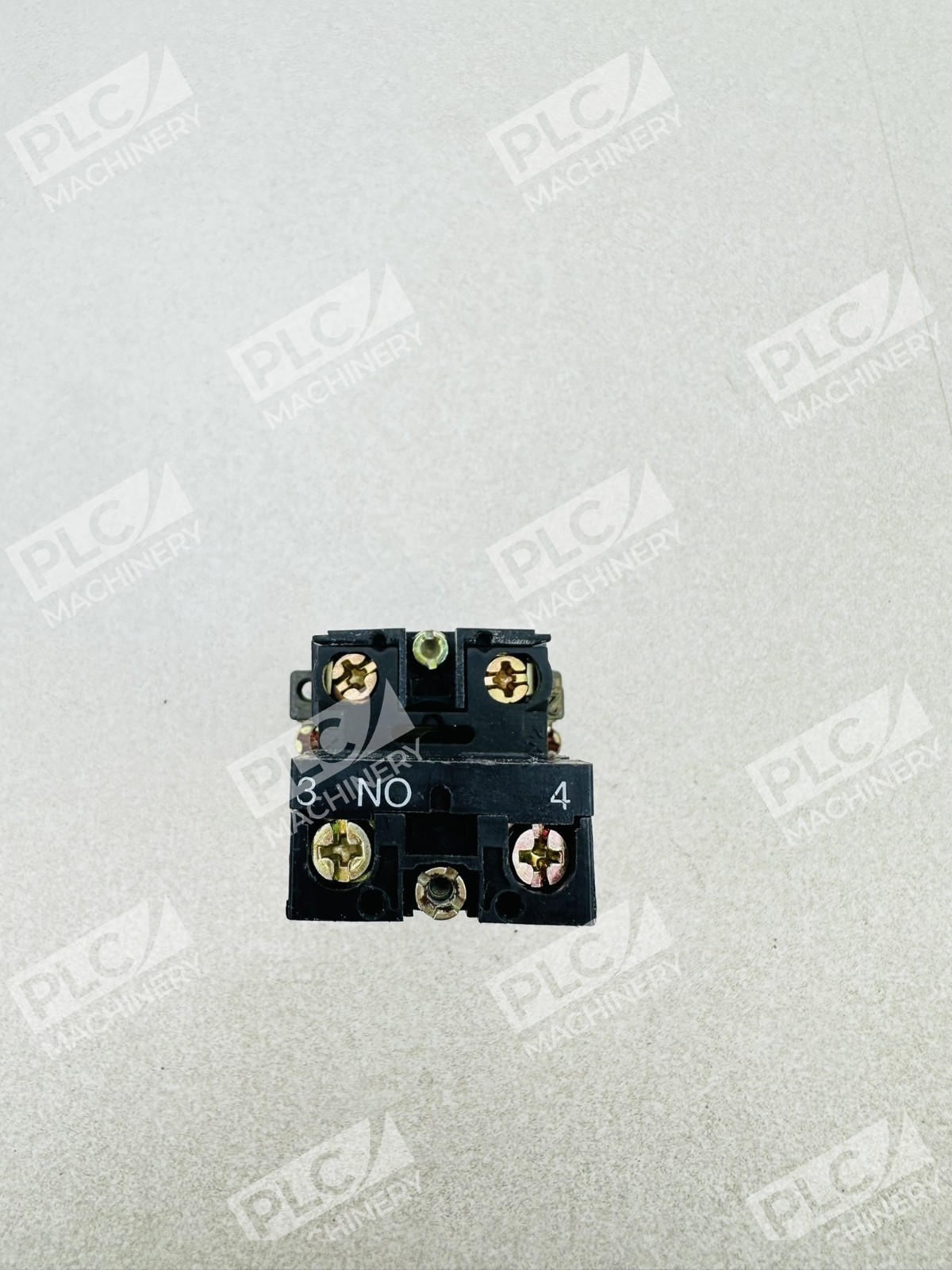

The Telemecanique ZB2BW061 light module is a plastic lamp base assembly designed as an accessory for 22mm diameter illuminated push-button switches. This compact light module provides reliable indication and status feedback in industrial control applications. The unit is rated for 10 amps at 400V AC, making it suitable for standard AC control circuits and operator interfaces.
Key Features
- 22mm diameter body compatible with standard illuminated push-button operators
- 10 amp rating at 400V AC for reliable operation in AC control systems
- Plastic lamp base construction for durability and long service life
- Modular design integrates with Telemecanique push-button heads and contact blocks
- Available in multiple voltage ratings (24V, 120V, 380V variants)
- Drop-in replacement for legacy illuminated control stations
Technical Specifications
- Model Number: ZB2BW061
- Product Type: Light Module Assembly
- Body Diameter: 22mm
- Rated Current: 10 Amps
- Rated Voltage (Standard): 400V AC
- Construction: Plastic lamp base
- Function: Illuminated push-button indicator
- Mounting: Push-to-fit or threaded base (22mm standard)

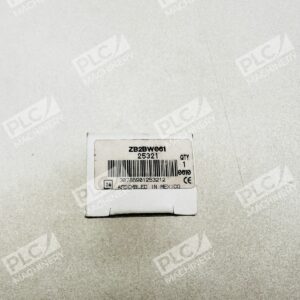

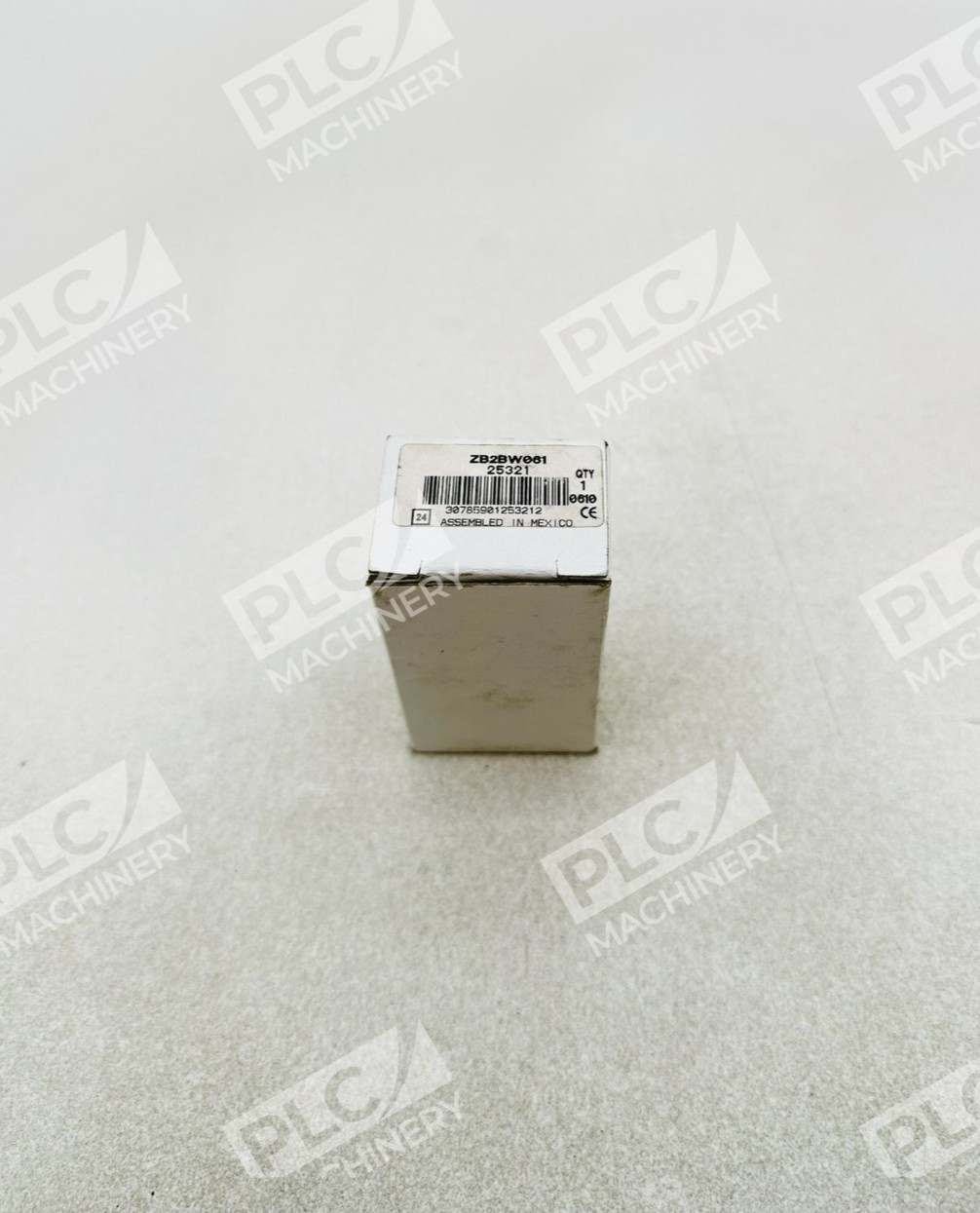

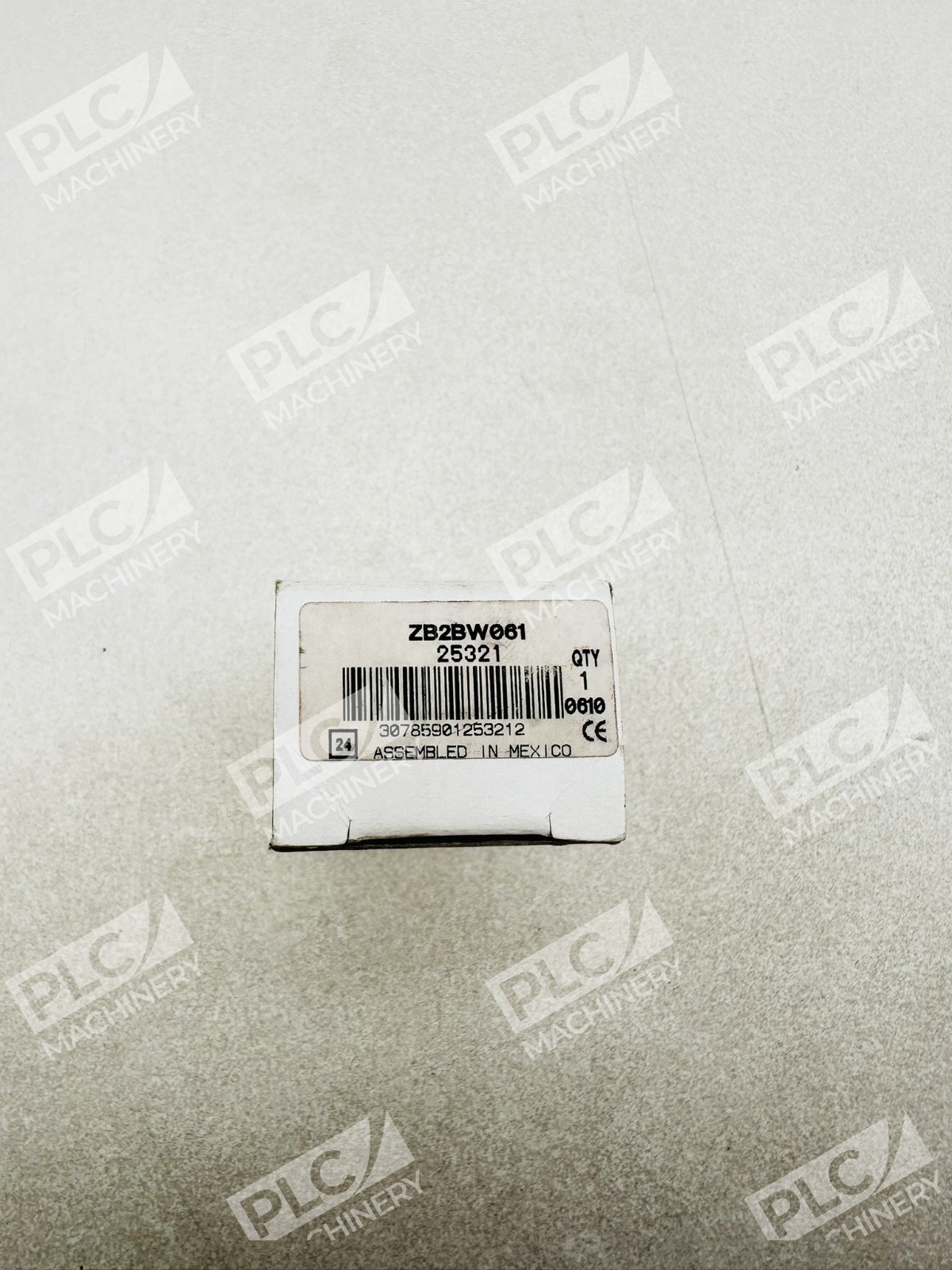

- Condition: New in Box
Typical Applications
The ZB2BW061 light module is widely used in industrial control panels, machine operator stations, and process automation systems where status indication and visual feedback are essential. Common installations include:
- Illuminated start/stop button stations
- Equipment status indication panels
- Alarm and warning light assemblies
- Control room operator interfaces
- Factory automation and manufacturing equipment
- Legacy system retrofits and upgrades
Compatibility & Replacements
Compatible With
- Telemecanique ZB2 series push-button operators (22mm)
- Telemecanique ZB2BW contact block assemblies
- Standard 22mm illuminated push-button housings
- AC control circuits rated 400V or lower
- Industrial control panel wiring and enclosures
Replaces / Drop-In Replacement For
- Other Telemecanique ZB2BW061 light module variants
- Legacy 22mm illuminated lamp base assemblies
- Verify exact voltage rating (24V, 120V, 380V, or 400V) matches your application
Works With
- Industrial electrical control systems and AC circuits
- Push-button operator heads (momentary or sustained)
- Contact block assemblies for switching functions
- Standard DIN panel mounting and enclosures
- Electromechanical relay and contactor circuits
