Overview

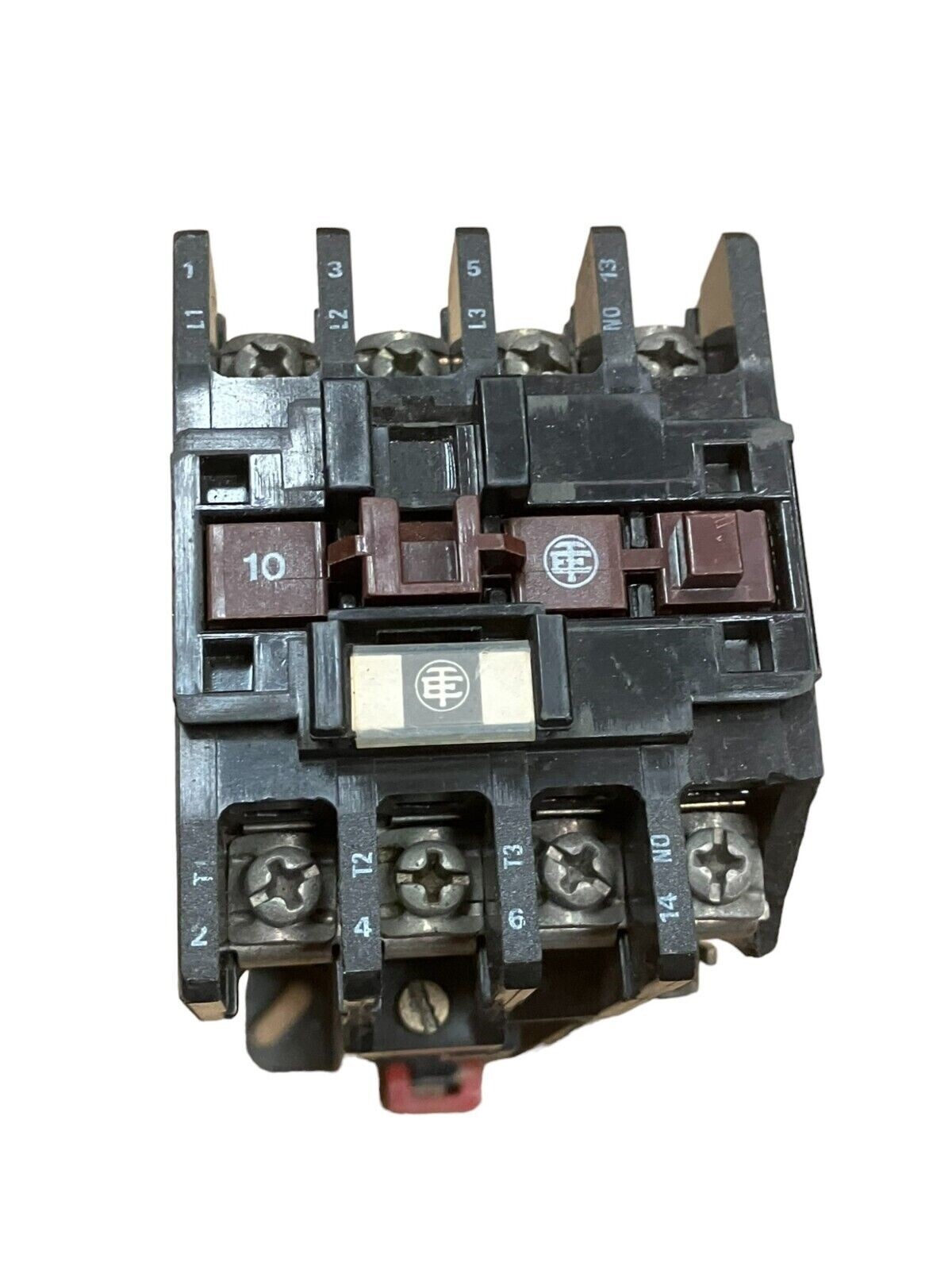

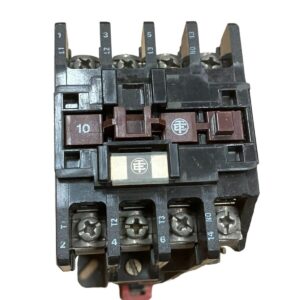

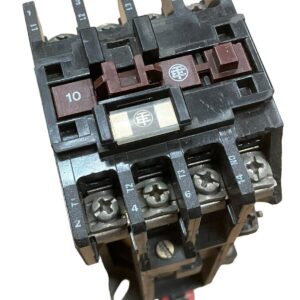

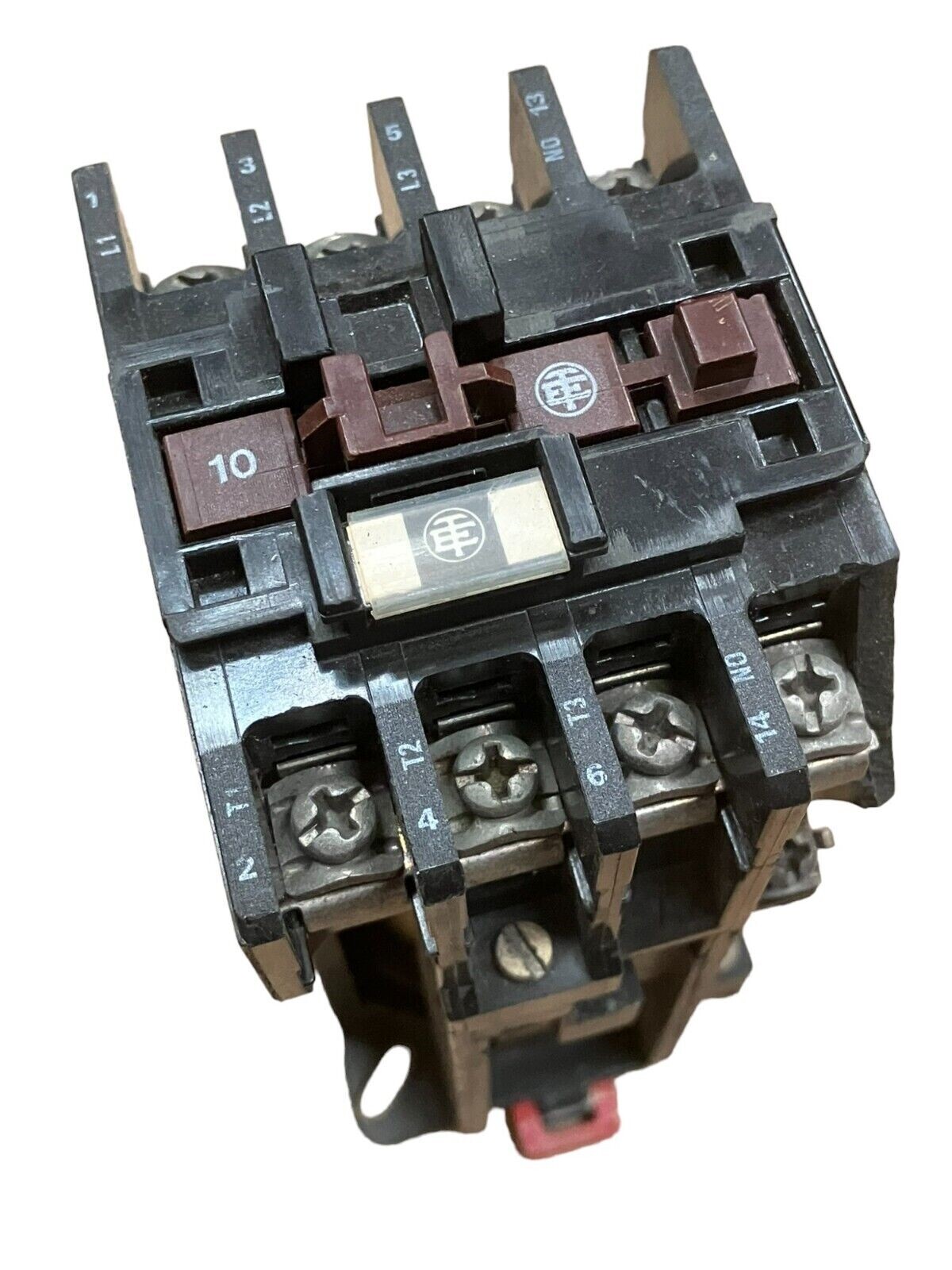

The Telemecanique LP1-D163 is a 3-pole IEC-style contactor designed for motor control applications in industrial automation systems. This unit provides robust switching for 40A loads at 660V main circuit voltage with a 24VDC control coil. The LP1-D series are TeSysâ„¢ contactors manufactured to IEC 60947 standards, offering reliable performance in demanding industrial environments. This new condition unit (no original box) is ready for immediate deployment.
Key Features
- 3-pole contactors with rated operational current of 40A in AC-3 category motor control
- Main circuit rated for 660V (supports AC-3 utilization category)
- 24VDC coil supply for flexible control circuit integration
- IEC 60947-4-1 and IEC 60204-1 compliance for machine control
- Power terminals protected against direct finger contact
- Ready-to-tighten connection terminals for fast, secure installation

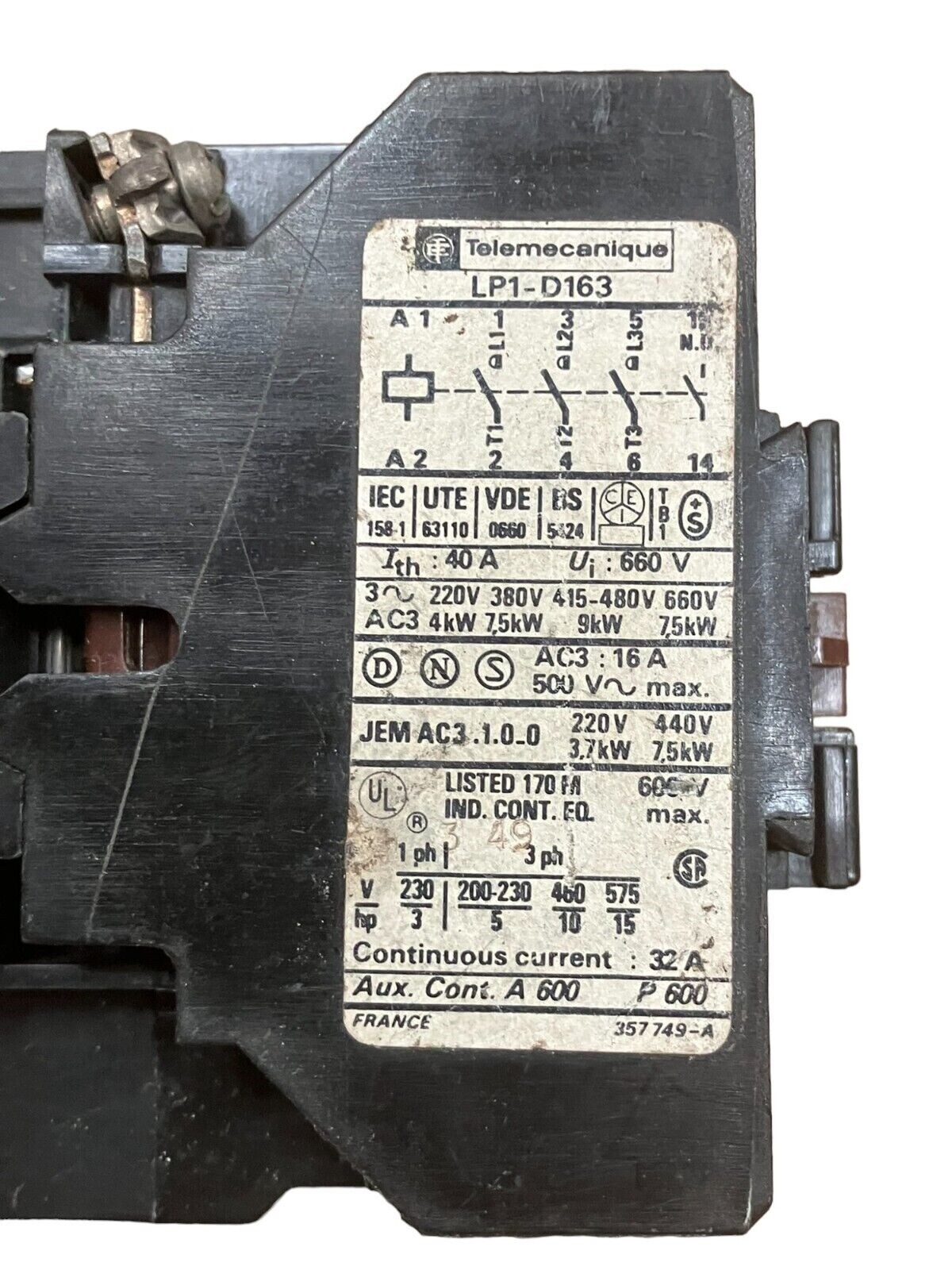

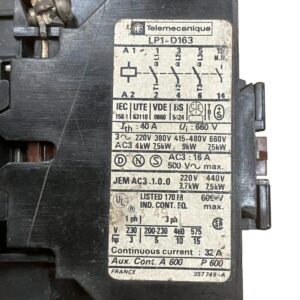

Technical Specifications
- Contactor Type: 3-pole, motor control, single-speed non-reversing
- Rated Operational Current (AC-3): 40A
- Main Circuit Voltage: 660V AC
- Control Coil Voltage: 24V DC
- Utilization Category: AC-3 (squirrel-cage motor starting)
- Mounting: Clip-on DIN rail (75 mm rail AM1-DL required)
- Power Terminal Type: Protected against finger contact, ready-to-tighten
- Standards: IEC 60947-4-1, IEC 60204-1, CE marked
- Series: LP1-D (TeSysâ„¢ IEC-Style)
- Manufacturer: Schneider Electric / Telemecanique
Typical Applications
The Telemecanique LP1-D163 is ideal for:
- Three-phase asynchronous motor control in industrial machinery
- HVAC equipment switching and motor starters
- Pump and compressor motor control circuits
- Industrial automation systems requiring AC-3 motor switching up to 40A
- Machine tool motor control requiring 660V rated contactors
- Energy and utility applications with 24VDC control logic
Compatibility & Replacements
Compatible With
- DIN rail mounting systems (75 mm rail AM1-DL)
- 24VDC control circuits and PLC outputs
- IEC 60947-4-1 standard motor starter assemblies
- TeSysâ„¢ auxiliary contact blocks (LA1-DN series)
- Industrial automation platforms requiring AC-3 switching
Replaces / Drop-In Replacement For
The Telemecanique LP1-D163 directly replaces equivalent D-series contactors in older installations. Similar models within the TeSysâ„¢ LP1-D series include the LC1-D163 variant for AC control circuits. Verify your existing coil voltage (24VDC) and main circuit requirements (660V) before ordering. For exact interchangeability with other 40A contactors, consult your system integrator before ordering.
Works With
- IEC 60947 standard motor starter assemblies
- TeSysâ„¢ overload relay blocks and protection devices
- Standard 24VDC industrial control relay logic
- Auxiliary contact modules for interlocking circuits
- Industrial PLC and motion control systems
