Overview

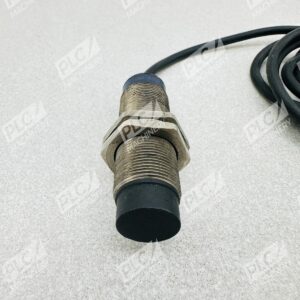

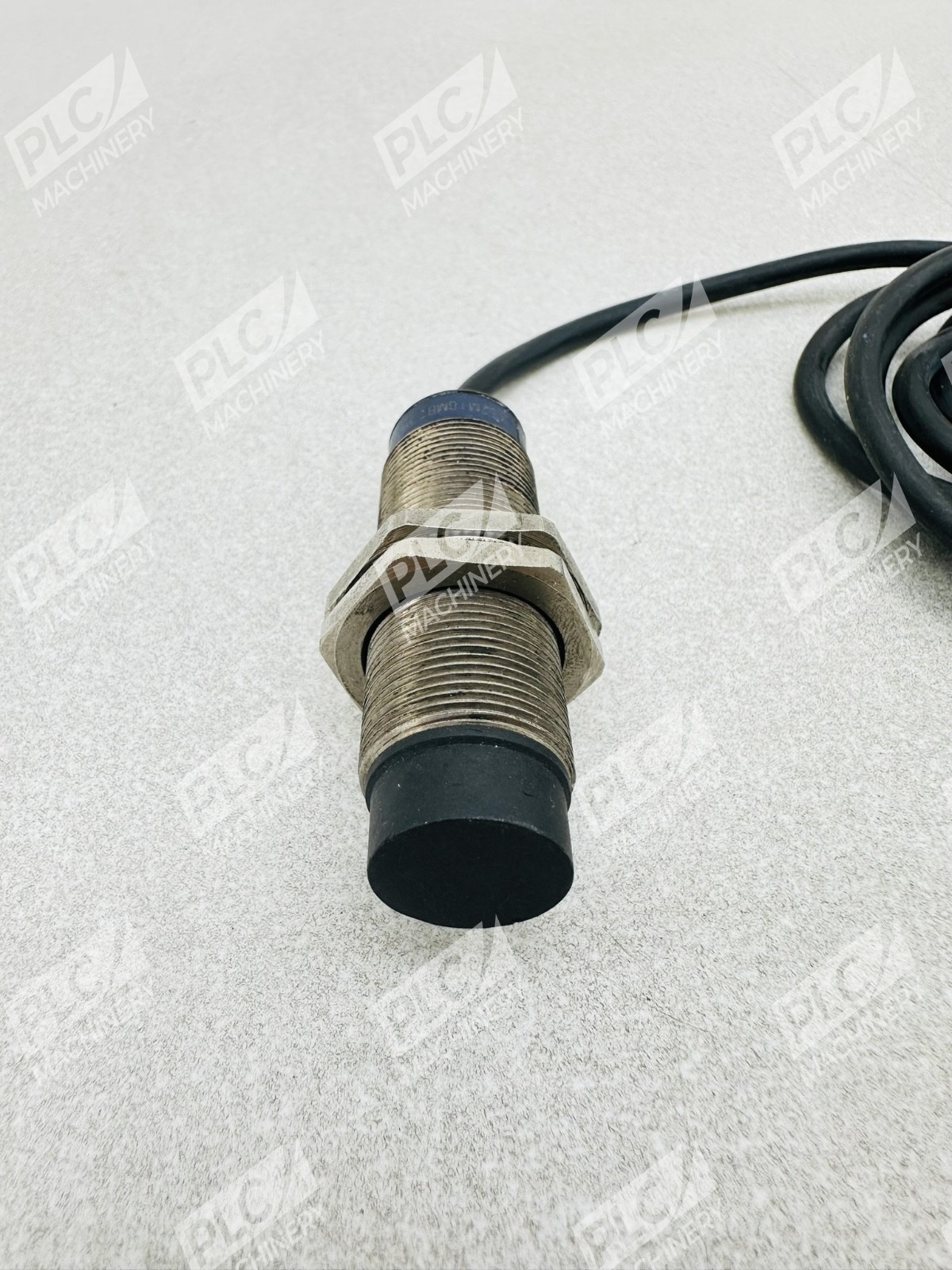

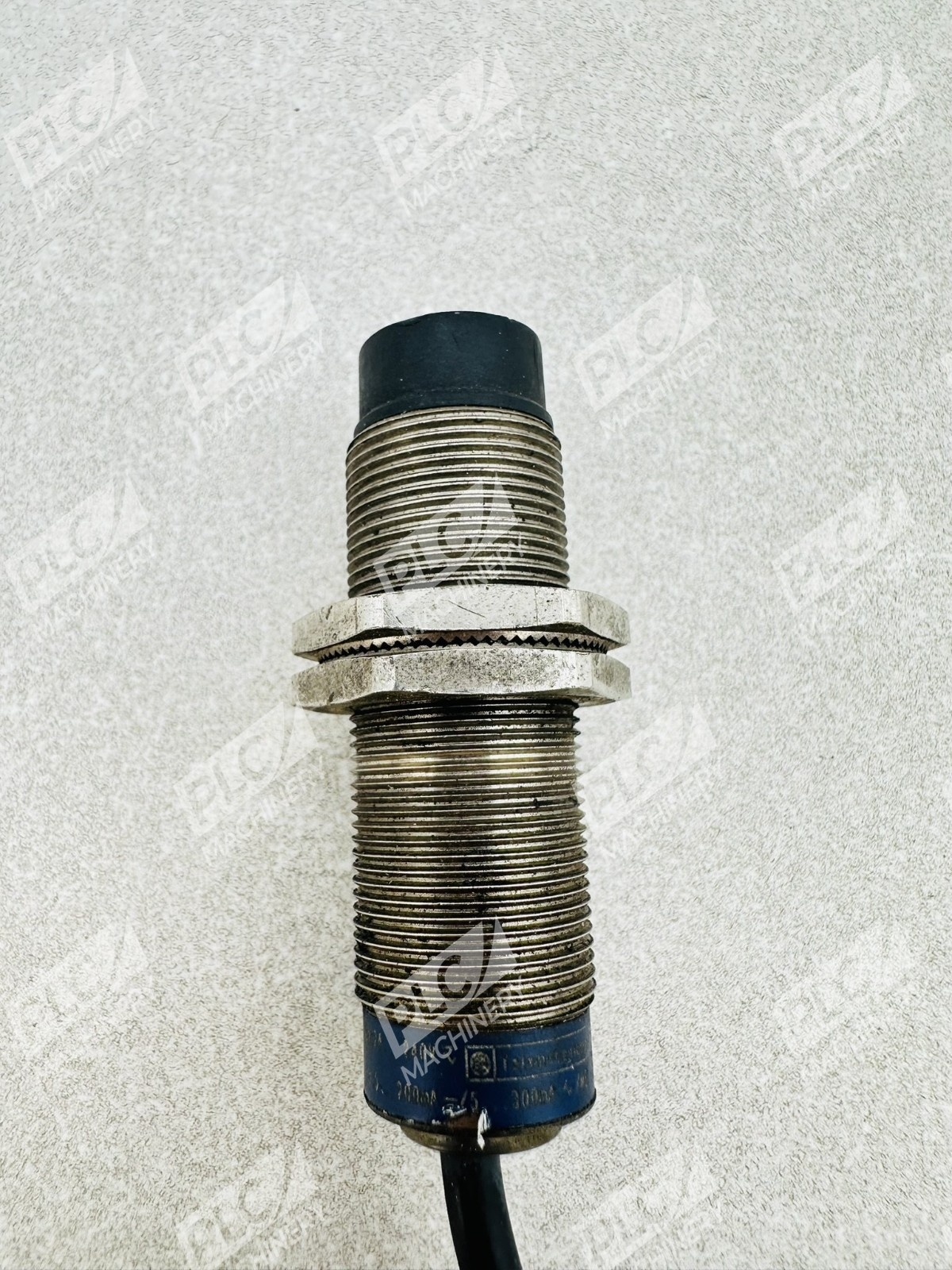

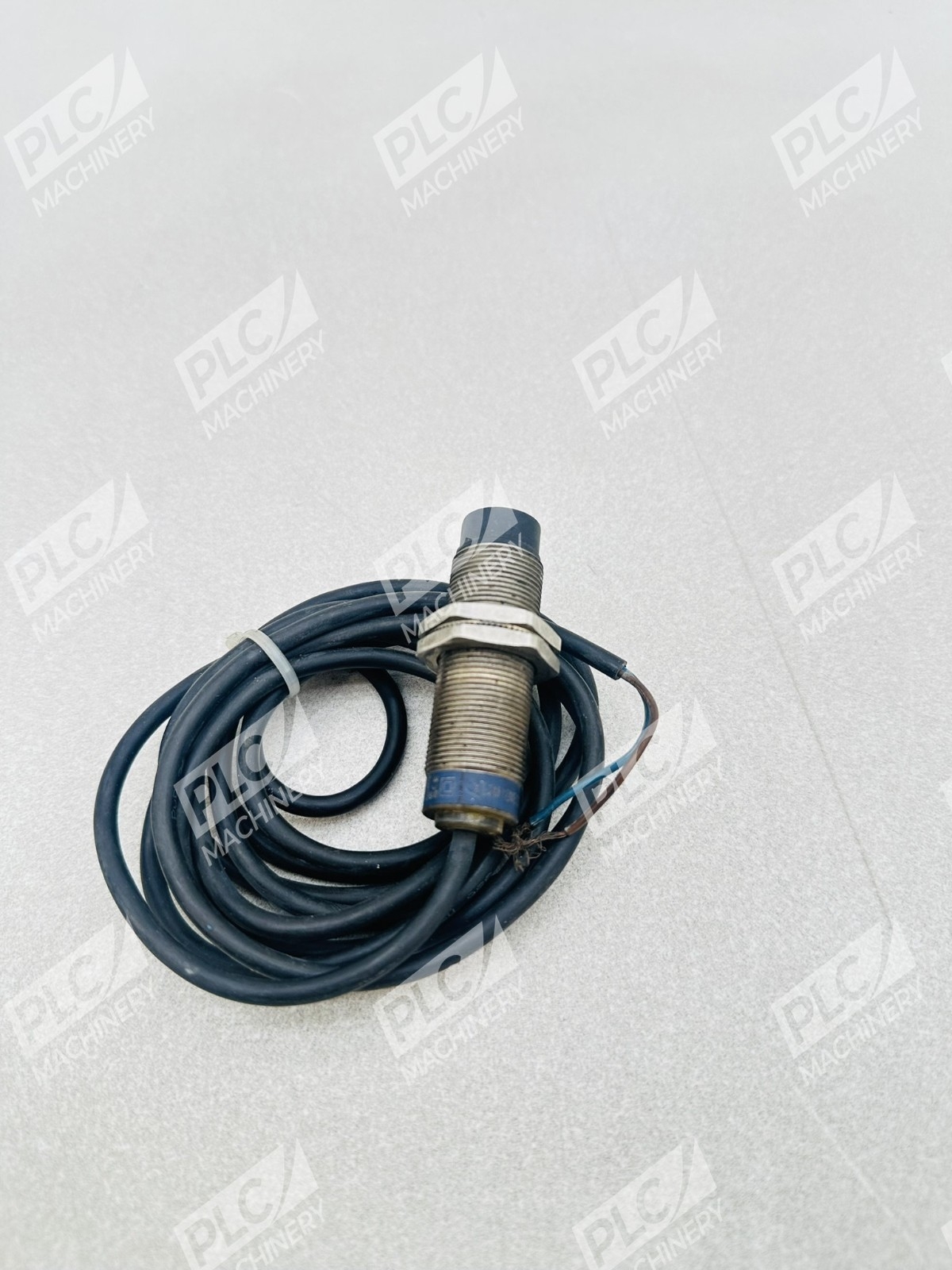

The Telemecanique inductive proximity sensor 24-240V AC/DC is a dependable contact-free detection solution for industrial automation systems. This sensor uses electromagnetic induction to detect metal objects within its sensing range, making it ideal for machinery position monitoring, part counting, and process control. Operating across a wide voltage range from 24V to 240V AC/DC, it integrates into both legacy and modern control systems without requiring separate power conditioning.
Key Features
- Wide voltage compatibility: 24–240V AC/DC operation
- Contact-free electromagnetic detection for reliable metal object sensing
- IP67 enclosure rating for protection in wet and dusty environments
- Programmable normally open (NO) or normally closed (NC) output configuration
- Temperature stable operation from −25°C to +70°C
- Multiple mounting options including M20 and M30 thread patterns
Technical Specifications
- Supply Voltage: 24–240V AC/DC
- Output Type: Discrete (NO/NC programmable)
- Wiring: 2-wire AC/DC configuration
- IP Rating: IP67 per IEC 60529
- Operating Temperature: −25°C to +70°C

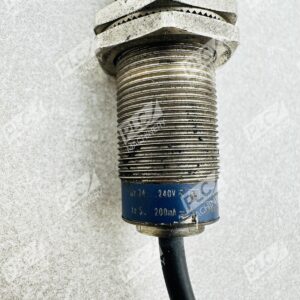

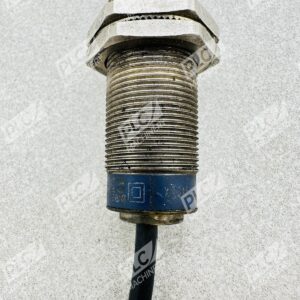

- Body Material: Nickel-plated brass
- Sensing Face: PPS (polyphenylene sulfide)
- Frequency Response: Up to 100 Hz

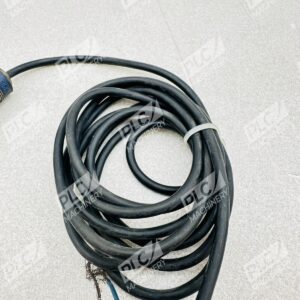

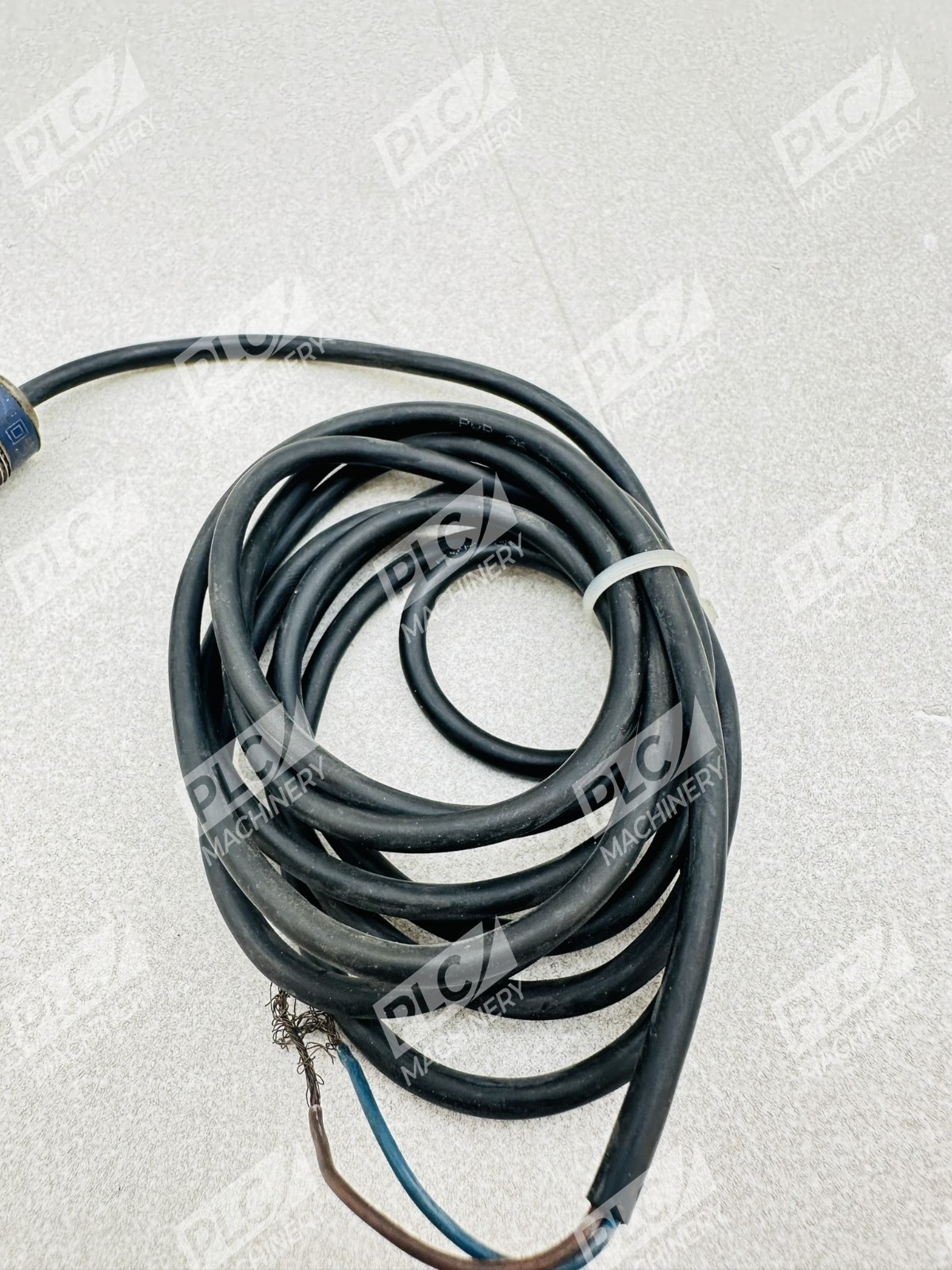

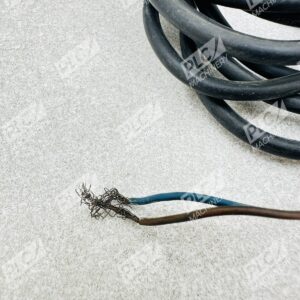

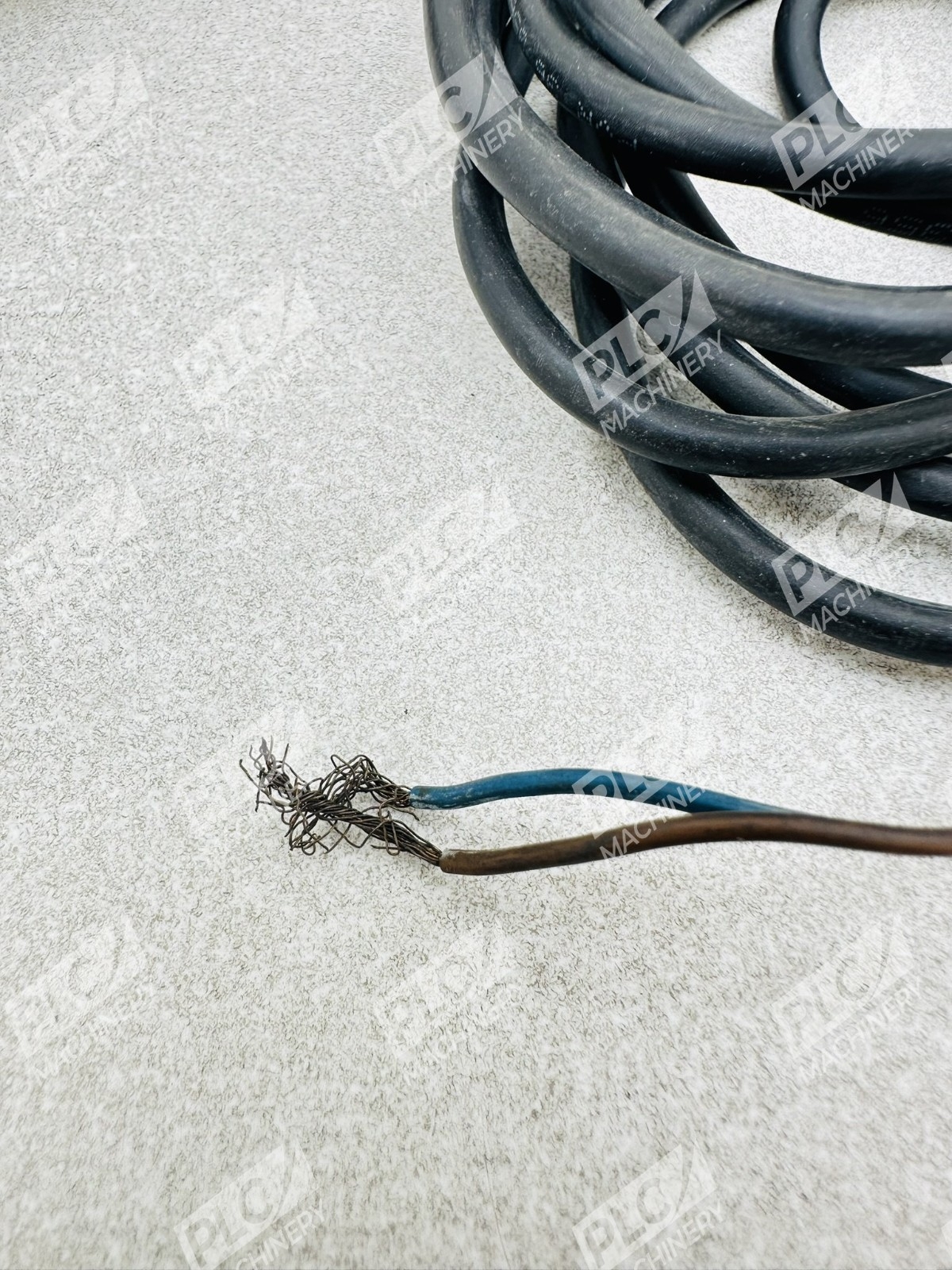

- Cable Length: Typically 2 m (varies by model)
- Electrical Connection: Cable or M12/M8 connector
Typical Applications
- Machinery position and limit detection
- Parts counting and production monitoring
- Food and beverage processing line automation
- Packaging and material handling systems
- Assembly line presence verification
- Conveyor belt load detection
Compatibility & Replacements
Compatible With
- Allen-Bradley control systems (via standard industrial protocols)
- Siemens PLCs and automation platforms
- Standard industrial 24–240V AC/DC power supplies
- Any control logic requiring discrete input signals
- Industrial IoT and supervisory control systems
Replaces / Drop-In Replacement For
This sensor is functionally compatible with other Telemecanique XS-series inductive proximity sensors rated 24–240V AC/DC, including common variants such as XS7C4A1MPP20, XS630B1MBU20, and XS4P30MA230L2. Verify mechanical mounting and connector type before ordering to ensure drop-in compatibility.
Works With
- Discrete 24V DC control logic and relays
- PLC digital input modules (any voltage rating ≥24V)
- Industrial automation networks via standard I/O terminals
- NO/NC contact-based control circuits
