Overview

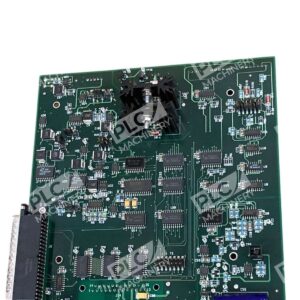

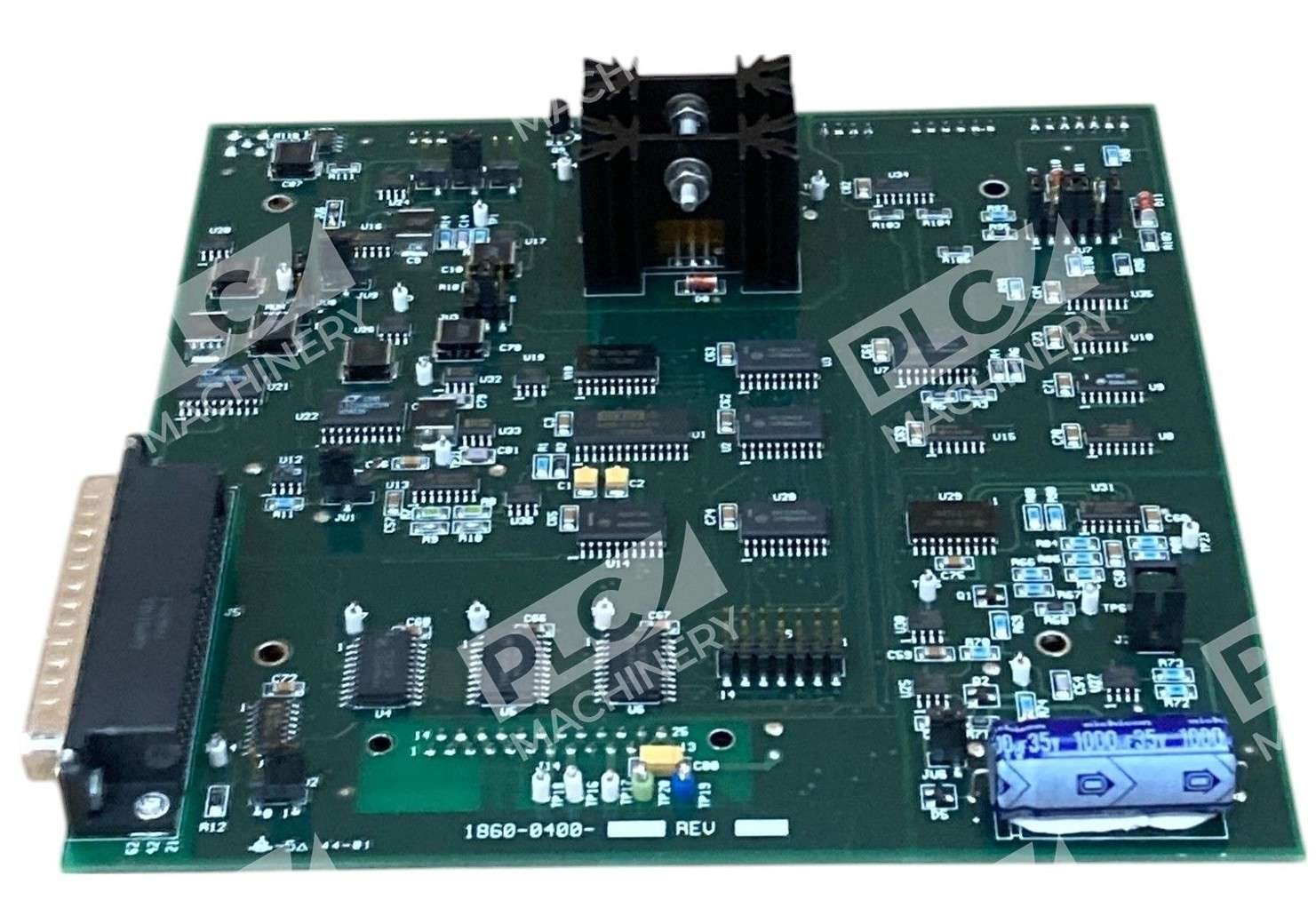

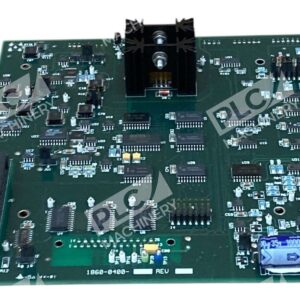

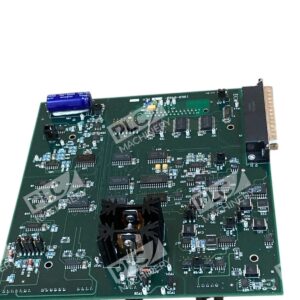

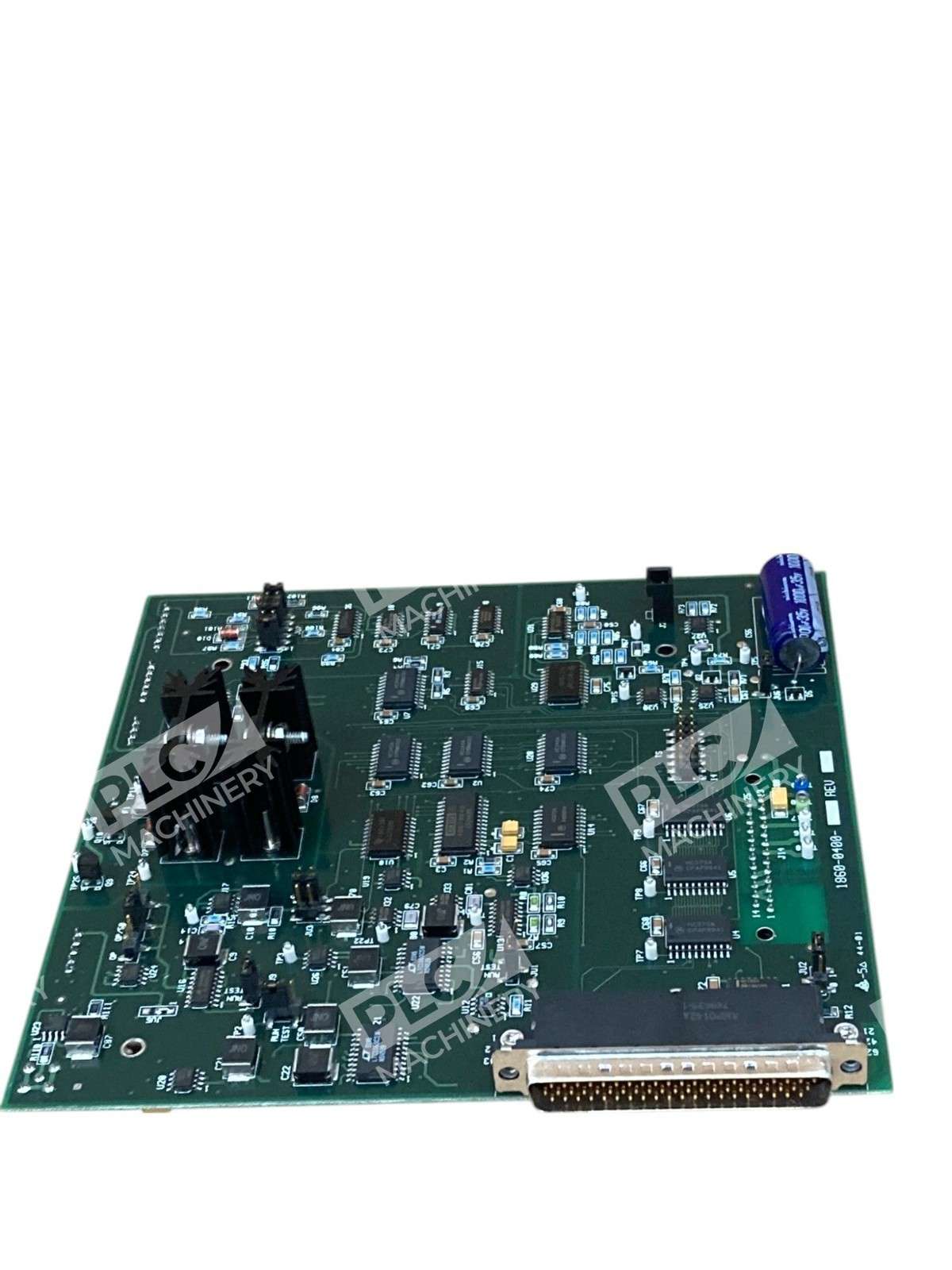

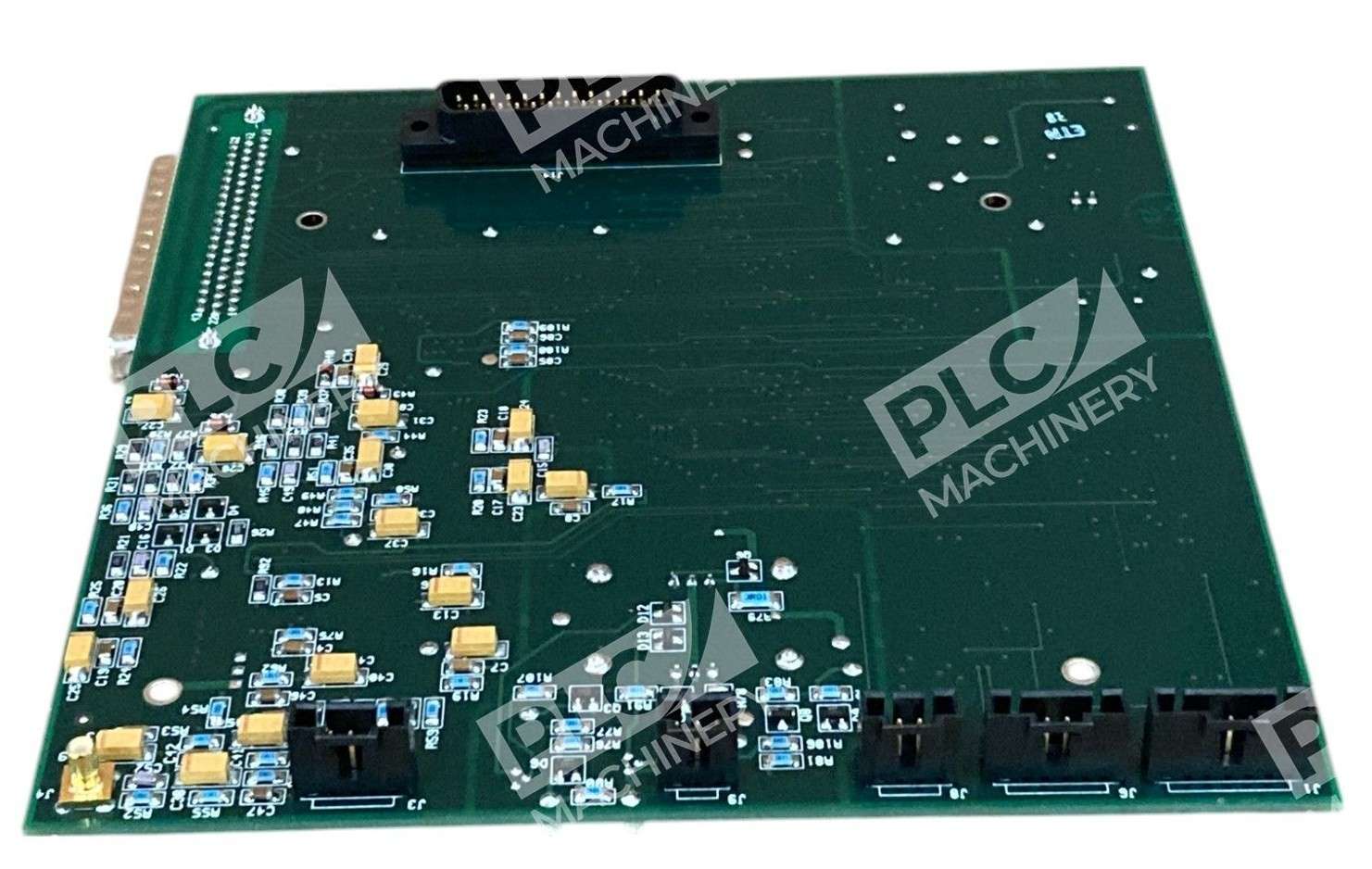

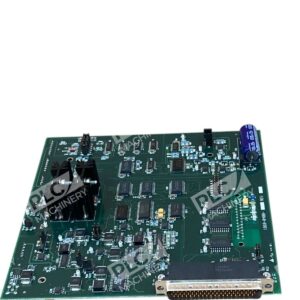

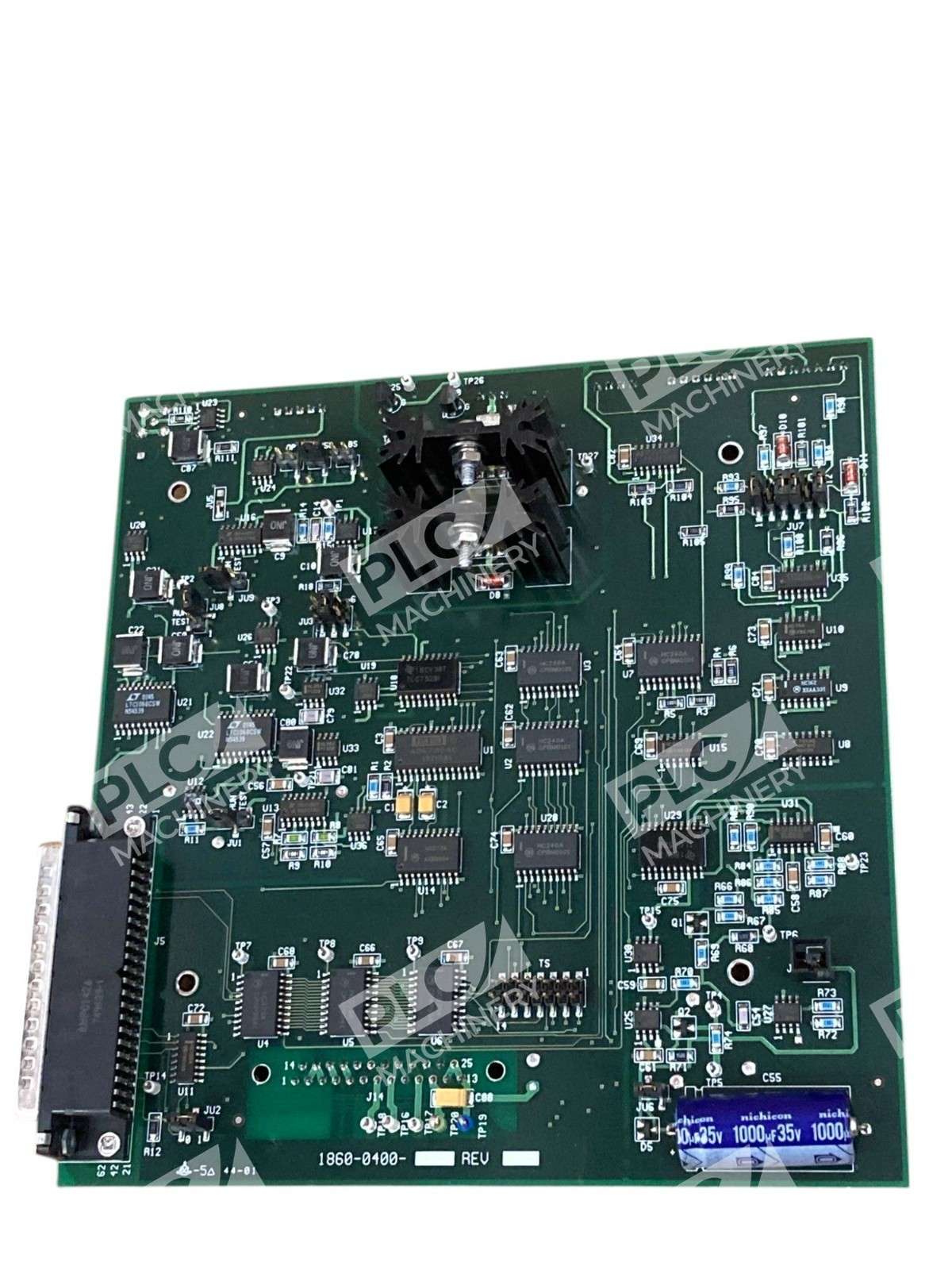

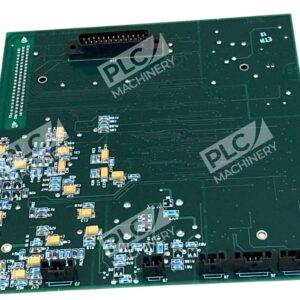

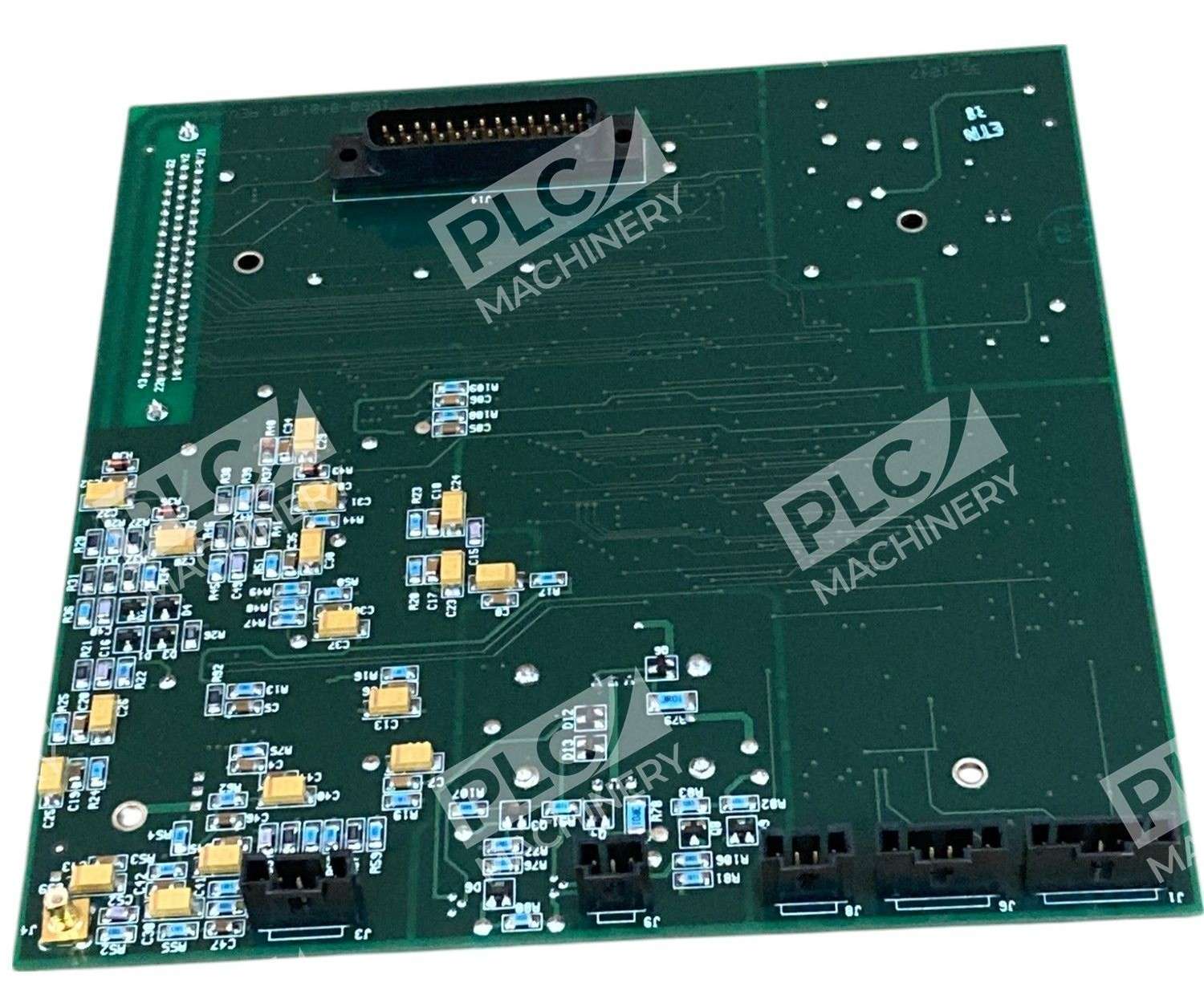

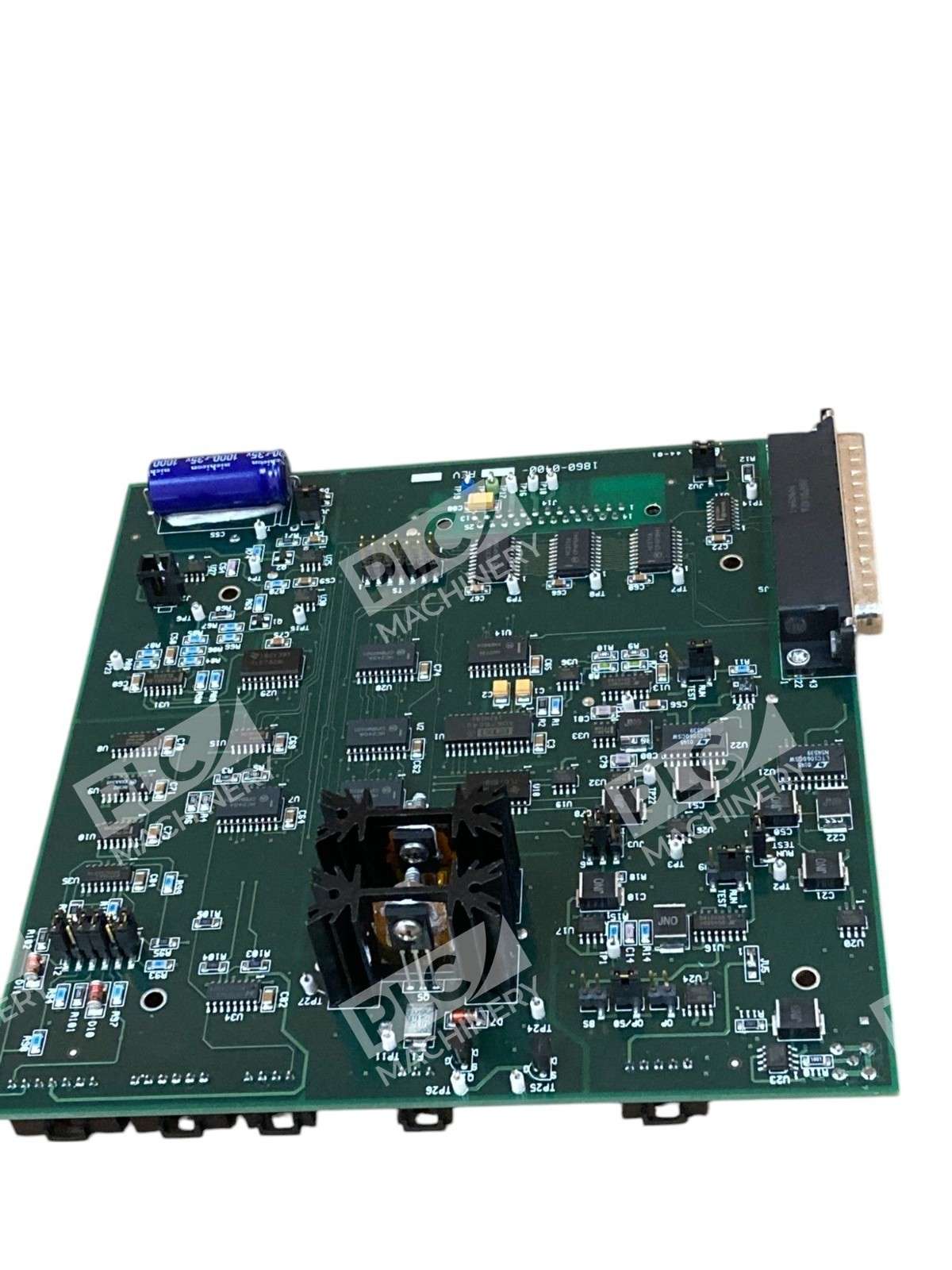

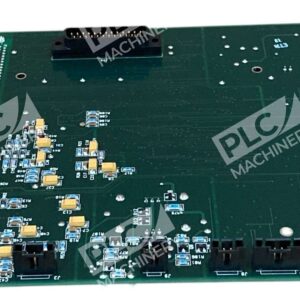

The Teledyne 1860-0400 optical amplifier is a precision circuit board assembly designed for signal conditioning and amplification in optical sensing and monitoring applications. Manufactured by Teledyne Advanced Monitoring Solutions, this board is a critical component in systems requiring transimpedance amplification and optical-to-electrical signal conversion.
Key Features
- Optimized for optical signal detection and amplification
- Low-noise transimpedance amplifier design
- Compact, integrated circuit board assembly
- Reliable performance in industrial monitoring systems
- Drop-in replacement for compatible Teledyne optical monitoring equipment
- New, no-box condition—fully functional and ready to install
Technical Specifications
This circuit board assembly is designed to interface with photodetectors and optical sensors, converting weak optical signals into usable electrical outputs suitable for downstream signal processing and data acquisition systems. The board features integrated amplification stages optimized for bandwidth and noise characteristics typical of optical monitoring applications.
Typical Applications
- Optical flame detection and monitoring systems
- Industrial process monitoring and control
- Optical signal conditioning in analytical instrumentation
- Telecommunications equipment optical receivers
- Research and laboratory optical measurement systems
Compatibility & Replacements
Compatible With
- Teledyne Advanced Monitoring Solutions optical monitoring systems
- 560ES optical monitoring platform
- Systems utilizing Teledyne optical detection components
Replaces / Drop-In Replacement For
- Teledyne 1860-0400-01 (earlier revision)
- Teledyne 1860-0400-05 (tested configuration)
Works With
- Photodiode and photodetector interfaces
- Analog signal conditioning circuits
- Data acquisition and measurement systems
- Industrial monitoring and control platforms
