Overview

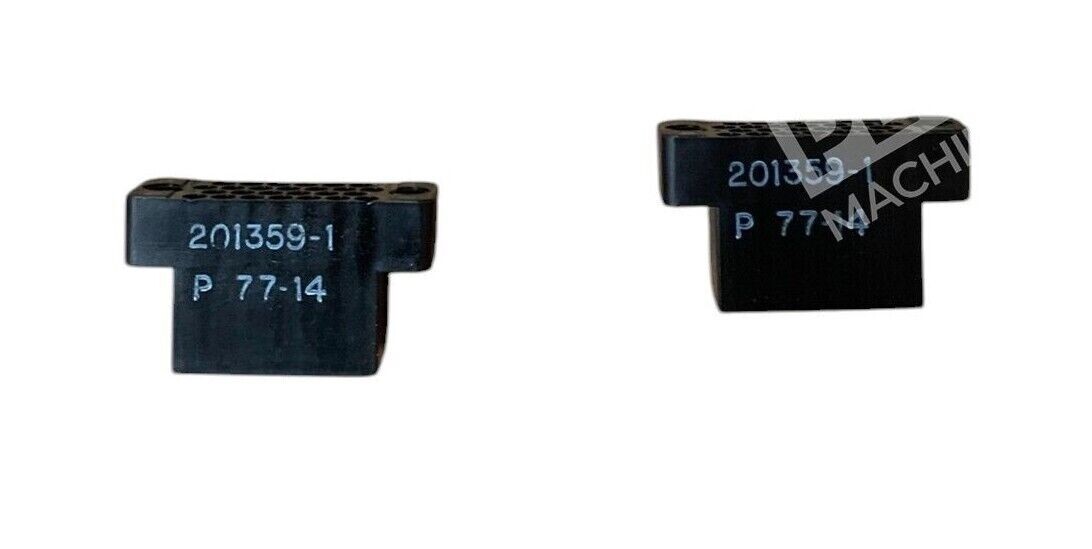

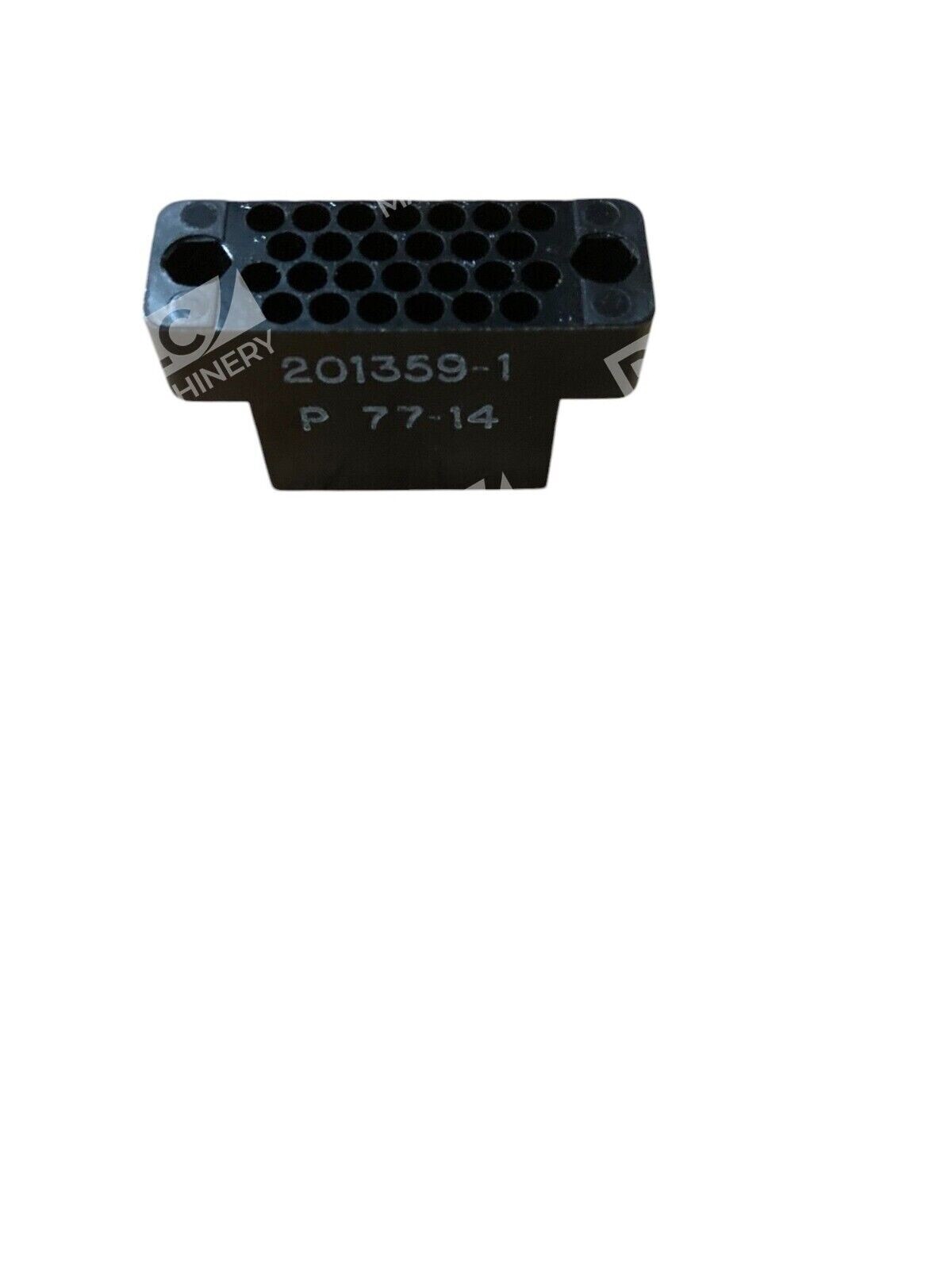

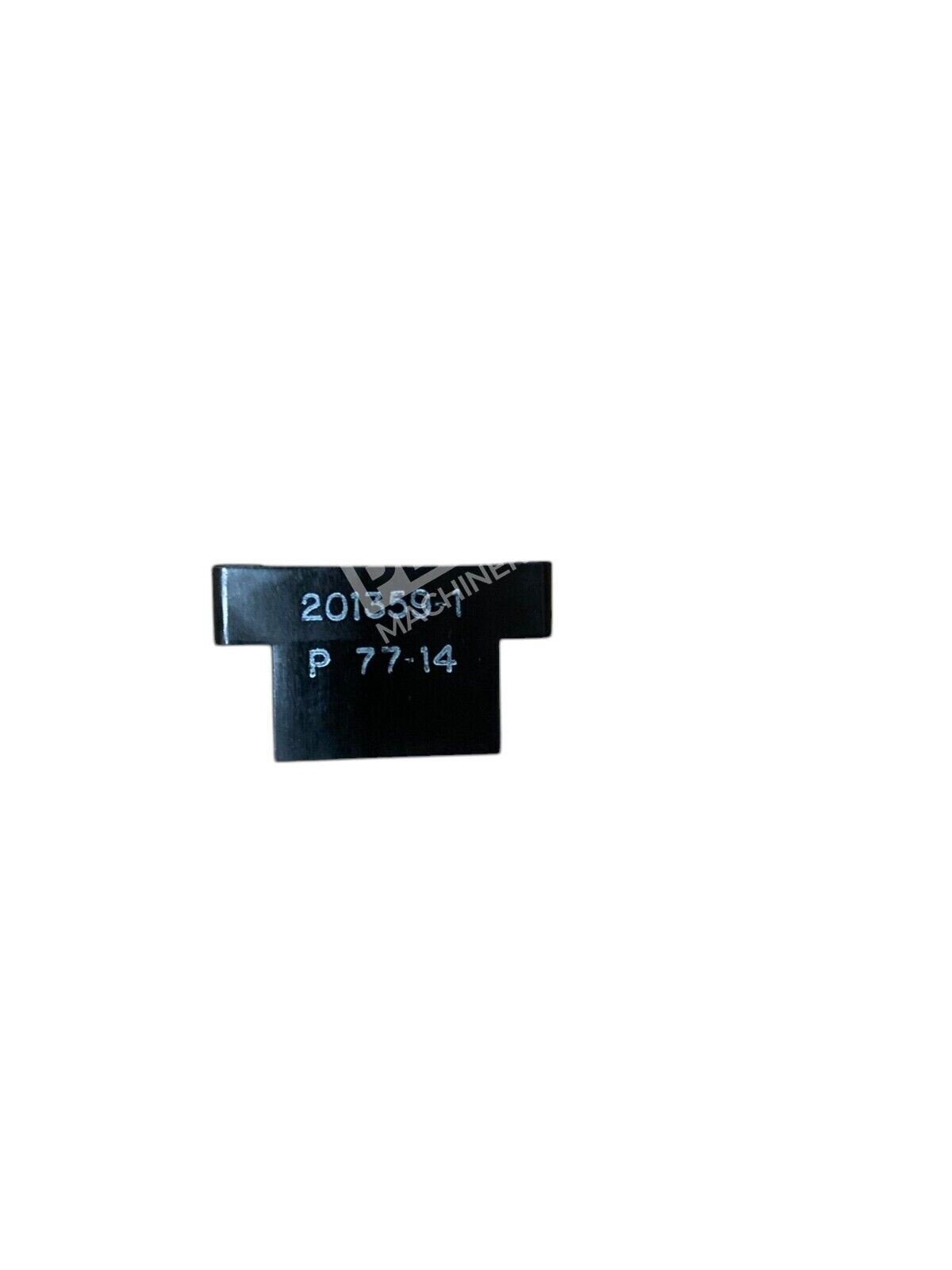

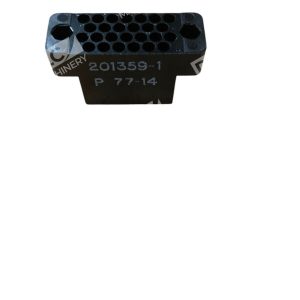

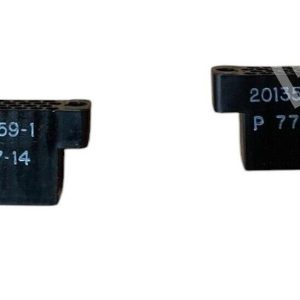

The TE Connectivity 201359-1 is a standard rectangular power connector from the AMP M Series. This 26-position plug housing is engineered for reliable industrial power distribution and signal transmission in panel mount and cable-to-panel configurations. The connector features black phenolic GF housing rated UL 94V-0, making it suitable for demanding manufacturing, control systems, and machinery applications where rugged interconnection is essential.
Key Features
- 26-position rectangular plug housing with 4-row configuration
- 3.81 mm (0.15 inch) centerline pitch spacing for compact layouts
- Black phenolic GF housing with mirror-image cavity identification
- Supports both Type II and Type III+ contacts, plus subminiature Coaxicon options
- Pin contact gender with crimp terminal termination
- RoHS compliant; wide operating temperature range
- Compatible with standard AMP/TE Connectivity contact libraries
Technical Specifications
- Connector Type: Rectangular Power Connector, Plug
- Number of Positions: 26
- Series: AMP M Series
- Housing Color: Black Phenolic GF
- Contact Pitch: 3.81 mm (0.15 inch)
- Gender: Plug (Male)
- Contact Gender: Pin
- Contact Termination: Crimp Terminal
- Operating Temperature: -55 to +150 °C
- Dimensions: 41.4 mm L × 14.22 mm H × 23.52 mm D
- Housing Type: Screw Mount
- Flammability Rating: UL 94V-0
- RoHS Compliant: Yes
- Mounting Style: Cable Mount / Panel Mount
Typical Applications
- Industrial control cabinets and power distribution modules
- Motor drive and variable frequency drive (VFD) interfaces
- Programmable logic controller (PLC) I/O subsystems
- Servo drive and axis controller interconnection
- Factory automation and machinery control wiring harnesses
- Panel mount power and signal distribution in manufacturing equipment
Compatibility & Replacements
Compatible With
- TE Connectivity / AMP M Series connector family
- Standard Type II, Type III+, and subminiature Coaxicon contacts
- Industrial control systems with 26-position rectangular connectors
- Cabinet-level power distribution and signal interfaces
- Panel-mounted industrial control enclosures
Replaces / Drop-In Replacement For
- 200512: Female block counterpart (mating connector)
- Other AMP M Series 26-position housings with equivalent pitch and dimensions
- Legacy industrial rectangular connectors in control cabinet applications
Works With
- AMP / TE Connectivity pin and socket contact systems
- Standard crimp and solder termination tools
- Industrial wiring harnesses and cable assemblies
- Manual and automated assembly equipment for connector populations
- Control cabinet and machinery integration platforms
