Overview

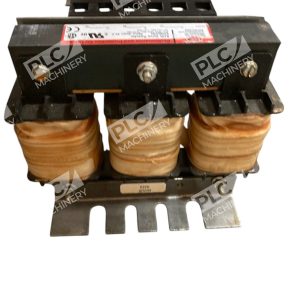

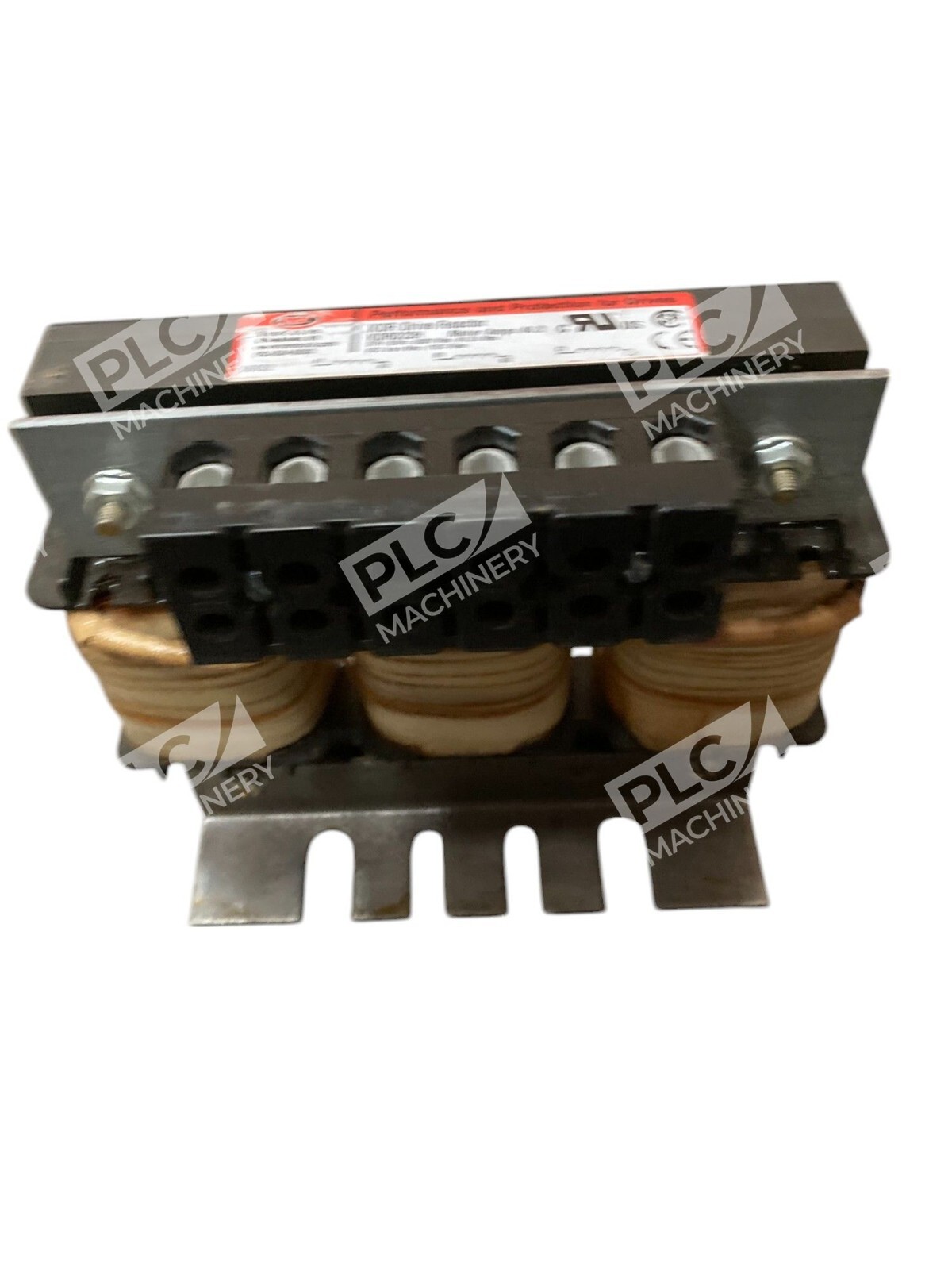

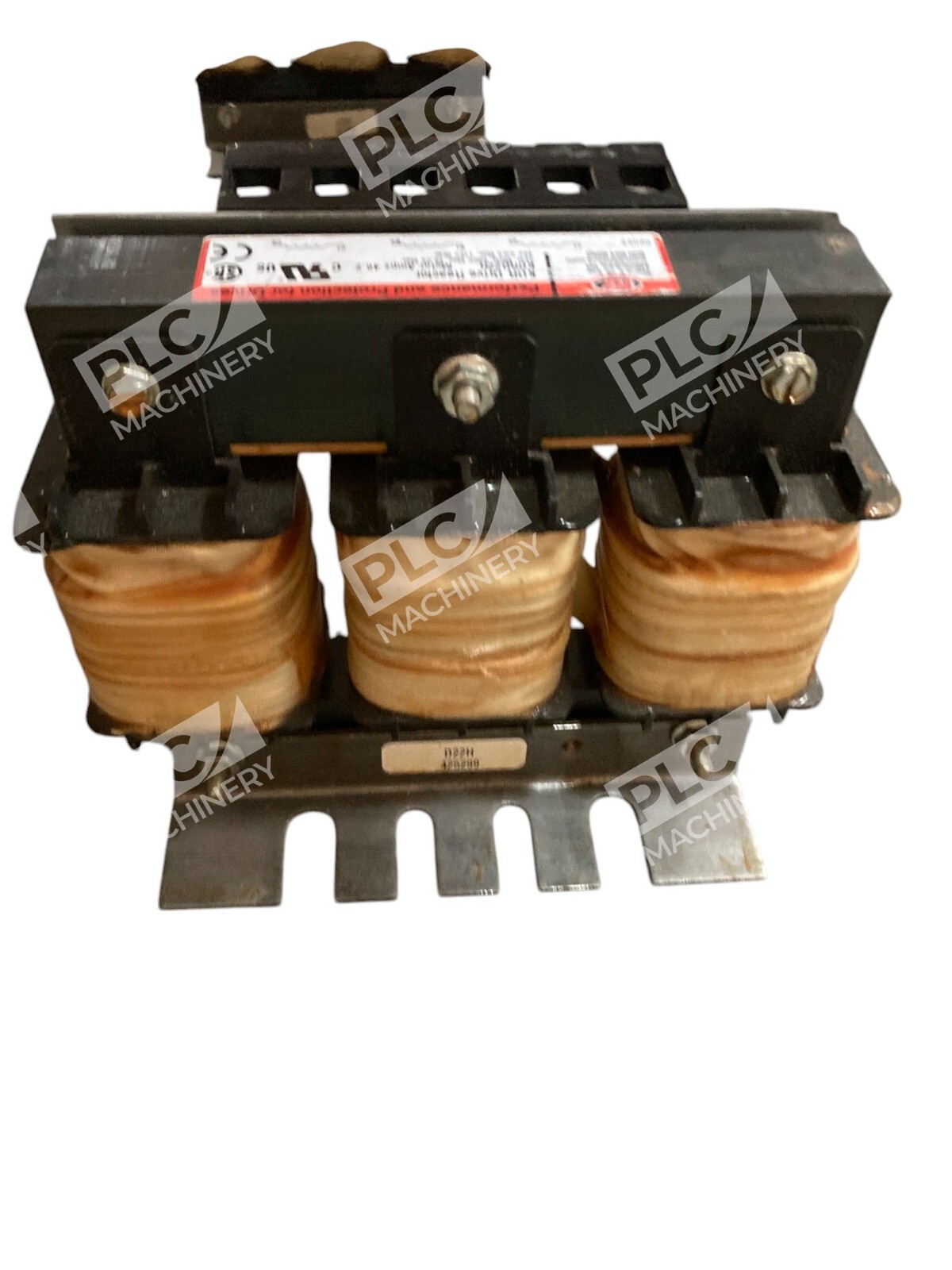

The TCI KDRD22H is a three-phase KDR drive reactor engineered for output installation on variable frequency drives (VFDs). This TCI KDRD22H drive reactor protects AC motors and rectifier circuits by filtering voltage spikes and reducing harmonic distortion. The unit is rated for 208/240V systems and can handle continuous loads up to 47 amps at 15 horsepower. Its low-impedance design (0.05 impedance / 3% reactor classification) makes it suitable for general-purpose drive protection applications requiring moderate harmonic mitigation.
Key Features
- Output line reactor design — installs between VFD output and motor terminals to reduce voltage distortion
- Continuous rating of 47 amps at 208/240V with 15 HP capacity
- Low-impedance 0.05 reactor reduces harmonic content and improves power factor
- Protects motor insulation and extends service life by minimizing voltage stress at motor terminals
- UL Listed open-type construction with durable iron-core design
- Three-minute overload tolerance at 200% rated current for short-term protection
Technical Specifications
- Input Voltage: 208/240V, 3-phase, 50/60 Hz
- Output Voltage: 208/240V, 3-phase
- Rated Current: 47 amps continuous
- Horsepower Rating: 15 HP
- Impedance: 0.05 (Low-Z / 3% reactor type)

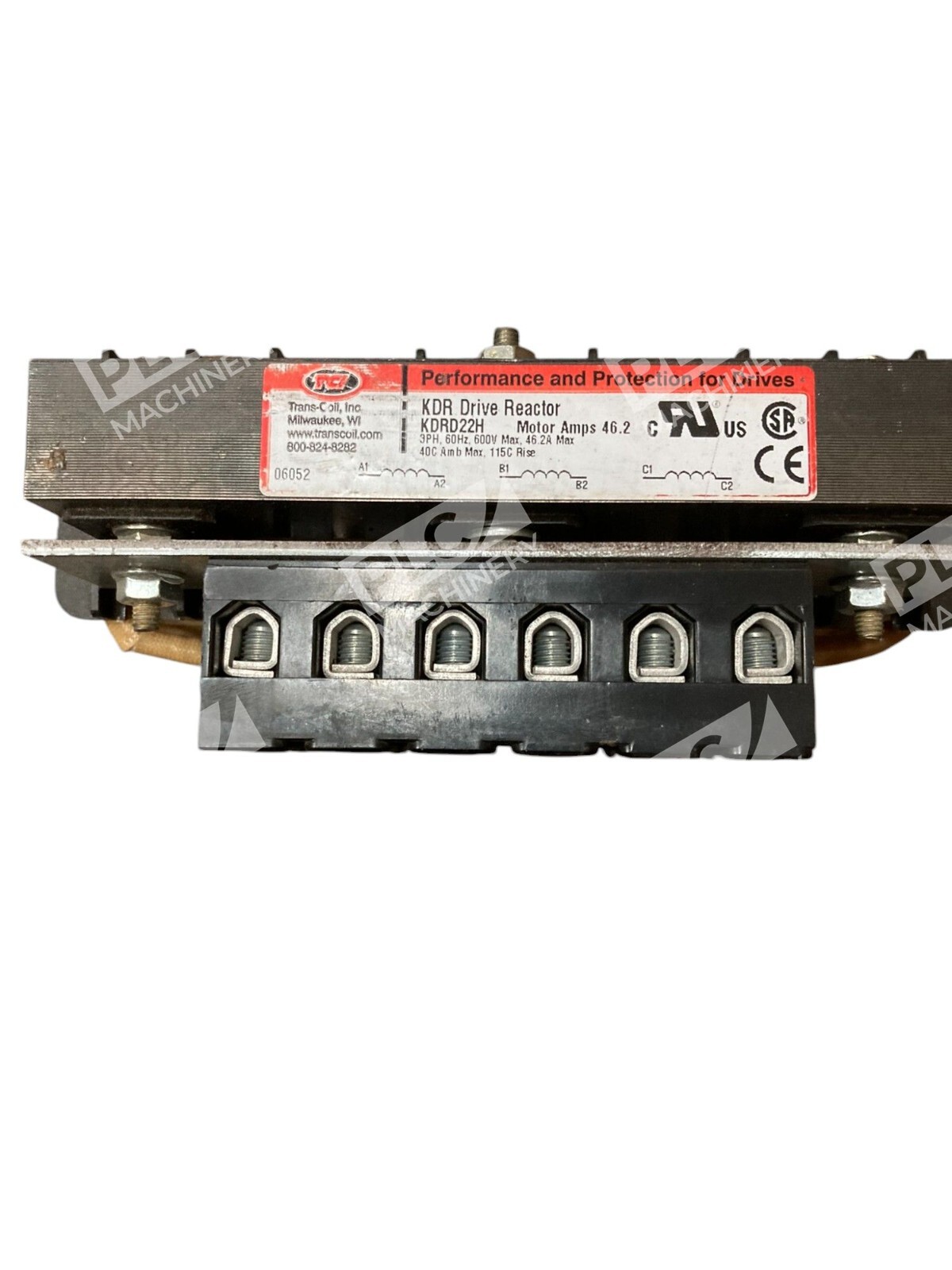

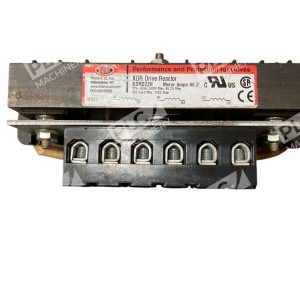

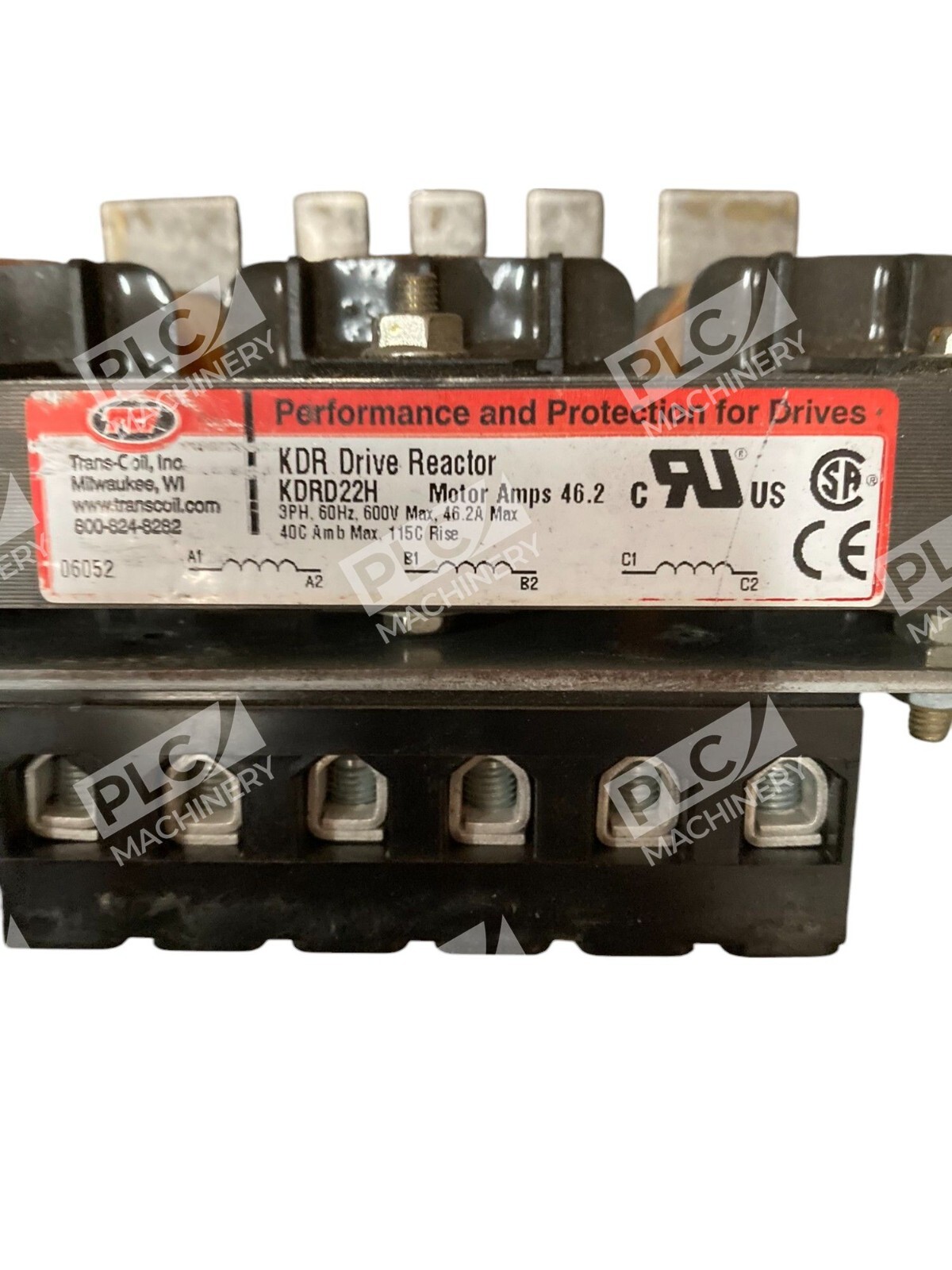

- Mounting: Through-hole (terminal A1/A2/A3 input, B1/B2/B3 output)
- Terminal Configuration: Vertical orientation for panel wiring access
- Dimensions: 5.75" H × 7.2" W × 4.25" D
- Weight: Compact chassis design
- Construction: Open-type, iron-core inductor
- Certifications: UL Listed, CSA Listed, CE Marked
- Warranty: Lifetime warranty by manufacturer
Typical Applications
- Output reactor for AC variable frequency drives (VFDs) protecting 6-pulse rectifier bridges
- Motor protection in industrial automation systems subject to power quality disturbances
- Harmonic filtering for machine tool spindle drives and process motor applications
- Systems requiring reduction of voltage transients and inrush current limiting
- Facilities with unstable power or multiple drives on the same electrical line
- Applications requiring compliance with IEEE 519 harmonic standards
Compatibility & Replacements
Compatible With
- Six-pulse variable frequency drives (VFDs)
- AC induction motors 15 HP and below (208/240V systems)
- Yaskawa, Siemens, ABB, Schneider, Mitsubishi, Fuji Electric, and Danfoss drive platforms
- Standard three-phase power distribution systems
- TCI KDR series matching voltage/current specifications
Replaces / Drop-In Replacement For
- Direct replacement for original TCI KDRD22H units
- Similar to TCI KDRC22H series for general-purpose output filtering (verify impedance and current rating before installation)
- Verify compatibility with your system integrator before ordering
Works With
- Three-phase AC motor systems (208V or 240V rated)
- Standard VFD control software and fieldbus networks (reactor is passive device, compatible with any control platform)
- Power quality monitoring and energy management systems
- Thermal imaging and vibration analysis for predictive maintenance
