Overview

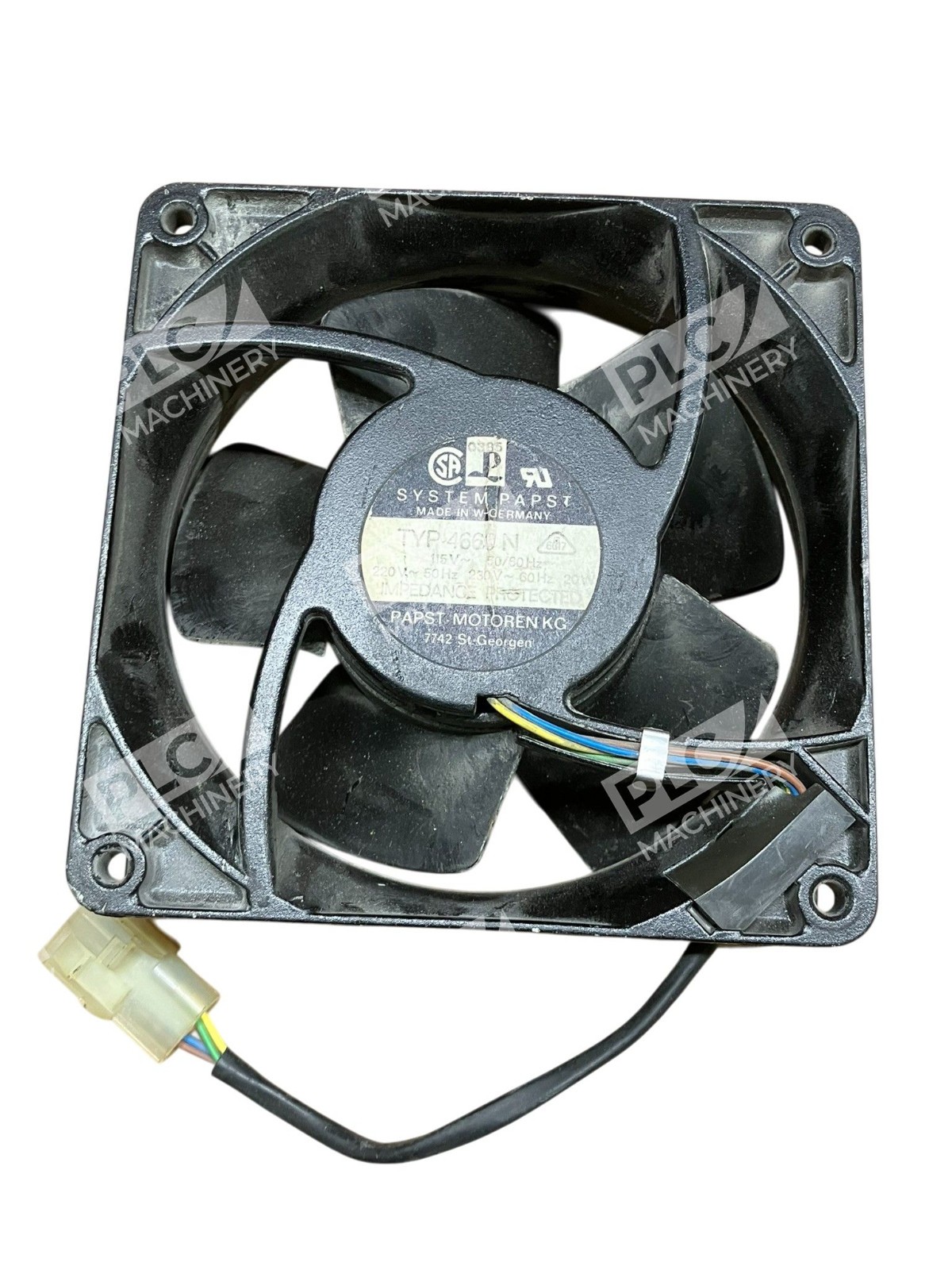

The EBM-Papst 4660N is a compact AC axial fan designed for high-performance industrial cooling and thermal management. This dual-voltage model operates at either 115V or 230V AC, making it adaptable to a wide range of electrical systems. With an 18W power rating and 106 CFM airflow capacity, the 4660N combines efficient cooling with a low-profile footprint, making it suitable for electronics enclosures, HVAC systems, refrigeration units, and heat exchanger applications.
Key Features
- Dual-voltage operation (115V/230V AC, 50/60 Hz) — drop-in flexibility across global installations
- Compact square design: 119mm frame, 38mm depth — space-efficient installation
- Sintec sleeve bearing for reliability and extended service life in continuous-duty applications
- Low noise operation at 51 dB(A) — suitable for climate-controlled and office-proximity environments
- All-metal construction with black-coated steel impeller and die-cast aluminum housing

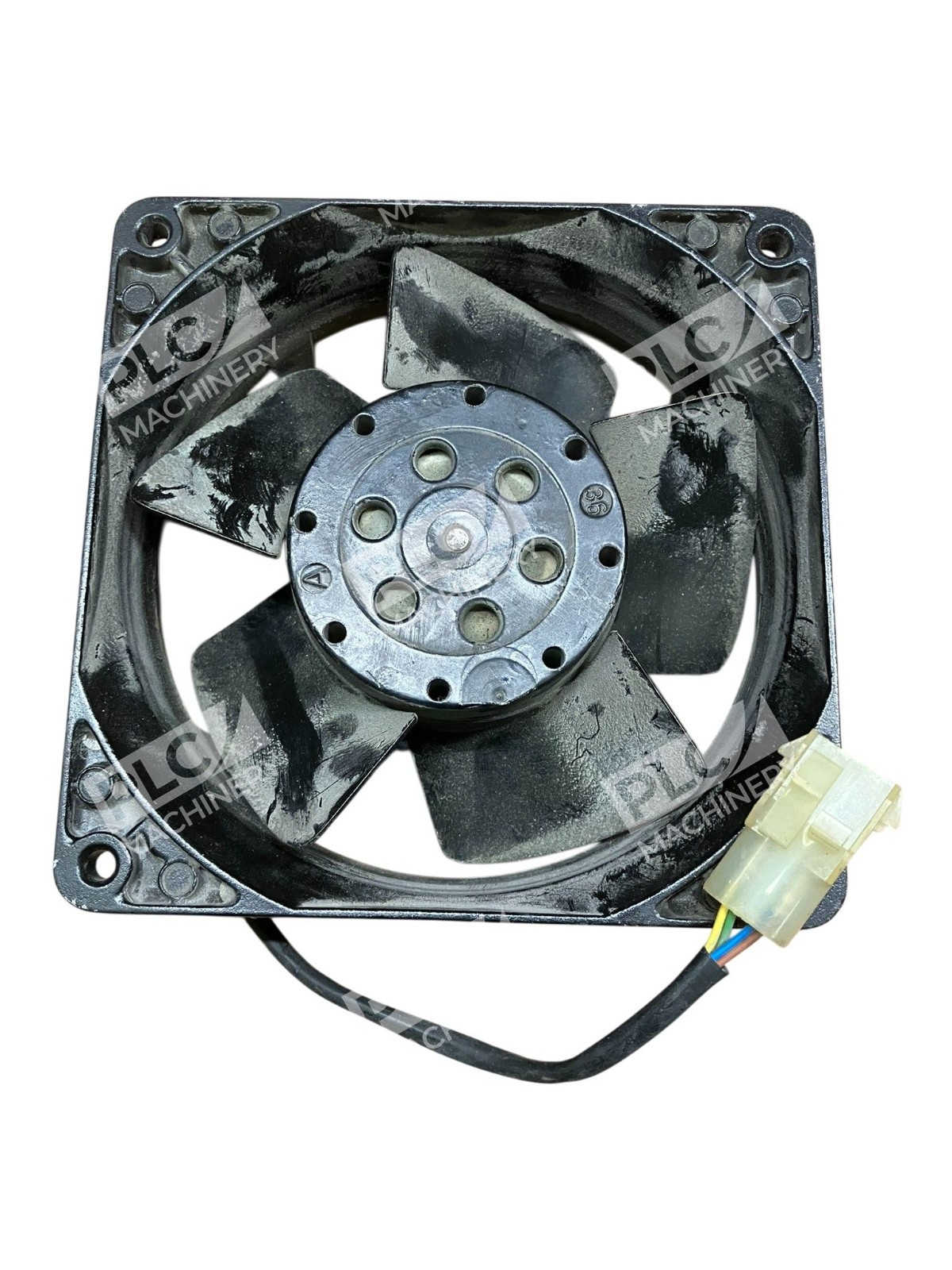

- 5-blade design delivers consistent airflow through heat exchangers and filtration systems
Technical Specifications

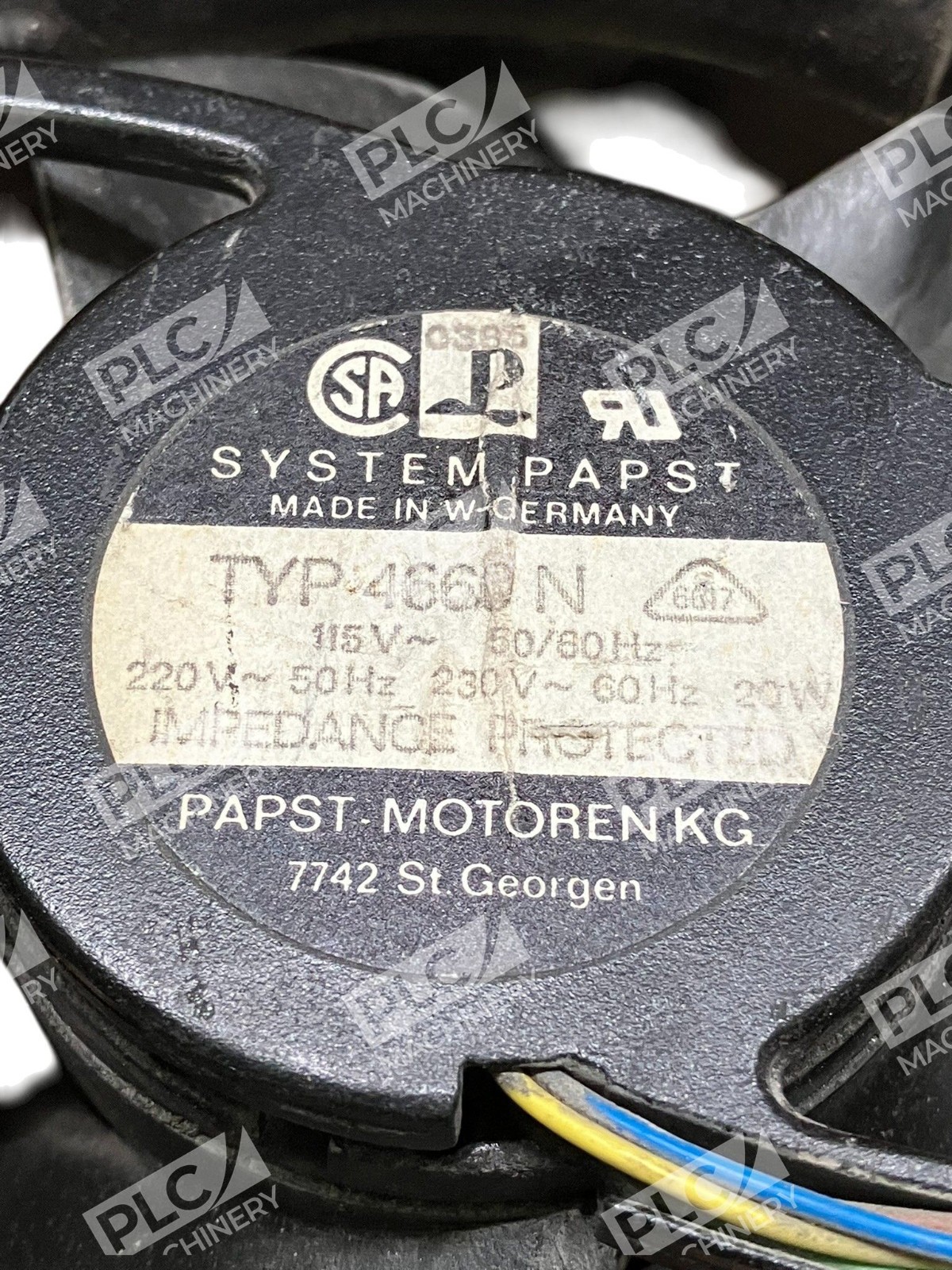

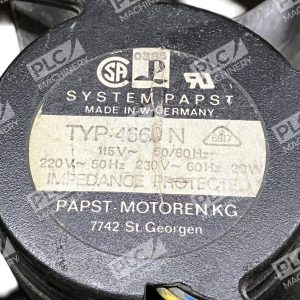

- Part Number: 4660N
- Manufacturer: EBM-Papst

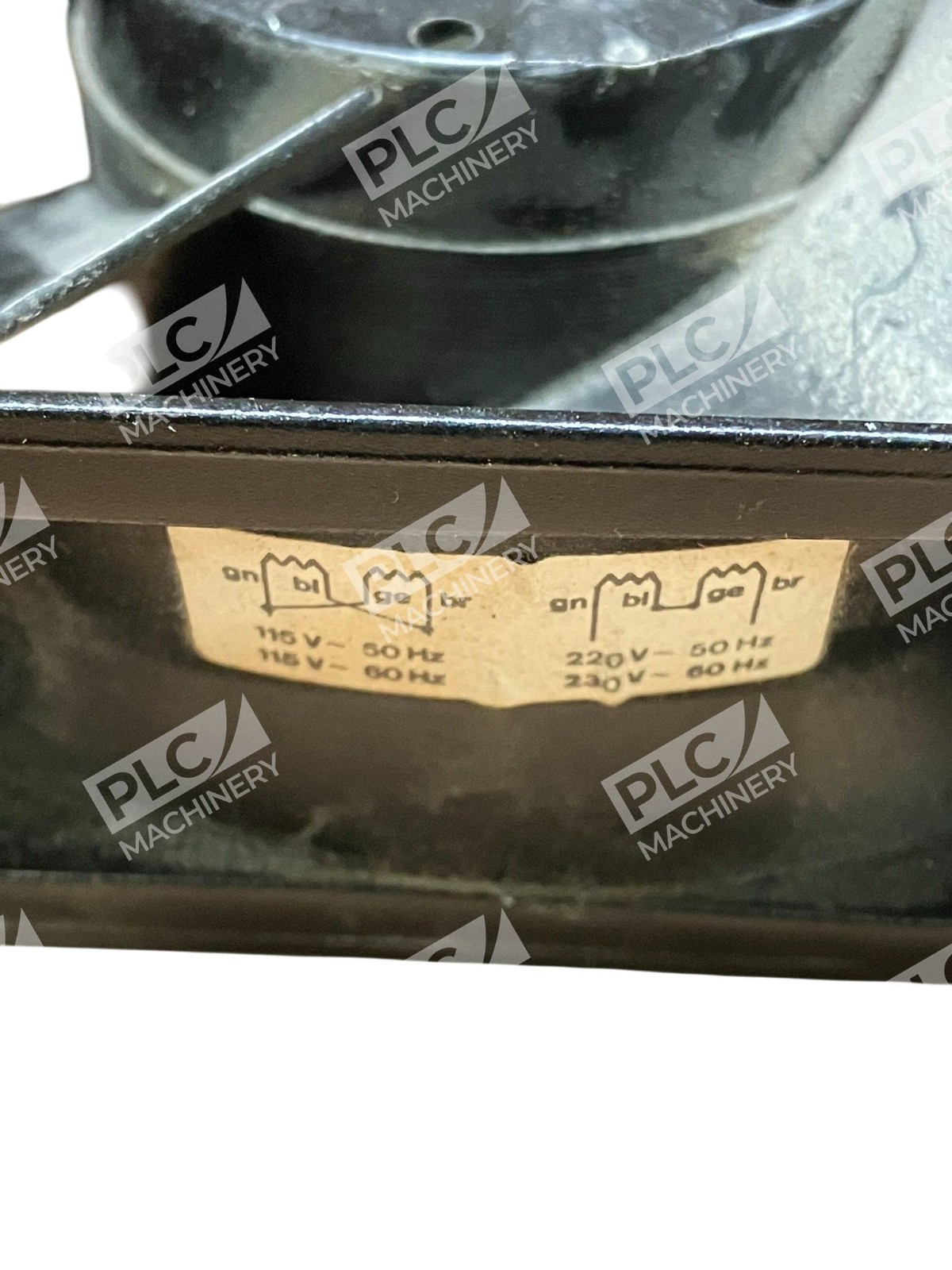

- Input Voltage: 115V / 230V AC ±10%
- Frequency: 50/60 Hz
- Power Rating: 18W
- Air Flow Rate: 106 CFM (180 m³/h)
- Noise Level: 51 dB(A)
- Frame Size: 119mm × 119mm square
- Depth: 38mm
- Speed (115V): 3,100 RPM
- Bearing Type: Sleeve (Sintec)
- Impeller Material: Steel, black-coated
- Housing Material: Die-cast aluminum
- Connection: 22 AWG lead wires
- Rotation Direction: Clockwise (viewed from rotor)
- RoHS Compliant: Yes
Typical Applications
The EBM-Papst 4660N excels in demanding thermal management scenarios:
- Electronics Cooling: Enclosure ventilation, semiconductor cooling, power supply thermal management
- HVAC & Refrigeration: Heat exchanger cooling, condenser ventilation, ductless systems
- Industrial Equipment: Switchgear, control cabinets, telecom infrastructure, UPS systems
- Process Cooling: Laboratory equipment, precision instruments, medical device thermal control
Compatibility & Replacements
Compatible With
- Single-phase 115V and 230V AC electrical systems (50/60 Hz)
- Standard 119mm × 119mm mounting flanges
- Heat exchanger and filter frame assemblies using SAE or ISO fan interfaces
- Industrial enclosure ventilation kits (DIN, NEMA, IP ratings)
Replaces / Drop-In Replacement For
- EBM-Papst 4660N (direct model — exact match)
- Papst-Motoren 4660N (same unit under alternate branding)
- Compatible with systems previously equipped with 119mm square AC axial fans at 18W nominal power
Works With
- Manual on/off thermal switches and thermostat controllers
- Industrial PLC and logic controller ventilation circuits
- Capacitor-start AC motor soft-start and contactor control
- Standard AC power distribution and panel-mount electrical cabinets
