Overview

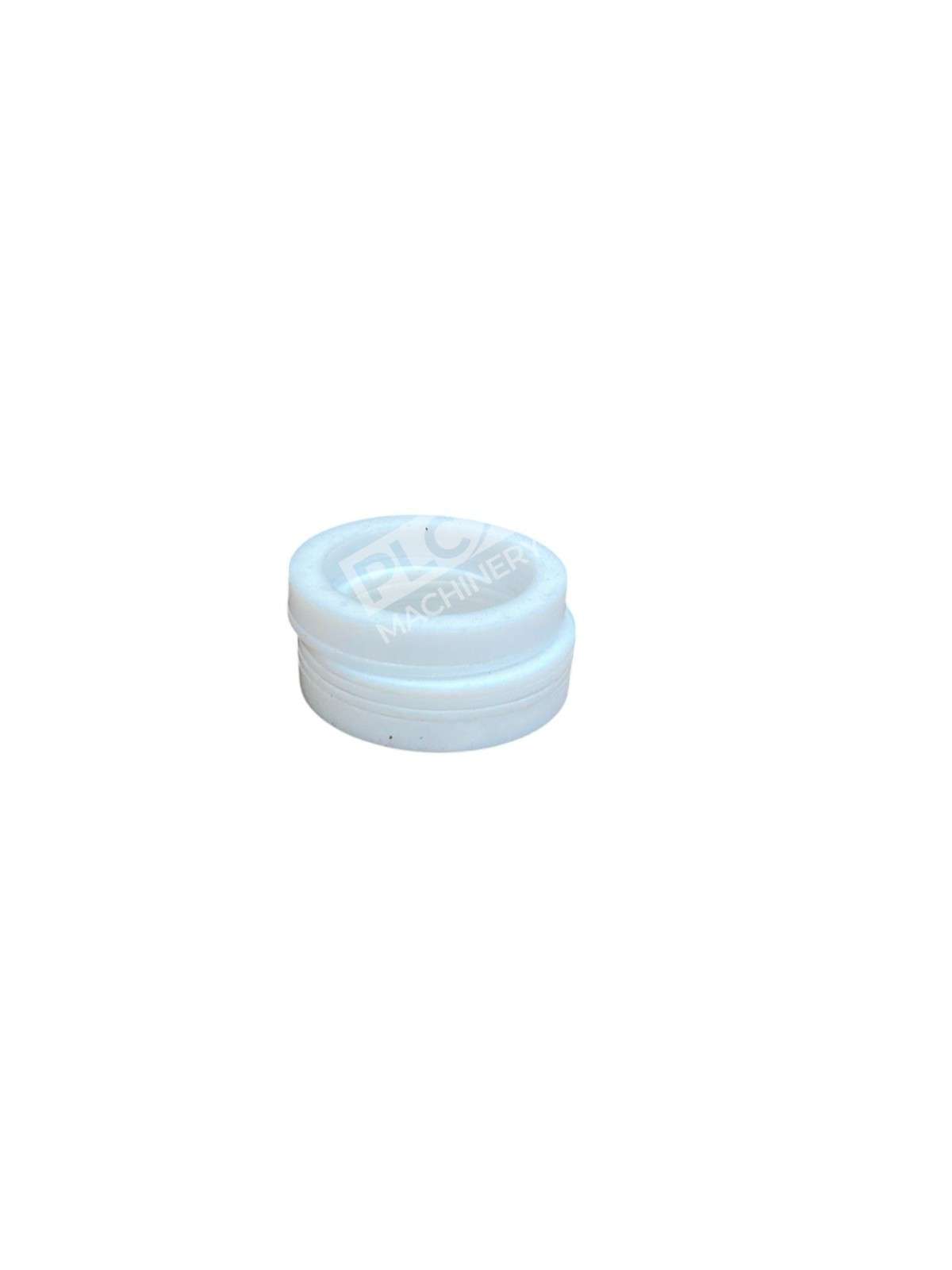

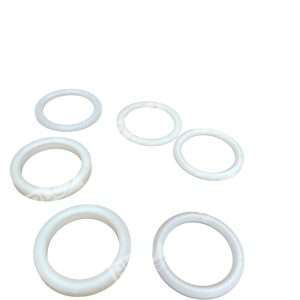

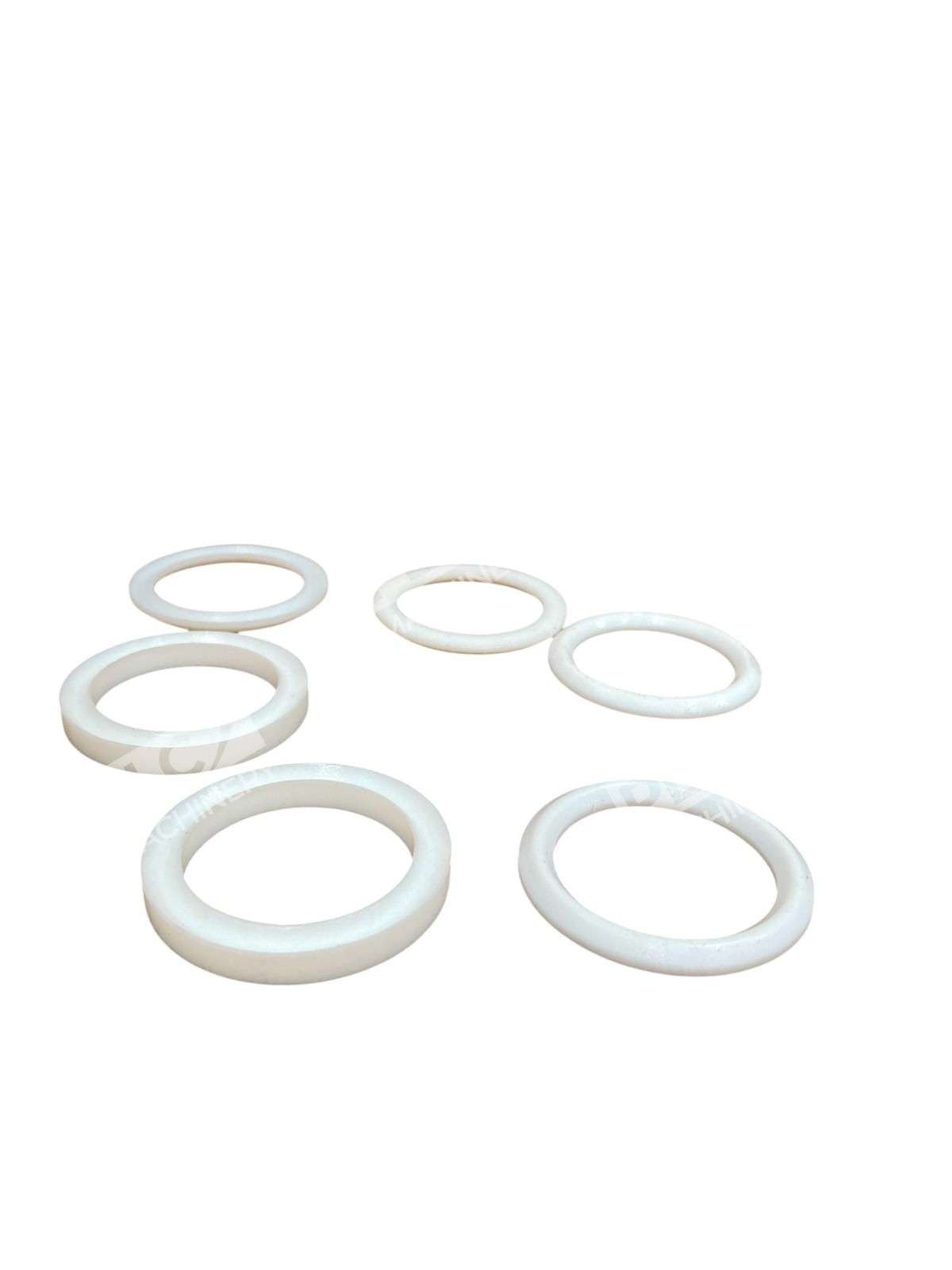

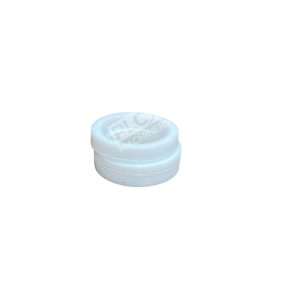

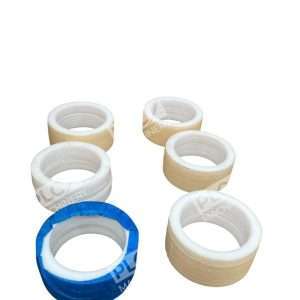

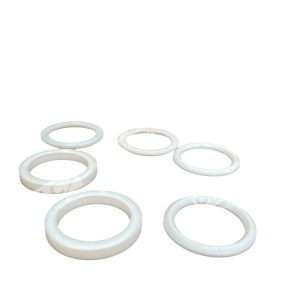

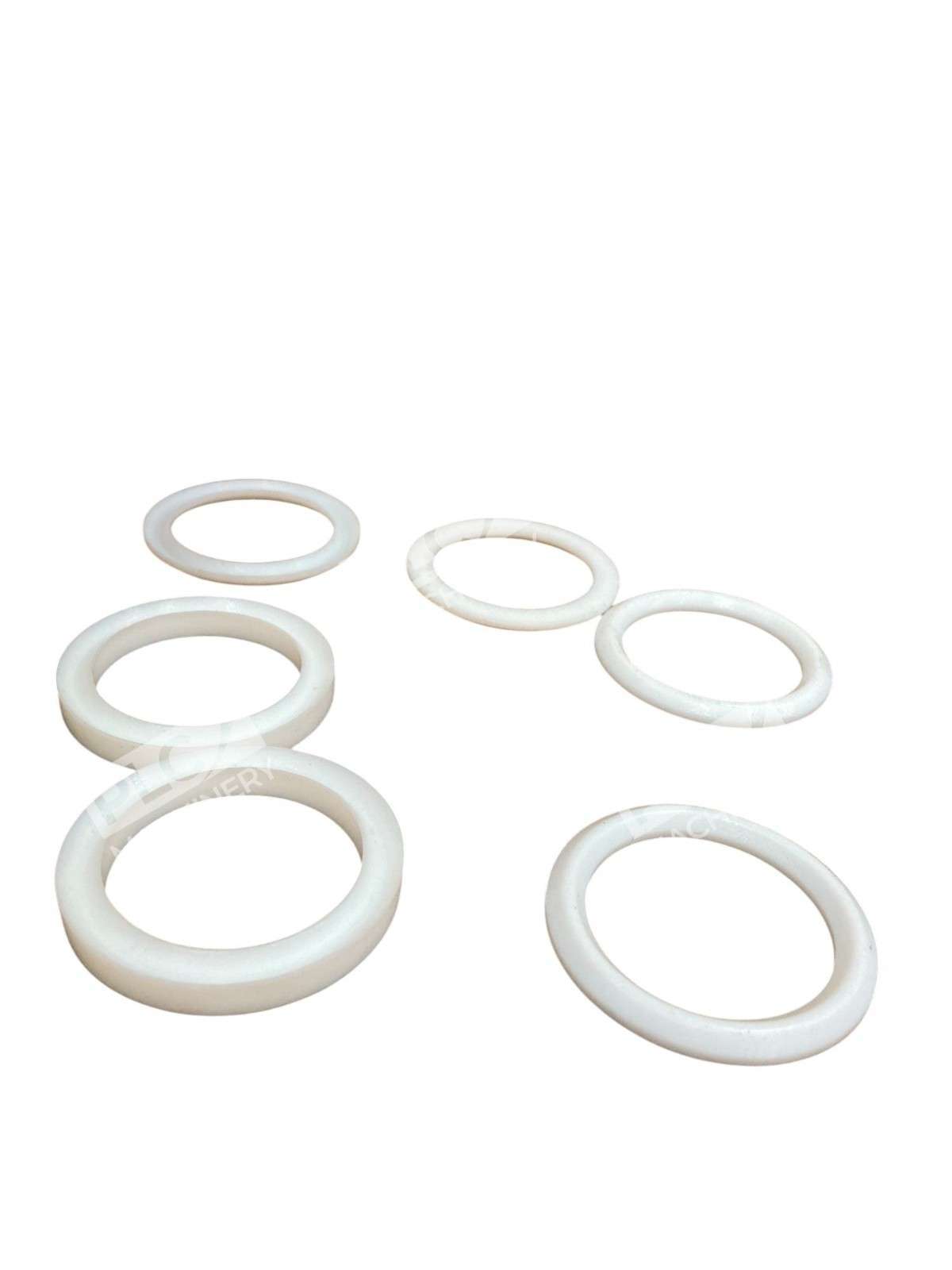

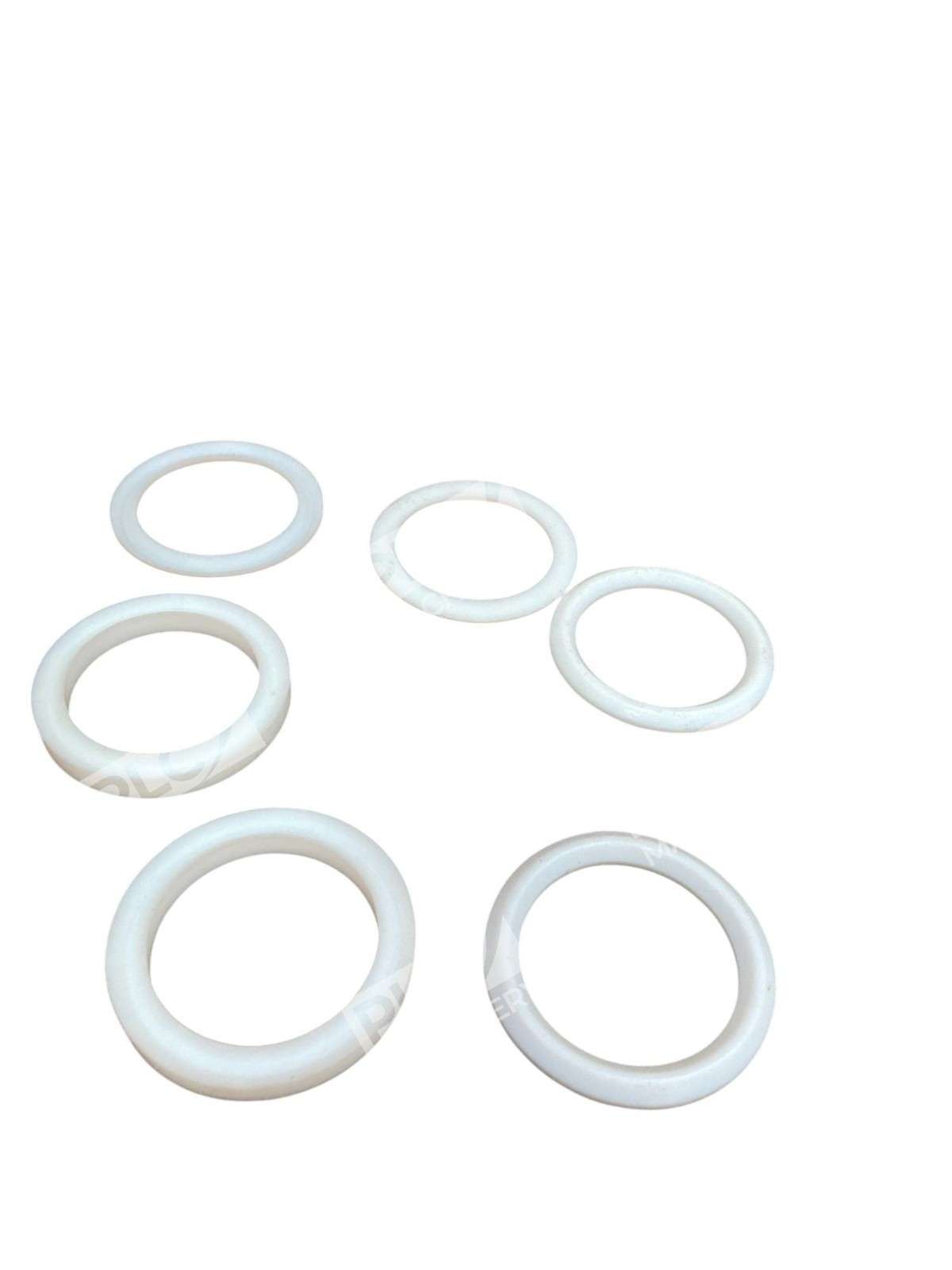

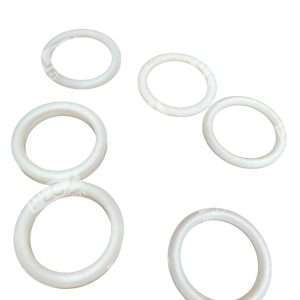

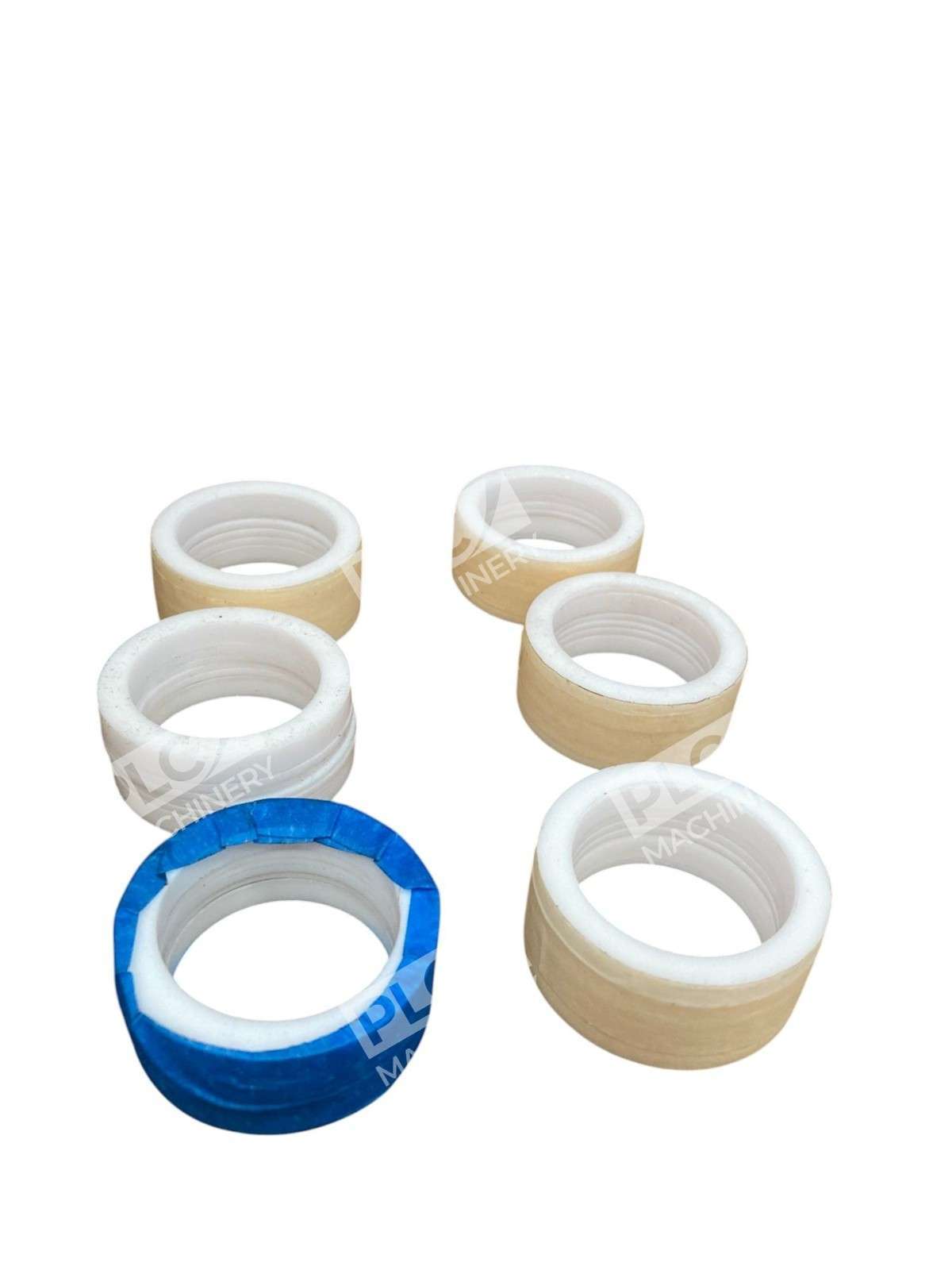

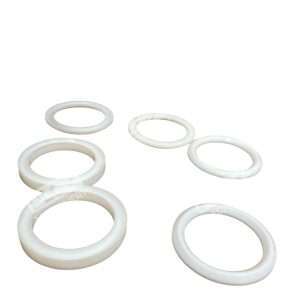

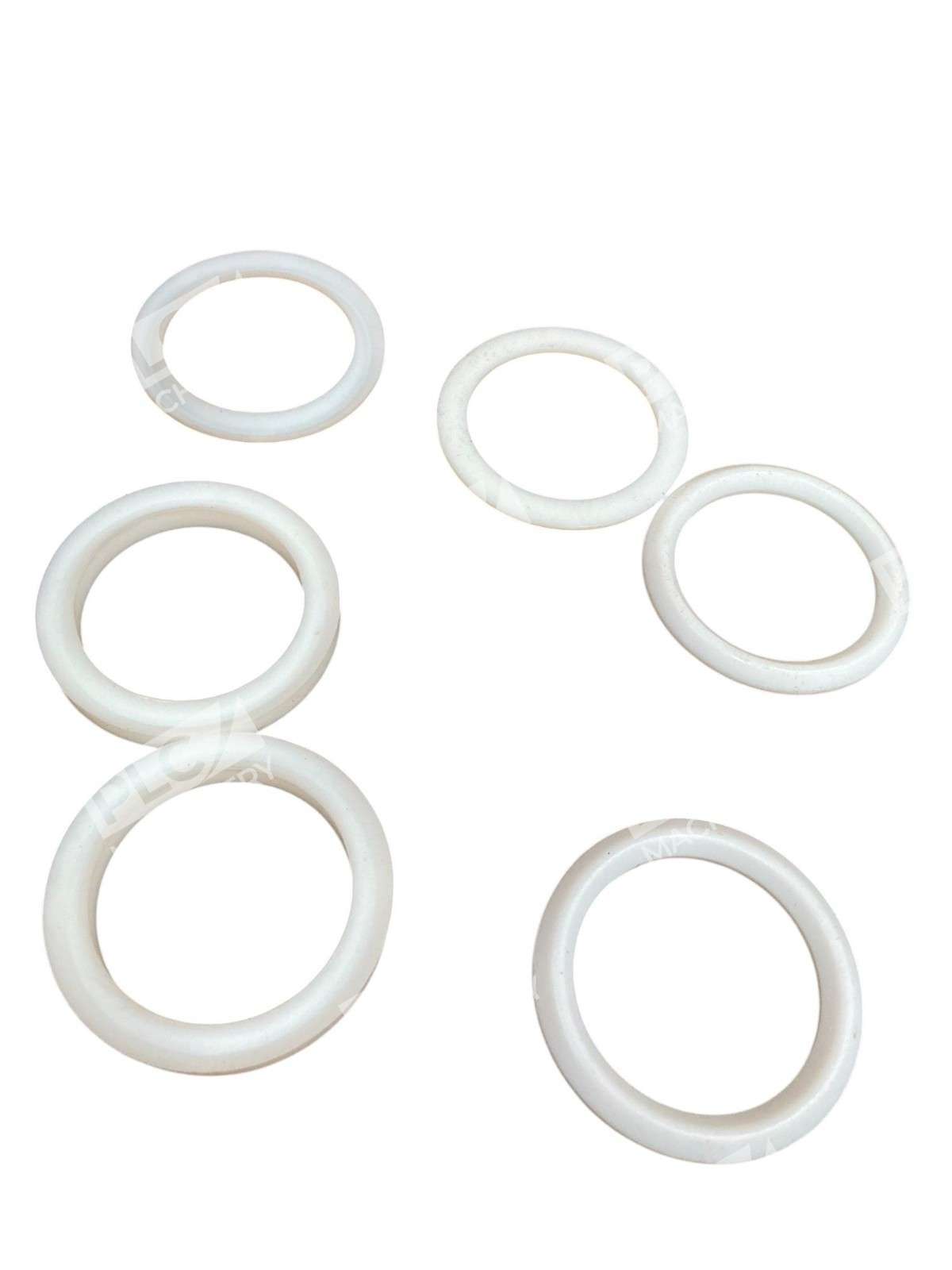

The STD vee packing set 1.5 stem is a chevron-style multiple-lip seal assembly for hydraulic and pneumatic applications. This packing set combines male and female adaptors with a series of vee rings to create a durable, dependable seal for rod and piston sealing in hydraulic cylinders. The 1.5 stem configuration makes this set suitable for medium-pressure applications where reliable, long-service seals are required.
Key Features
- Multiple-lip chevron packing design for superior sealing performance
- Male and female adaptor construction for secure installation
- Compatible with both single and double-acting hydraulic cylinders
- Durable material composition for extended service life
- Straightforward installation and field replacement
Technical Specifications
- Part Number: TT020755-925-000
- Product Type: Vee Packing Set
- Stem Diameter: 1.5 inches
- Configuration: Standard (STD)
- Adaptor Material: Nylon
- Sealing Lip Style: Chevron (vee ring)
- Pressure Rating: Medium pressure (typical range 3,000–5,000 PSI with standard vee configuration)
- Operating Temperature Range: -35°F to +220°F
- Condition: New, Open Box
Typical Applications
Vee packing sets with 1.5 stem diameter are commonly used in:
- Hydraulic cylinders and actuators in industrial machinery
- Mobile equipment and forestry machinery
- Agricultural equipment and implements
- Construction and material handling systems
- General-purpose hydraulic sealing in rod and piston assemblies
Compatibility & Replacements
Compatible With
- Hydraulic cylinders with 1.5-inch rod or piston diameter
- Single and double-acting cylinder configurations
- Industrial hydraulic systems operating at medium pressure
- Agricultural and forestry equipment hydraulic systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manufacturer before ordering to confirm direct replacement capability for your specific cylinder configuration.
Works With
- Mineral oil and synthetic hydraulic fluids (verify material compatibility)
- ISO VG 32–46 hydraulic fluid grades
- Standard hydraulic system maintenance protocols
- Field-replaceable seal installation procedures
