Overview

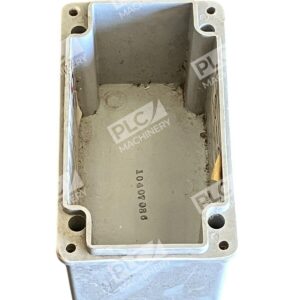

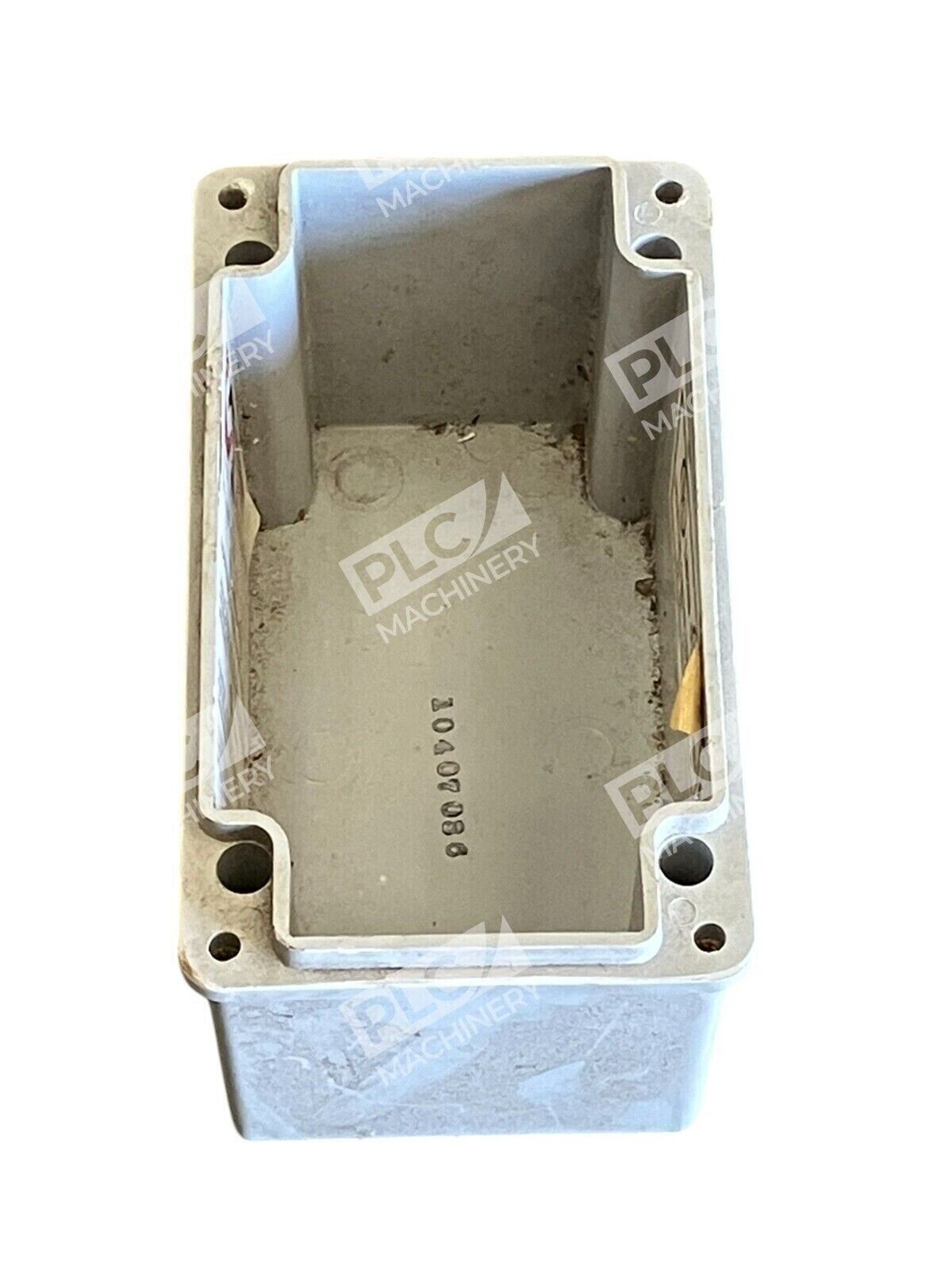

The Stahlin CF1PB is a rugged fiberglass pushbutton enclosure engineered for control stations, operator interfaces, and electrical component protection in industrial and outdoor environments. Manufactured by Stahlin Enclosures and marketed under the RobRoy brand heritage, this in-line enclosure provides secure housing for 30mm pushbuttons, switches, and pilot lights with multi-NEMA rating compliance.
Key Features
- Fiberglass Construction: Fiberglass reinforced polyester with continuous polyurethane gasket providing complete environmental seal
- Single 30mm Hole Configuration: In-line enclosure houses pushbuttons, switches and pilot lights in 30mm configuration in full range of sizes
- Lift-Off Cover Design: 4 cover screws lift off cover for easy operator access and maintenance
- Grounding: Full metal grounding strap furnished with each configuration for ease of bonding
- General-Purpose Rated: Designed for general-purpose electrical and electronic applications and control stations, easily adaptable for most common pushbuttons and indicator lights in both indoor and outdoor environments
Technical Specifications
- Dimensions (External): 6.63″ H × 3.81″ W × 3.89″ D
- Dimensions (Internal): 6.00″ H × 3.19″ W × 3.63″ D
- Material: Fiberglass reinforced polyester, gray finish
- Operator Size: 30mm
- Hole Configuration: 1 hole, in-line style
- Cover Type: Lift-off with 4 stainless steel screws
- Gasket: Continuous polyurethane seal

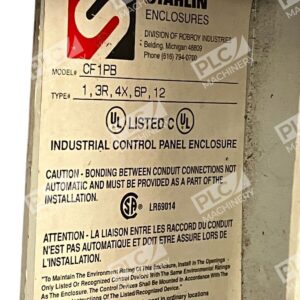

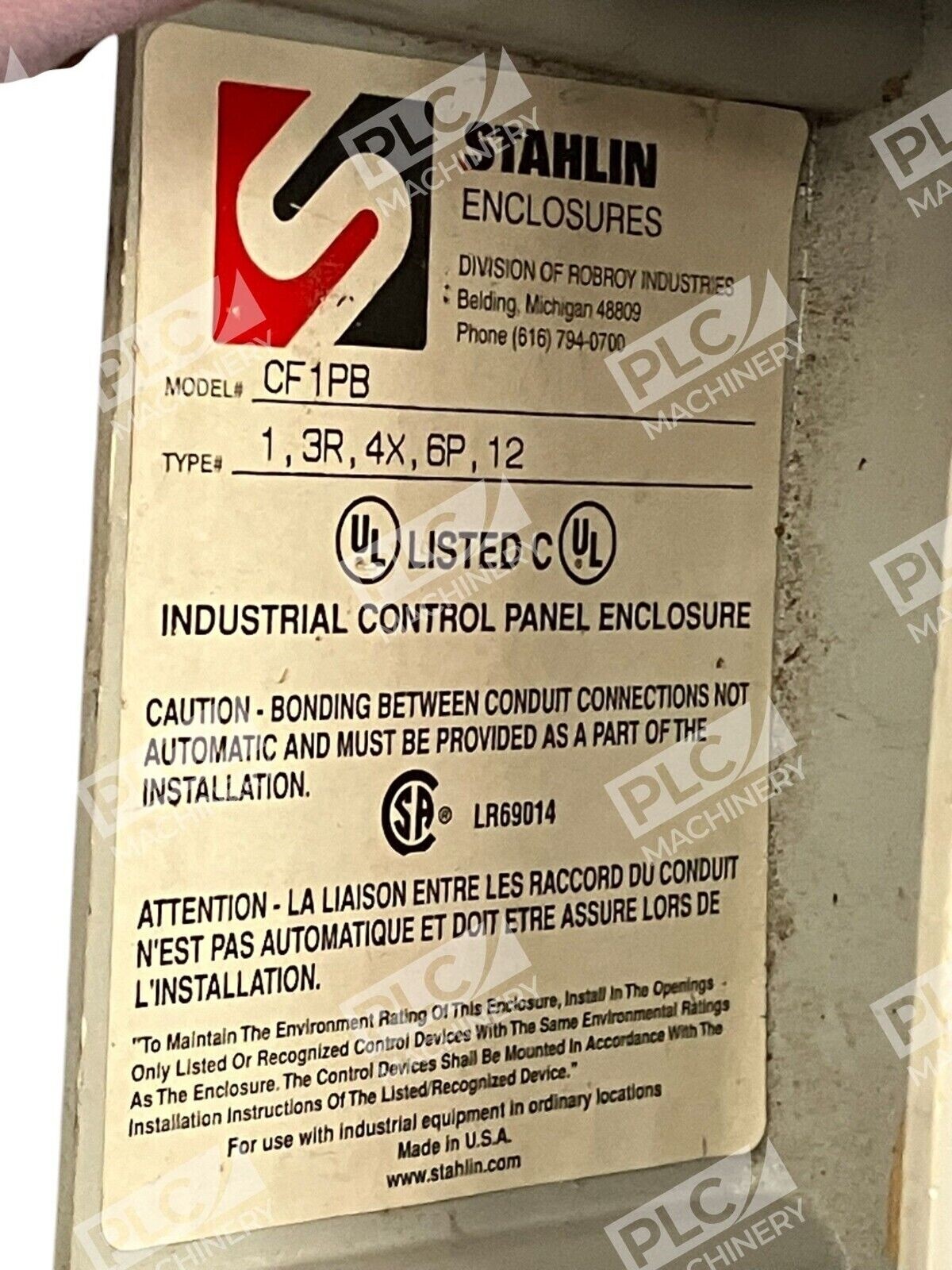

- NEMA Rating: 1, 3R, 4X, 6P, 12
- UPC: 785928200007
- Series: PushButton Series
Typical Applications
The Stahlin CF1PB serves control stations, operator interfaces, and pilot device housings across industrial automation, manufacturing, and outdoor installations. Common uses include assembly line start/stop stations, alarm and reset controls, emergency stop enclosures, monitoring system interfaces, and water treatment plant operator panels where environmental sealing and rugged fiberglass construction are required.
Compatibility & Replacements
Compatible With
- Standard 30mm pushbuttons and momentary switches
- Standard 30mm indicator lights and pilot lights
- 22mm operators (requires CF1PB22 model variant)
- General industrial control and automation systems requiring NEMA-rated enclosures
Replaces / Drop-In Replacement For
The CF1PB is the standard 1-hole, 30mm configuration in the Stahlin PushButton Series. For alternative hole configurations or operator sizes, consider CF1PB22 (22mm operator), CF2PB (2-hole, 30mm), or multi-hole designs (e.g., CF3PB). Verify specific dimensional and NEMA requirements with your system integrator before ordering.
Works With
- NEMA-rated control system architectures (1, 3R, 4X, 6P, 12)
- Industrial automation platforms requiring fiberglass operator stations
- IEC 60204-1 compliant machinery control panels
- Outdoor and washdown environments (NEMA 3R, 4X, 6P ratings)
