Overview

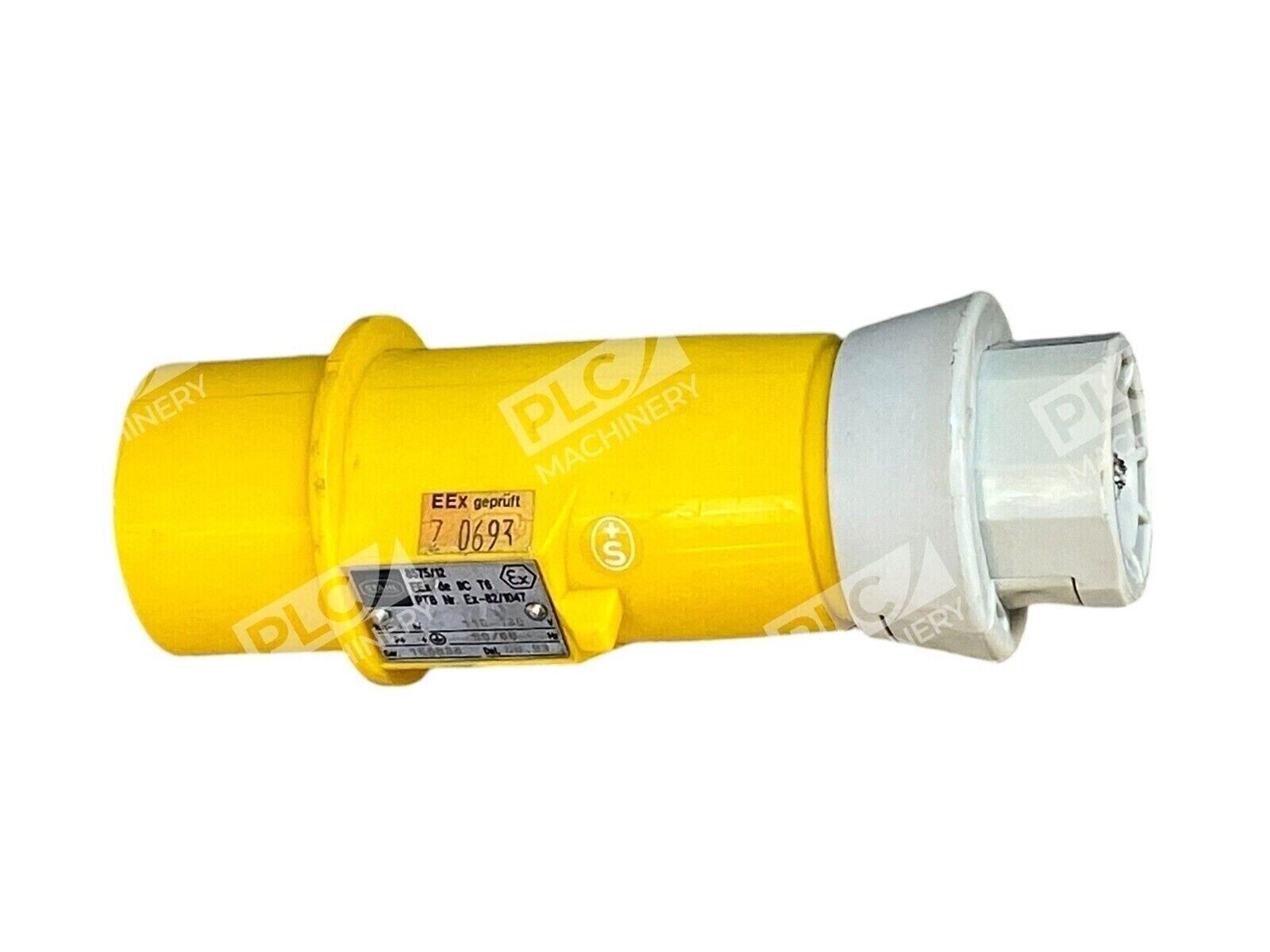

The Stahl 8575/12 plug is part of R. STAHL’s CES Series industrial connector system designed for hazardous-area applications. Rated 110-130V AC at 50/60Hz with a 3-pole configuration (1P+N+PE), this EEx de IIC T6 explosion-proof plug provides secure, reliable connections in classified environments. The locking plug design ensures stable mating with corresponding 8575/13 sockets.
Key Features
- EEx de IIC T6 certification for Group II hazardous areas with flammable gas/vapor
- 3-pole (1P+N+PE) configuration with 16 A rated current capacity
- IP66 ingress protection rating—sealed against dust and water jets
- Floating pin design for quick insertion and removal
- Self-cleaning, corrosion-resistant connector pins ensure reliable electrical contact
- Pivoting strain relief reduces cable installation stress
Technical Specifications
- Rated Voltage: 110-130V AC
- Frequency: 50/60 Hz
- Poles: 3 (1 Phase + Neutral + PE)
- Rated Current: 16 A

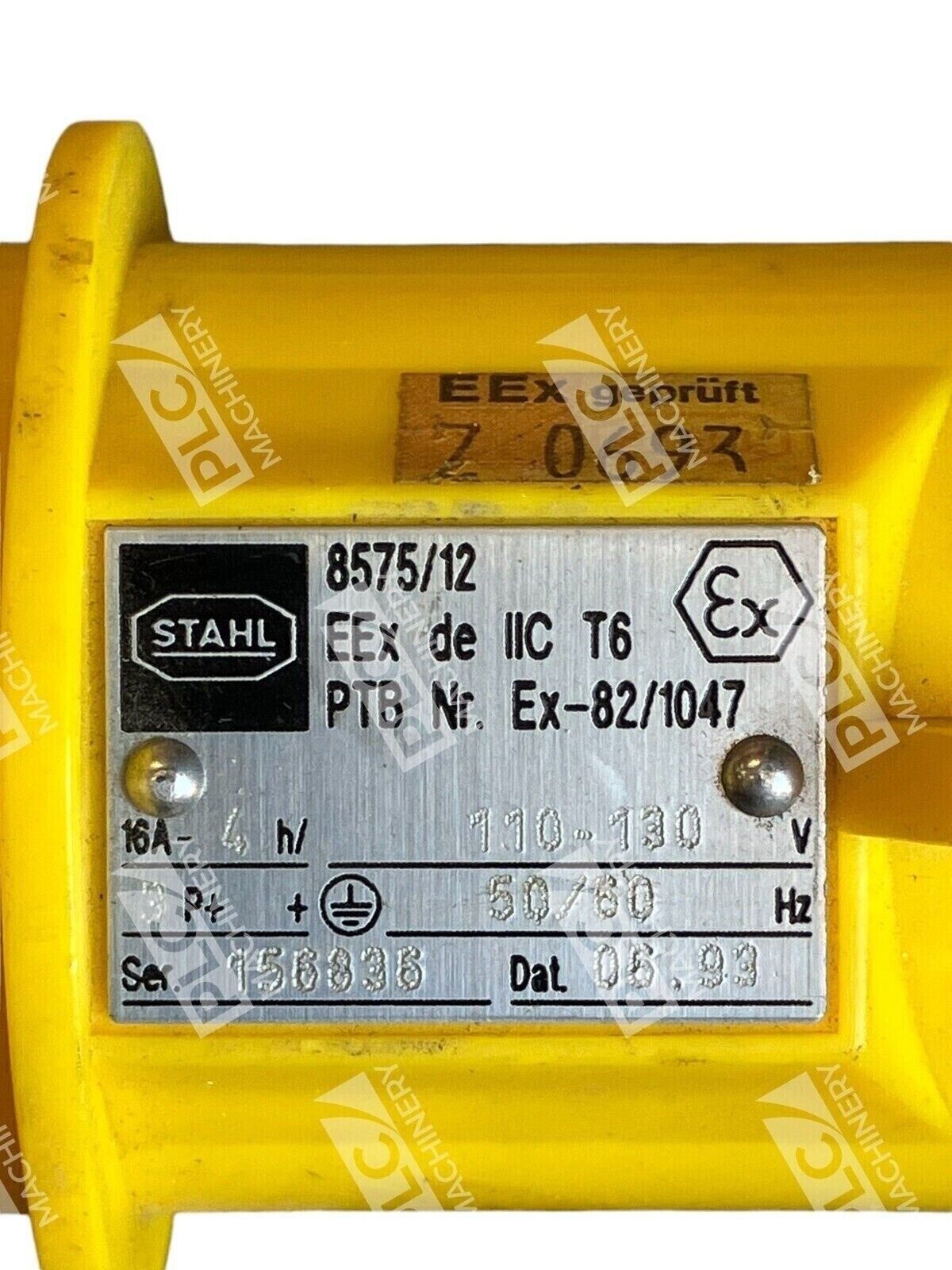

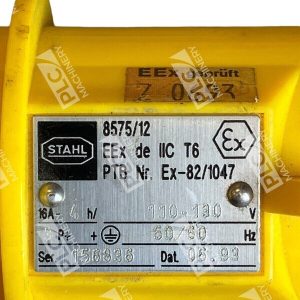

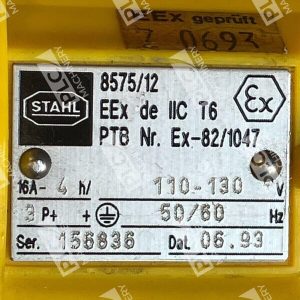

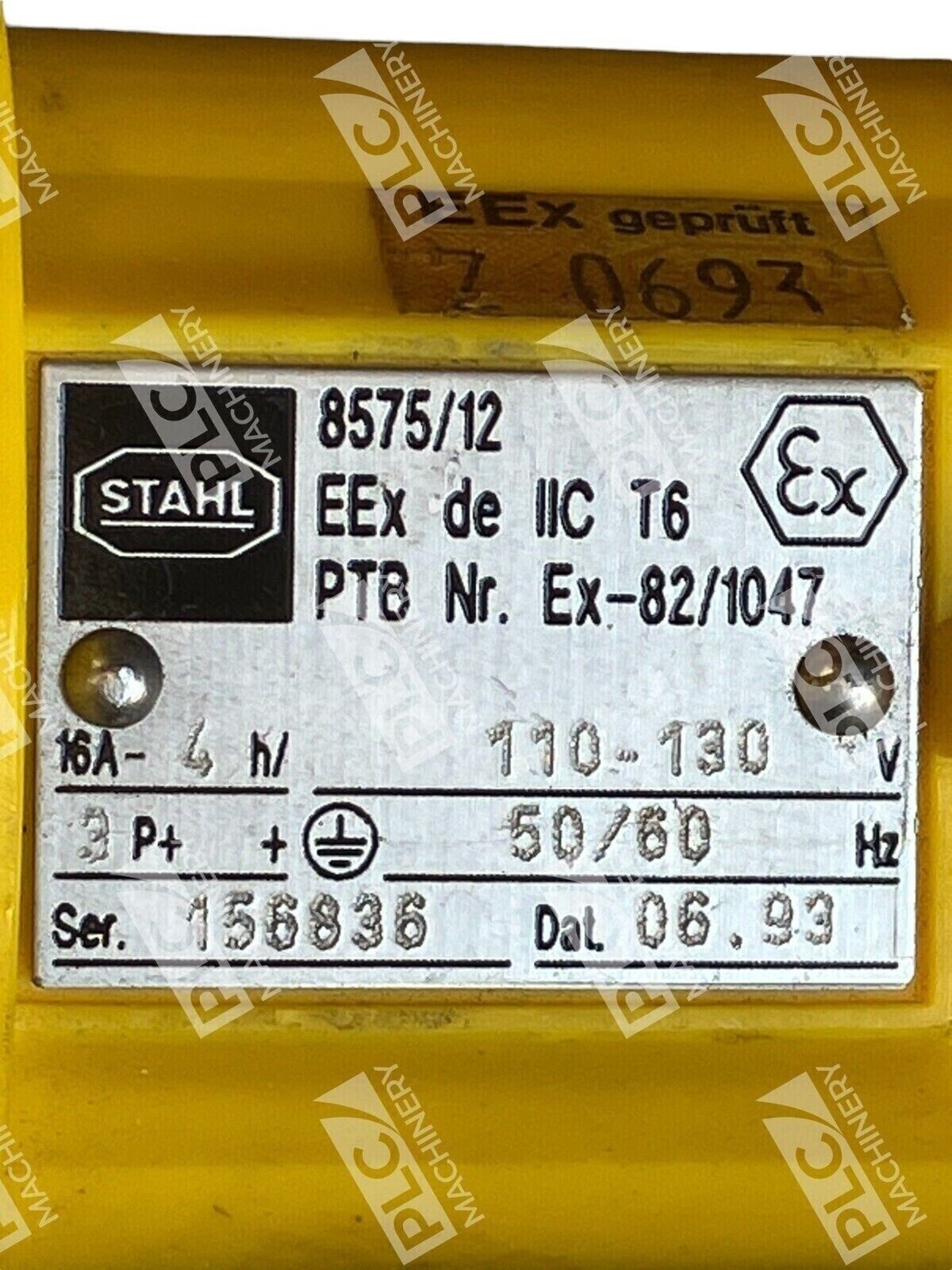

- Certification: EEx de IIC T6 (PTB Nr. Ex-82/1047)
- Protection Class: IP66
- Operating Temperature Range: -30°C to +55°C
- Housing Material: Polyamide
- Color Code: Violet (per EN 60309-2)
- Clock Hour Position: 12 (per EN 60309-2)
Typical Applications
The Stahl 8575/12 plug is designed for use in:
- Zone 1 and Zone 2 classified hazardous areas
- Oil and gas facilities requiring explosion-proof equipment
- Chemical processing plants with flammable gas atmospheres
- Mining operations with Group II gas classifications
- Portable tool and equipment connections in ATEX-regulated environments
- Power distribution to sensors and control devices in Ex-rated installations
Compatibility & Replacements
Compatible With
- Stahl 8575/13 sockets (mating receptacle)
- Stahl CES Series connectors
- ATEX Zone 1 and Zone 2 electrical systems
- Hazardous-area installations certified to ATEX Directive 2014/34/EU
- Systems requiring EEx de IIC T6 or equivalent certification
Replaces / Drop-In Replacement For
The 8575/12 configuration is available in multiple variants (8575/12-100, 8575/12-110, 8575/12-200, 8575/12-212, etc.). Verify the specific suffix code and voltage requirement of your existing connector before ordering, as different suffixes denote different voltage ratings and pole counts. Verify compatibility with your system integrator before ordering.
Works With
- Stahl SolConeX connector systems
- R. STAHL CES industrial connector line
- ATEX and IECEx-certified hazardous-area equipment
- Standard EN 60309-2 low-voltage industrial connectors
