Overview

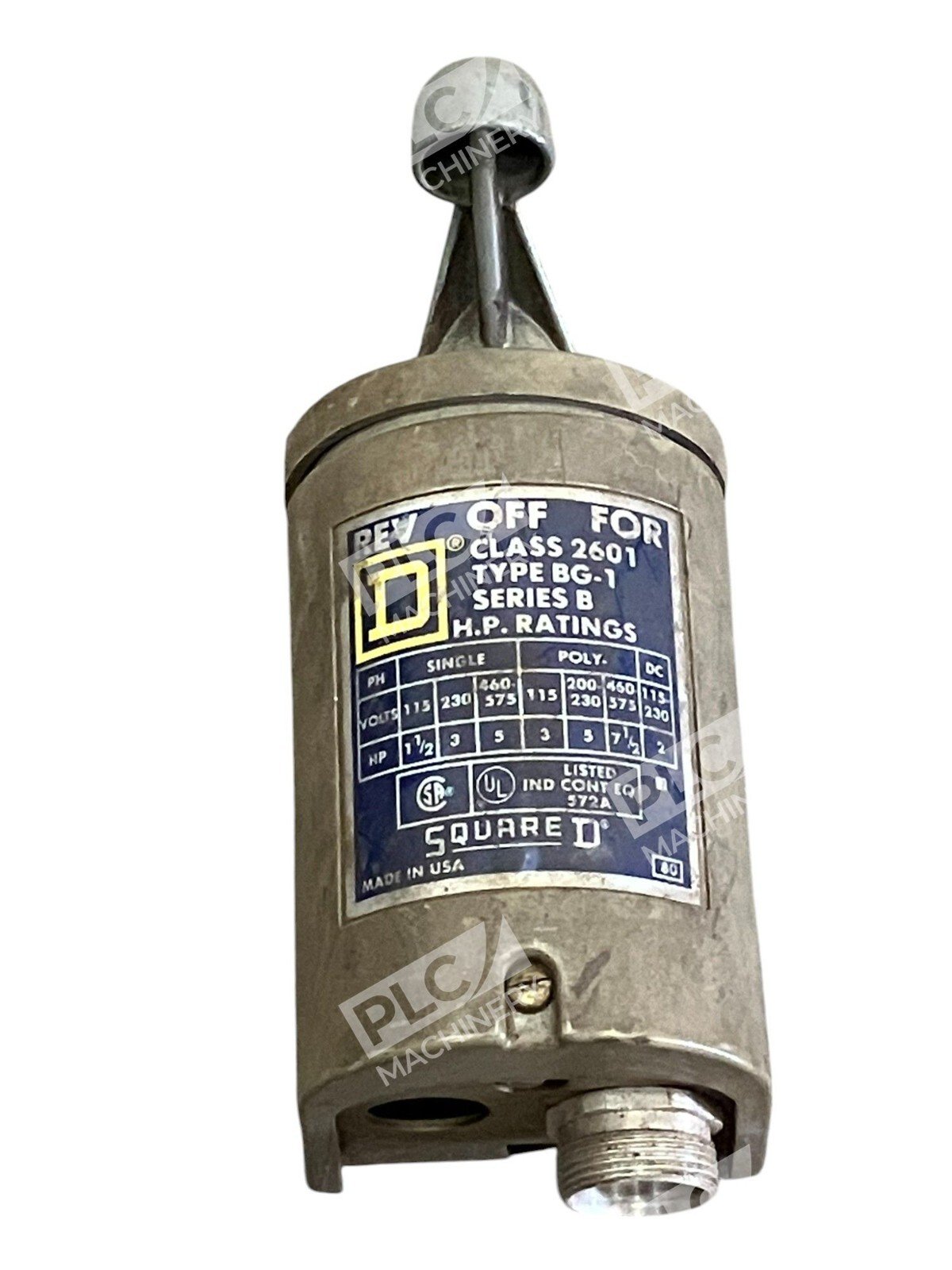

The Square D 2601-BG-1 /B is a Type BG Class 2601 reversing drum switch designed for across-the-line starting and reversing of AC and DC motors. Rated 600 VAC / 250 VDC with a 7.5 hp power rating at three-phase 460/575 VAC, this Series B switch provides robust manual motor control for industrial machinery. The unit features a NEMA 1 polymeric enclosure suitable for standard indoor environments and is CSA certified and UL listed for dependable performance.
Key Features
- Reversing Action: Field-convertible between maintained and spring-return-to-off operation with no additional parts required
- Motor Compatibility: Works with squirrel-cage motors, single-phase reversing motors, and AC/DC series, shunt, and compound DC motors
- Three-Pole Configuration: Manages three-phase and complex motor control circuits
- Molded Handle: One-piece standard plastic handle for secure, reliable operator control
- Generous Wiring Space: Bottom conduit knockouts (1/2 in.) facilitate straightforward field installation
- Certifications: UL listed and CSA certified for global compliance
Technical Specifications

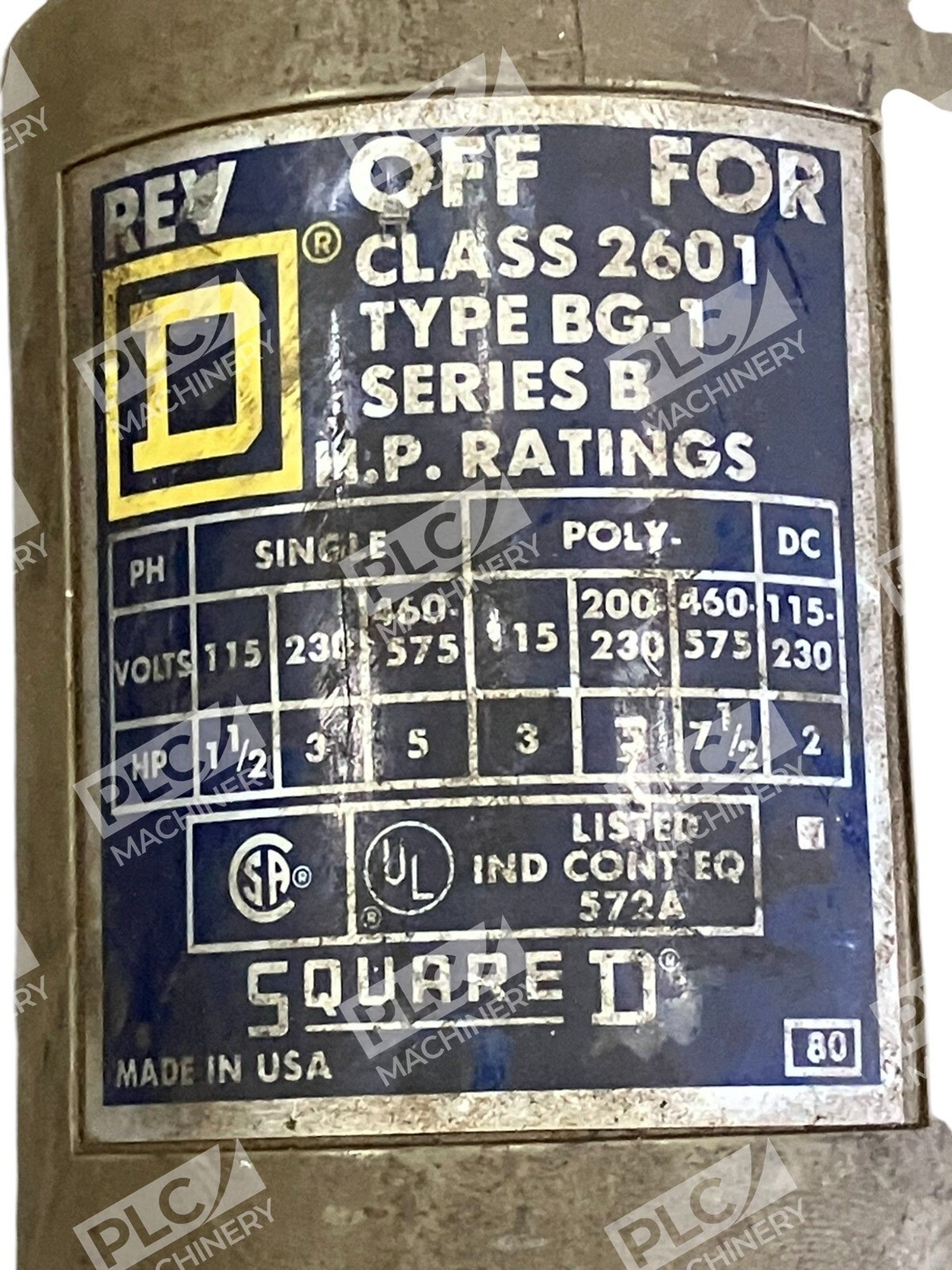

- Power Rating (AC): 7.5 hp @ 460/575 VAC 3-phase; 5 hp @ 200/230 VAC 3-phase; 5 hp @ 460/575 VAC 1-phase; 3 hp @ 230 VAC 1-phase; 1.5 hp @ 115 VAC 1-phase
- Power Rating (DC): 2 hp @ 115/230 VDC
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3-pole
- Action: Reversing (maintained or momentary, field-convertible)
- Enclosure Type: NEMA 1 general-purpose polymeric
- Mounting: Flush
- Dimensions: 3.26 in W × 4.86 in D × 6.62 in H
- Handle Material: Molded plastic
- Certifications: UL Listed, CSA Certified
- Series: B Series
Typical Applications
Square D 2601-BG-1 /B reversing switches excel in manual reversing control environments requiring across-the-line motor starting. Common applications include: machine tools (lathes, milling machines, planers, grinders, shapers, boring mills), woodworking equipment, door operators, small hoists, and conveyor belt systems. The unit is particularly suited for fixed-speed, bidirectional motor control where simplicity and reliability are paramount and where across-the-line starting is acceptable or where additional current-limiting devices are installed.
Compatibility & Replacements
Compatible With
- Three-phase AC motors (squirrel-cage design, 115–575 VAC)
- Single-phase AC motors (115–575 VAC, reversing-rated)
- DC motors (series, shunt, and compound configurations)
- Standard across-the-line motor control circuits without soft starters
Replaces / Drop-In Replacement For
- Earlier Series A versions of the Square D Class 2601 Type BG drum switch (verify serial numbers and ratings with your integrator)
- Other 600 VAC 3-pole reversing drum switches of equivalent voltage and horsepower ratings (confirm dimensional and electrical compatibility)
Works With
- Manual control systems—no PLC or relay logic interface required
- Fixed-speed, across-the-line motor control circuits
- Industrial motor branch circuits rated 600 VAC and below
- Standard 3-phase and single-phase power distribution systems
