Overview

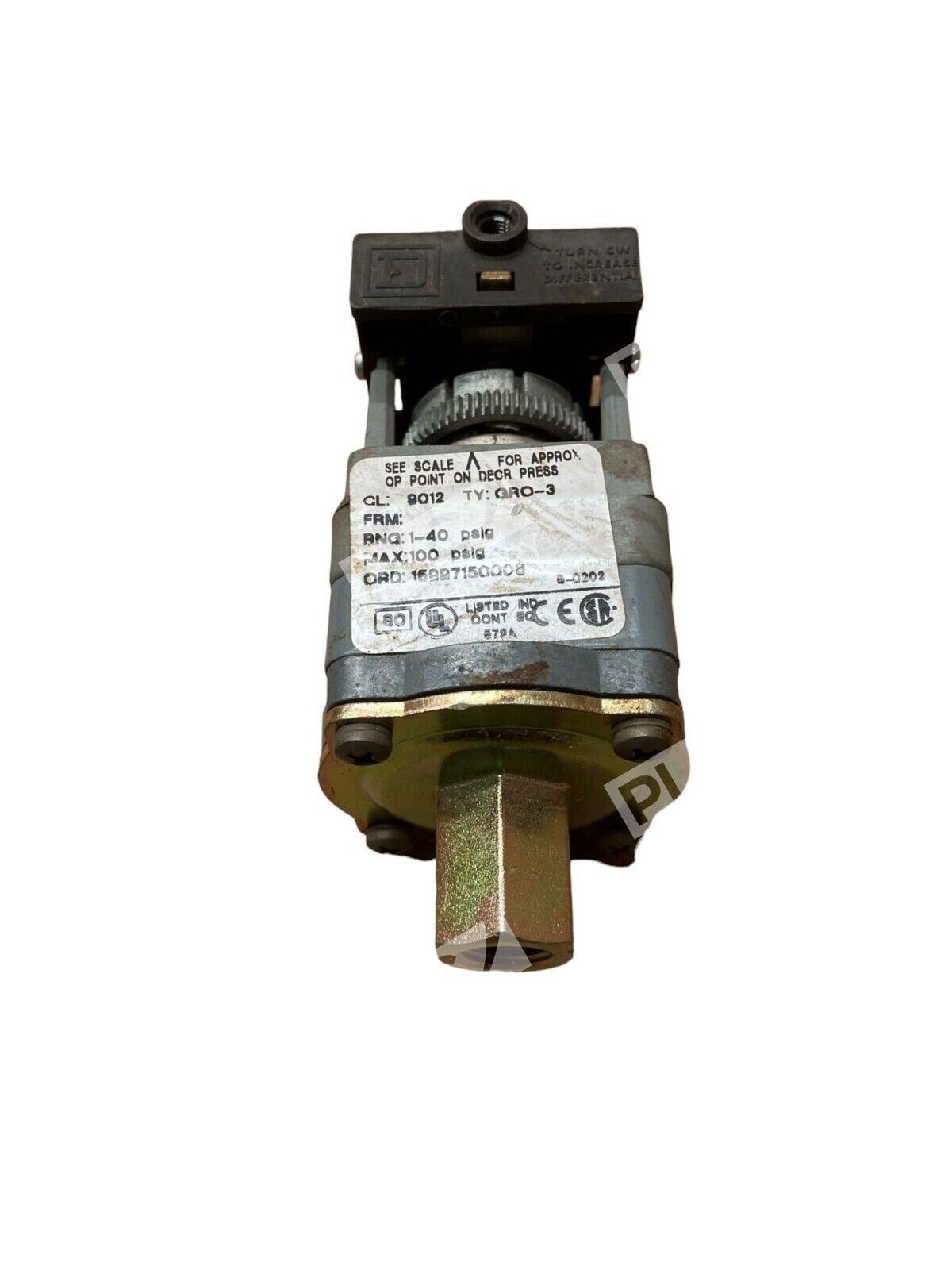

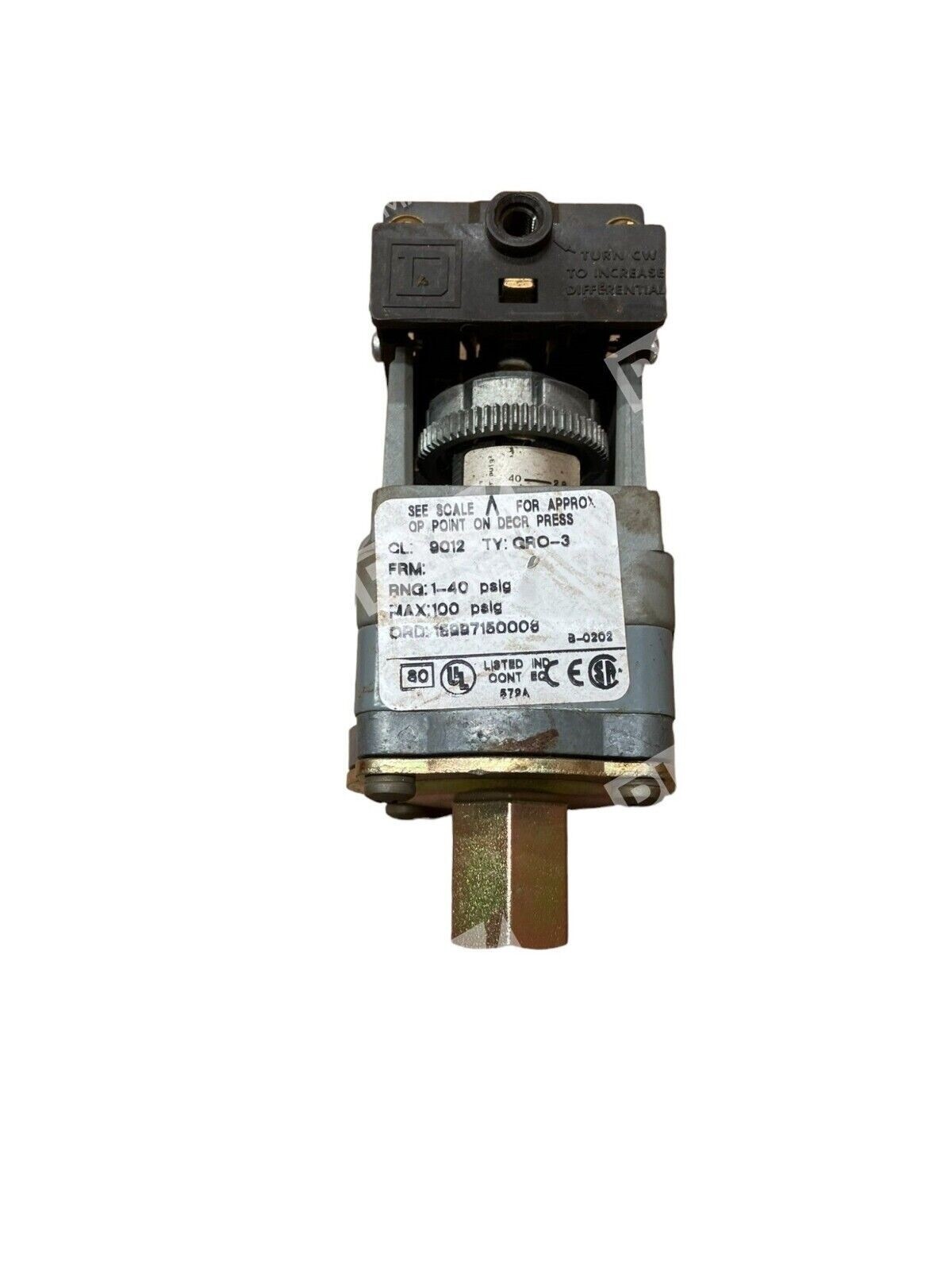

The Square D 9012 GRO-3 pressure switch is a Class 9012 industrial pressure sensing device designed for critical automation, pneumatic, and hydraulic control applications. Manufactured by Schneider Electric’s Square D brand, this pressure switch provides reliable on/off switching based on preset pressure thresholds. The 9012 series has been an industry standard for over 100 years, trusted across manufacturing, HVAC, compressor control, and process automation environments.
Key Features
- Adjustable pressure setpoint and differential for flexible application tuning
- SPDT contact configuration (Single Pole, Double Throw) for versatile control logic
- Durable industrial construction rated for vibration and shock resistance
- G1/4 pressure connection standard for easy integration into pneumatic/hydraulic lines
- NEMA 4/4X/13 environmental rating provides protection against corrosion and harsh conditions
- IP65 sealing protects against water and dust ingress
Technical Specifications
Contact configuration: SPDT (1 N/O, 1 N/C)
Pressure connection: G1/4 female
Environmental rating: IP65 / NEMA 4/4X/13
Contact material: Silver-plated for superior conductivity
Enclosure: Watertight, dust-tight, oil-tight
Vibration rating: Shock and vibration resistant for industrial duty
Maximum allowable pressure: 475 PSIG (typical for 9012 series)
Control circuit voltage: Up to 600 VAC (model dependent)
Approximate weight: 3-4 lbs
Dimensions: Approximately 3.5 x 6.37 x 2.63 inches
Typical Applications
- Compressed air and pneumatic system pressure monitoring
- Hydraulic line pressure sensing and protection
- Air compressor auto-shutoff and load/unload control
- HVAC system pressure monitoring and diagnostics
- Machine tool coolant pressure and safety interlocks
- Industrial pump discharge and suction pressure control
- Water treatment and filtration system pressure indication
Compatibility & Replacements
Compatible With
- Standard pneumatic and hydraulic system piping with G1/4 female connections
- Industrial control relay cabinets and control systems
- PLC inputs and general automation controllers
- 24 VDC to 600 VAC control circuits
- Compressor and pump motor starter circuits
Replaces / Drop-In Replacement For
The 9012 GRO-3 variant may replace other 9012 series models with similar pressure ranges. Verify pressure range, contact type, and electrical ratings with the manufacturer specifications before substitution. Other 9012 variants include 9012GAW5, 9012GRG3, and 9012GAWM5. Do not assume drop-in compatibility without confirming pressure setpoint and electrical parameters match your application.
Works With
- General-purpose industrial control systems (no software required)
- Pneumatic and hydraulic component assemblies
- Relay-based automation and hardwired logic circuits
- Direct integration with motor starters and solenoid valves
- Analog and discrete I/O modules in PLCs and PACs
