Overview

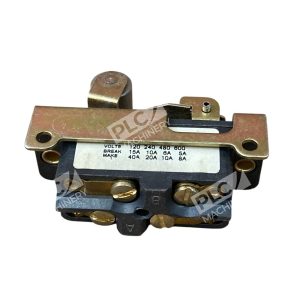

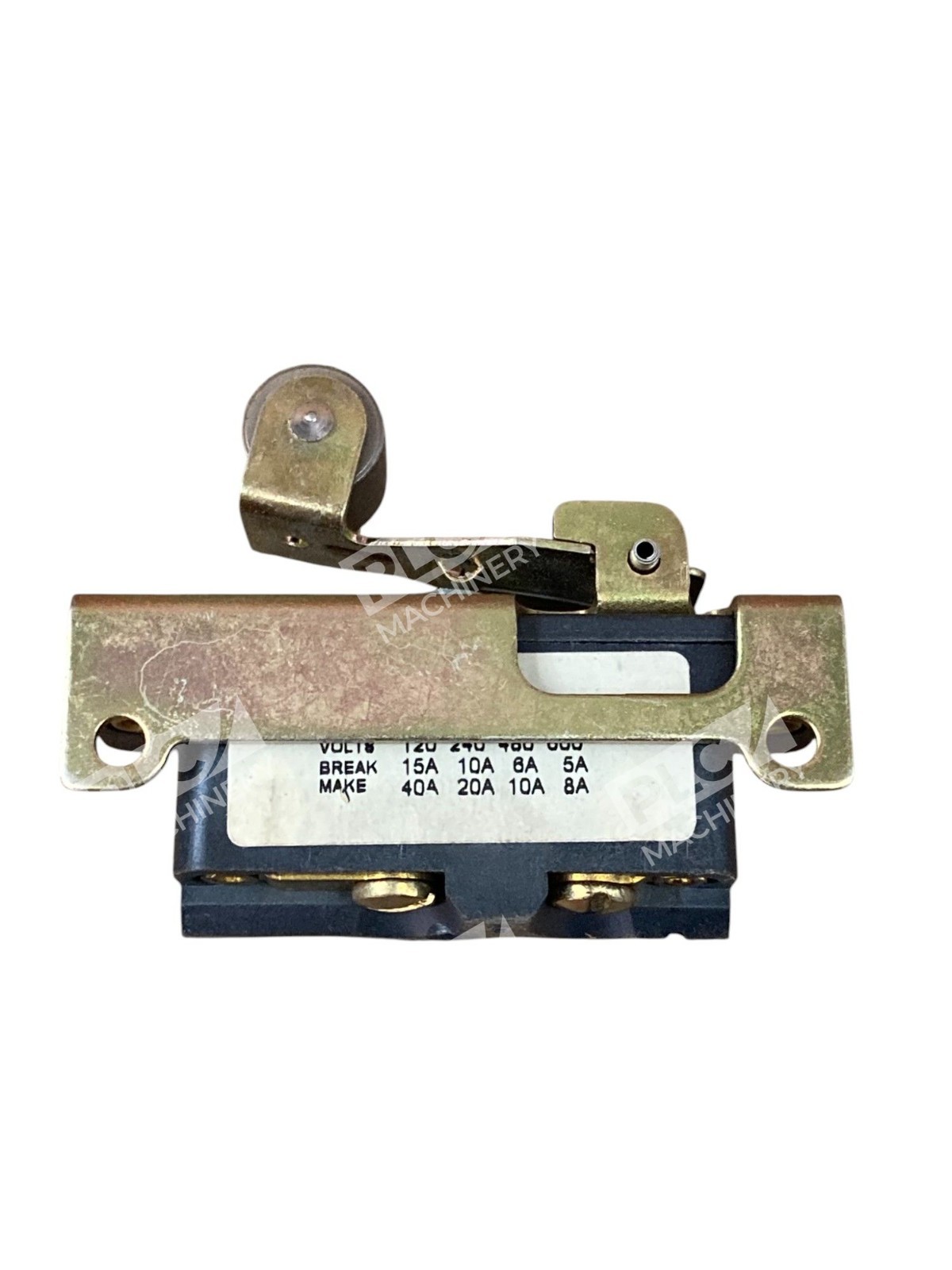

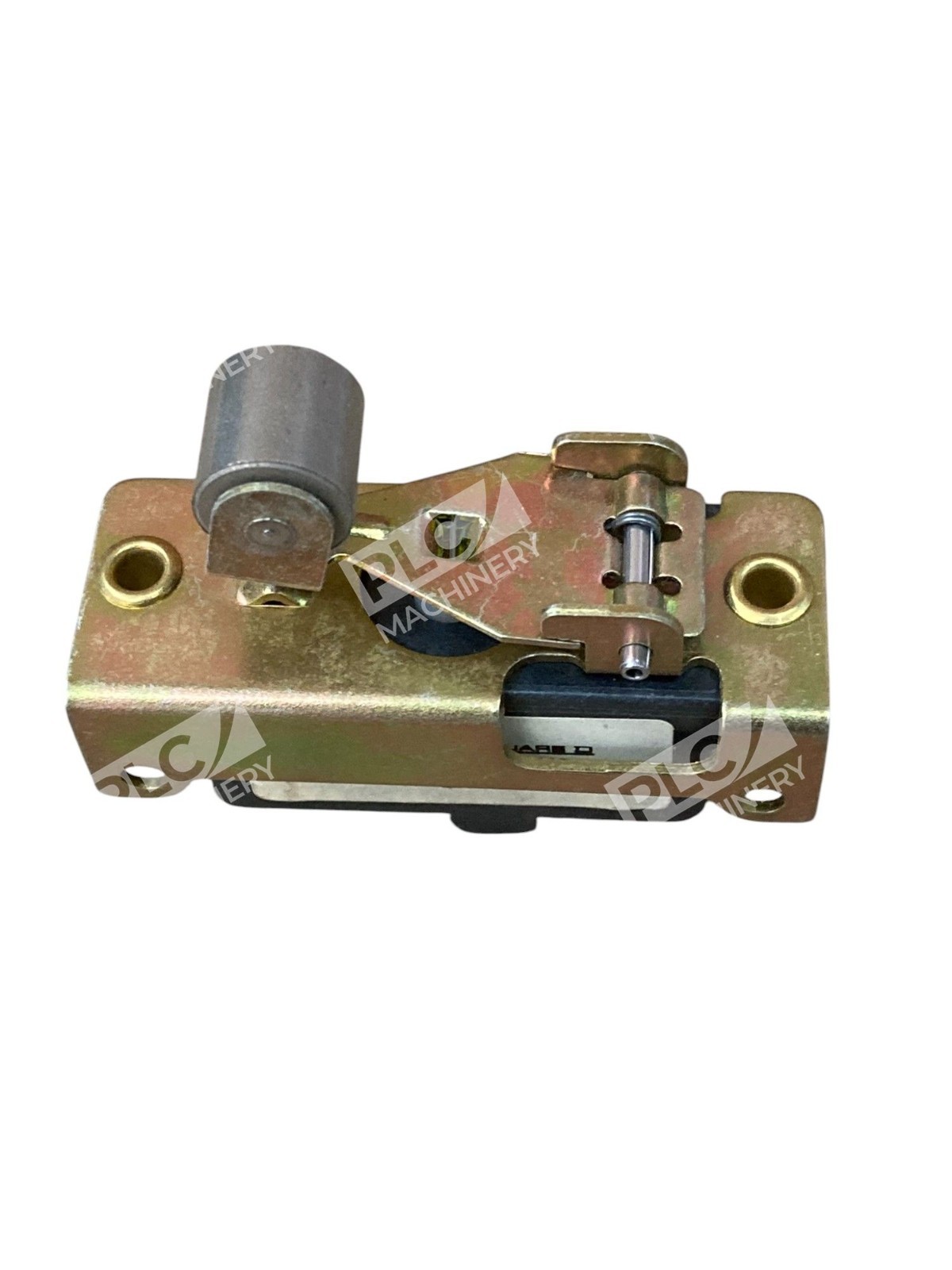

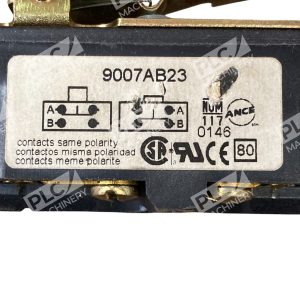

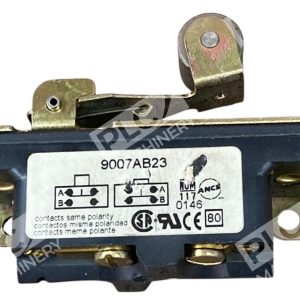

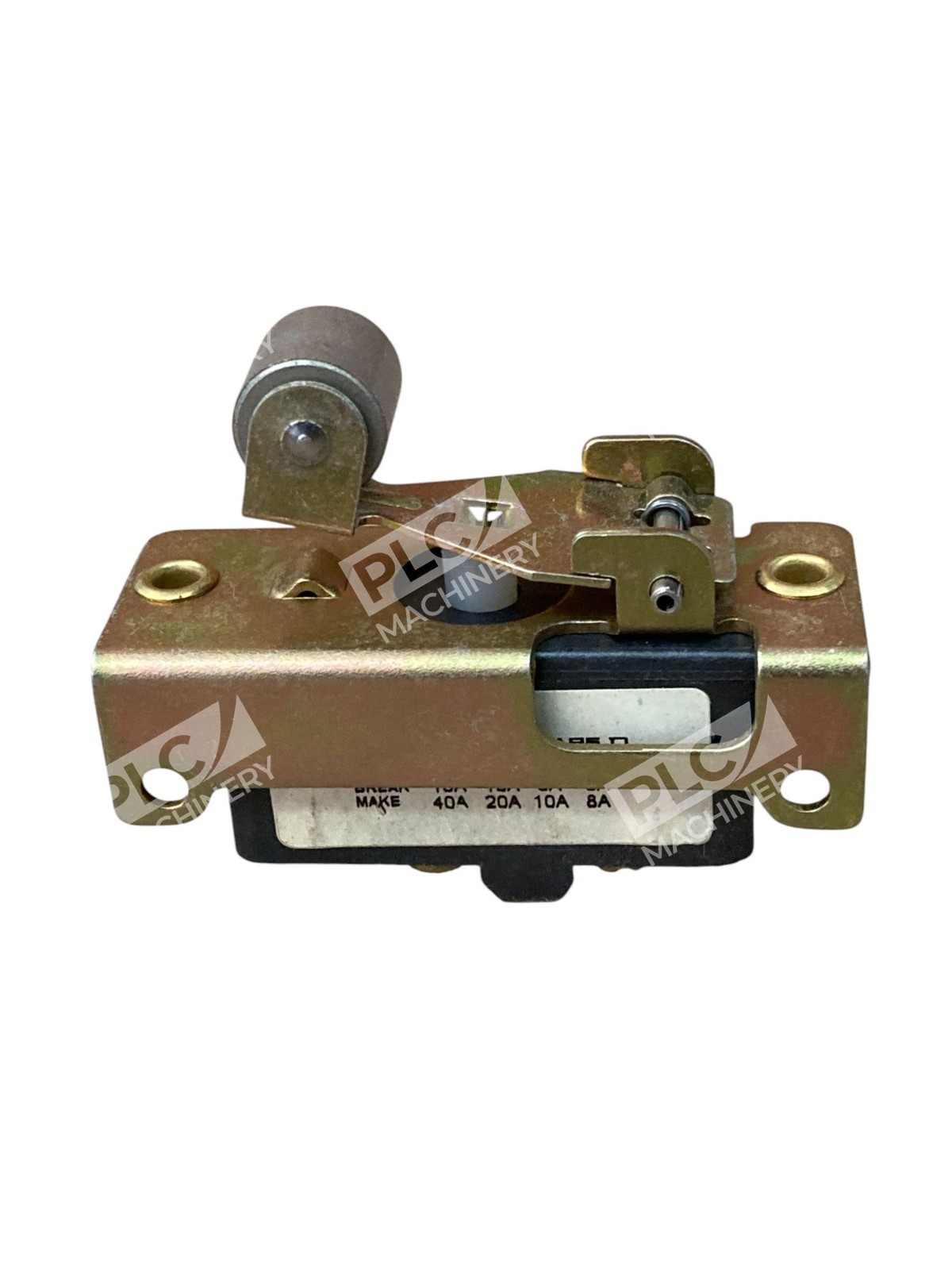

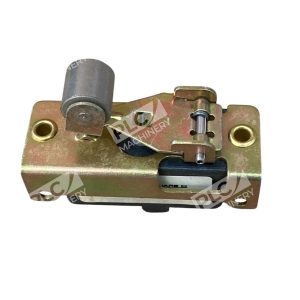

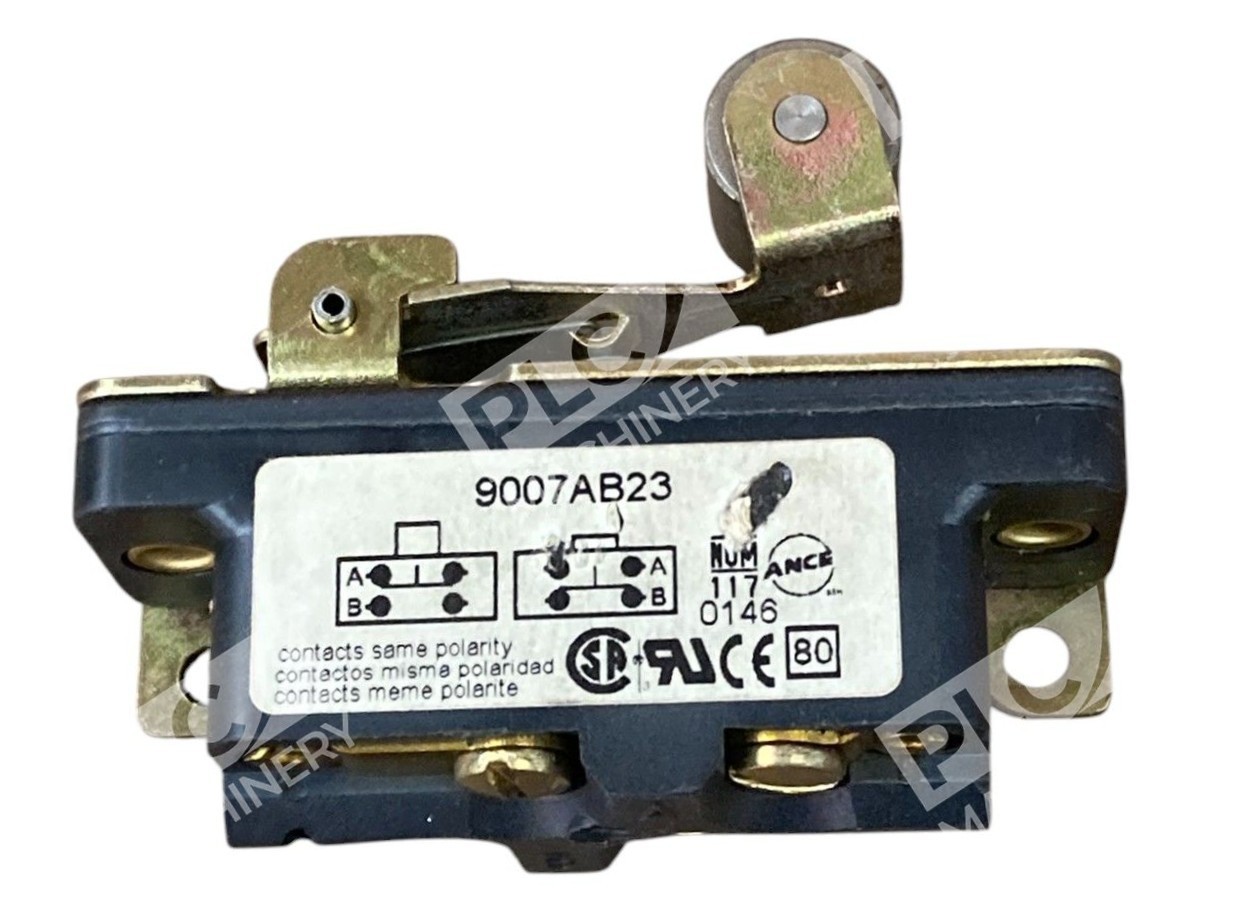

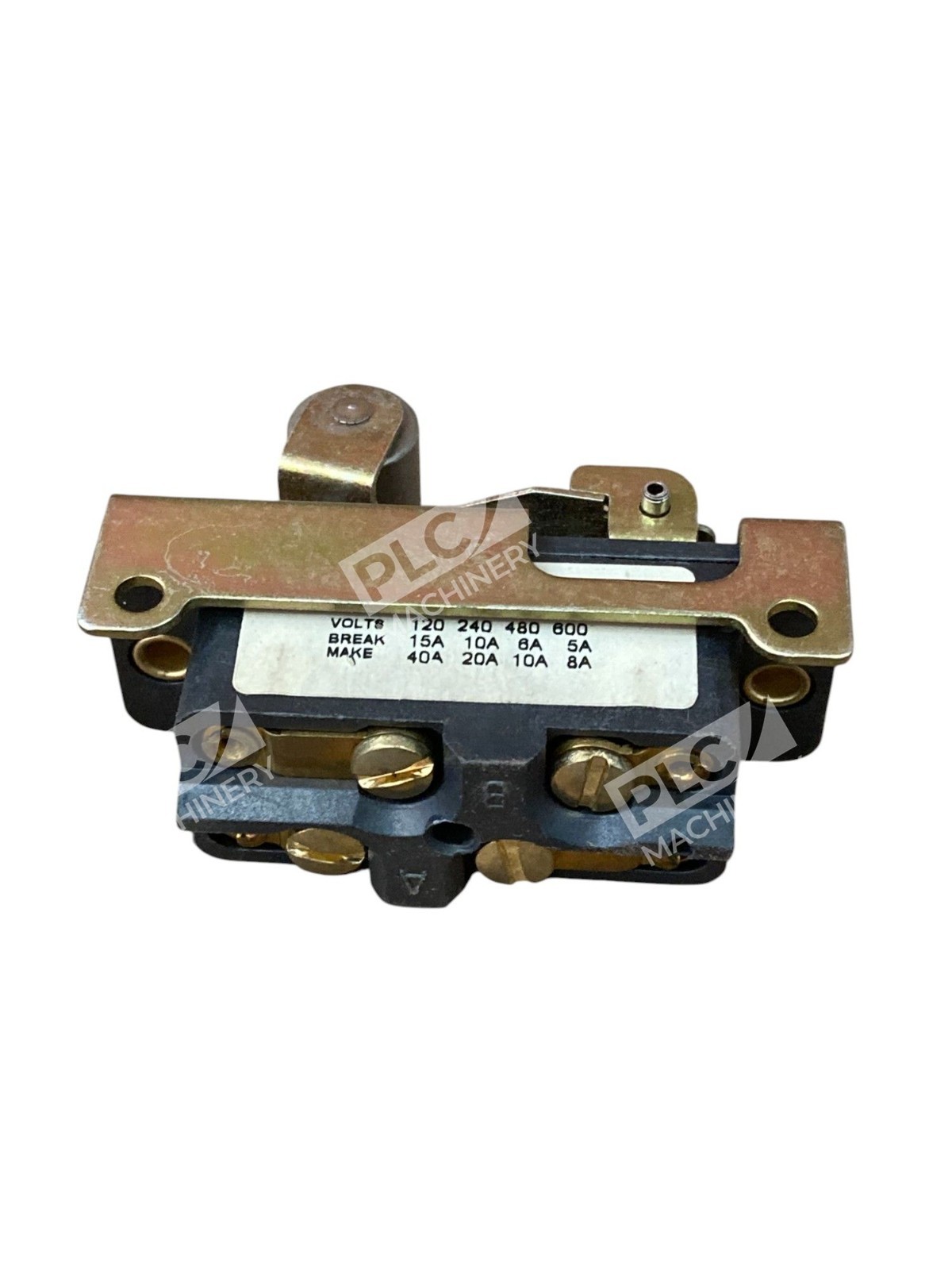

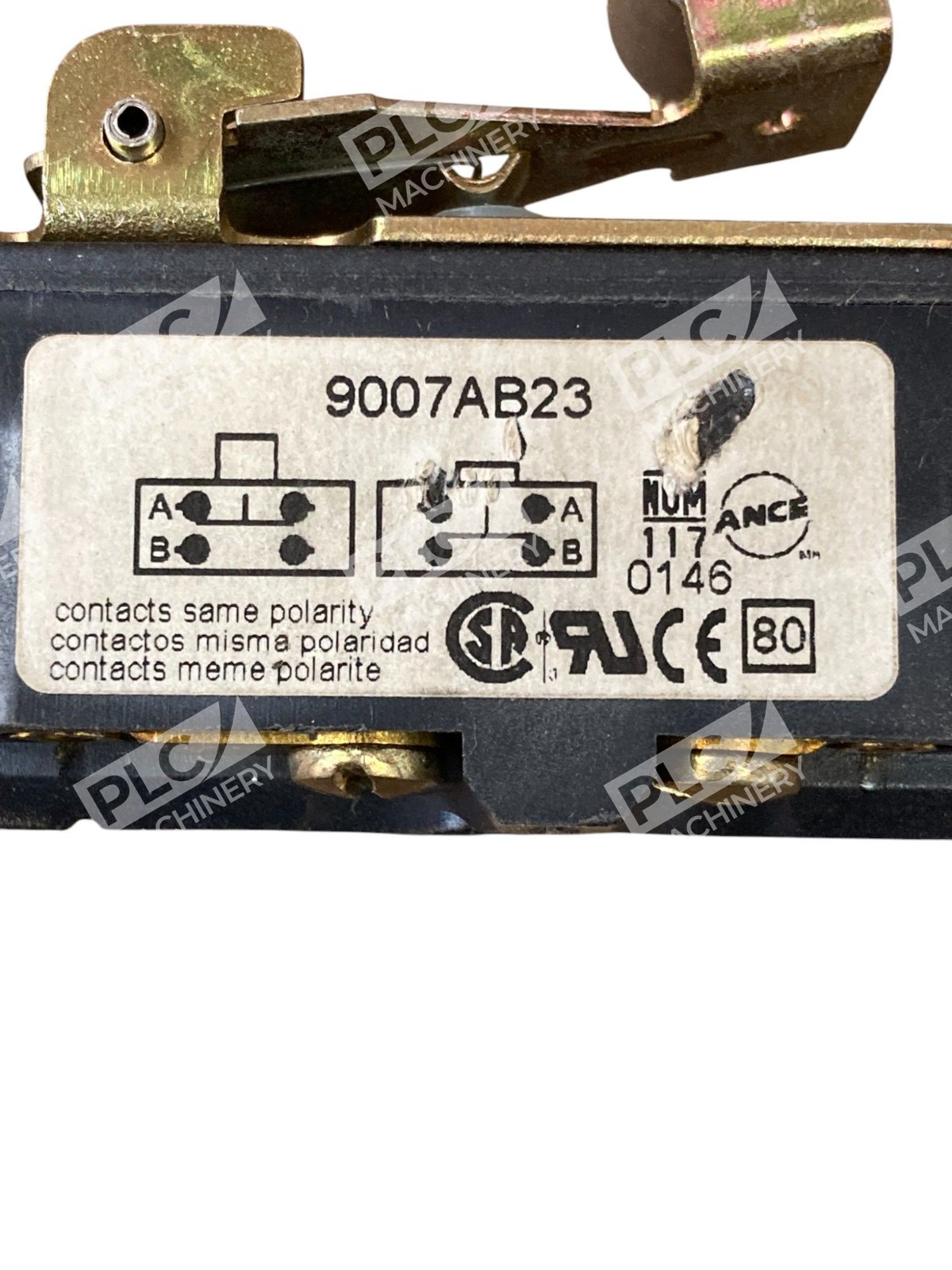

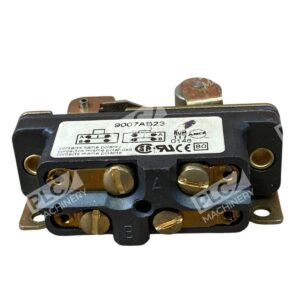

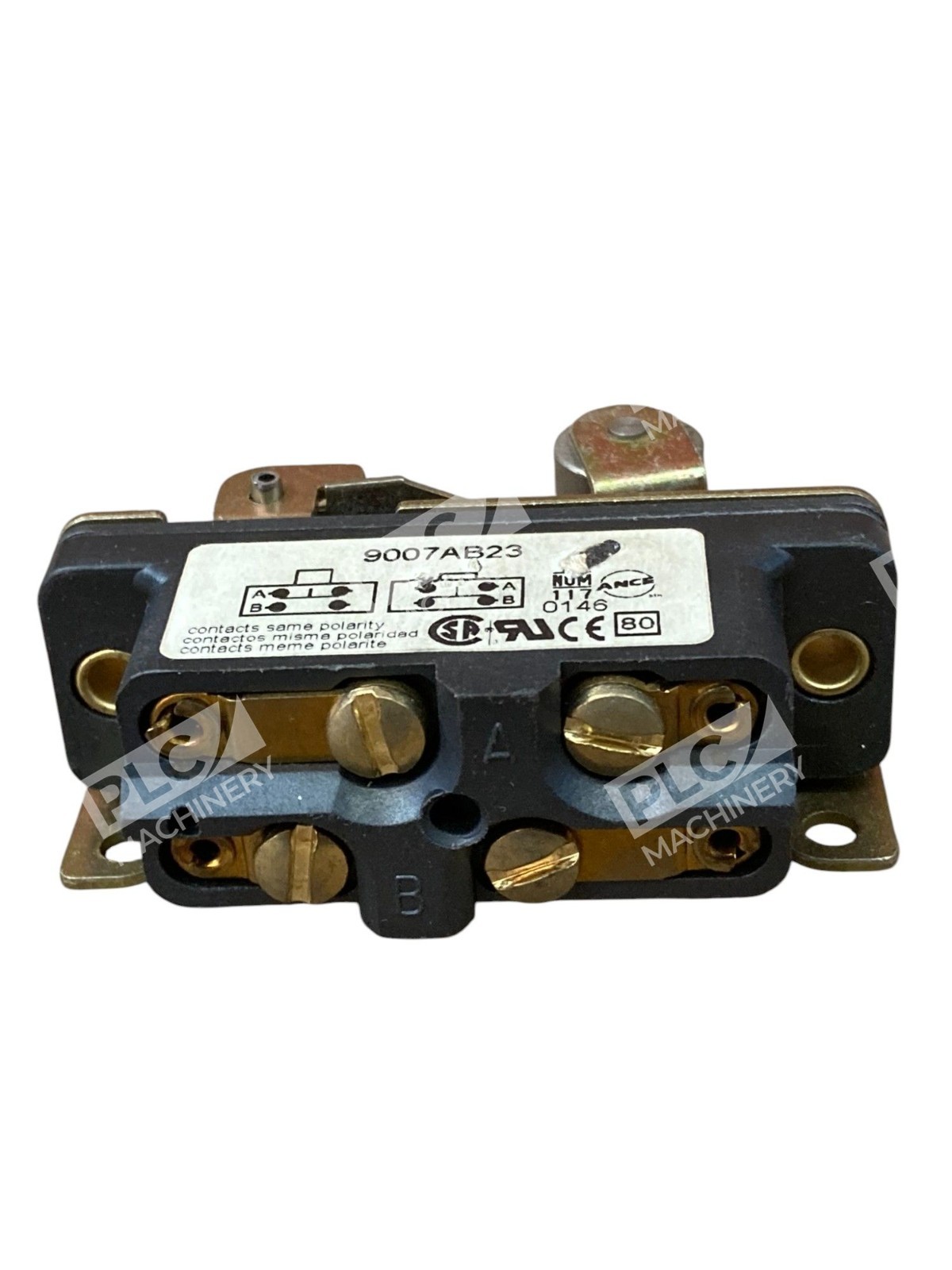

The Square D 9007AB23 snap action limit switch is a rugged industrial control component engineered for reliable position sensing and mechanical movement detection. Operating at 600VAC with a 15A continuous rating, this switch delivers the snap action contact response required for fast, repeatable on-off switching in heavy-duty machinery and conveyor systems. The 9007AB23 is part of Square D’s proven Class 9007 limit switch family, which has been the industry standard for decades.
Key Features
- Snap action contact technology for fast, reliable switching response
- 600VAC, 15A rated contacts with proven mechanical durability
- Compact design suitable for mounting on industrial equipment
- Compatible with lever arm actuators and mechanical cams
- Adjustable pretravel and overtravel settings for flexible installation
- Epoxy encapsulation option protects against temporary submersion and harsh environments
Technical Specifications
- Electrical Rating: 600VAC, 15A continuous
- Contact Type: Snap Action (momentary or maintained, depending on configuration)
- Operating Voltage: 600VAC
- Current Rating: 15A
- Enclosure Type: Standard metal body housing
- Temperature Range: –17.8°C to +85°C
- Actuator Type: Compatible with lever arm, roller, or wobble stick actuators
- Certifications: NEMA rated industrial control standard
- Product Class: Square D Class 9007
Typical Applications
The Square D 9007AB23 limit switch is widely used in:
- Conveyor system position sensing and end-of-travel detection
- Elevator and lift machinery control
- Industrial automation and material handling equipment
- Press and punch machine travel limiting
- Hoist and crane motion control
- Assembly line production equipment
Compatibility & Replacements
Compatible With
- Square D Class 9007 baseplate and housing assemblies
- Standard lever arm, roller, and wobble stick actuators
- Industrial motor control circuits rated 600VAC
- PLC and automation controller discrete input cards
- Mechanical cam and push-button drive systems
Replaces / Drop-In Replacement For
- Direct replacement for original equipment 9007AB23 units
- Compatible with other Square D 9007 series Type AB models with same electrical rating
- Verify mounting configuration and actuator compatibility with system integrator before ordering
Works With
- NEMA-rated industrial control cabinets
- Discrete 24VDC and 120VAC input modules
- Standard industrial wiring practices and conduit sealing systems
- Telemecanique and Schneider Electric control system platforms (Square D parent brand)
