Overview

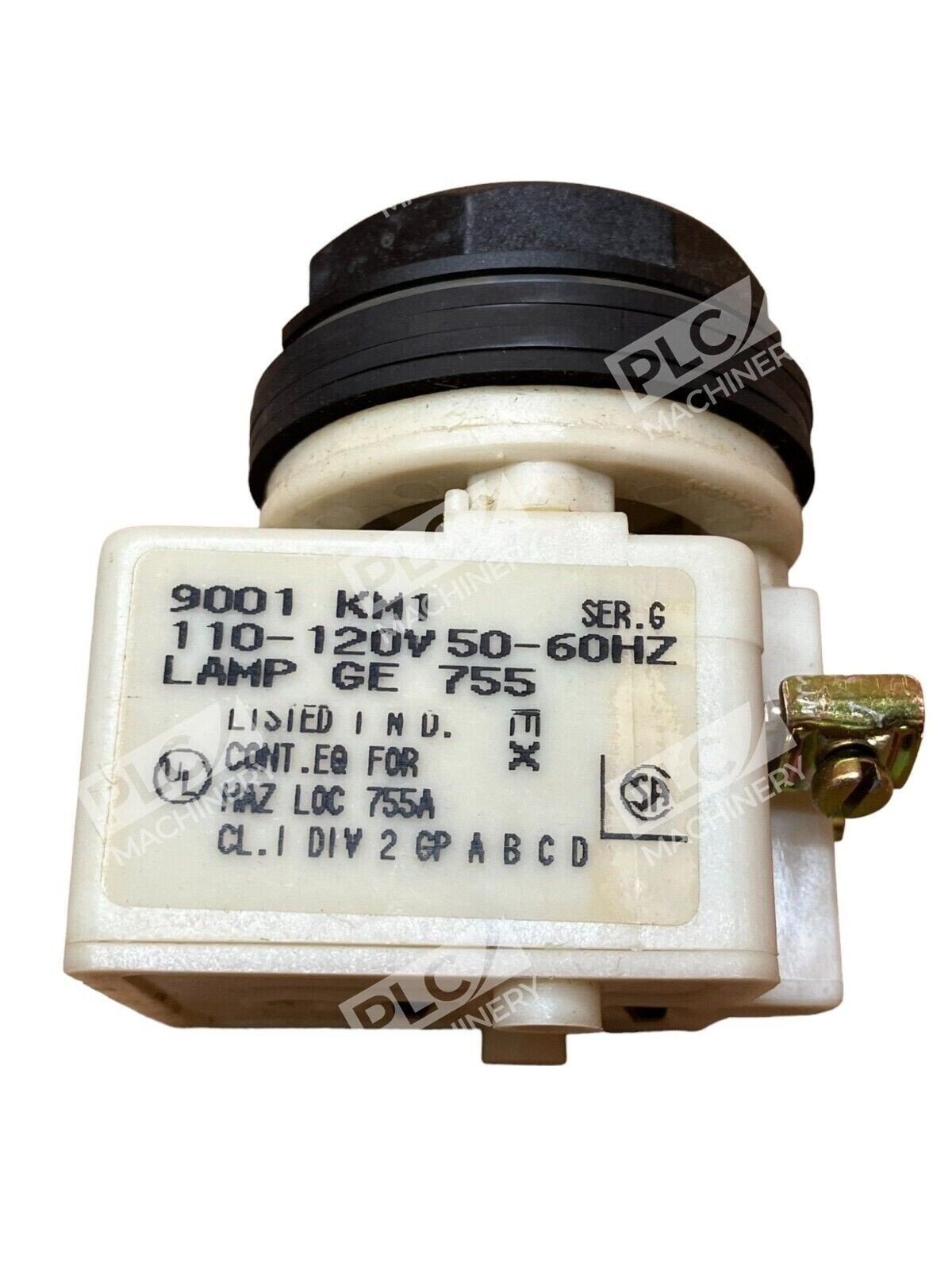

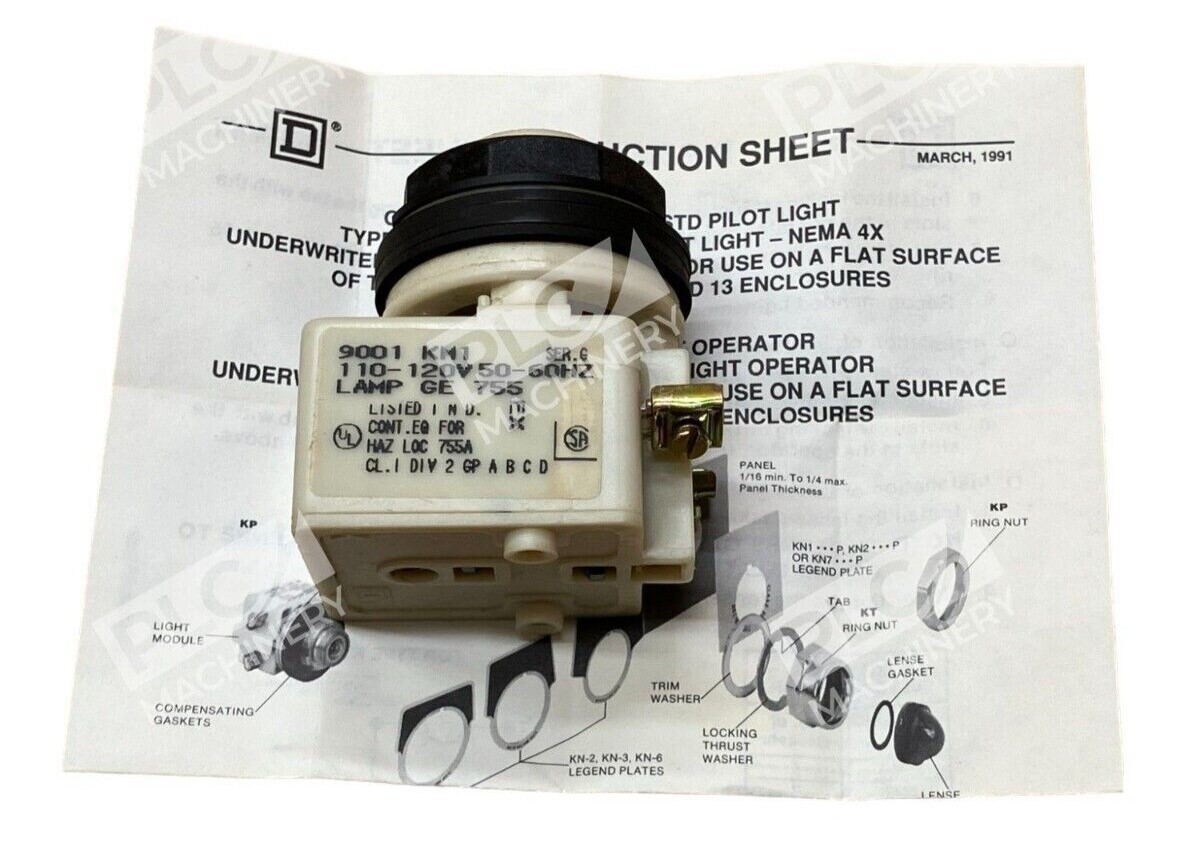

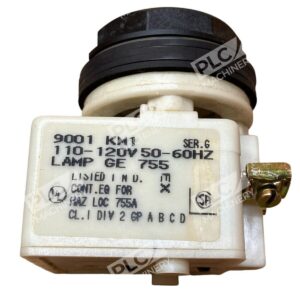

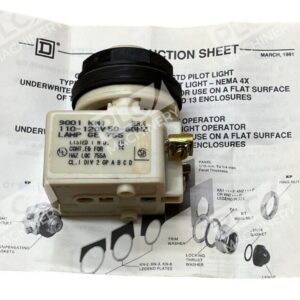

The Square D 9001KM-1 is a pilot light module designed to illuminate Schneider Harmony 9001K/SK/KX 30mm push buttons and selector switches. This light module operates at 110-120V AC (50/60 Hz) and uses a GE 755 incandescent lamp. It includes an integrated transformer for direct connection to control panel wiring without additional external components.
Key Features
- 30mm push button compatibility with 9001K, 9001SK, and 9001KX operators
- 110-120V AC 50/60 Hz operation with built-in transformer

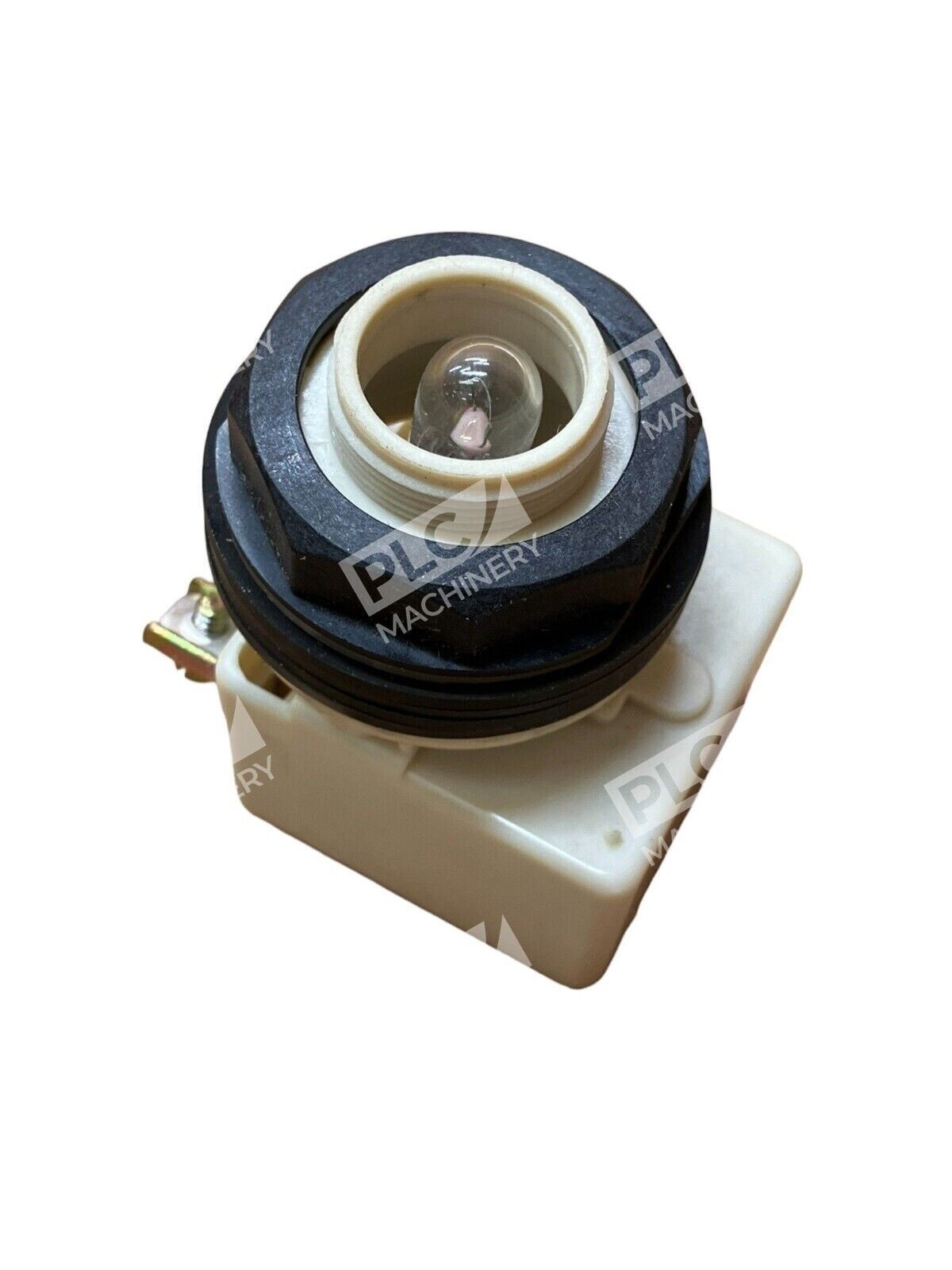

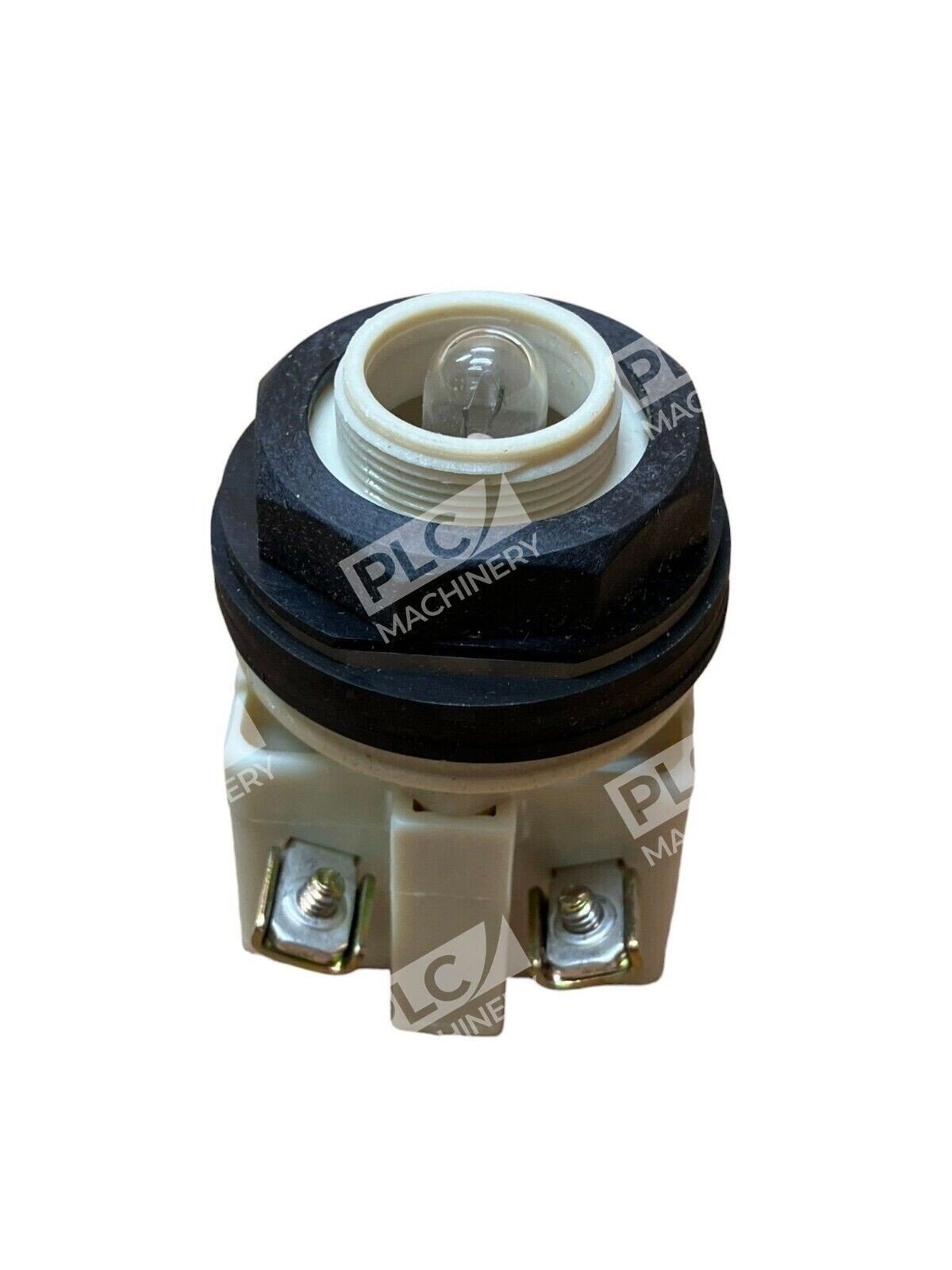

- GE 755 incandescent lamp for bright, reliable illumination
- Automatic self-grounding design requiring no additional wiring
- Heavy-duty industrial construction for harsh environments
- ABS Certified for safety and reliability
Technical Specifications
- Input Voltage: 110-120V AC, 50/60 Hz
- Lamp Type: GE 755 incandescent
- Power Consumption: 2.4 VA
- Operating Temperature: Standard industrial range

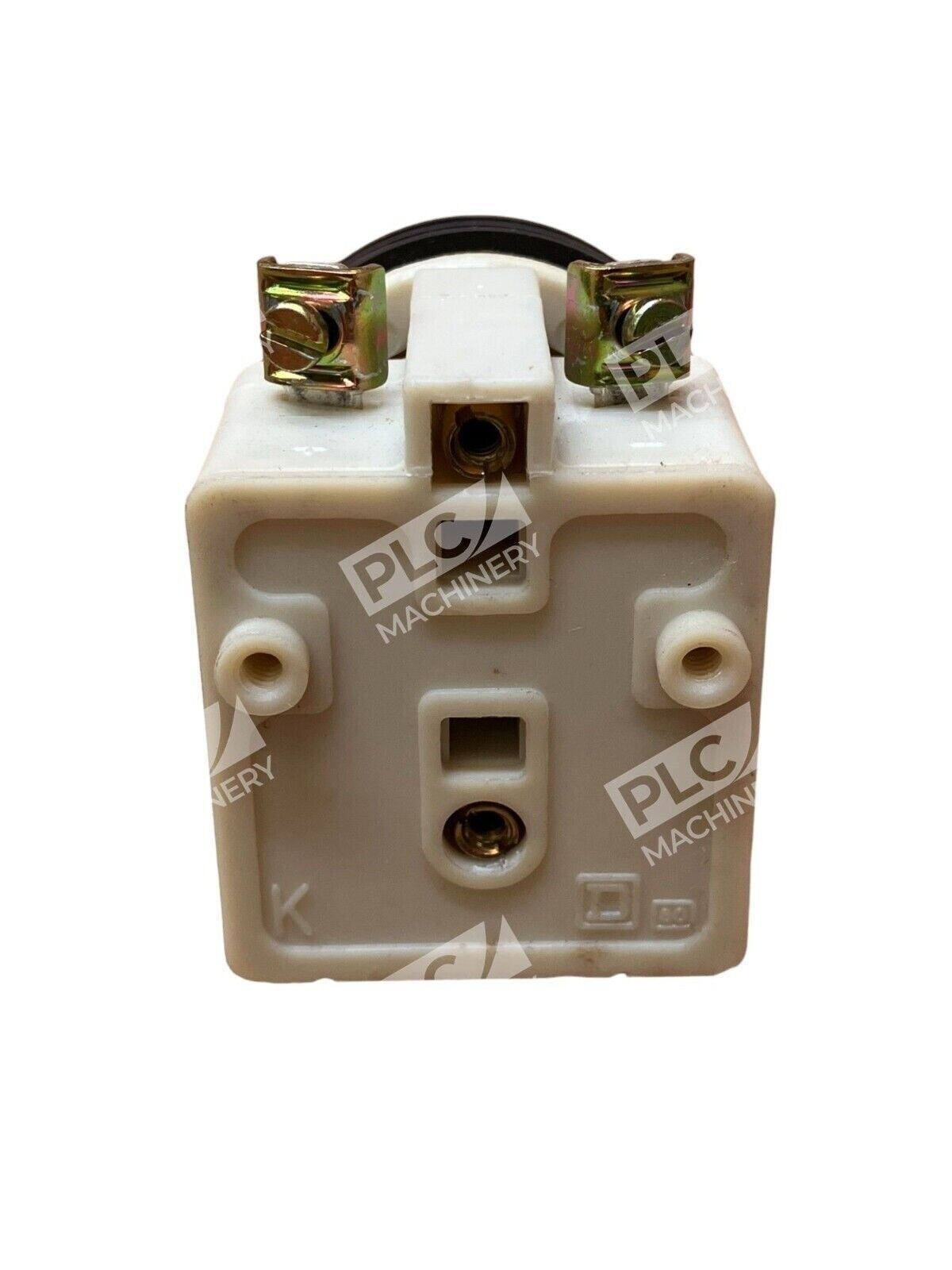

- Mounting: Direct screw-clamp terminal connection
- Enclosure Rating: Type 1, 2, 3, 4, 4X, 12, 13 compliant
- Certifications: ABS, UL 508, CSA C22.2 No. 14
- Series: Harmony 9001, Generation G
Typical Applications
- Machine control panels and operator interfaces
- Industrial automation equipment
- Push button illumination for status indication
- Heavy-duty manufacturing and processing environments
- Oil-tight and dust-tight enclosure applications
Compatibility & Replacements
Compatible With
- Square D / Schneider Harmony 9001K push buttons (metal base)
- Square D / Schneider Harmony 9001SK push buttons (plastic base)
- Square D / Schneider Harmony 9001KX push buttons (square bezel)
- All standard 30mm control unit installations
- Panel-mounted and DIN-rail systems
Replaces / Drop-In Replacement For
- 9001KM1 (alternate part number format)
- Verify compatibility with your system integrator before ordering for legacy applications
Works With
- Schneider Electric Harmony operator family ecosystem
- Standard industrial control panel wiring practices
- NEMA Type 1, 2, 3, 4, 4X, 12, 13 enclosure installations
