Overview
The Square D 8810UCG2V02S (bulletin 50006-388-01E) is a compact Size 0 combination motor starter designed for industrial motor control and protection. This unit integrates a motor overload protection contactor with a circuit breaker disconnect switch, eliminating the need for separate components. The NEMA Type 1 enclosure provides reliable performance in indoor industrial environments.
Key Features
- Integrated circuit breaker disconnect and motor contactor in one package
- NEMA Type 1 enclosure rated for indoor industrial use
- 30A maximum breaker/disconnect capacity
- 110/120VAC control coil voltage
- Size 0 compact design for space-constrained installations

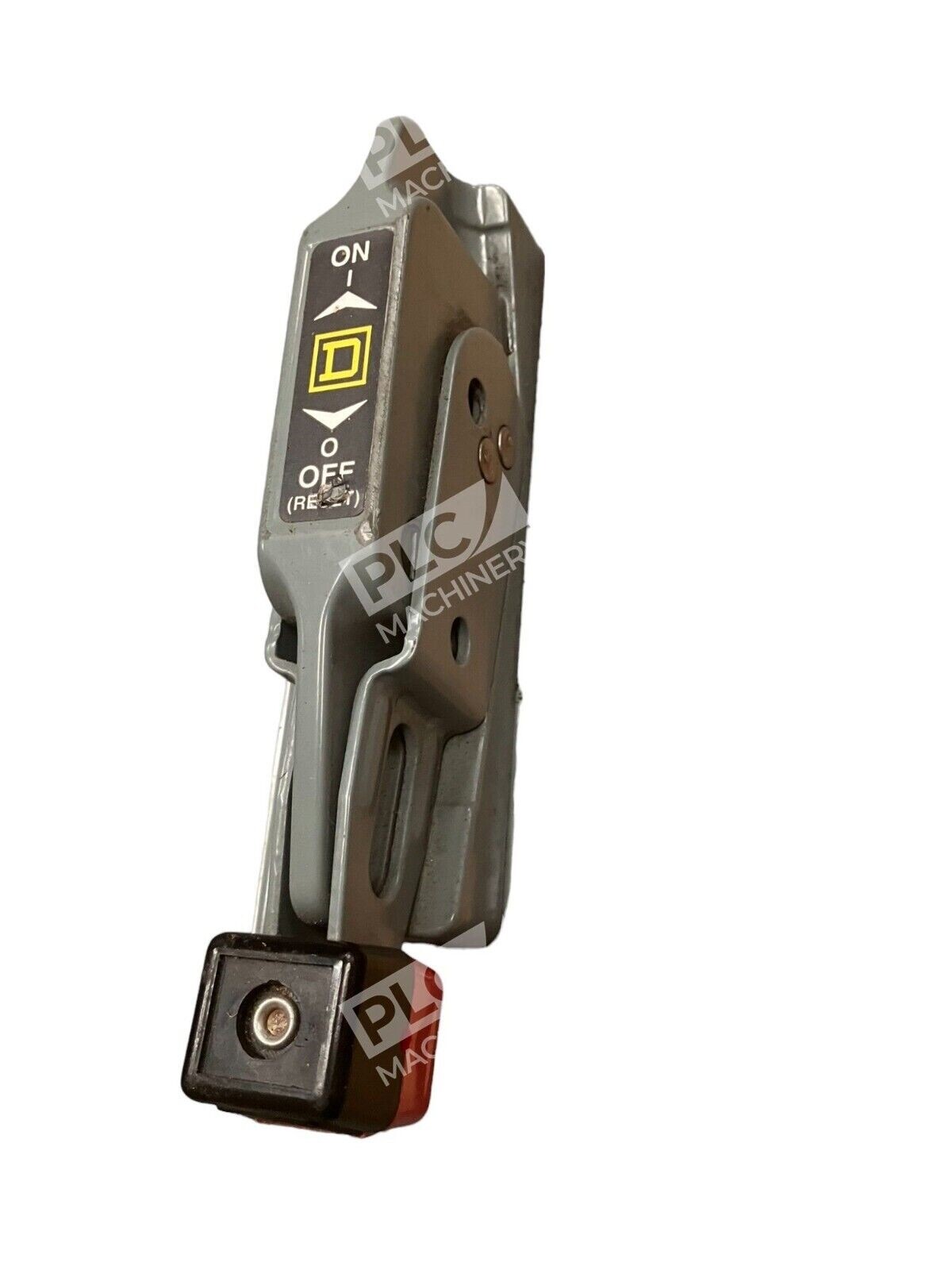

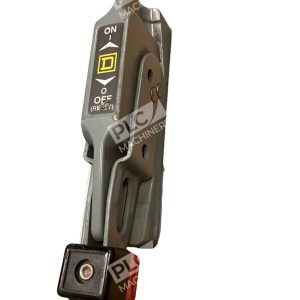

- Manual disconnect switch operation
Technical Specifications
Detailed specifications for this combination starter:

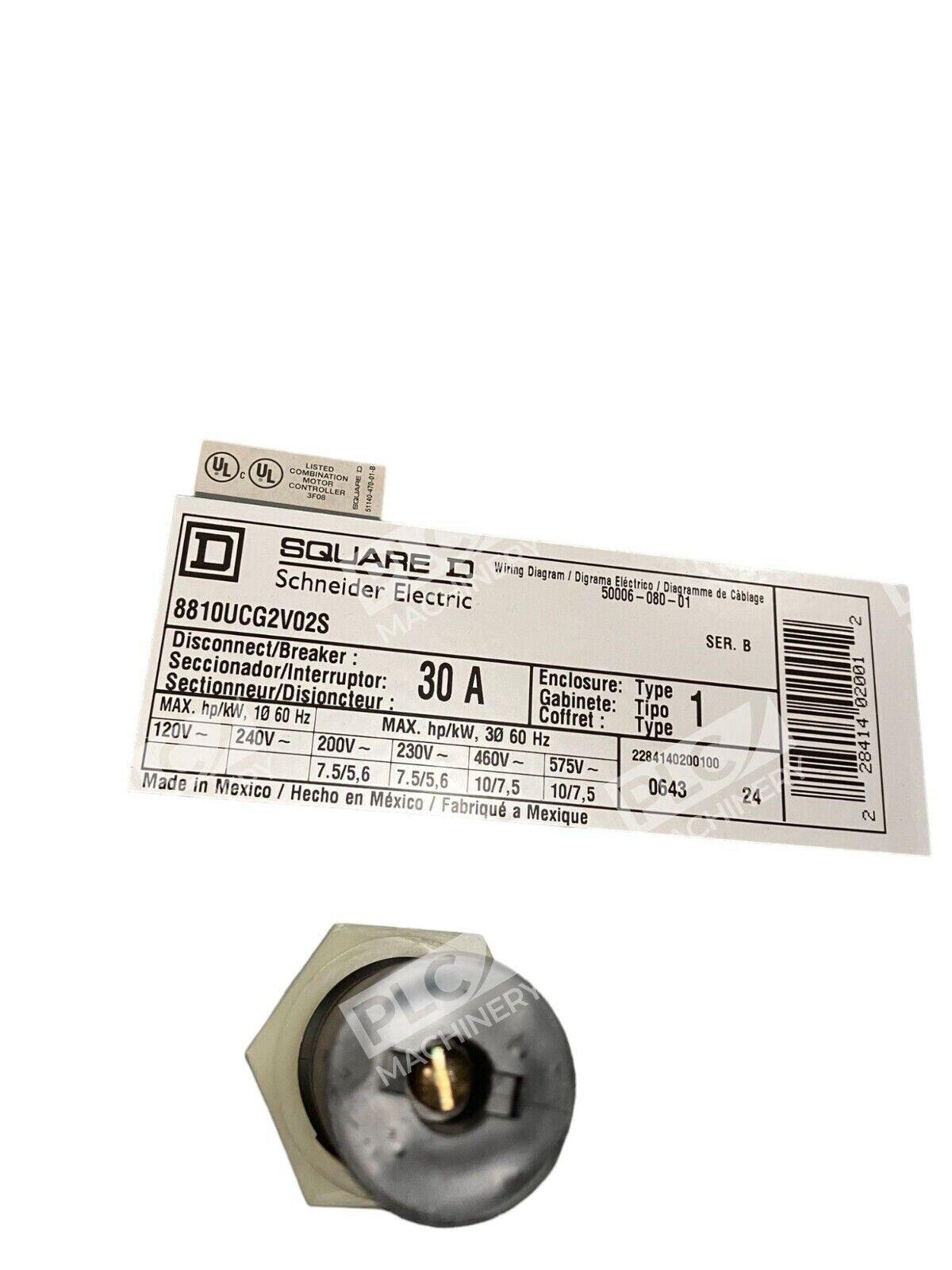

- Model Number: 8810UCG2V02S

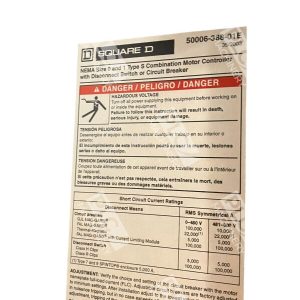

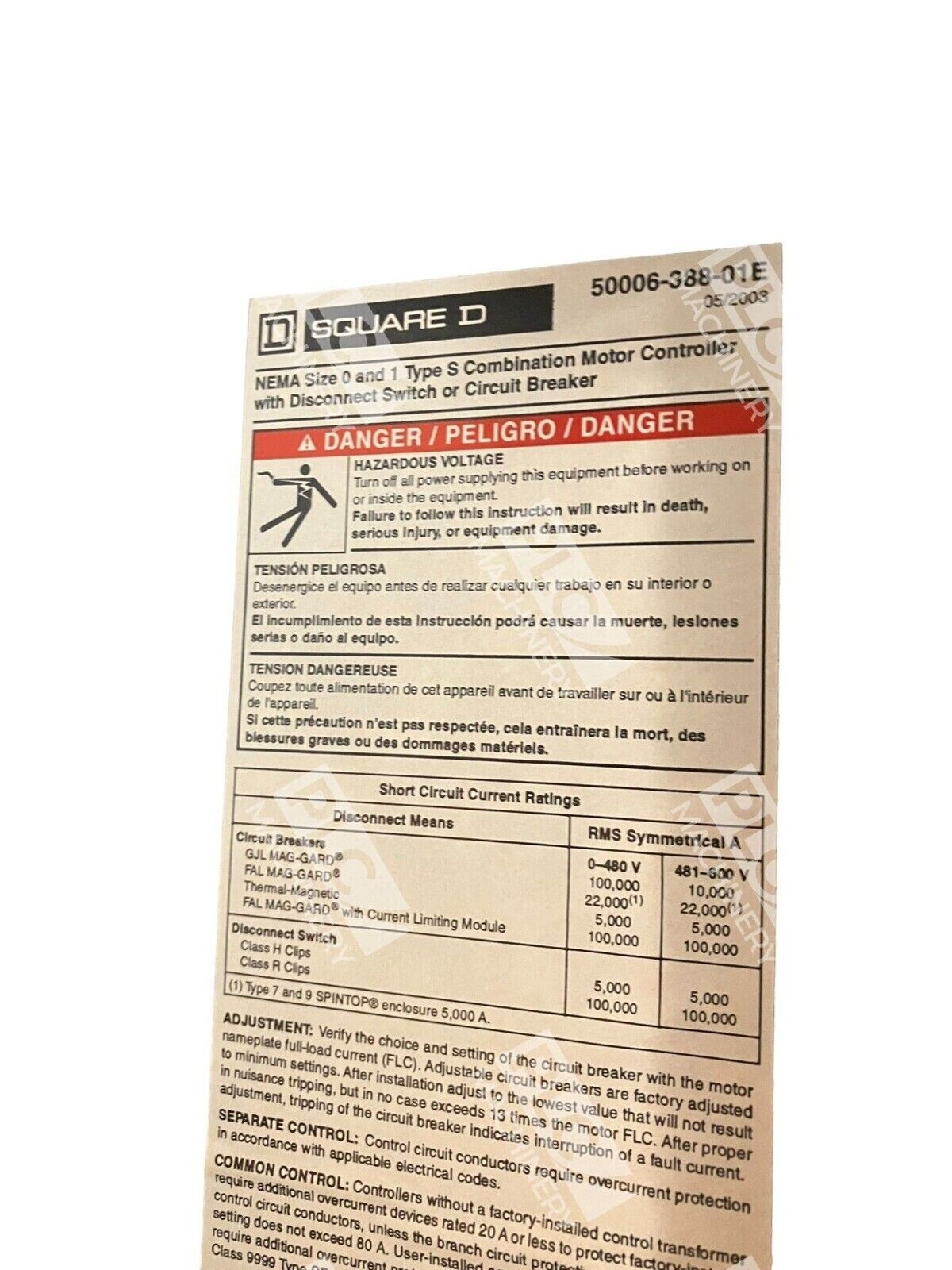

- Bulletin Number: 50006-388-01E

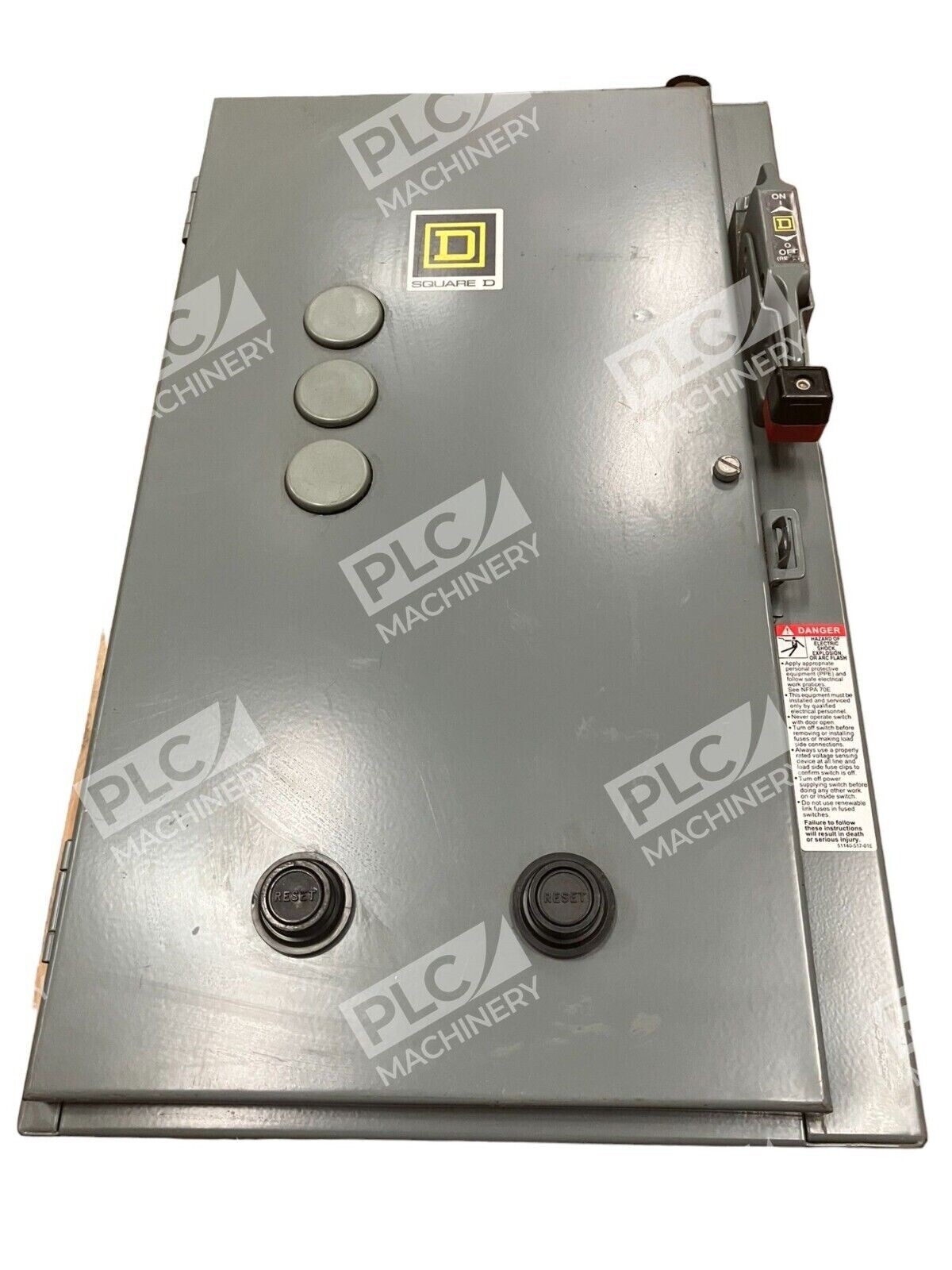

- Enclosure Type: NEMA Type 1
- Maximum Voltage: 600VAC
- Breaker/Disconnect Rating: 30A maximum
- Control Coil Voltage: 110/120VAC
- Starter Size: Size 0
- Motor Capabilities: 115VAC 1HP, 230VAC 2HP, 600VAC applications
Typical Applications
The Square D 8810UCG2V02S is well-suited for:
- Motor control and protection in industrial facilities
- Machine tool applications requiring integrated disconnect
- HVAC system motor starters
- Pumping and compressor motor circuits
- Manufacturing equipment requiring reliable motor management
- Retrofit and replacement of similar-size combination starters
Compatibility & Replacements
Compatible With
- Standard three-phase motor loads up to Size 0 capacity
- 110/120VAC control circuits and pilot devices
- NEMA enclosure mounting standards and procedures
- Industrial control panels using discrete starter components
Replaces / Drop-In Replacement For
- Other Square D Size 0 combination motor starters with similar ratings
- Verify specific model compatibility with your system integrator before ordering to ensure proper electrical and mechanical fit
Works With
- Manual push-button control stations
- Hardwired control circuits
- Industrial motor protection devices and thermal overload relays
- NEMA-compliant industrial control installations
