Overview
The Square D H-362 /D2 is a heavy-duty, fusible safety switch designed for industrial and commercial disconnect applications requiring maximum performance and service continuity. Heavy Duty Safety Switches are needed when maximum performance and continuity of service is essential for commercial and industrial applications. With a 60-ampere rating and 600VAC/VDC voltage rating, this H-362 /D2 switch provides reliable overcurrent and short-circuit protection when equipped with appropriate fuse types.
Key Features
- Quick-make, quick-break operating mechanism, dual cover interlock and color-coded indicator handle
- Equipped with fuses they can provide over-current and short-circuit protection
- UL listed with a NEMA 1 rating of protection
- Short circuit current rating of 10kA to 200kA; accepts H,J,K,L,R fuse types
- Surface-mounted configuration for quick installation
- Steel enclosure with visible blade contact design
Technical Specifications
See specification table below for detailed electrical and physical dimensions.
Typical Applications
- Industrial machinery disconnect and motor control
- Commercial HVAC system isolation
- Generator and backup power switching
- General-purpose load switching up to 50 HP (3-phase @ 600VAC)
- Overcurrent protection in branch circuits
- Equipment maintenance and lockout/tagout (LOTO) points
Compatibility & Replacements
Compatible With

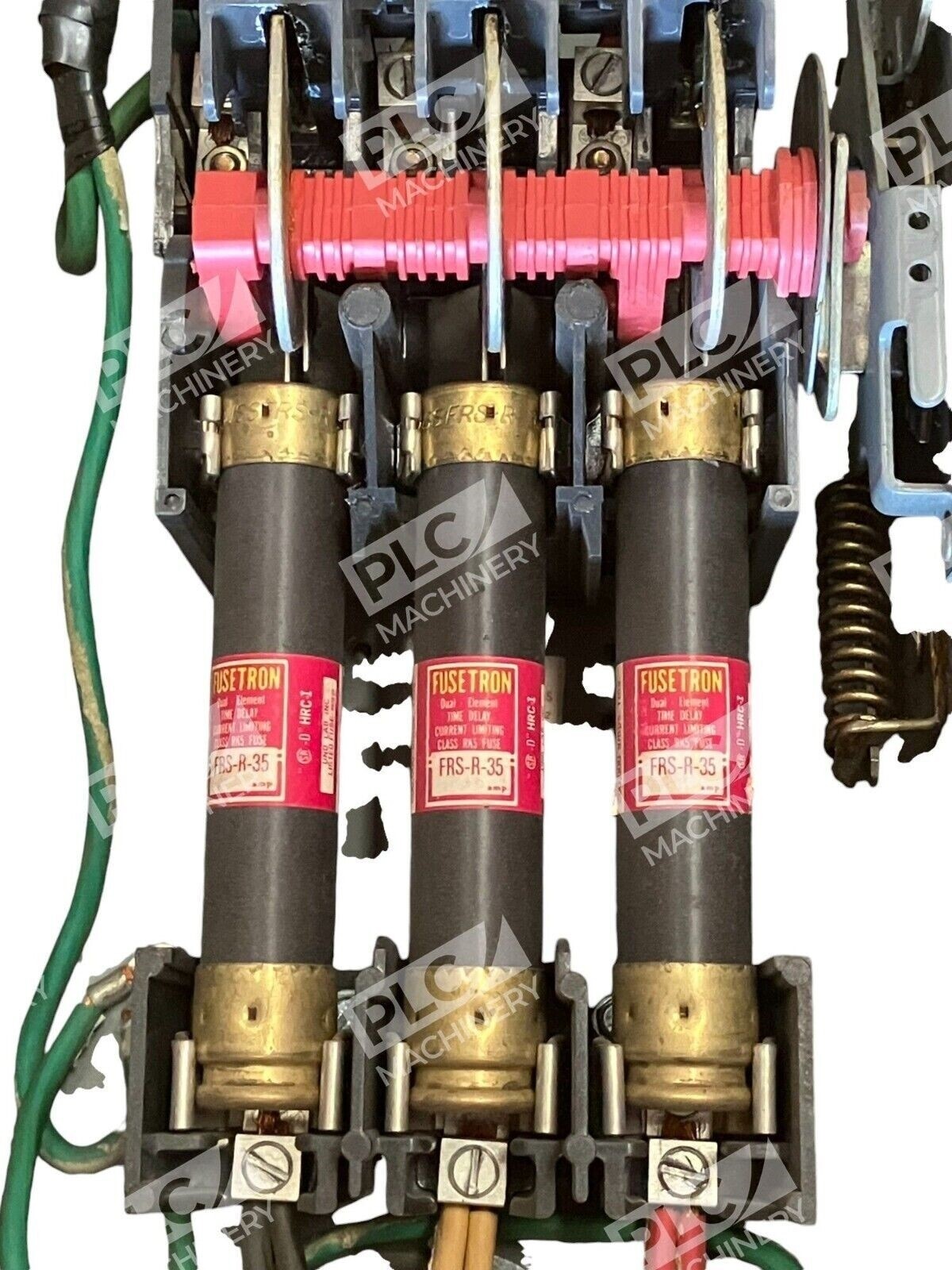

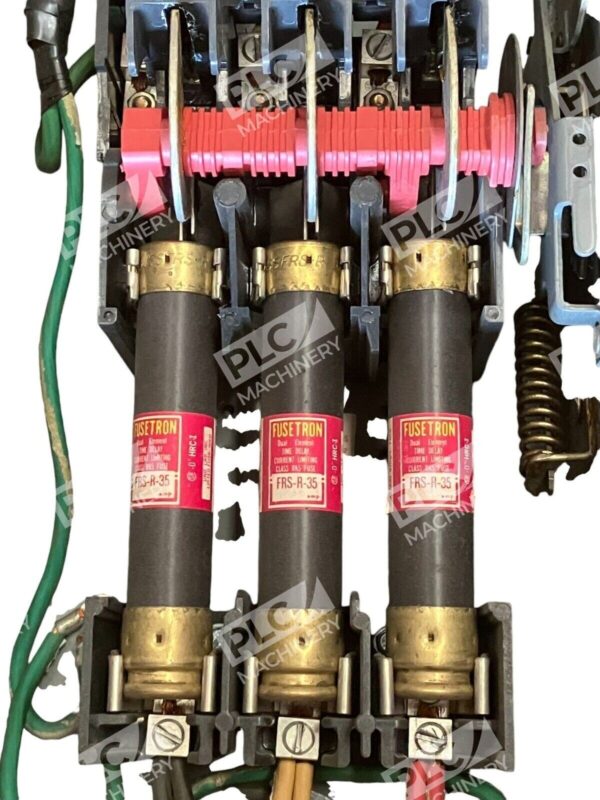

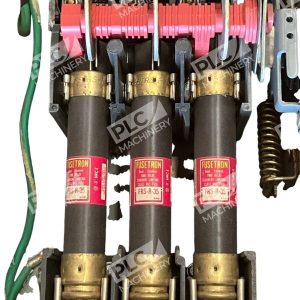

- Class H, J, K, L, and R fuse types
- Copper and aluminum conductor wire (AWG 14–1/0 copper; AWG 12–1/0 aluminum)
- Standard distribution panels and control centers rated 600VAC/VDC
- Three-phase, 60 Hz industrial power systems
Replaces / Drop-In Replacement For
- Square D H362 (standard non-fusible models may differ; verify phase and fuse requirements)
- Square D HU362 (non-fusible variant; D2 fusible version offers added protection)
- Similar-rated Eaton, GE, and Siemens 60A 3-pole safety switches (verify mounting and terminal configurations)
Works With
- Square D disconnects and safety switches within the H-series platform
- NEMA 1, 3, 3R, 4, and 4X enclosures (as a mounted component)
- Standard electrical panel wiring practices and UL/NEMA standards
- Lockout/tagout (LOTO) devices and hasp assemblies
