Overview

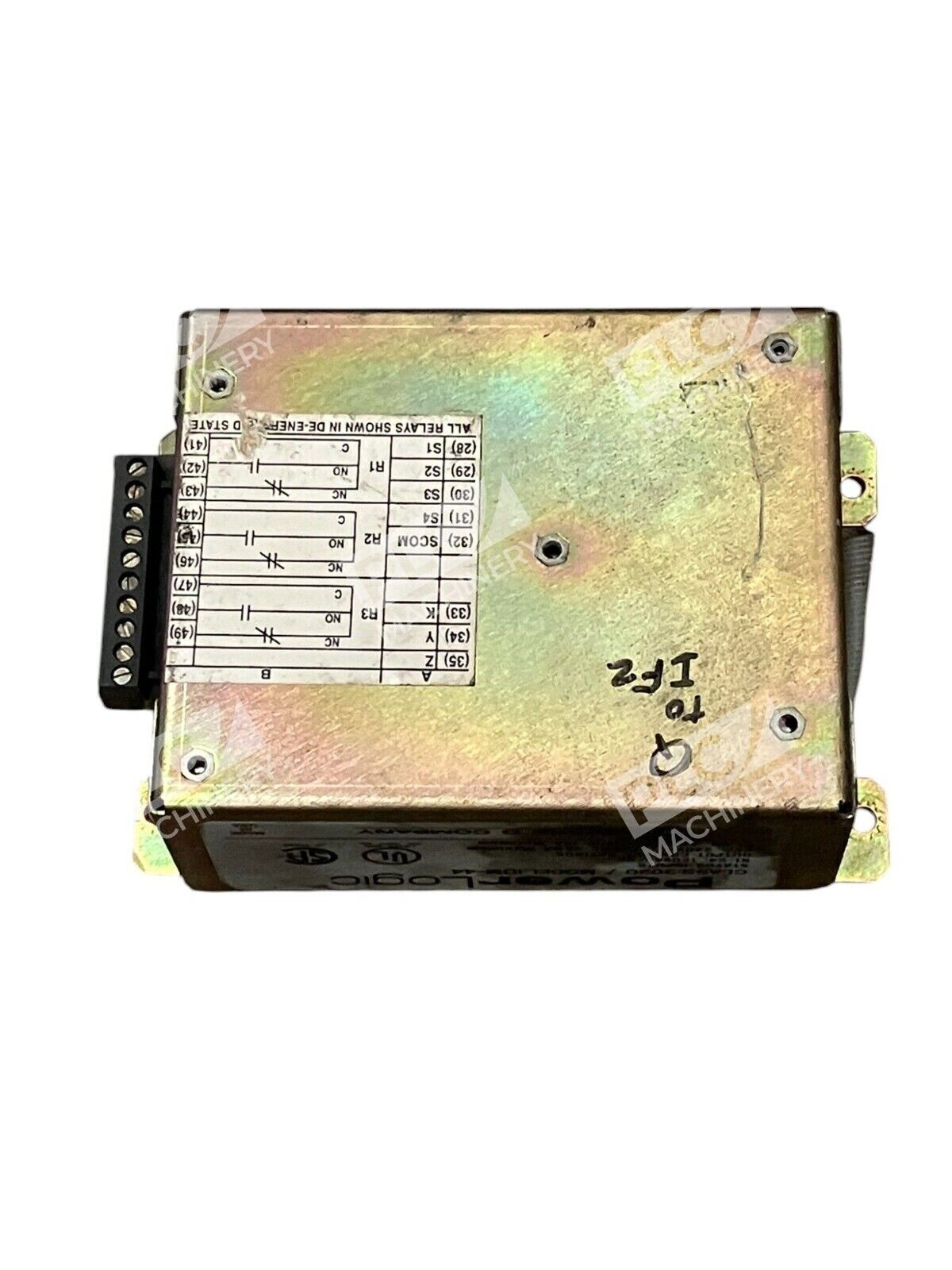

Square D 3020-IOM-44 is a PowerLogic I/O module designed for industrial automation and circuit monitor integration. Manufactured by Schneider Electric (formerly Square D), the 3020-IOM-44 has four status inputs, one KYZ pulse output, and three Form-C relays output. It allows MicroLogic full-function circuit breaker units to communicate and be networked within a PowerLogic network. This used unit provides proven reliability for legacy PowerLogic 3020 systems requiring I/O expansion.
Key Features
- Four status inputs and one KYZ solid-state pulse output plus three Form-C mechanical relays
- Three Form-C 10A mechanical relays designed for flashing alarms, opening/closing circuit breakers, and mechanical tasks
- Maximum control power burden of 14VA at 120V and 20VA at 240V
- Capability to detect over 100 alarm conditions with multiple alarms assignable to one relay
- Flush-mount design with four screws for secure panel installation
Technical Specifications
- Circuit monitor current range: 0–7.4 A AC (nominal 5 A AC)
- Circuit monitor voltage range: 0–180 VAC (nominal 120 VAC)
- AC control input: 100–264 VAC, 47–440 Hz; burden 14–19 VA
- DC control input: 100–350 VDC

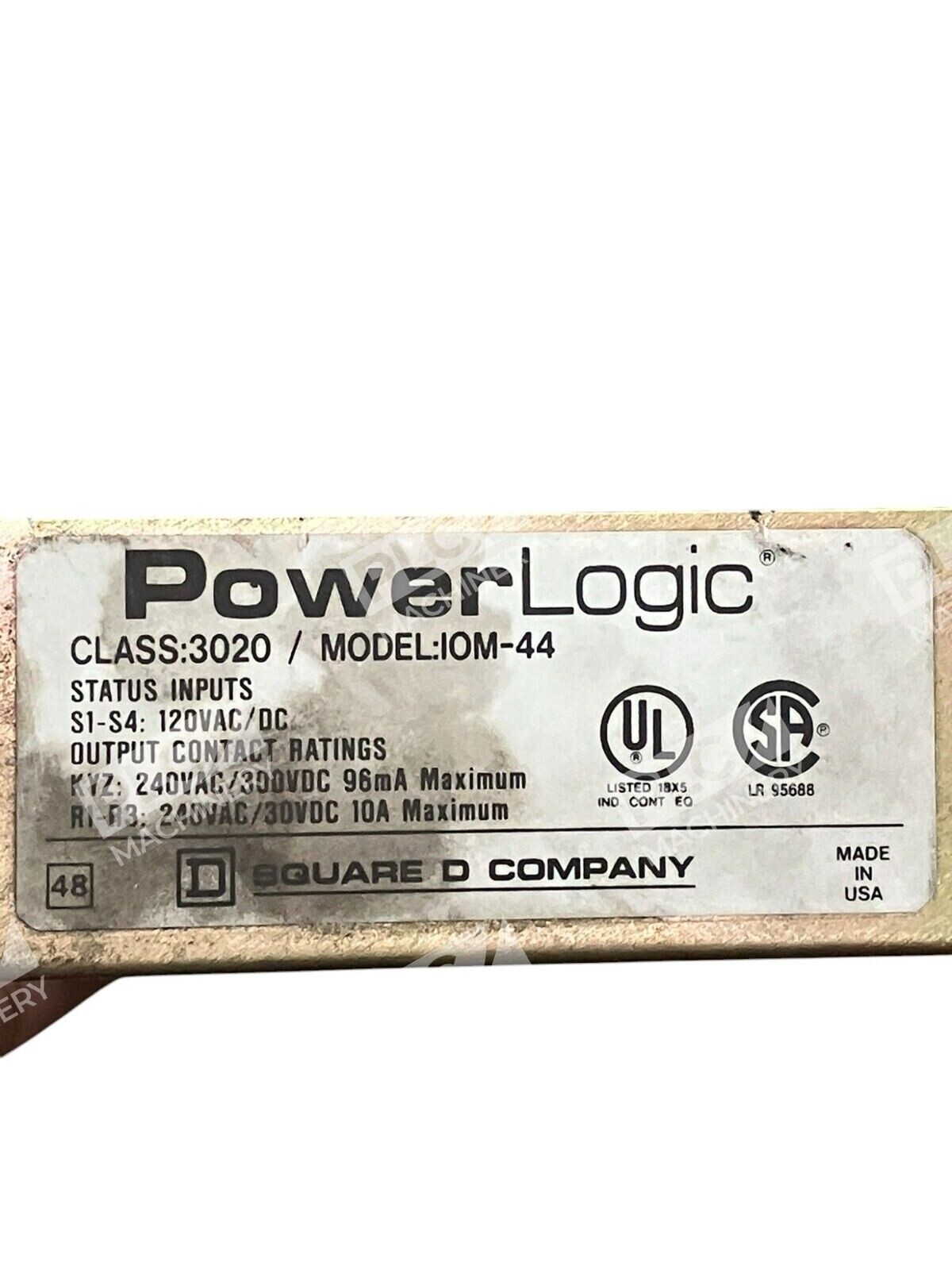

- KYZ solid-state relay: 240VAC / 300VDC rated
- KYZ output maximum rating: 96mA
- Three Form-C mechanical relays: 10A rating
- Dimensions: 6.0 in × 4.0 in × 3.0 in (15.2 cm × 10.2 cm × 7.6 cm)
- Weight: 1 lbs 9.0 oz (0.7 kg)
Typical Applications
The 3020-IOM-44 extends PowerLogic 3020 circuit monitor systems with flexible I/O control. Common uses include:
- Alarm annunciation and relay signaling in power monitoring systems
- Integration of MicroLogic full-function circuit breakers into networked automation
- Pulse output triggering for metering and energy monitoring applications
- Status input monitoring for circuit breaker conditions and equipment events
- Legacy industrial control system upgrades requiring I/O expansion
Compatibility & Replacements
Compatible With
- Schneider Electric PowerLogic 3020 circuit monitors
- Square D MicroLogic full-function circuit breaker units
- PowerLogic networked systems and cabinets
- Industrial automation control platforms requiring 120VAC/DC I/O
Replaces / Drop-In Replacement For
- Other damaged or obsolete 3020-IOM-44 modules in existing PowerLogic installations
- Previous I/O configurations in legacy circuit monitoring systems
Works With
- Schneider Electric PowerLogic software and metering platforms
- Circuit breaker networking and optical communication protocols
- Form-C relay-compatible control circuits and automation logic
- 120VAC and 100–350VDC control supply systems
