Overview

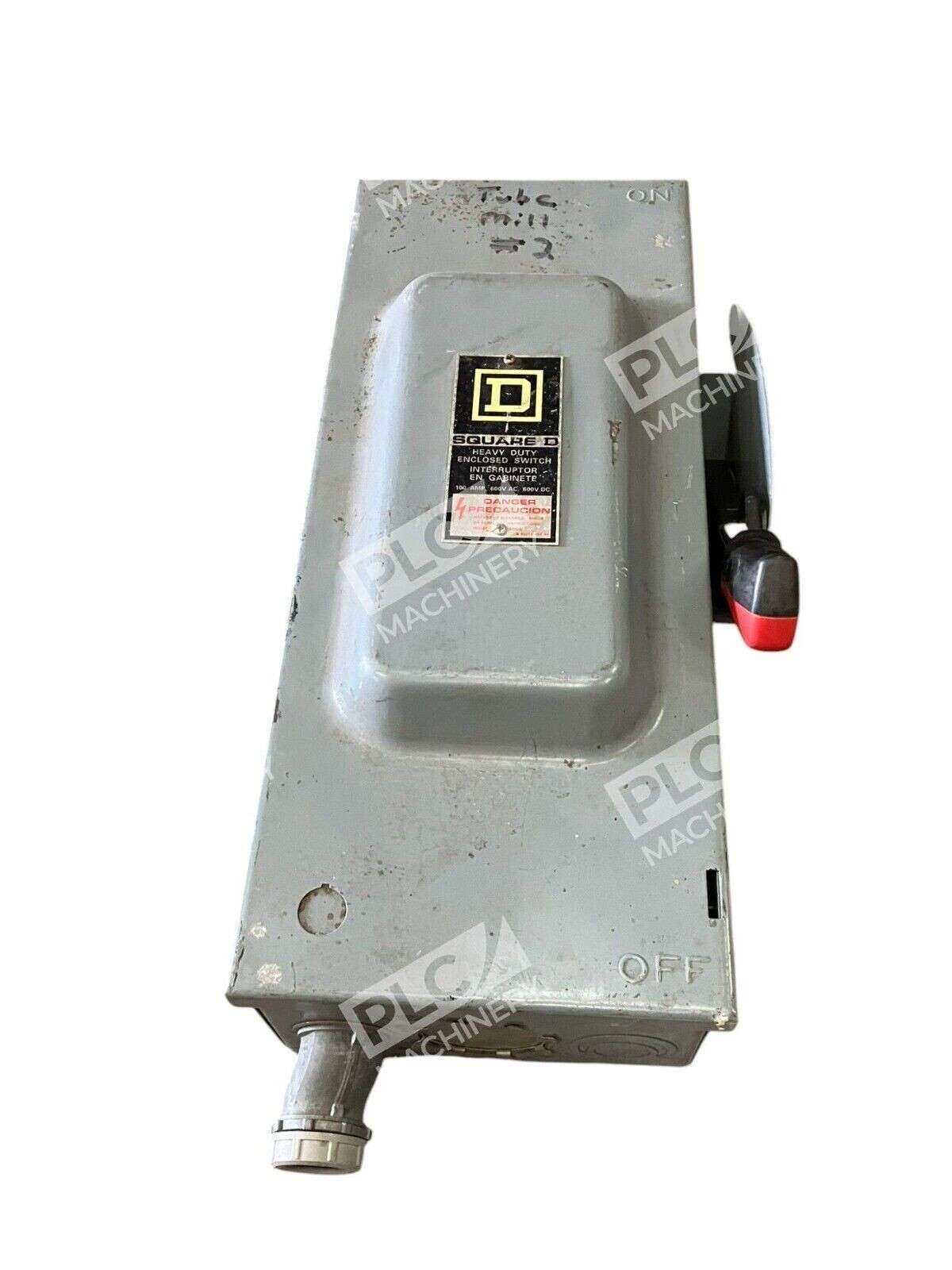

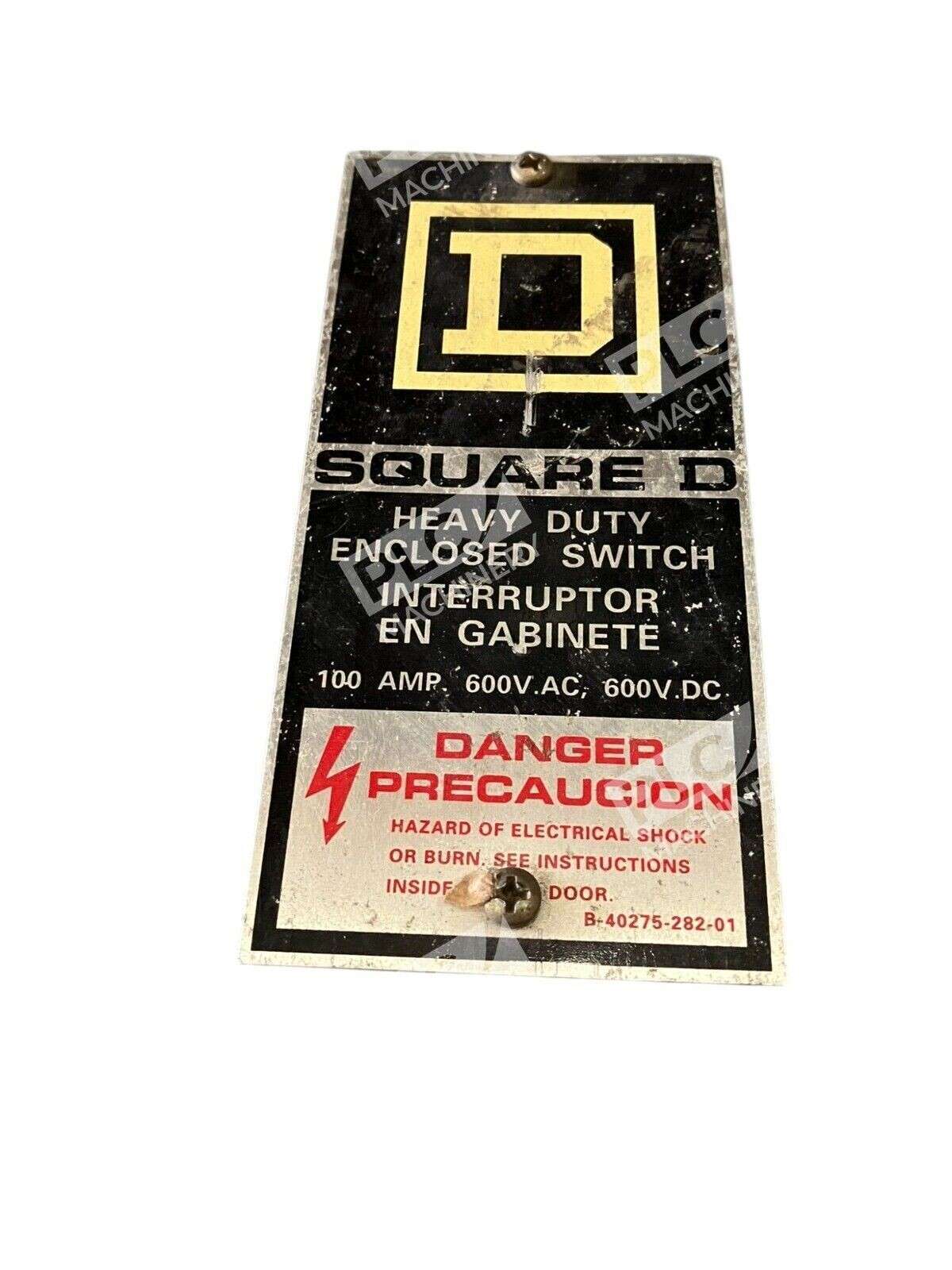

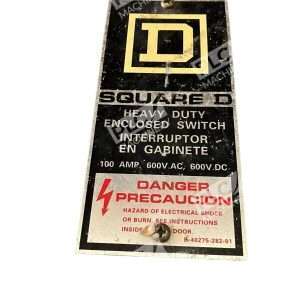

The Square D HU363 F1 100 is a heavy-duty non-fusible safety disconnect switch engineered for industrial motor control and load isolation. This single-throw switch features a 100-ampere current rating and 600VAC/DC voltage rating, housed in a NEMA 1 steel enclosure. The F-series designation indicates compliance with higher mechanical endurance standards than standard UL98 requirements, making it suitable for demanding industrial environments requiring frequent operator interaction.
Key Features
- Heavy-Duty Non-Fusible Design: Eliminates the need for separate fuse maintenance while providing fast, reliable disconnection of power to motors and loads.
- Quick-Make/Quick-Break Mechanism: Ensures rapid operational response and reduces arcing during switch transitions.
- Dual Cover Interlock: Prevents accidental access to live parts and enhances operator safety during maintenance or emergency shutdown.
- Color-Coded Indicator Handle: Provides clear visual confirmation of switch position (on/off) for safe operation in industrial settings.
- NEMA 1 Steel Enclosure: Protects internal components from dust and indirect water spray, suitable for indoor factory and control room installations.

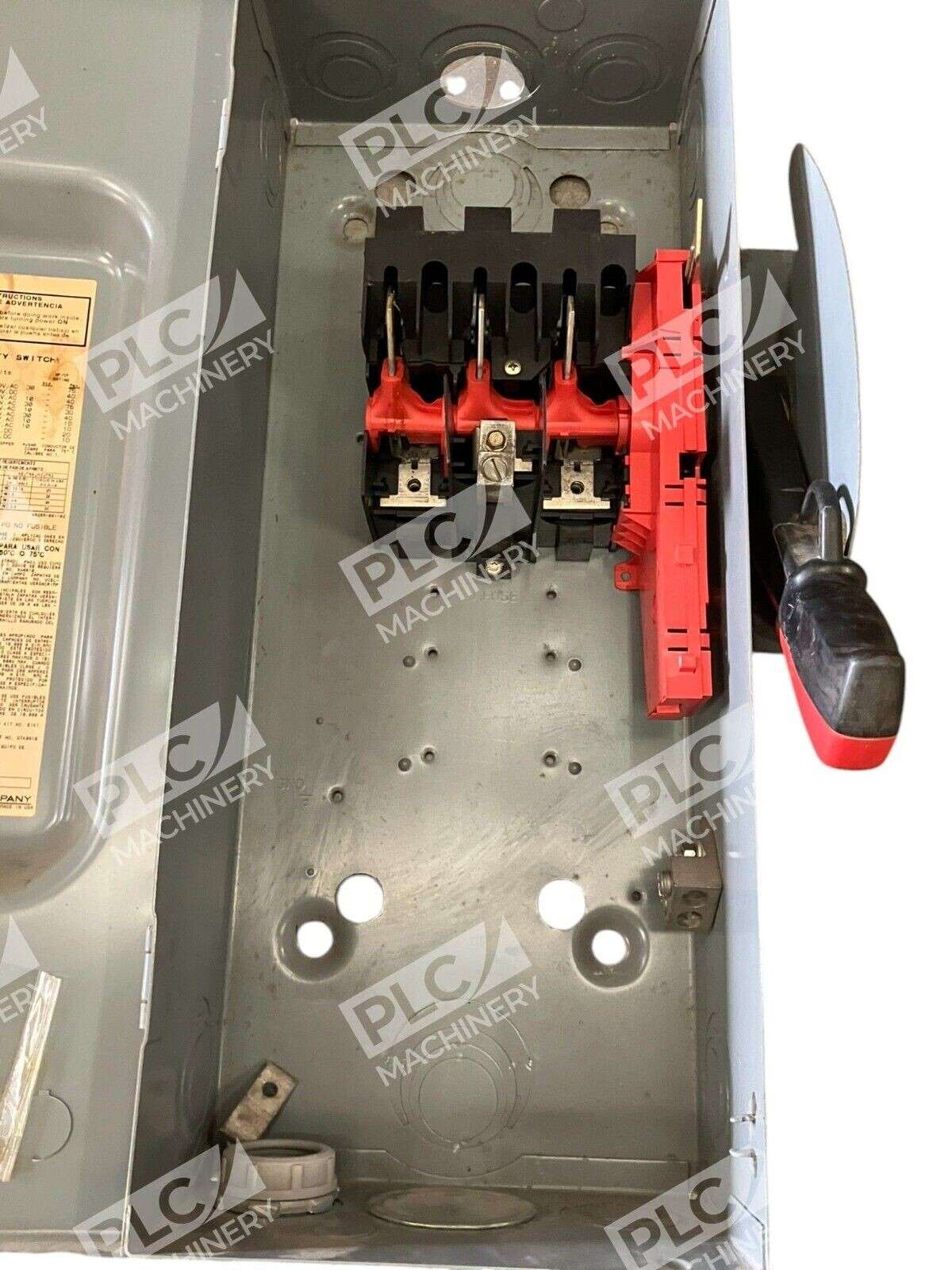

- 3-Pole, Single-Throw Configuration: Standard three-phase motor disconnection without neutral conductor path.

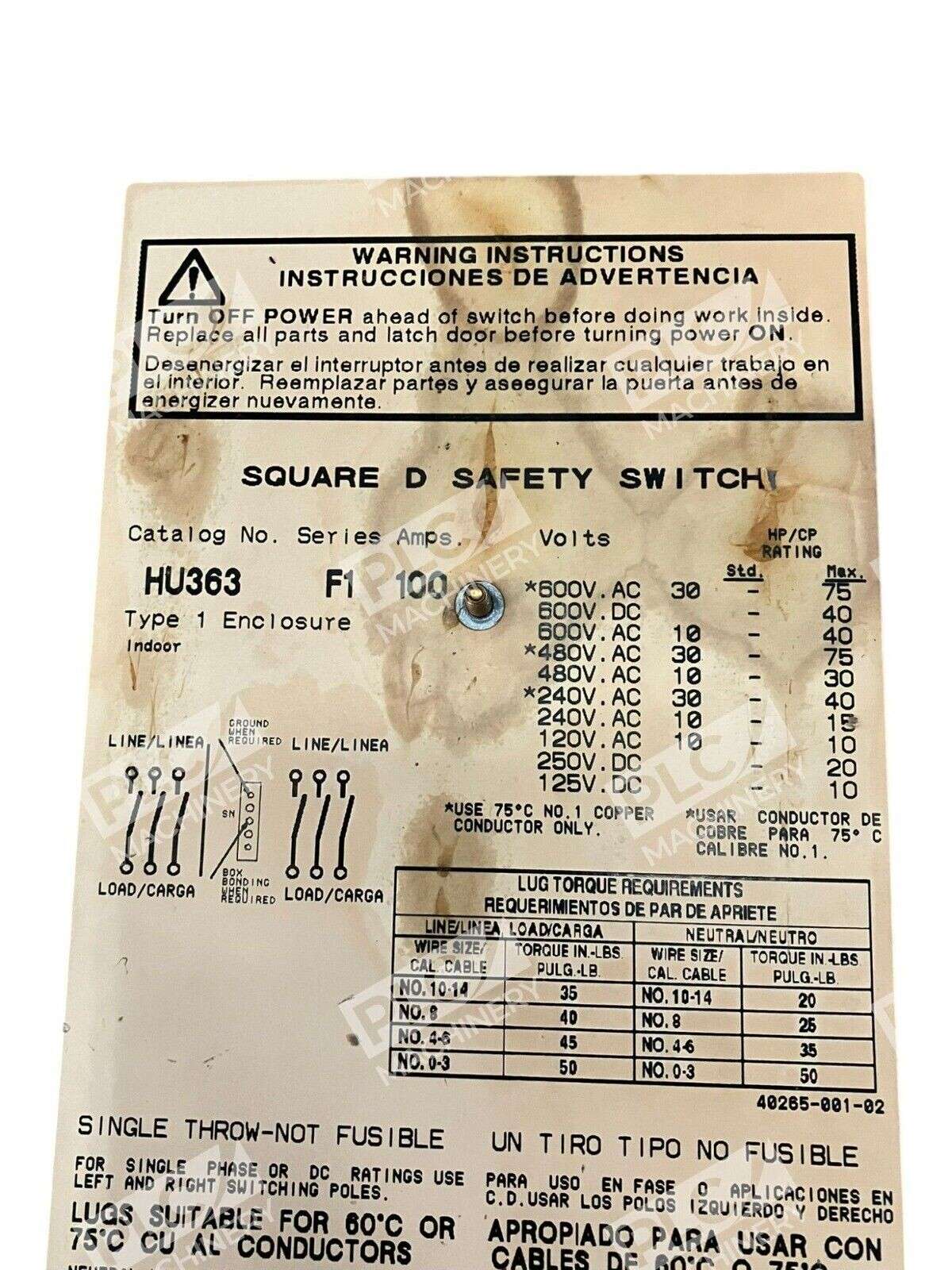

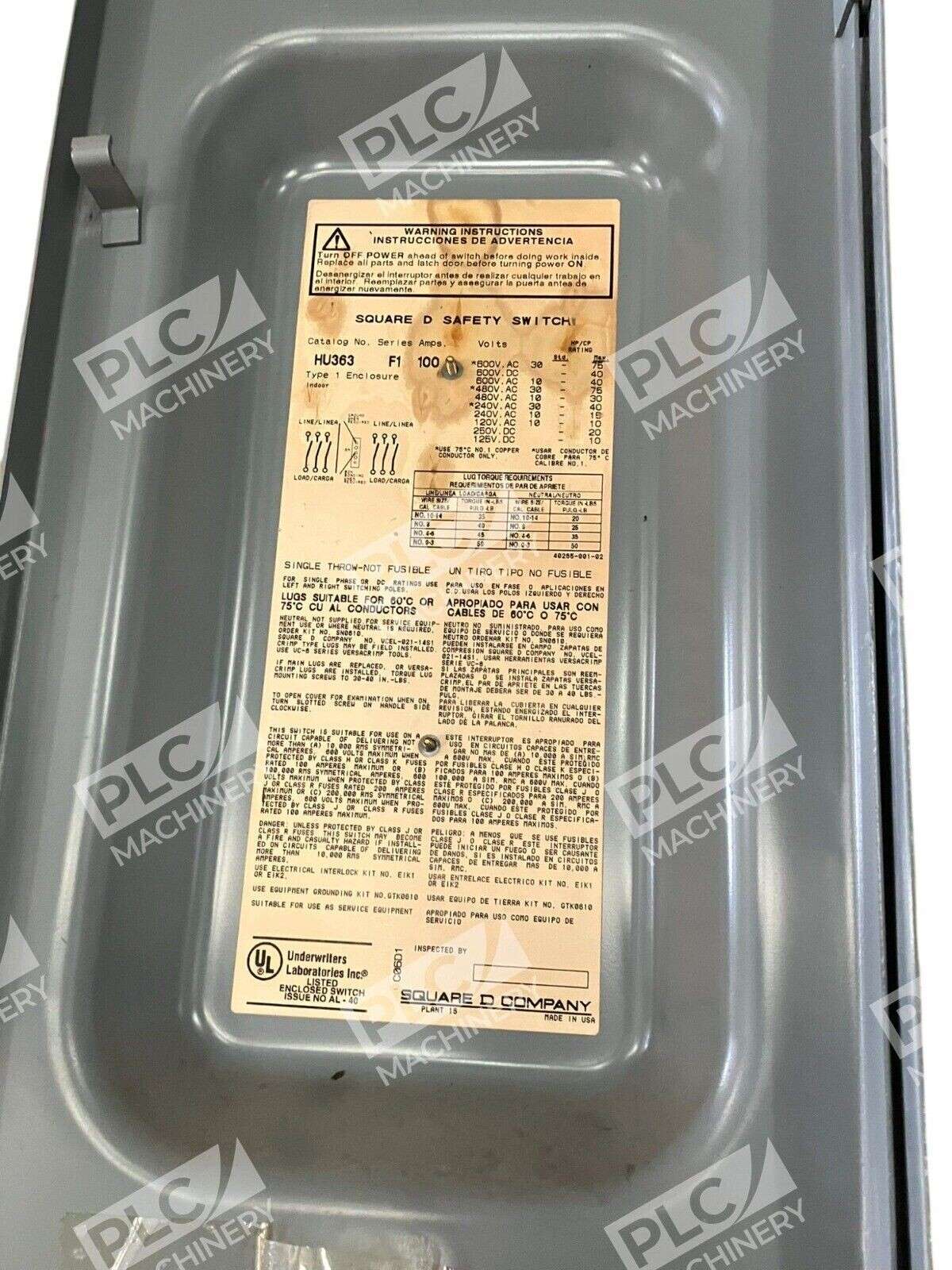

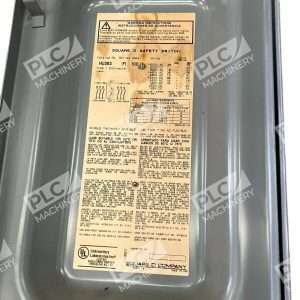

Technical Specifications
The following specifications have been verified from manufacturer and distributor sources:
- Amperage Rating: 100A
- Voltage Rating: 600VAC/DC
- Disconnect Type: Non-fusible, single-throw
- Poles/Wires: 3-pole, 3-wire
- Enclosure Type: NEMA 1, steel construction
- Wire Gauge Compatibility: 14 to 1/0 AWG copper; 12 to 1/0 AWG aluminum
- Short-Circuit Current Rating: 200 kA maximum
- Operating Frequency: 50/60 Hz
- Horsepower Ratings: Up to 100 hp at 600VAC (standard); 75 hp @ 600VAC 3-phase maximum
- Physical Dimensions: 21.25″ H × 10.25″ W × 6.38″ D
- Weight: 16 lbs
- Certifications: UL listed, CSA approved
- Series: F1 (F-series high-endurance safety switches)
Typical Applications
The Square D HU363 F1 100 is widely deployed in:
- Motor starter and drive disconnect in manufacturing and processing plants
- Machine tool and CNC equipment power isolation
- Pump and compressor motor control cabinets
- HVAC and facility equipment shutdown circuits
- Emergency power cutoff systems for industrial equipment
- Conveyor and material handling system disconnects
Compatibility & Replacements
Compatible With
- Three-phase AC industrial power systems (480V/600V)
- Motor control centers (MCCs) and control cabinets
- UL-listed motor starters and soft starters
- Thermal overload relays and control circuits
- Standard industrial disconnect enclosure openings
Replaces / Drop-In Replacement For
The HU363 F1 100 can replace other non-fusible 100A safety switches in the same NEMA 1 form factor. Verify specific model compatibility with your system integrator before ordering, as switch mounting and internal wiring must be confirmed for your installation.
Works With
- Square D motor control equipment and accessories
- Schneider Electric automation systems (Square D parent company)
- Standard industrial electrical control standards (NEC, NFPA 70)
- Facility management and preventive maintenance programs
- Both manual and electrically-interlocked control schemes
