Overview

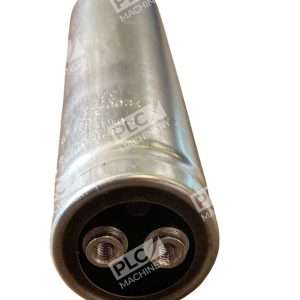

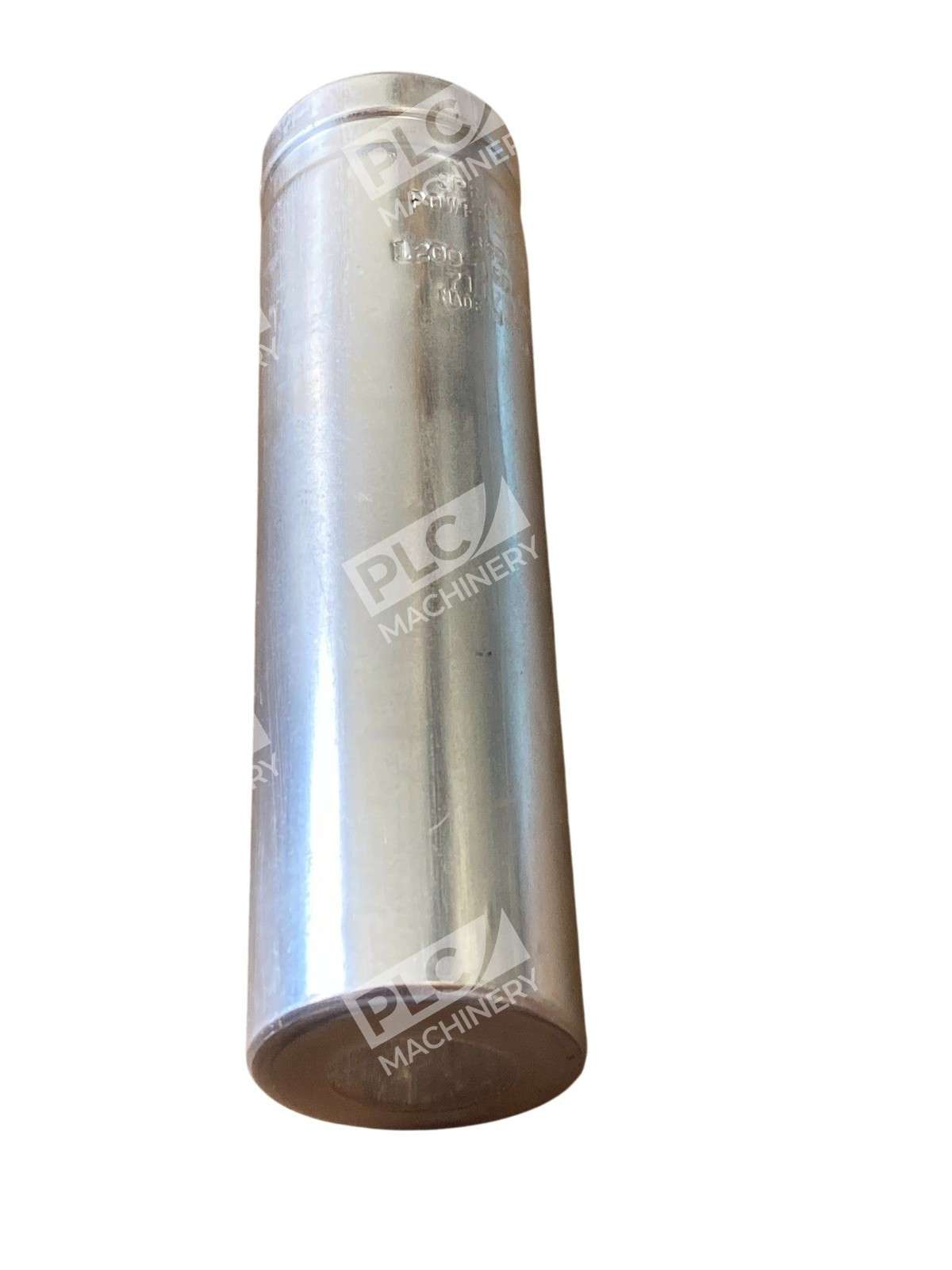

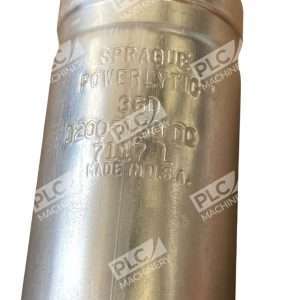

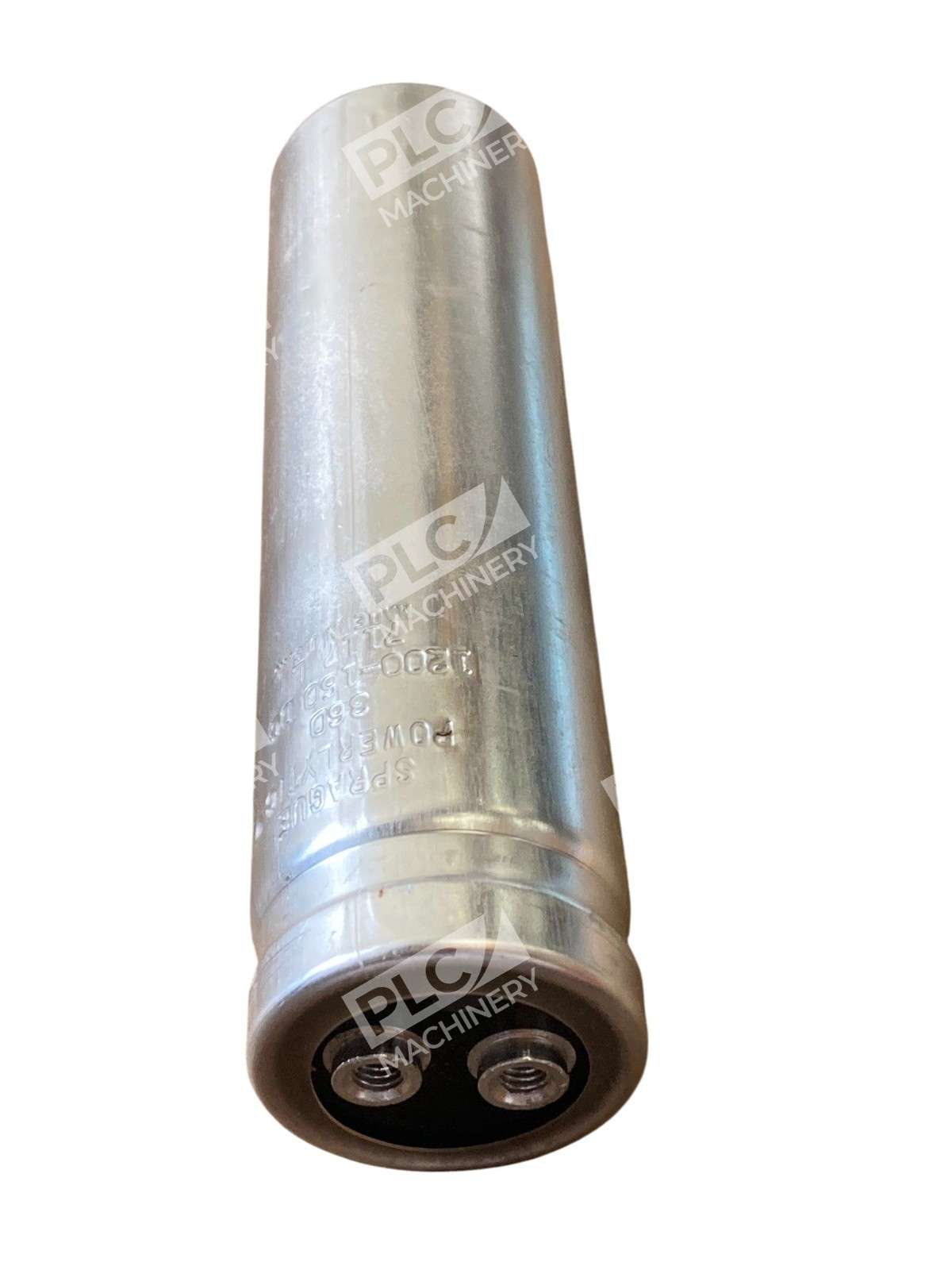

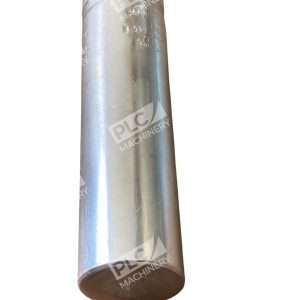

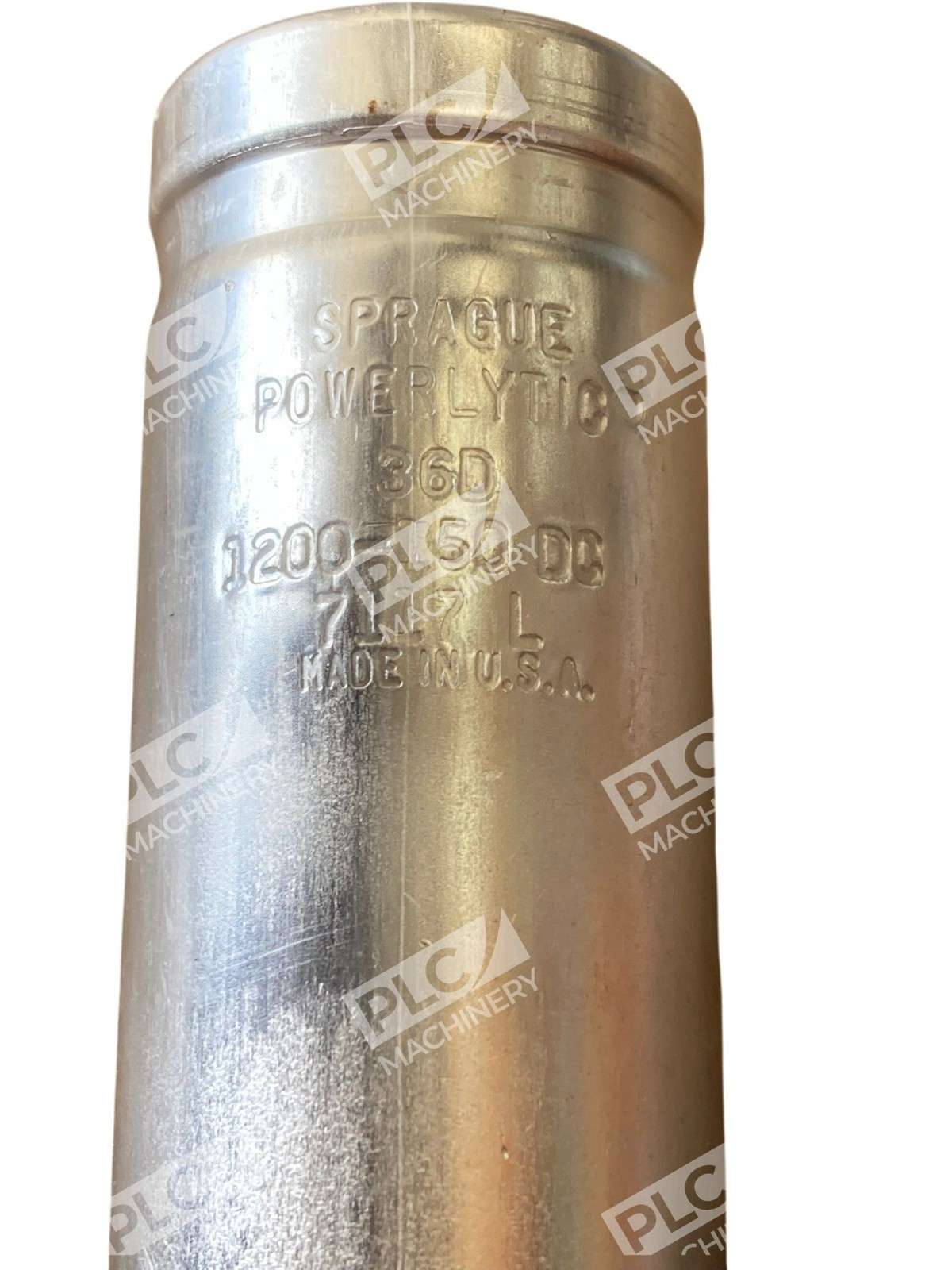

The Sprague Powerlytic 36D is a heavy-duty aluminum electrolytic capacitor designed for replacement and retrofit applications in industrial and commercial equipment. This large-can model offers 1200µF capacitance at 150V DC rating with proven reliability in demanding power storage and filtering applications. Built with durable aluminum construction and screw terminals, the 36D delivers consistent performance with minimal maintenance requirements.
Key Features
- High Capacitance Density — High capacitance per case size
- Robust Ripple Current Rating — High ripple current capability for switching power supplies and inverters
- Low Leakage Current — Low leakage current ensures extended circuit reliability
- Long Service Life — Long shelf life and operating life extends equipment uptime
- Proven Replacement Solution — Type 36D ratings recommended for replacement applications only
Technical Specifications
The Sprague Powerlytic 36D is available in multiple voltage and capacitance configurations. Key operating parameters include:
- Operating Temperature: −40 °C to +85 °C
- Useful Life: 1000 h at +85 °C
- Terminal Type: Screw terminal
- Capacitor Family: Large-can format for high-energy storage applications
- Tolerance: −10% / +75%
Typical Applications
- Power supply filtering in industrial equipment
- Energy storage in DC systems and battery backup circuits
- Switching power supply smoothing in switching regulators and inverters
- Retrofit and replacement capacitor in legacy and industrial control systems
- UPS and emergency lighting backup systems
Compatibility & Replacements
Compatible With
- Industrial DC power supplies rated 150V and below
- Industrial and commercial electronic control systems
- Power conditioning and filtering circuits
- High-current switching applications
Replaces / Drop-In Replacement For
The Sprague Powerlytic 36D with matching voltage and capacitance ratings serves as a direct replacement for legacy aluminum electrolytic capacitors in similar applications. Verify exact voltage, capacitance, and terminal type compatibility before ordering.
Works With
- AC/DC power supply circuits
- Rectifier filter and energy storage stages
- Industrial switching regulators and converters
- General purpose DC power distribution systems
