Overview

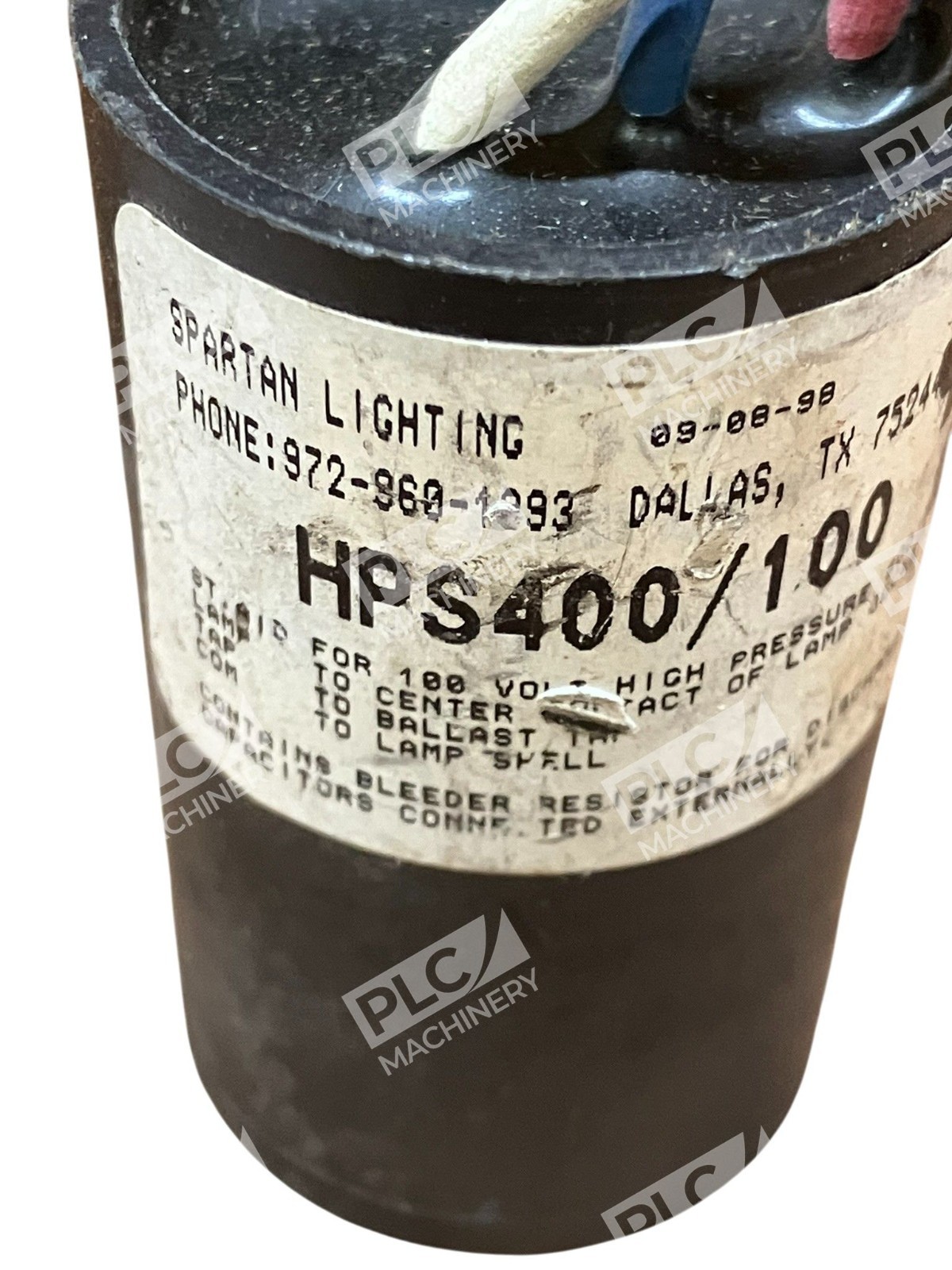

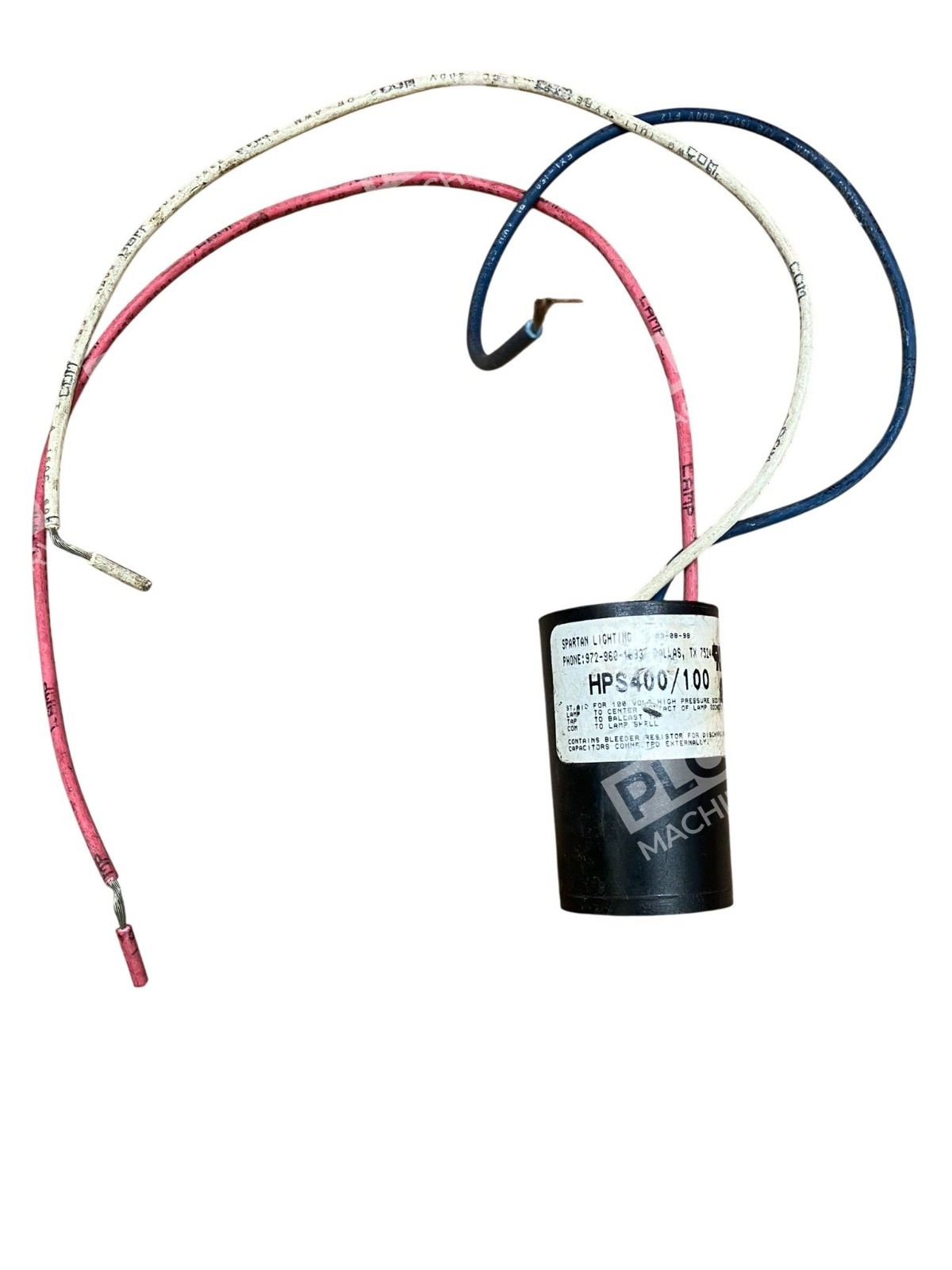

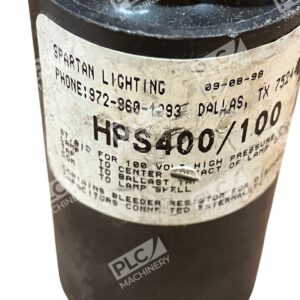

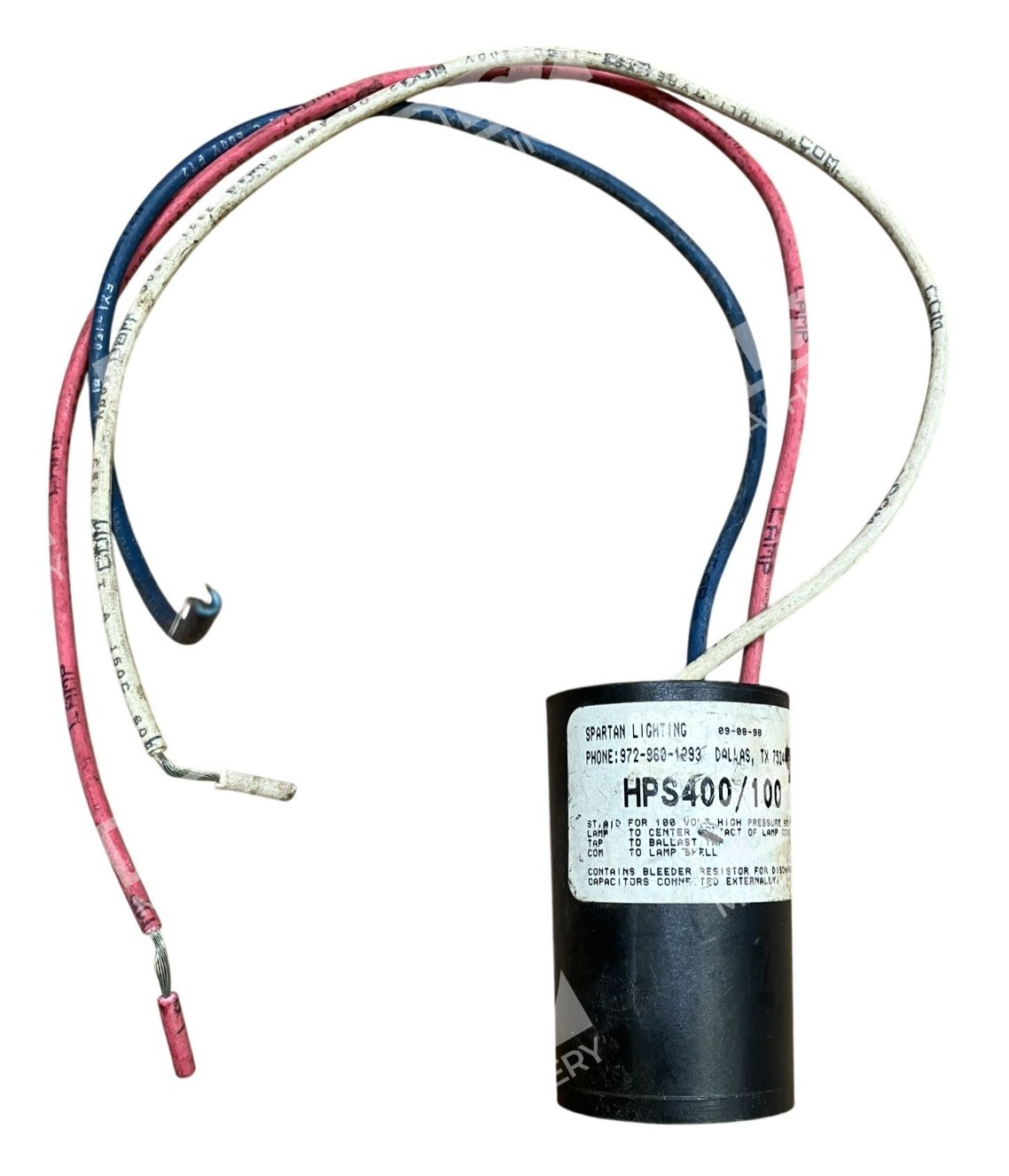

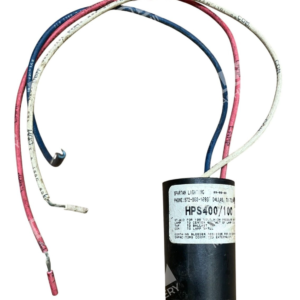

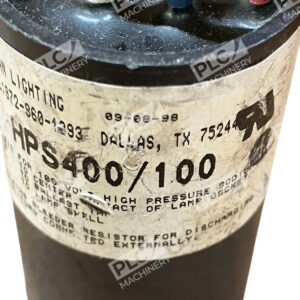

The Spartan Lighting HPS400/100 is a 400W high-pressure sodium ballast kit designed for industrial, commercial, and horticulture lighting systems. This magnetic ballast unit features a constant wattage autotransformer (CWA) circuit that maintains stable arc voltage and lamp wattage across multiple input voltages. The kit arrives complete with pre-wired capacitor, ignitor (starter), mounting brackets, and hardware—making installation straightforward in retrofit or new-build applications.
Key Features
- 400W power output for S51/M169 high-pressure sodium lamps
- Quad-tap input: 120V, 208V, 240V, 277V operation
- Constant wattage autotransformer (CWA) circuit for stable lamp performance
- Pre-assembled kit includes ballast, capacitor, ignitor, and mounting hardware
- Typical applications: retail stores, parking lots, roadways, sports facilities, greenhouse lighting
- Copper/aluminum windings with 180°C insulation class
Technical Specifications
The Spartan Lighting HPS400/100 meets standard high-pressure sodium ballast specifications:
- Lamp Type: High Pressure Sodium (HPS), ANSI S51
- Lamp Wattage: 400W
- Input Voltage: 120V / 208V / 240V / 277V (quad-tap, field-selectable)
- Circuit Type: Constant Wattage Autotransformer (CWA)
- Starting Method: Electronic ignitor (pulse start)
- Insulation Class: 180°C
- Kit Contents: Core & coil ballast, capacitor, ignitor, mounting brackets, installation guide
- Power Factor: High power factor design
Typical Applications
HPS ballast kits are widely used in outdoor and high-bay lighting:
- Retail store perimeter and parking lot lighting
- Sports arenas, stadium lighting
- Street and roadway illumination
- Industrial warehouse high-bay fixtures
- Greenhouse and horticultural grow lighting
- Security and area lighting
Compatibility & Replacements
Compatible With
- 400W High Pressure Sodium lamps (ANSI S51, M169)
- Standard HPS lighting fixtures with ballast mounting provisions
- Multi-tap industrial lighting control systems
- Building electrical systems rated 120V–277V, 50/60 Hz
Replaces / Drop-In Replacement For
The Spartan Lighting HPS400/100 is compatible with industry-standard 400W HPS ballast mounting and wiring. Verify mounting dimensions and tap configuration with your specific fixture or consult the installation guide before ordering.
Works With
- Standard HPS magnetic ballast wiring and controls
- Photocell and time-clock dimming systems
- High-voltage contactors and lighting relays
- Electronic ignitors and capacitor-start circuitry
- Standard 1/2″ and 3/4″ conduit entry fittings
