Overview

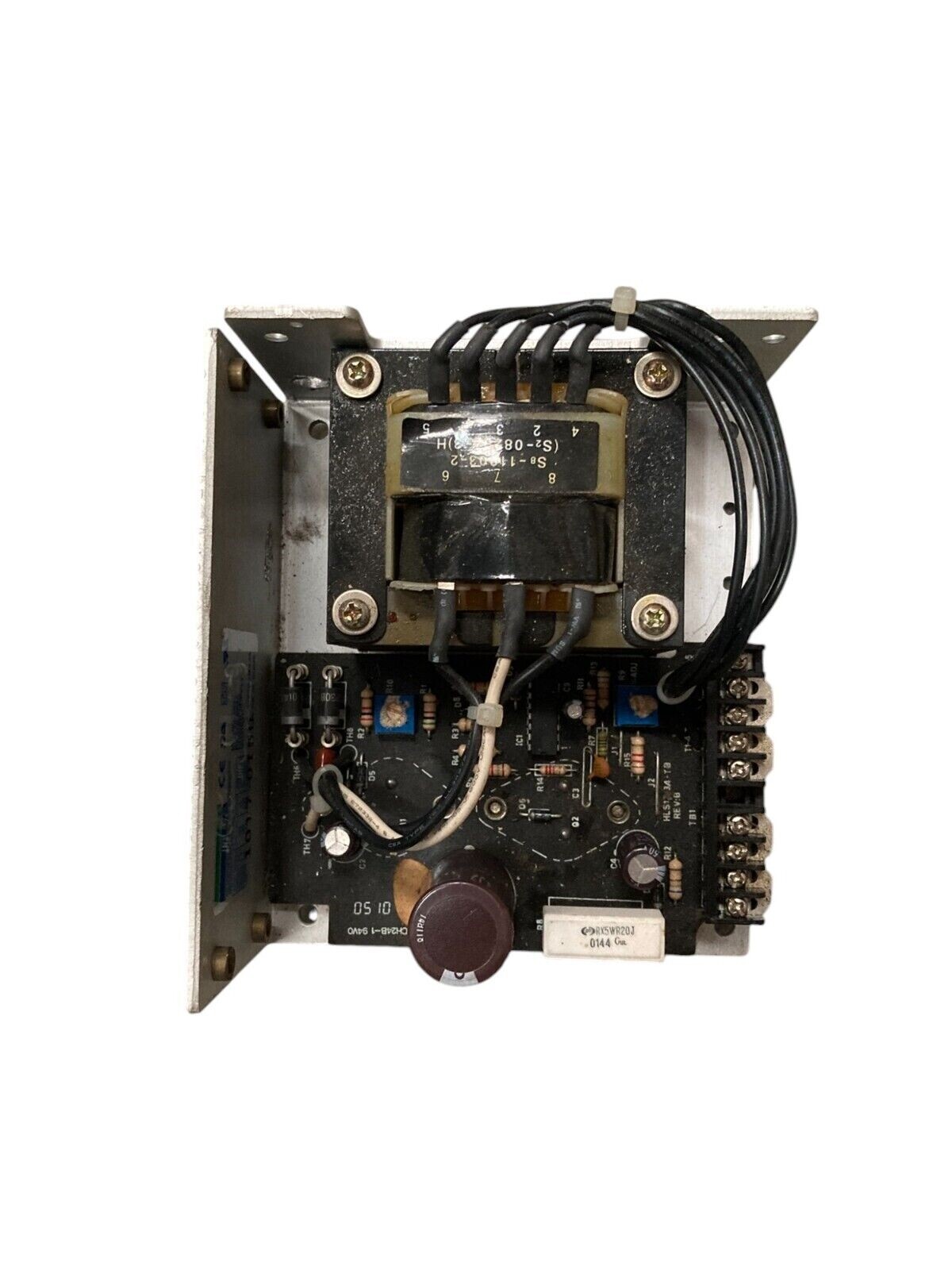

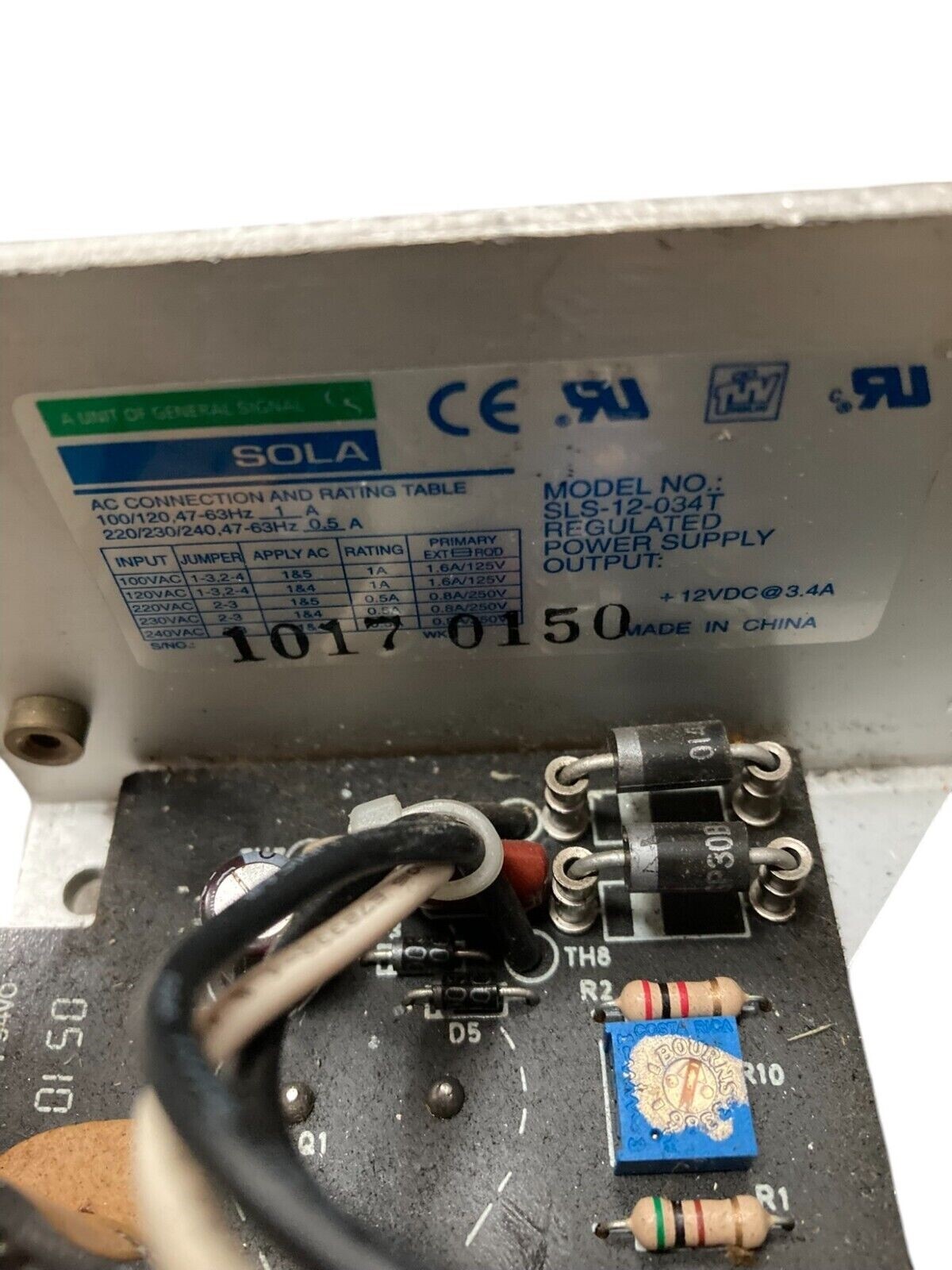

The Sola SLS-12-034T is a Silver Line Series single-output linear power supply from SolaHD (an Emerson brand). It delivers clean 12VDC output at 3.4A (40.8W total) with extremely quiet, low-noise DC characteristics. The unit features selectable input voltage selection (100V, 120V, 220V, 230V, or 240V AC) and standard screw terminal connections, making it suitable for noise-sensitive analog circuits, instrumentation, microprocessor systems, and industrial control equipment.
Key Features
- Single fixed 12VDC output at 3.4A (40.8W)
- Selectable input voltage: 100/120/220/230/240V AC
- Low-noise linear regulation with extremely quiet DC output
- Built-in overvoltage protection (OVP) and automatic resetting overload/short-circuit protection
- Industry-standard open-frame footprint with optional covers available
- Fast transient response for test and measurement applications
- RoHS compliant
Technical Specifications
- Output Voltage: 12V DC (fixed)
- Output Current: 3.4A maximum
- Power Rating: 40.8W
- Input Voltage AC: 100/120/220/230/240V (selectable)
- Input Frequency: 47–63 Hz
- Number of Outputs: 1
- Regulation Type: Linear
- Connection: Screw terminals (standard)
- Dimensions (Case B1): 5.62" H × 4.87" W × 1.28" D
- Operating Temperature Range: 32°F to 122°F (0–50°C)
- RoHS Compliant: Yes
Typical Applications
The SLS-12-034T is widely used in industrial control circuits, instrumentation, CNC machinery, food industry equipment, analog circuits, microprocessor circuits, and sensor applications. Its low-noise output makes it particularly suitable for signal conditioning, test equipment, and any system requiring clean, stable 12V DC power without electromagnetic interference.
Compatibility & Replacements
Compatible With
- Industrial control systems requiring 12VDC power
- Instrumentation and test equipment
- Noise-sensitive analog and microprocessor circuits
- CNC machinery and process control
- Sensor and signal conditioning equipment
Replaces / Drop-In Replacement For
The SLS-12-034T follows the industry-standard Silver Line Series footprint. Verify specific model cross-references with your system integrator before ordering, as exact mechanical and electrical compatibility depends on your application’s mounting and terminal configuration.
Works With
- Standard 50/60 Hz industrial power distribution
- Screw terminal or 7.62mm pitch connector installations
- 12V DC control circuits and relay logic systems
- Industrial automation PLC and drive supply circuits
